- Model: MQ-5
- Operating Voltage: 5V DC
- Operating Temperature: -20 to +40°C
- Interface Type: Analog & Digital
Description:

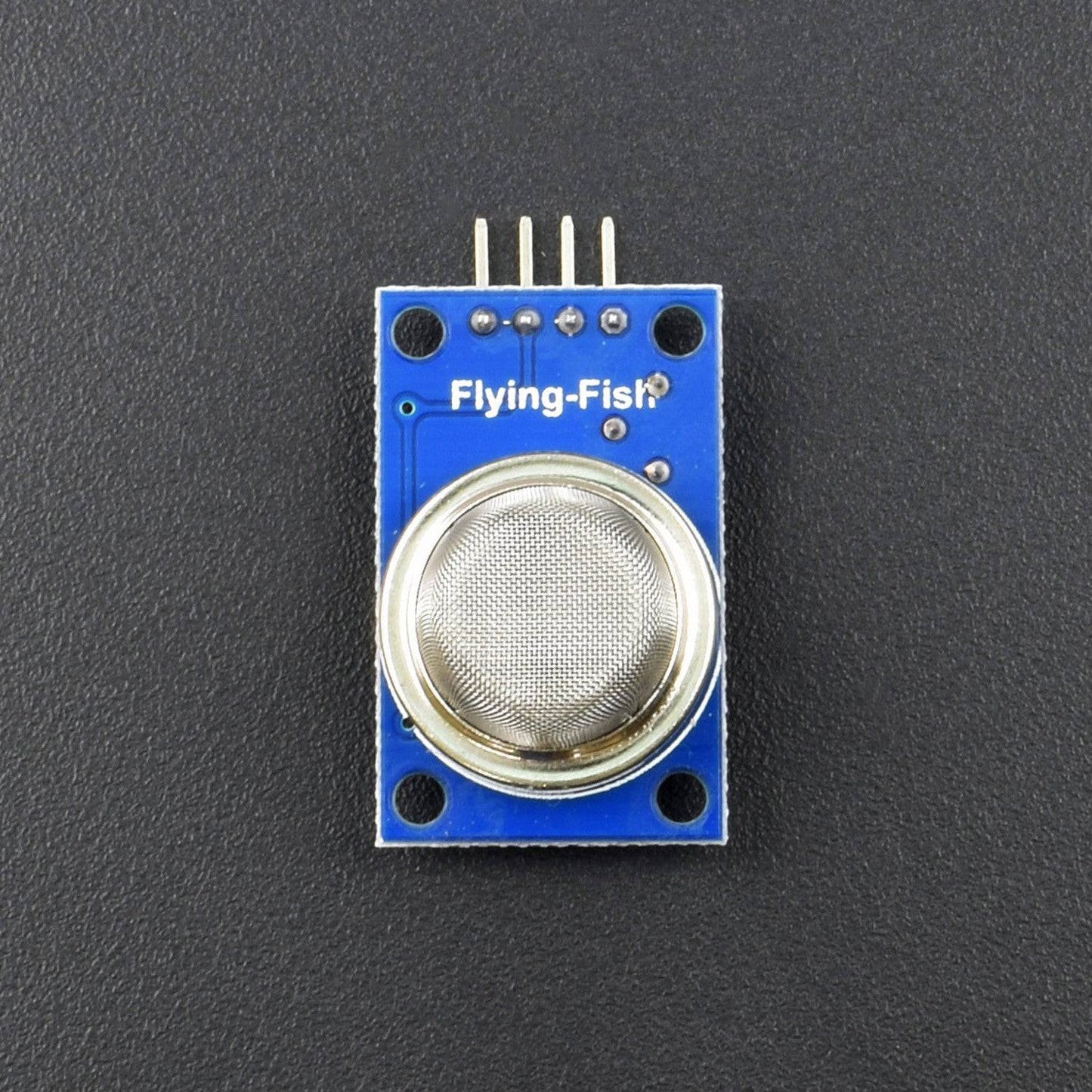

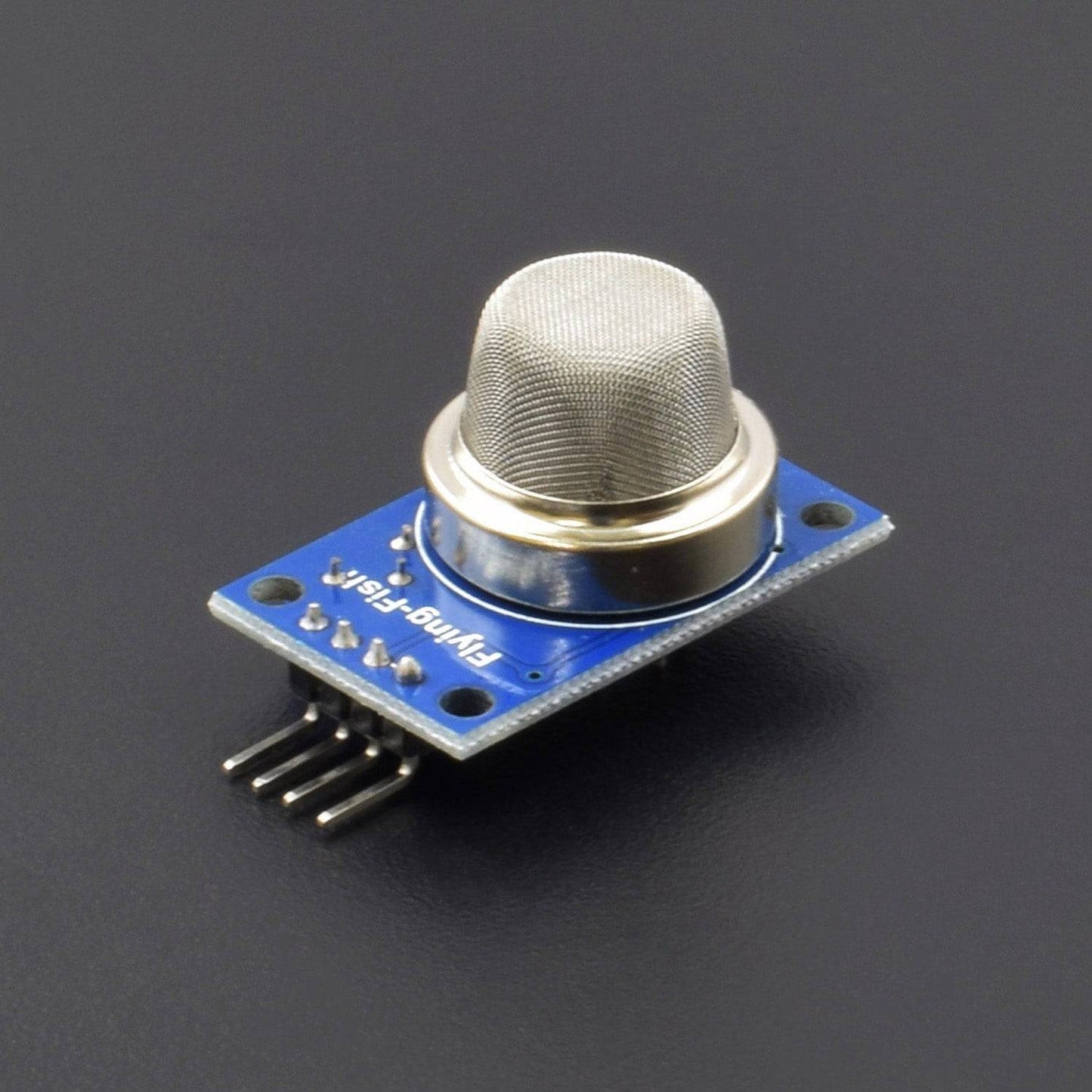

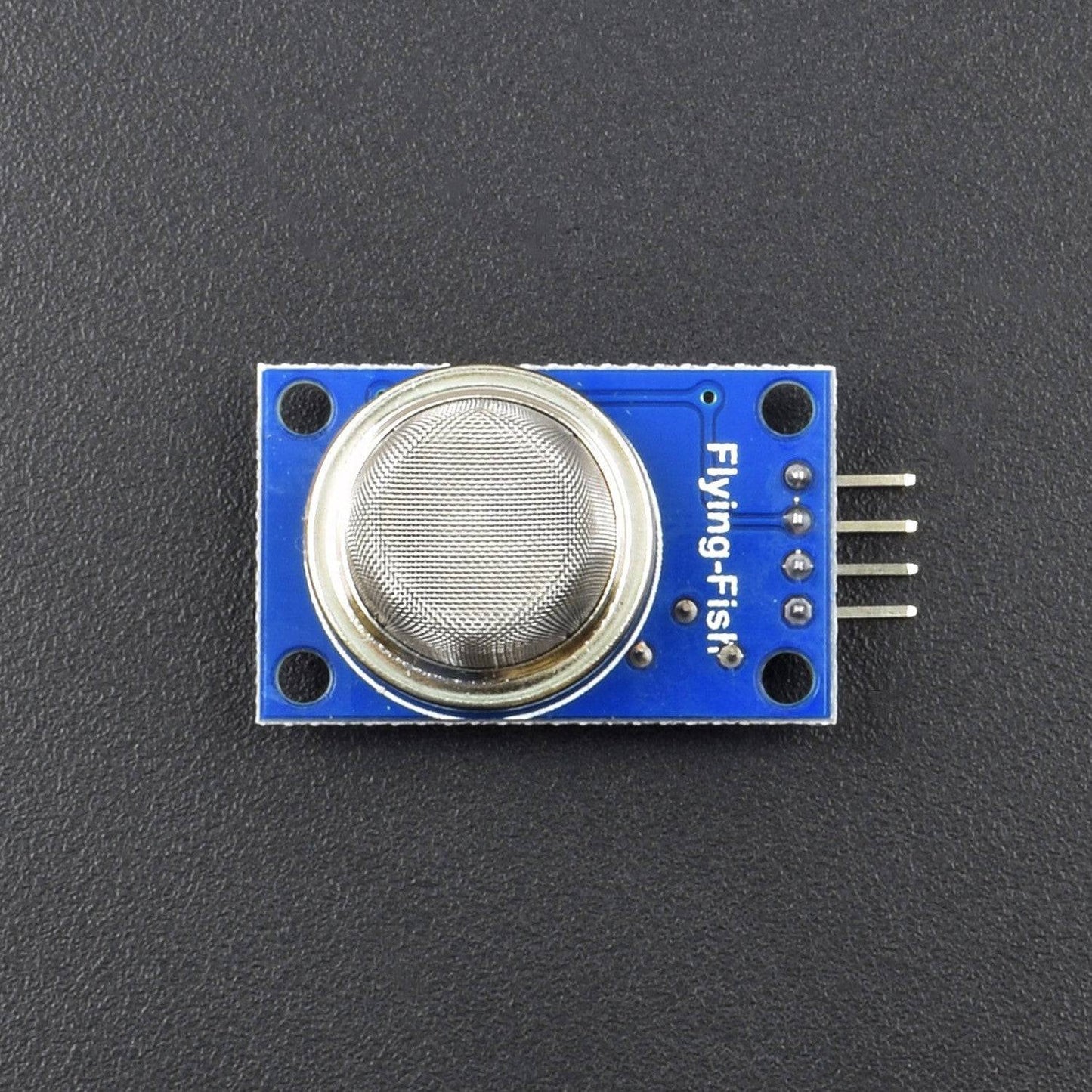

This is a very easy-to-use low-cost semiconductor Gas sensor Module with analogue and digital output. This module uses an MQ5 gas sensor as a gas sensing element. It requires no external components just plug in Vcc & ground pins and you are ready to go. For Digital output, the threshold value can be easily set by an onboard potentiometer. Using this module you can easily interface the MQ5 gas Sensor to any Microcontroller, Arduino or even Raspberry Pi. This Gas Sensor module is sensitive to LPG, natural Gas & Town Gas. it is also small sensitivity to alcohol & smoke.
Specification:
- Model: MQ-5
- Operating Voltage: 5V DC
- Operating Temperature: -20 to +40°C
- Interface Type: Analog & Digital
Features:
- High sensitivity to LPG, natural gas, and town gas.
- Small sensitivity to alcohol, and smoke.
- Stable and long life.
- Simple drive circuit.
- Fast response.
Application:
- Domestic gas leakage detector
- Industrial Combustible gas detector
- Portable gas detector

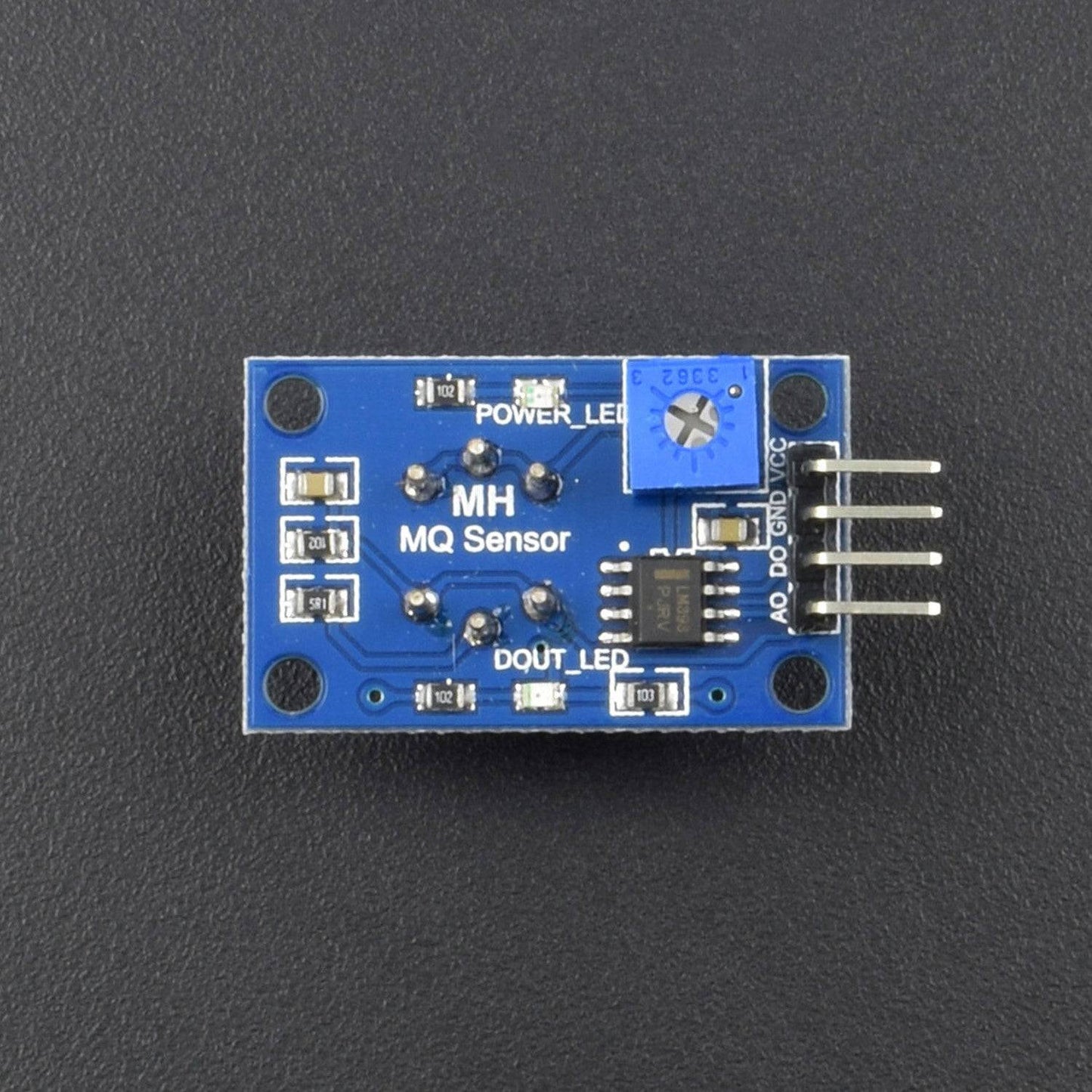

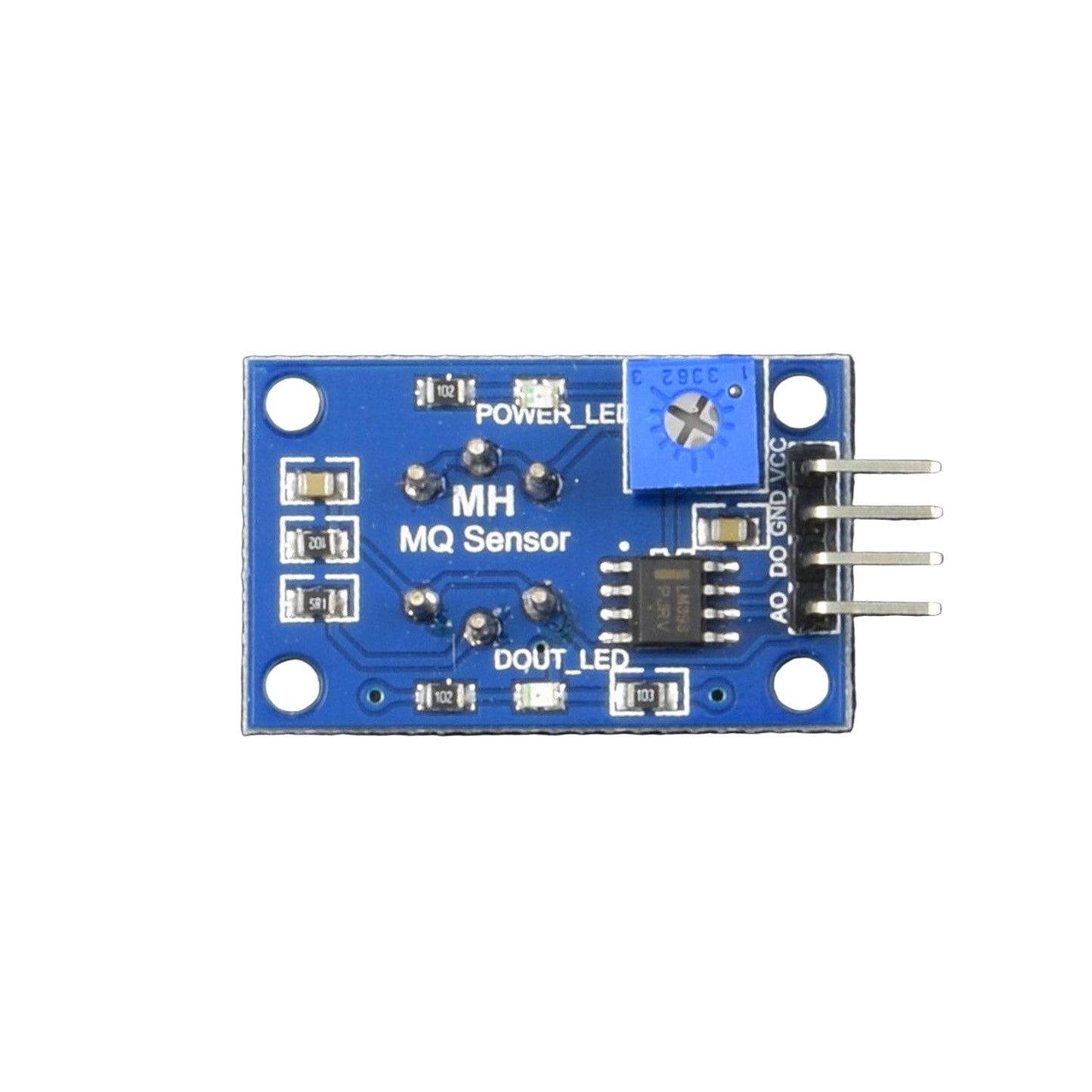

Pin Description:
- VCC:2.5V ~ 5.0V
- GND:ground
- AO:MCU.IO (analogue output)
- DO:MCU.IO (digital output)
Package Included:
1 x MQ-5 Gas Sensor Module for Combustible Gas Liquefied Gas Methane Propane Butane Leak Detection by Optimus Electric
