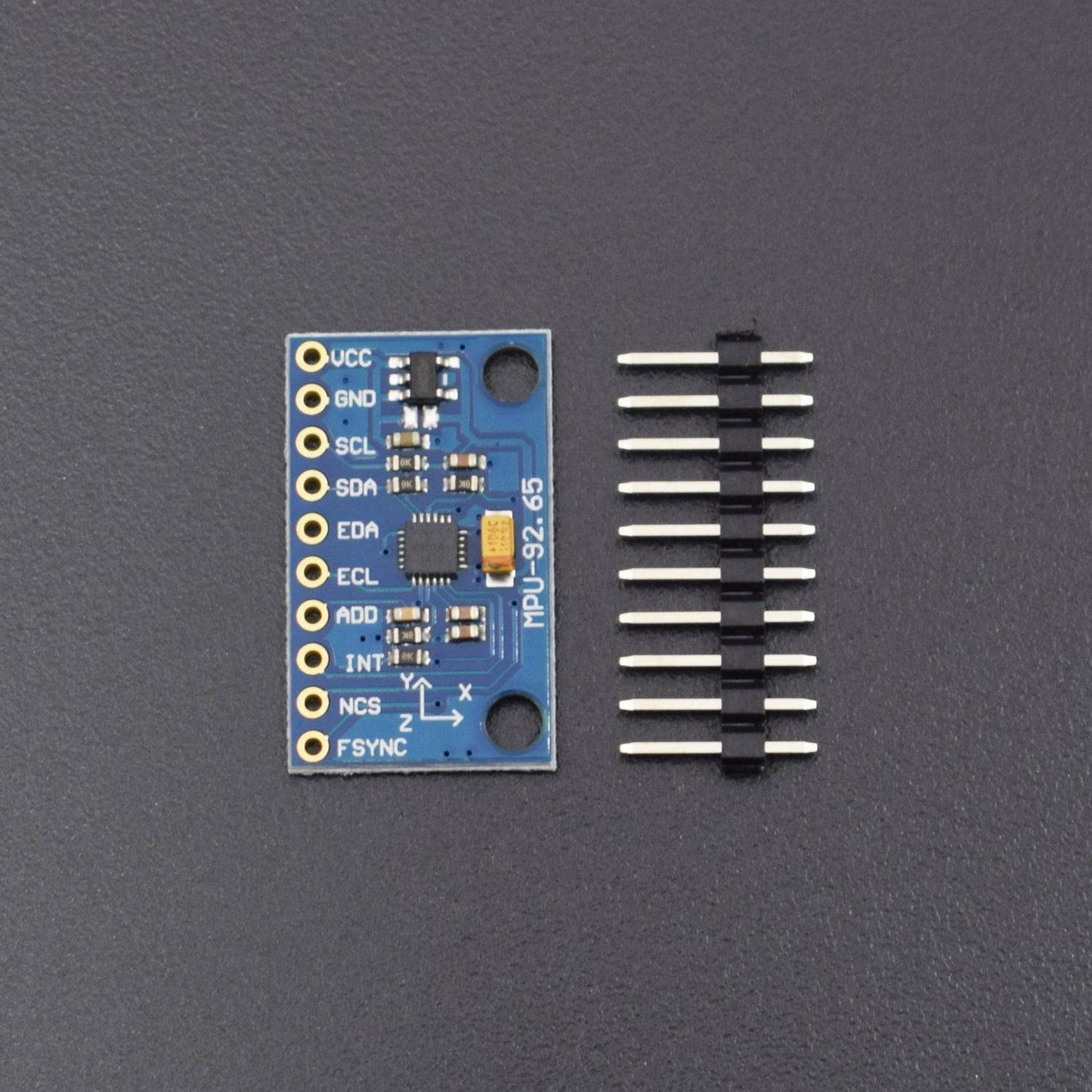

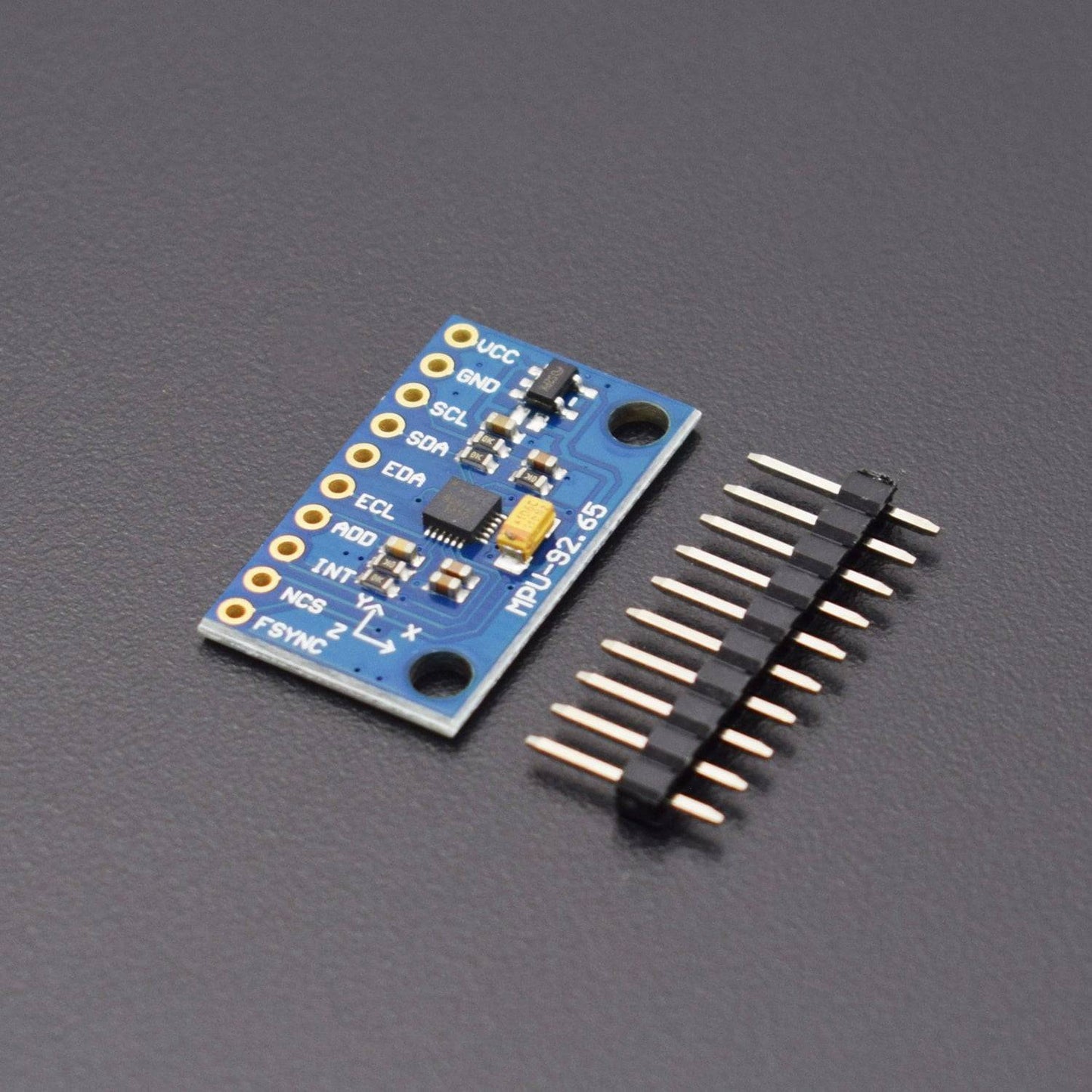

MPU-9255 GY-9255 3-5V I2C 9DO Attitude Sensor Compass Accelerator Gyro Module - RS1114

MPU-9255 GY-9255 3-5V I2C 9DO Attitude Sensor Compass Accelerator Gyro Module - RS1114

SKU:RS1114

Low stock: 2 left

Regular price Rs. 594.00
Regular price Sale price Rs. 594.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Voltage:3-5V
  • Model:GY-9255
  • Chip:MPU-9255
  • Gyroscope Range:+/-250/500/1000/2000 degree/s
  • Acceleration Range:+/-2/4/6/8/16g

Description :

The GY-9255 sensor uses MPU-9255 chip which is a 9-axis sensor which packages the accelerometer, gyroscope, magnetometer together each provides data for x, y and z-axes. Other than the three mentioned sensors, it also has other features like Pedometer, Motion and Tap detection, and Temperature. It’s really sensitive low field magnetic sensor. MPU-9255 is also designed to interface with multiple non-inertial digital sensors, such as pressure sensors, on its auxiliary I2C port and it guaranteeing optimal motion performance for users.

Product Features:

Chip:MPU-9255
Voltage:3-5V
Communication Type: standard IIC communication protocol
Built-In 16bit AD converter, 16-bit data output
Gyroscope Range:+/-250/500/1000/2000 degree/s
Acceleration Range:+/-2/4/6/8/16g
Magnetic Field:+/-1200uT
Pin Space:2.54mm

pin :

  • The input voltage is about 3.3 volt usually from Arduino kit.
  • SCL: Clock line for I2C or SPI communication it may connect to pin 5 of the Arduino or pin 21 of the Mega 2560 in SPI mode this is the clock line.
  • SDA: Data line for I2C or SPI. For I2C it connects to Arduino pin 4 or Mega 2560 pin 20. For SPI it is data input line.
  • EDA and ECL: These two pins are for serial communication to the external sensor or device. 2
  • ADO: In I2C mode, it is used to define the address of the sensor. In SPI mode, this is the data output line.
  • INT: Interrupt line where the sensor can notify the Arduino when data is ready or motion is detected, depending on the configuration.
  • NCS: Chip select pin, used in SPI mode.
  • FSYNC: Can be used for different purposes depending on the configuration.

Features :

  • Gyroscope Features :
  1. The triple-axis MEMS gyroscope in the MPU-9255 includes a wide range of features:
  2. Digital-output X-, Y-, and Z-Axis angular rate sensors (gyroscopes) with a user programmable full-scale range of ±250, ±500, ±1000, and ±2000°/sec and integrated 16-bit ADC.
  3. Digitally-programmable low-pass filter
  4. Gyroscope operating current: 3.2mA
  5. Sleep mode current: 8µA
  6. Factory calibrated sensitivity scale factor
  7. Self-test
  • Accelerometer Features
  1. Digital-output triple-axis accelerometer with a programmable full-scale range of ±2g, ±4g, ±8g, and ±16g and integrated 16-bit ADC.
  2. Accelerometer normal operating current: 450µA
  3. Low power accelerometer mode current: 8.4µA at 0.98Hz, 19.8µA at 31.25Hz
  4. Sleep mode current: 8µA
  5. User-programmable interrupts
  6. Wake-on-motion interrupt for low power operation of applications processor
  7. Self-test
  • Magnetometer Features
  1. 3-axis silicon monolithic Hall-effect magnetic sensor with magnetic concentrator
  2. Wide dynamic measurement range and high resolution with lower current consumption.
  3. Output data resolution of 14 bit (0.6µT/LSB) or 16 bit (15µT/LSB)
  4. Full-scale measurement range is ±4800µT
  5. Magnetometer normal operating current: 280µA at an 8Hz repetition rate
  6. Self-test function with an internal magnetic source to confirm magnetic sensor operation.
  • General Features
  1. Auxiliary master I2C bus for reading data from external sensors.
  2. 3.5mA operating current when all 9 motion sensing axes and the DMP are enabled.
  3. VDD supply voltage range of 2.4 – 3.6V.
  4. Minimal cross-axis sensitivity between the accelerometer, gyroscope and magnetometer axes.
  5. 512 byte FIFO buffer enables the applications processor to read the data in bursts.
  6. Digital-output temperature sensor.
  7. User-programmable digital filters for gyroscope, accelerometer, and temp sensor.
  8. 400kHz Fast Mode I2C for communicating with all registers.
  9. 1MHz SPI serial interface for communicating with all registers.
  10. 20MHz SPI serial interface for reading sensor and interrupt registers.
  11. MEMS structure hermetically sealed and bonded at the wafer level.
  12. RoHS and Green Compliant.


Package Included :

1 x MPU-9255 GY-9255 Attitude Sensor Compass Accelerator Gyro Module
