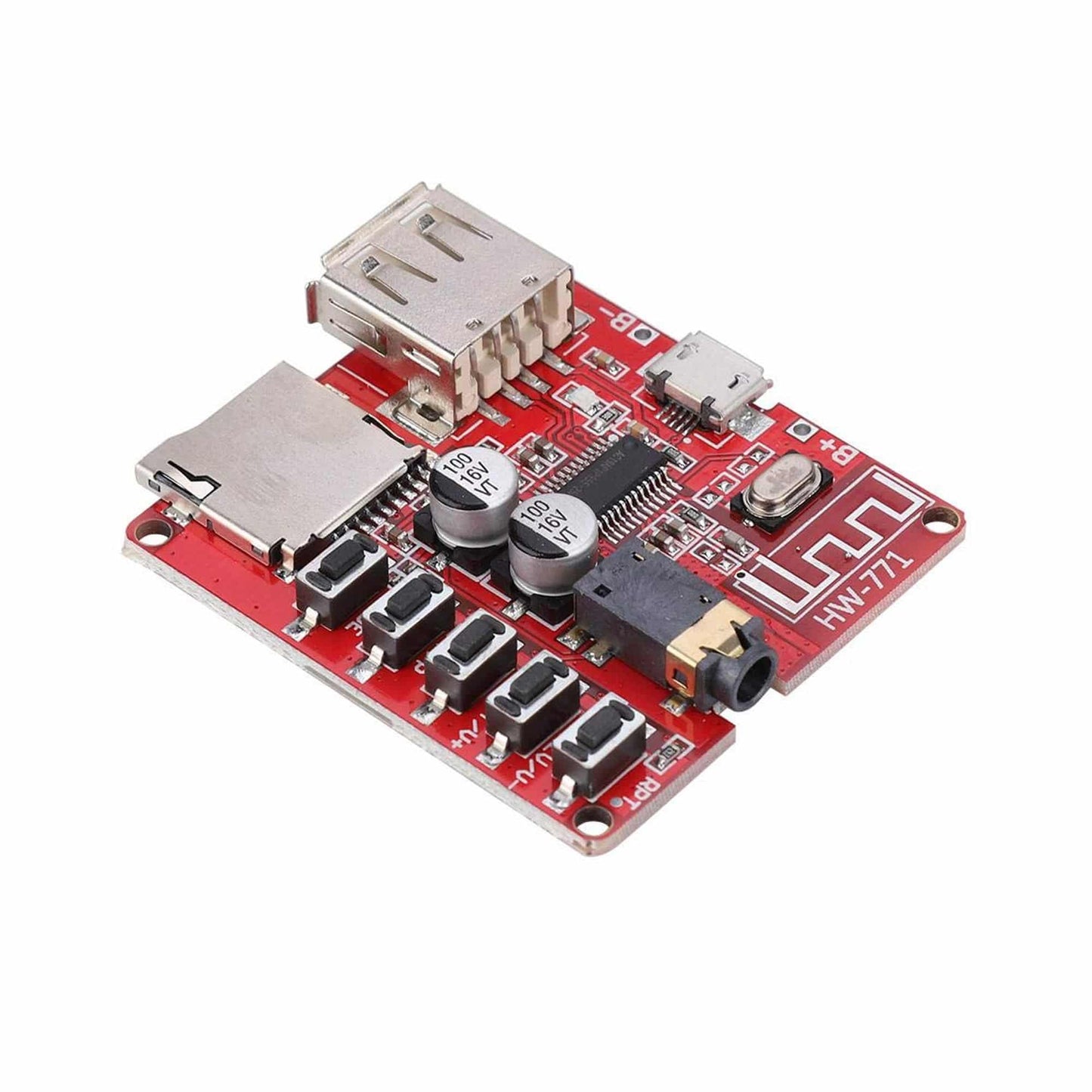

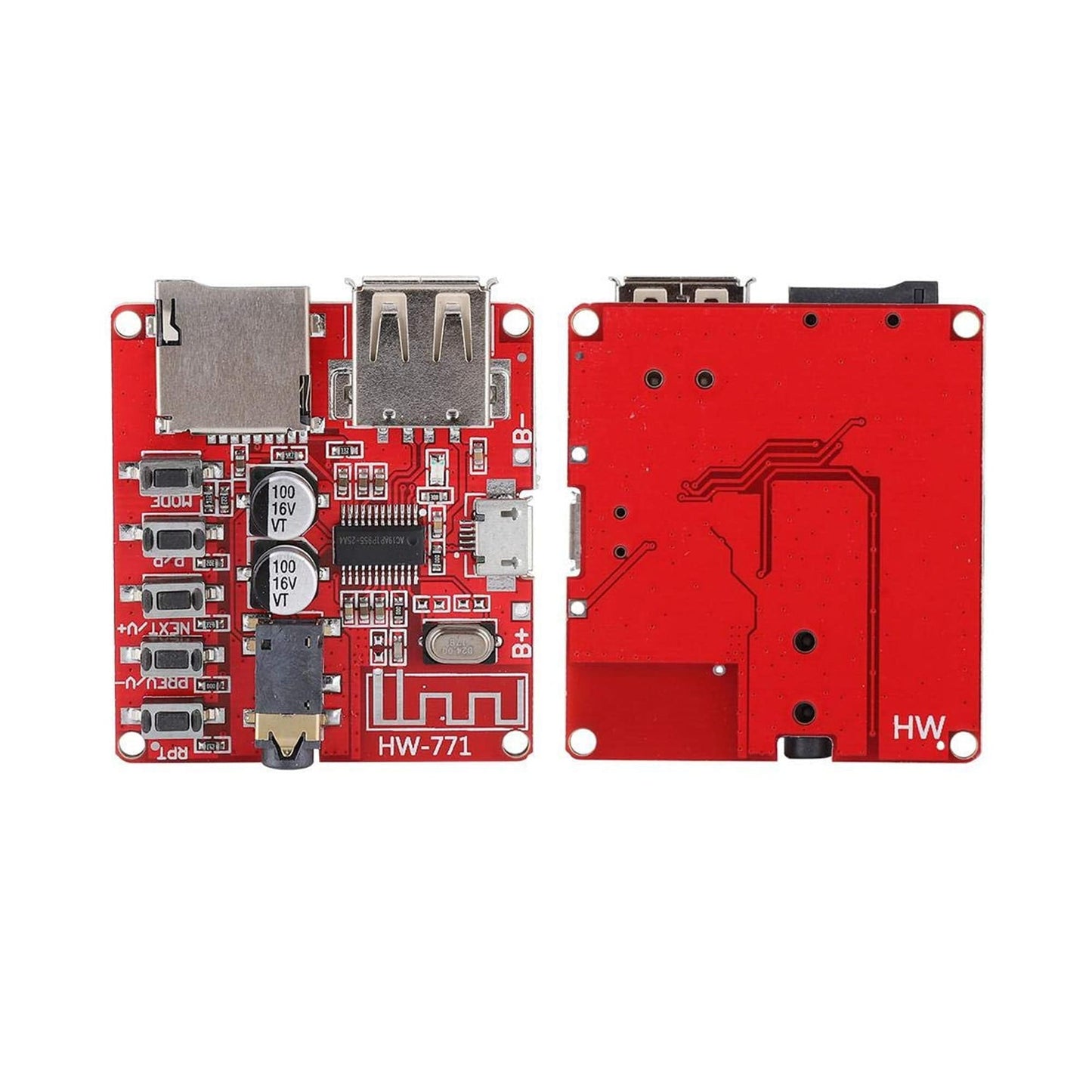

MP3 Decoder Board MP3 Bluetooth 4.1 Decoder Board Car Bluetooth 4.1 MP3 WAV Decoding Board Speaker Amplifier Audio Receiver Module Support USB/TF/U-Disk - RS1163

MP3 Decoder Board MP3 Bluetooth 4.1 Decoder Board Car Bluetooth 4.1 MP3 WAV Decoding Board Speaker Amplifier Audio Receiver Module Support USB/TF/U-Disk - RS1163

SKU:RS1163

28 in stock

Regular price Rs. 299.00
Regular price Sale price Rs. 299.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

The MP3 Decoder Board supports Bluetooth 4.1, supports automatic return function, WAV + APE + FLAC + MP3 lossless decoding, stereo output, comes with TF card download, and supports U disk, and TF card player. MP3 Decoder Board has a standard 3.5mm interface, and the output stereo sound source can be inserted into headphones, connected amplifiers and other equipment. MP3 Decoder Board runs with a universal Micro USB 5V power supply.

Specifications:

  • Power Supply: 3.7-5 V
  • SNR: 90dB
  • THD+N: -70dB
  • Crosstalk: -86dB
  • DNR: 91dB
  • Support Profile: A2DP/AVCTP/AVDTP/AVRCP/HFP LOS:>15m

Features:

  • MP3 Decoder Board support for Bluetooth 4.1, automatic return function.
  • MP3 Decoder Board supports WAV + APE + FLAC + MP3 lossless decoding, and stereo output comes with TF card download.

Interface Description:

  • Power Interface: Universal Micro USB 5V power supply
  • 3.7-5V Supply Pad: 3.7-5V power supply modification
  • U Disk Interface: Support play U disk MP3 / WAV / APE / FLAC file, support FAT16 / 32 file format
  • TF Card Interface: Support play MP3 card in the MP3 / WAV / APE / FLAC file, support FAT16 / 32 file format
  • LED Indication: Bluetooth mode blue light long, music mode blue light flashing
  • 3.5mm Stereo Output: Standard 3.5mm interface, the output stereo sound source, can be inserted headphones, connected amplifier and other equipment

Key Function Description:

  • MODE: "Short press", TF card, U disk, Bluetooth mode switch
  • P / P: "Short press" to switch between play and pause
  • NEXT / V+: "Short press" Next Song, "long press" Volume Increase
  • PREV / V-: "short press" previous song, "long press "volume down
  • RPT: "Short press", single / cycle switch

Package Included:

1 x MP3 Decoder Board MP3 Bluetooth 4.1 Decoder Board Car Bluetooth 4.1 MP3 WAV Decoding Board Speaker Amplifier Audio Receiver Module Support USB/TF/U-Disk
