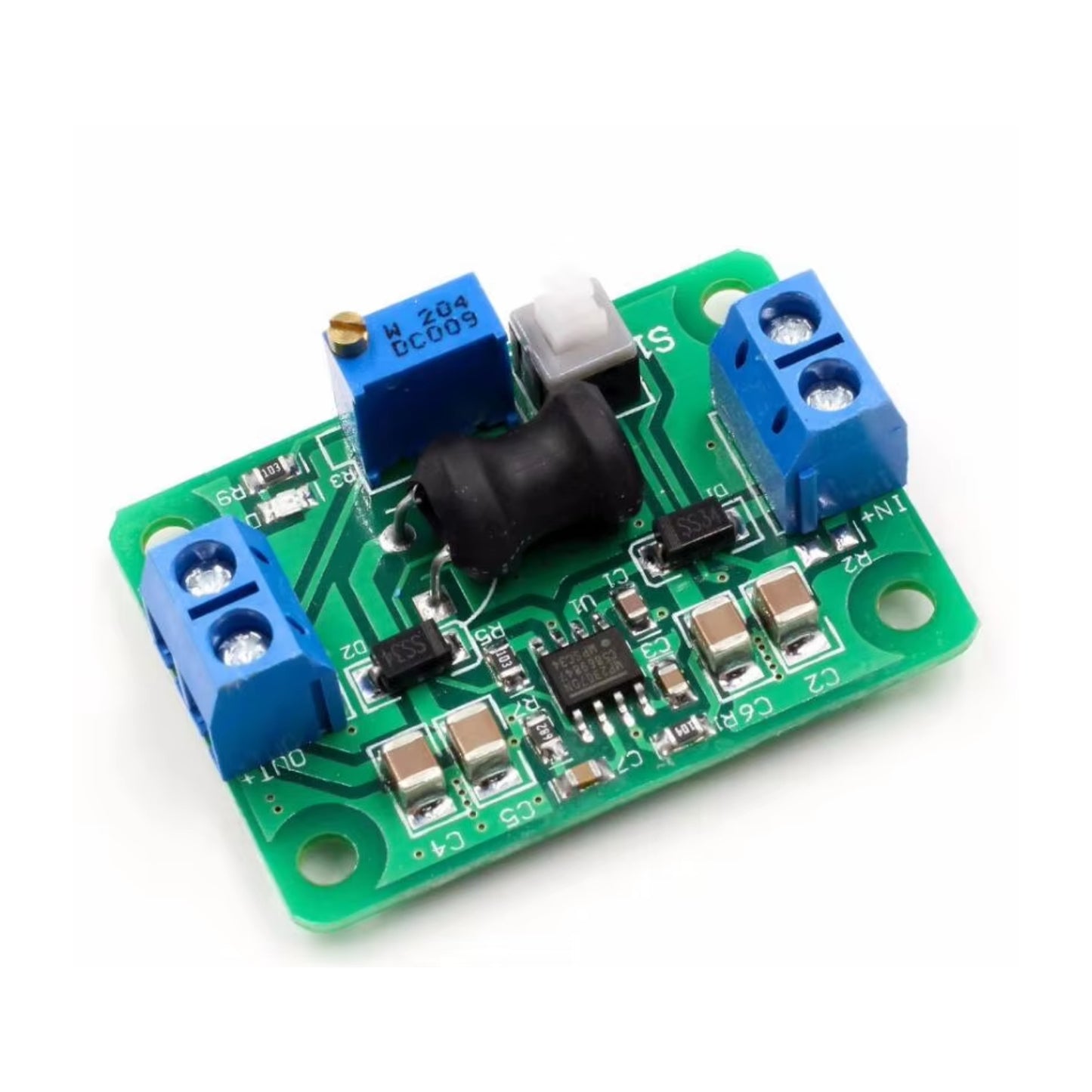

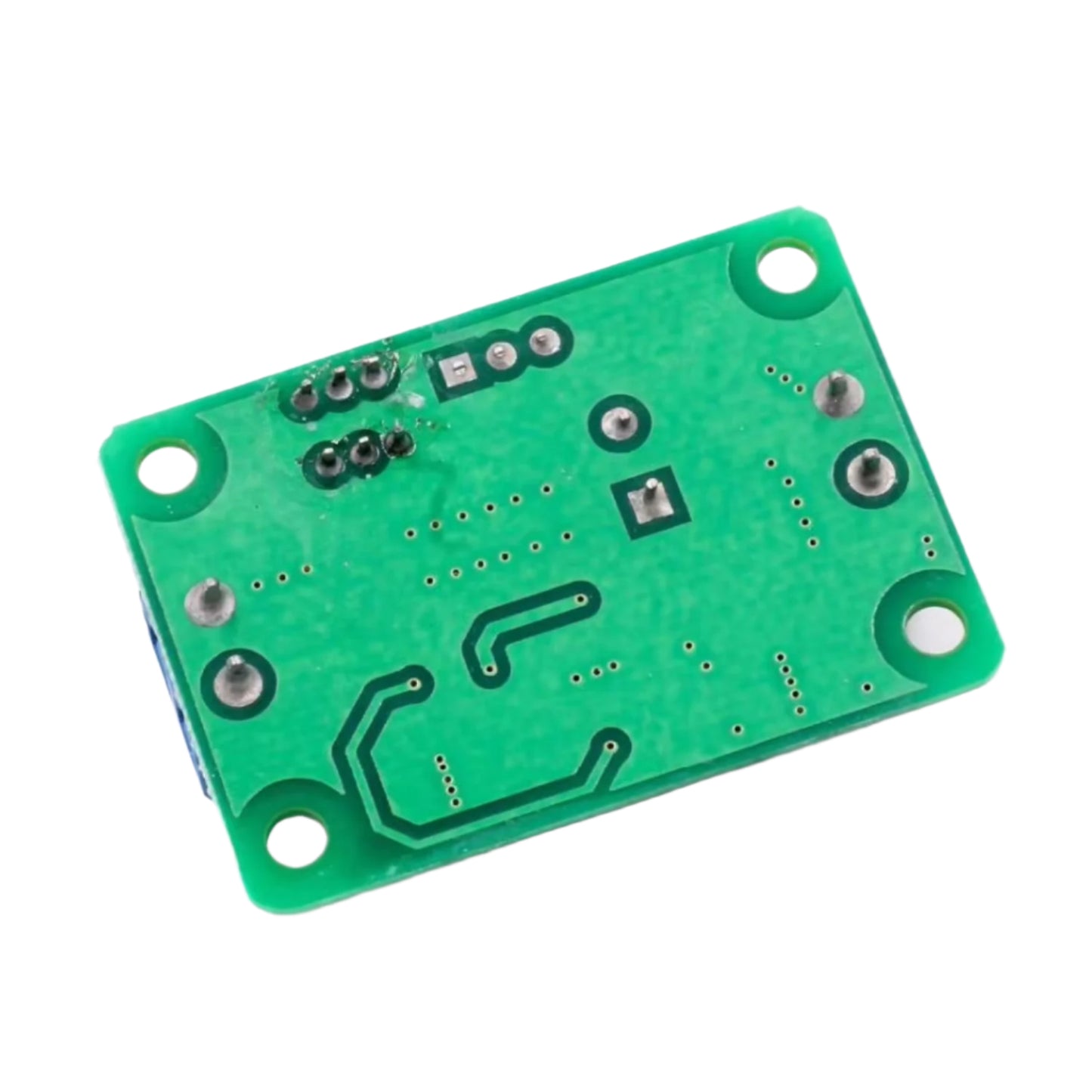

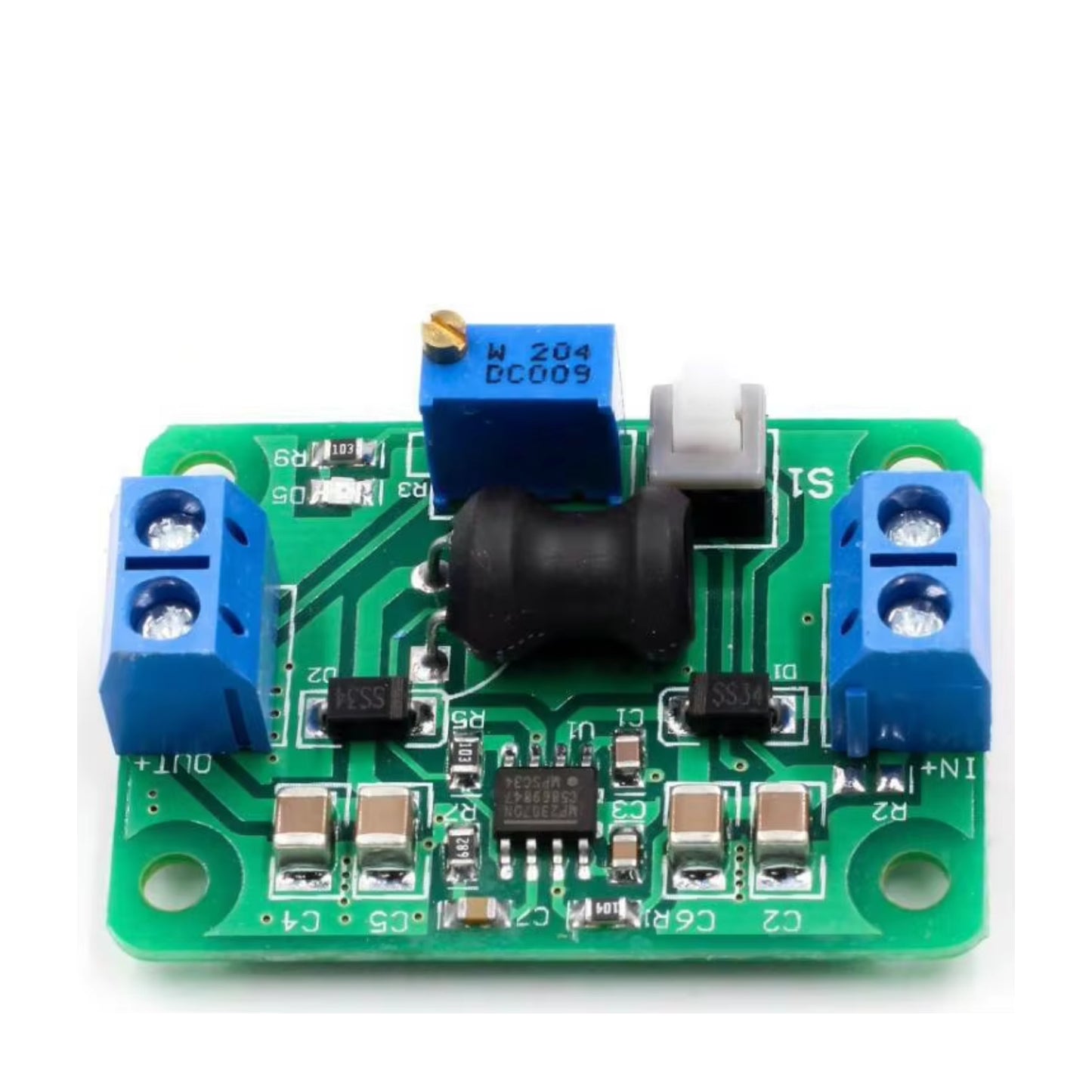

MP2307 LM2596 Kis-3r33S Buck Converter Module 4.75-24V Adjustable Step-Down Power Module Peak 4A Highest Efficiency Of 98%

MP2307 LM2596 Kis-3r33S Buck Converter Module 4.75-24V Adjustable Step-Down Power Module Peak 4A Highest Efficiency Of 98%

SKU:

In stock

Regular price Rs. 1,085.00
Regular price Sale price Rs. 1,085.00
Preorder Sale Sold out
Shipping calculated at checkout.
Note: Thank you for your order! Please note that this is a preorder. Your item will be shipped from our Shenzhen warehouse to our Delhi warehouse via DHL. After that, it will be delivered to your address. We appreciate your patience and are excited to get your product to you soon!
  • Shipping: 12 days after checkout

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Descriptions:

The MP2307 LM2596 Kis-3r33S DC-DC Buck Converter Module, a high-performance power solution with exceptional efficiency. This compact module boasts an input voltage range of 4.75-24V, allowing for versatile applications. Featuring synchronous rectification technology, it achieves a remarkable maximum efficiency of 98%, minimizing power loss and maximizing energy conservation. The module supports a wide output voltage range from 0.93V to 18V in step-down mode, providing flexibility in various designs. With a peak output current of 4A and a continuous output current of 2.5A, it delivers ample power for demanding applications.

Specifications:

  • Model: MP2307 LM2596
  • Input Voltage Range: 4.75-24V
  • Output Voltage Range: 0.93V-18V (step-down operation mode, enter at least greater than the output 2V above)
  • Output Current: 2.5A peak output 4A continuous output
  • Switch: With soft-off function! After microamps shutdown current low level
  • Size: 45mm * 32mm * 1.6mm
  • Num: YS-TB
  • Technical Description: Synchronous rectification technology! Maximum efficiency of 98%!
  • Efficiency Found: 12V turn 5V:   12V turn 5V efficiency = (5V * 1.001A) / (12V * 0.431) = 96.7%

Features:

  • Achieves up to 98% efficiency due to synchronous rectification technology, minimizing power loss and maximizing energy conservation.
  • Allows you to set the desired output voltage within the range of 0.93V to 18V in step-down mode.
  •  Provides a peak output current of 4A and a continuous output current of 2.5A, ensuring sufficient power for demanding applications.
  • Improves efficiency and reduces heat generation compared to traditional buck converters.

Package Included:

1 x MP2307 LM2596 Kis-3r33S Buck Converter Module
