Description:

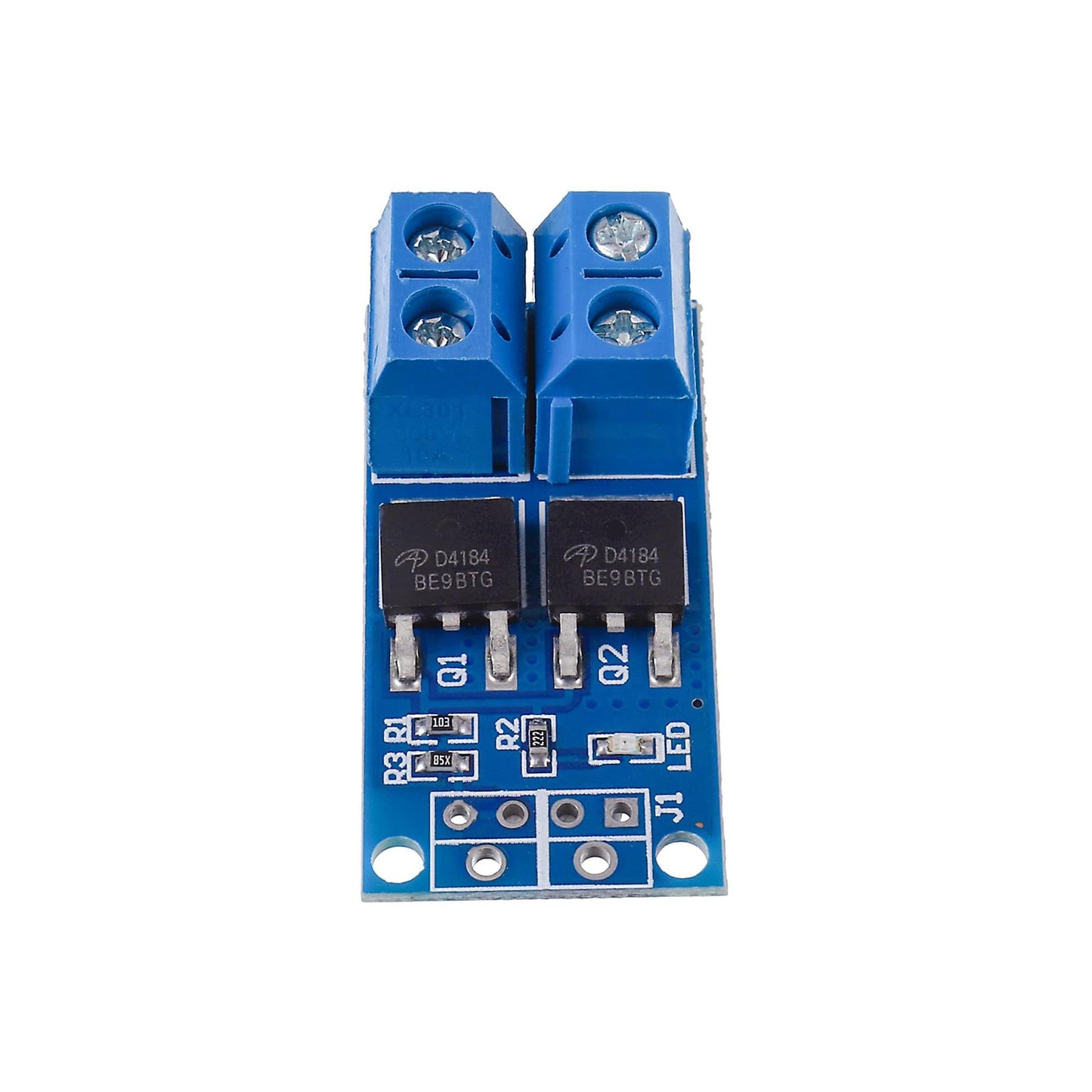

MOSFET 5-36V Switch Drive Module is a high-power MOS trigger switch driver module and control board with a field-effect tube to adjust the electronic switch. It adopts imported double MOS parallel active output to show lower internal resistance, greater electric current, and power. MOSFET Trigger Module Works at 15A, 400W under a common temperature which satisfies most device usage and realizes the control of great power devices in a relaxed way.
Specifications:
- Voltage: 5-36 Volt DC
- No. of Channel: 1
- Continuous Current:15A
- Operating Temperature: -40 ~ +85
- Battery Protection Mode: No
- Cooling Fan: No
- Speed Control: Yes
- Polarity Protection: No
Features:

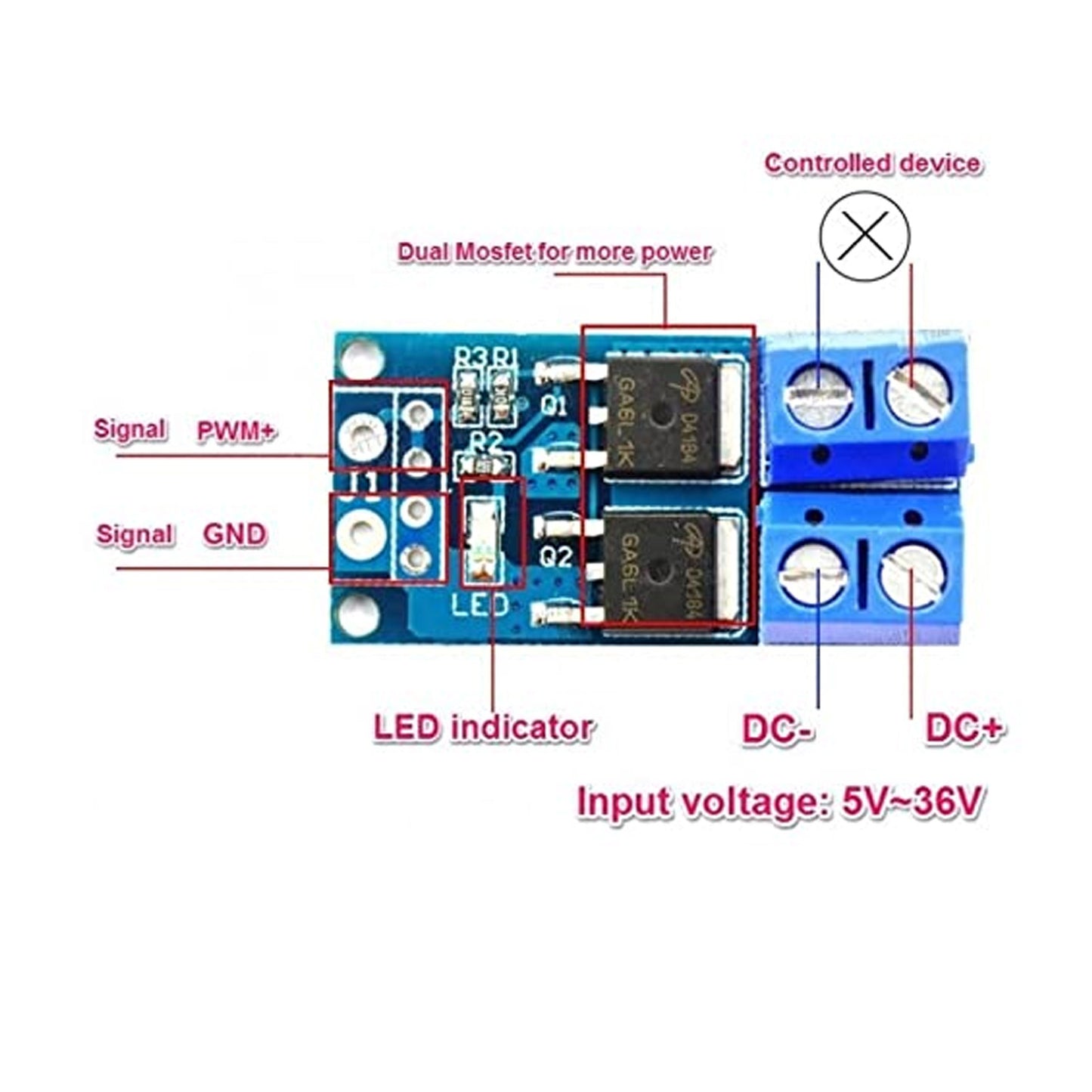

- The trigger source: digital high-low (DC3.3V – 20V), can be connected microcontroller IO port, PLC interfaces, and DC power, you can access the PWM signal, The signal frequency is 0–20KHZ Perfect Support.
- Output capacity: DC 5V – 36V, at room temperature, continuous current 15A, power 400W Lower auxiliary cooling conditions, the maximum current up to 30A.
Applications:
- Control the Output of Power Equipment, Motors, Light Bulbs, LED Lights, DC Motors, Micro Pumps, Solenoid Valves, PWM, Motor Speed Control, and Lamp Brightness.
Package Included:
1 x MOSFET 5-36v Switch Drive Module MOSFET Trigger Module High-Power MOSFET Trigger For Motor Control PWM MOSFET Driver For LED Lighting Industrial Driver Module
