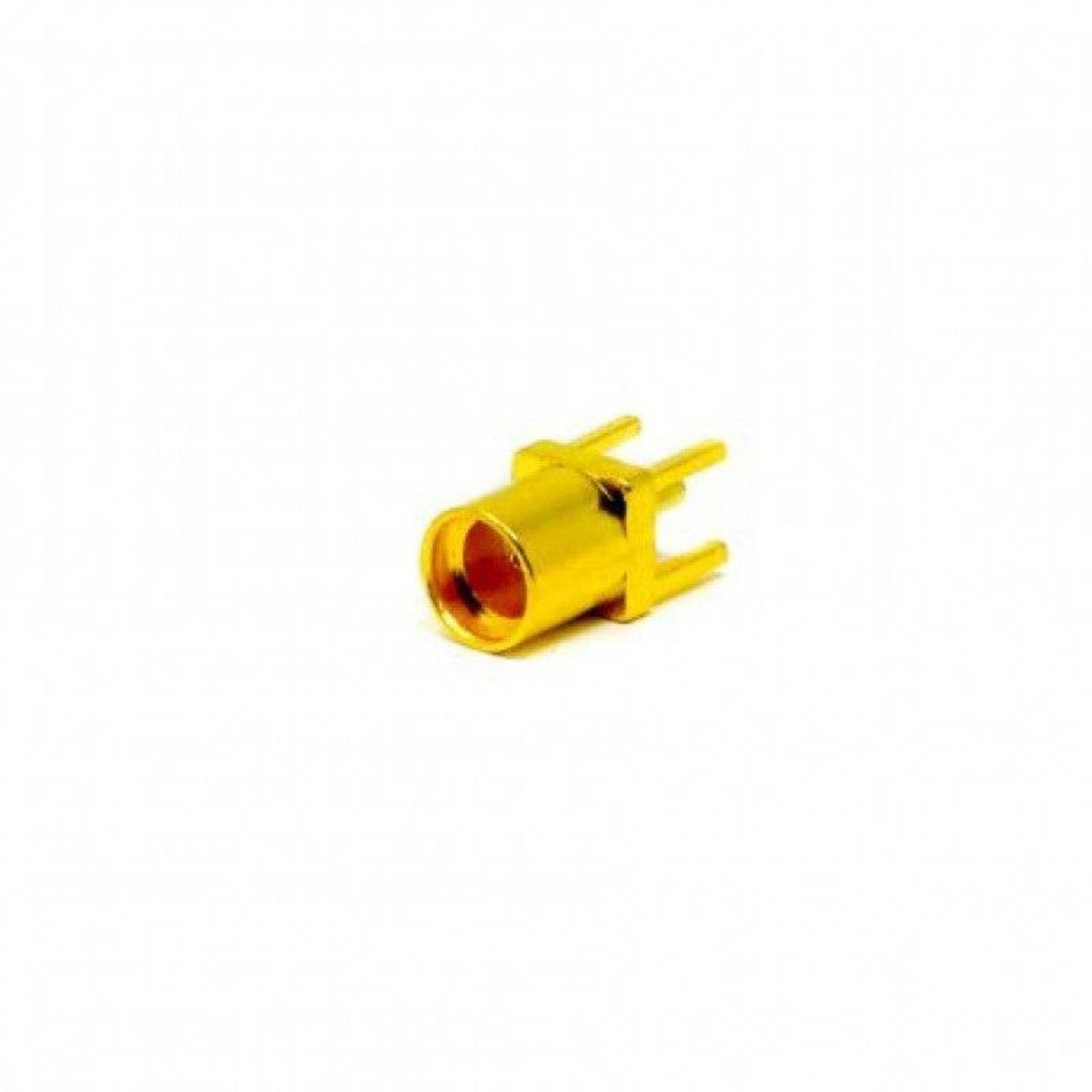

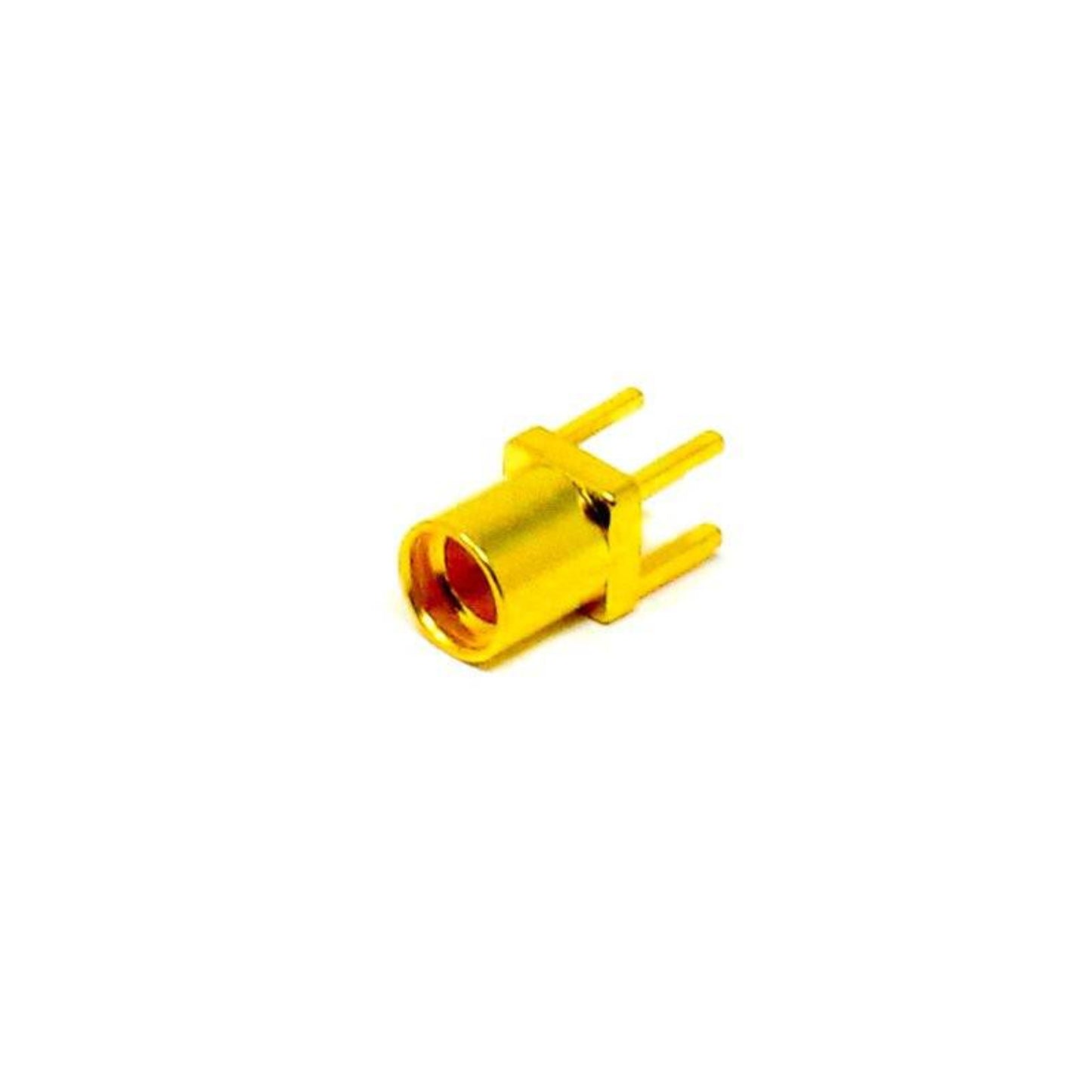

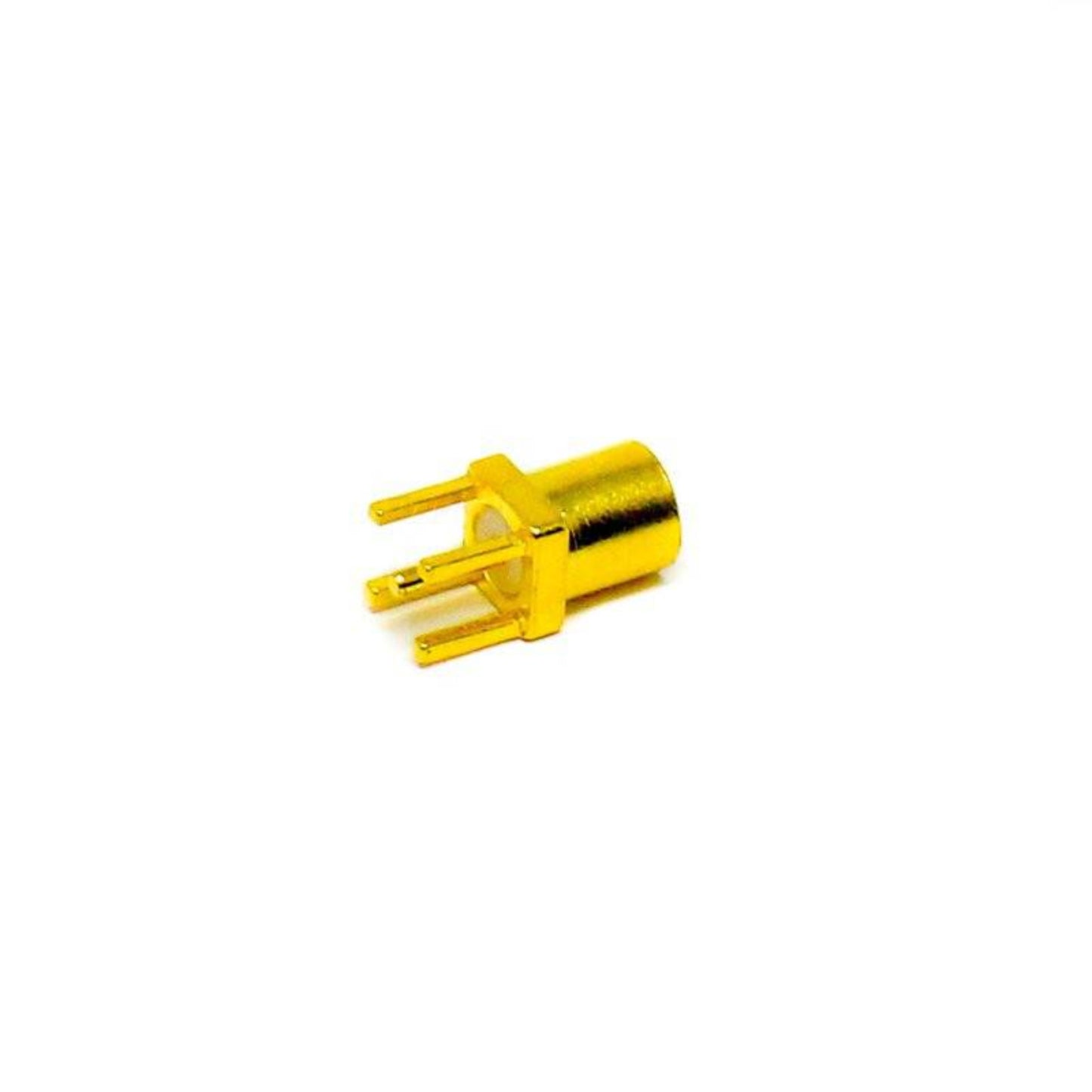

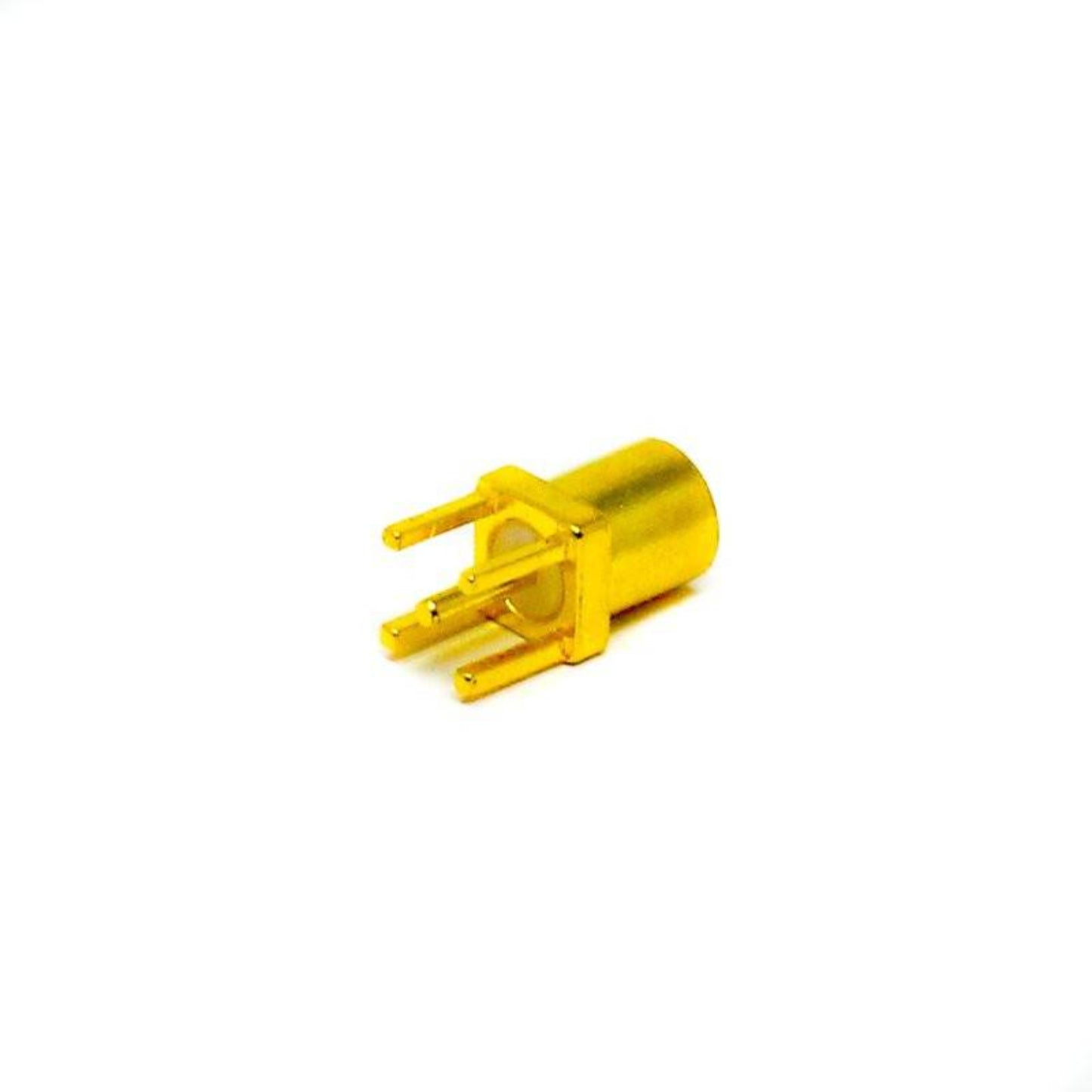

MMCX PCB Connector Female Straight Through Hole for Mount - RS3277

MMCX PCB Connector Female Straight Through Hole for Mount - RS3277

SKU:RS3277

Regular price Rs. 95.00
Regular price Sale price Rs. 95.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Impedance : 50 ohm
  • Frequency Range: 0~6 Ghz
  • VSWR: Straight type 1.3max / R/A type 1.5max
  • Dielectric Withstanding Voltage : 500V rms
  • Working Voltage : 170V rms
  • Center Contact Resistance : 5.0 m (Milliohms max.)
  • Outer Contact Resistance : 1.0 m (Milliohms max.)
  • Insulation Resistance : 1000 m

Description :

These connectors are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish.

Main Application of MMCX Connectors:

  • Consumer Electronics: Smartphones GPS and wireless antennas,
  • Aerospace and Defense: GPS
  • Medical: Medical Devices
  • Telecommunications: GPS tracking, positioning and navigation devices, Wireless Base Station, Wireless-LAN, Wireless antennas
  • Data/Communications: Wireless-LAN, Wireless-PAN(Bluetooth), Wireless-WAN
  • Industrial: Computer connections-LAN/WAN

Features:

  • Pcb Mount, Jack/female, Straight/180, 50, Through Hole;
  • Micro-miniature version of MCX with all features of MCX series conenctor.;
  • Snap-on Interface ideal for quick Installation and discount;
  • High cost-effective with excellent broadband performance and low reflections.

Electrical Characteristics

  • Impedance : 50 ohm
  • Frequency Range: 0~6 Ghz
  • VSWR: Straight type 1.3max / R/A type 1.5max
  • Dielectric Withstanding Voltage : 500V rms
  • Working Voltage : 170V rms
  • Center Contact Resistance : 5.0 m (Milliohms max.)
  • Outer Contact Resistance : 1.0 m (Milliohms max.)
  • Insulation Resistance : 1000 m

Mechanical Characteristics

  • Coupling : Snap-on/Snap-off
  • Contact Retention : 2.3lbs min.
  • Mating Durability : 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

  • Environmental Characteristics :Teflon -65C ~ +155C
  • Vibration :MIL-STD-202 Meth.204
  • Corrosion Resistance : MIL-STD-202 Meth. 101

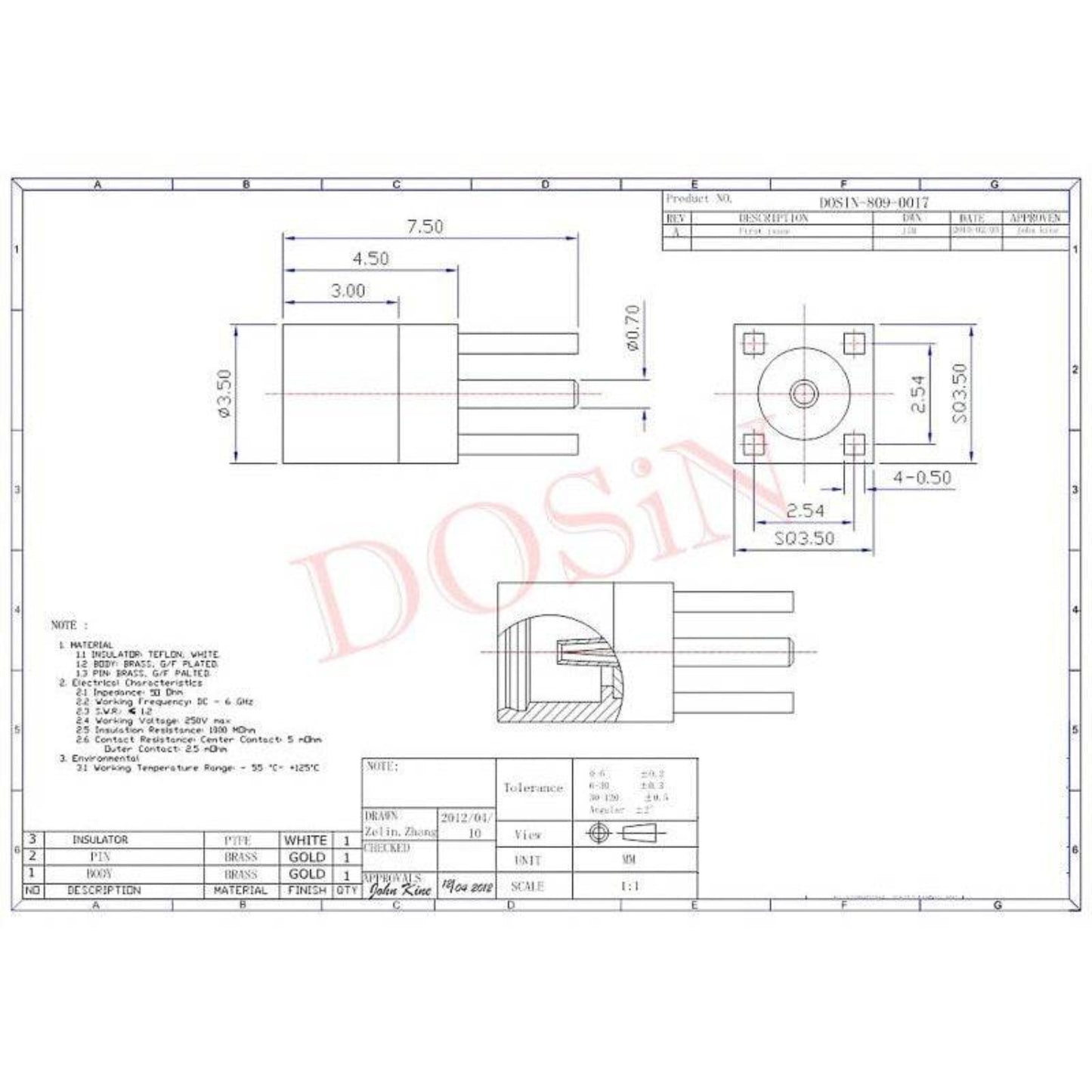

Specifications:

  • Orientation : Straight
  • Gender : Female
  • Mounting Type : PCB Mount
  • Termination Style : Solder Type
  • Mounting Feature : Through Hole
  • Function : Other
  • Polarity : Standard
  • Body Material : Copper Alloy
  • Impedance : 50 ohms

Package Includes:

1 x MMCX PCB Connector Female Straight Through Hole for Mount
