Description:

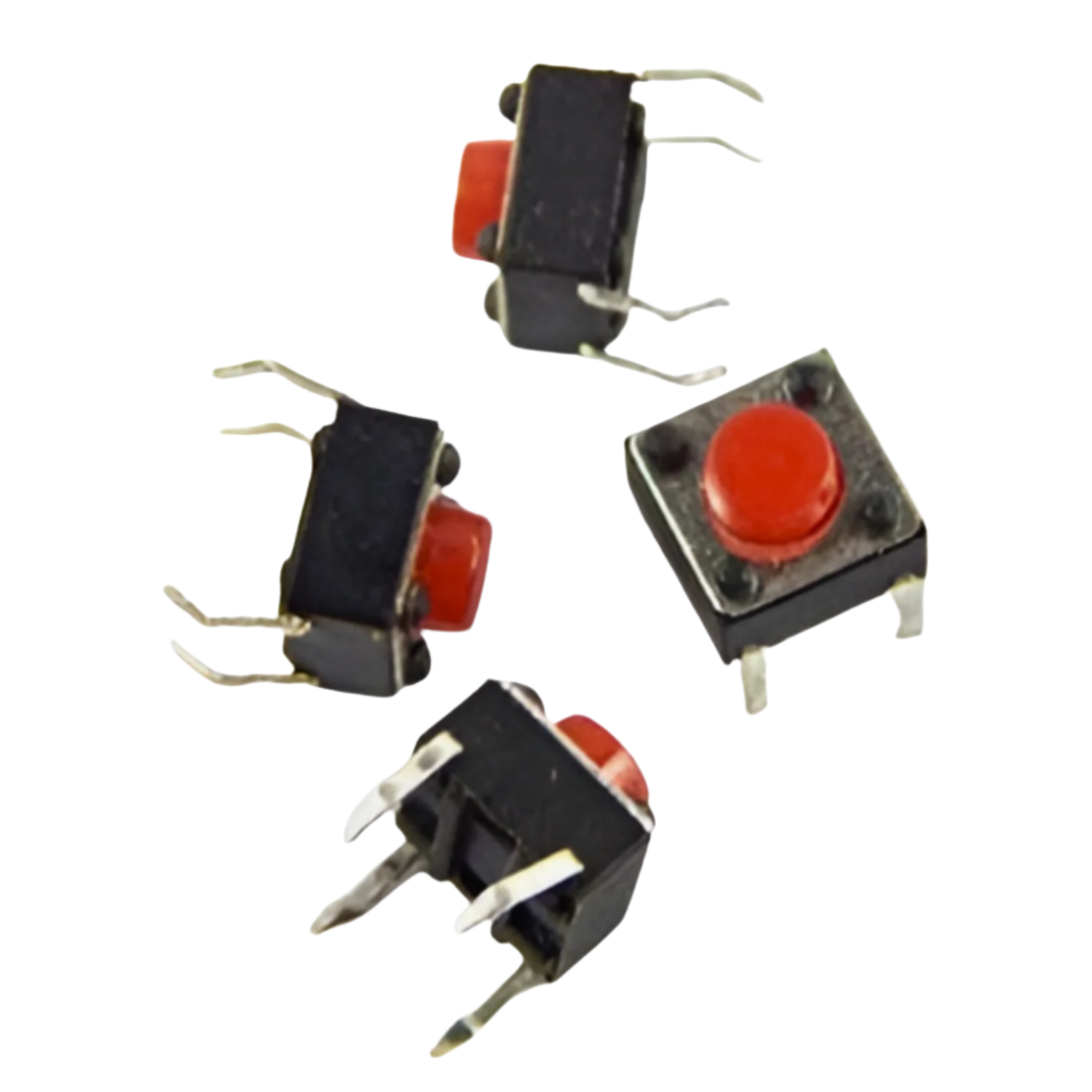

The 6x6x5 mm Tactile Push Button Red Switch is a ubiquitous component, serving as the essential "finger on the pulse" for countless electronic projects. Its crisp, momentary action, driven by reliable dome contact technology and providing strong tactile feedback, makes it ideal for precise user input. While perfectly suited for PCB mounting, its versatility extends to solderless breadboards for rapid prototyping. From telecommunications and consumer electronics to medical devices and computer peripherals, this little red switch is the silent workhorse behind intuitive control.
Specifications:
- Mounting Type: Through-hole
- Rated load: DC 12V 50mA
- Insulation resistance: 100 MΩ
- Contact resistance: 0.03 Ohm
- Withstand voltage: AC 250V
- Temperature: 30 to +70 degrees Celsius
Features:
- Only active when pressed; returns to its original state when released.
- Small footprint, ideal for space-constrained applications.
- Designed for easy integration onto Printed Circuit Boards (PCBs) via its pins.
- Provides a distinct "click" sensation when pressed, confirming actuation.
- Suitable for low-current and low-voltage digital signal applications.
- Commonly used as input buttons in electronic projects, appliances, and control panels.
- Typically offers stable mounting and sometimes redundant electrical contacts (common on 6x6 mm types where two pins on each side are internally connected).
Applications:
- Calculators
- Push-button telephones
- Kitchen Appliances
- Magnetic locks
- Various other mechanical and electronic devices, home and commercial.
Package Included:
1 x Mini Tactile Push Button Switches
