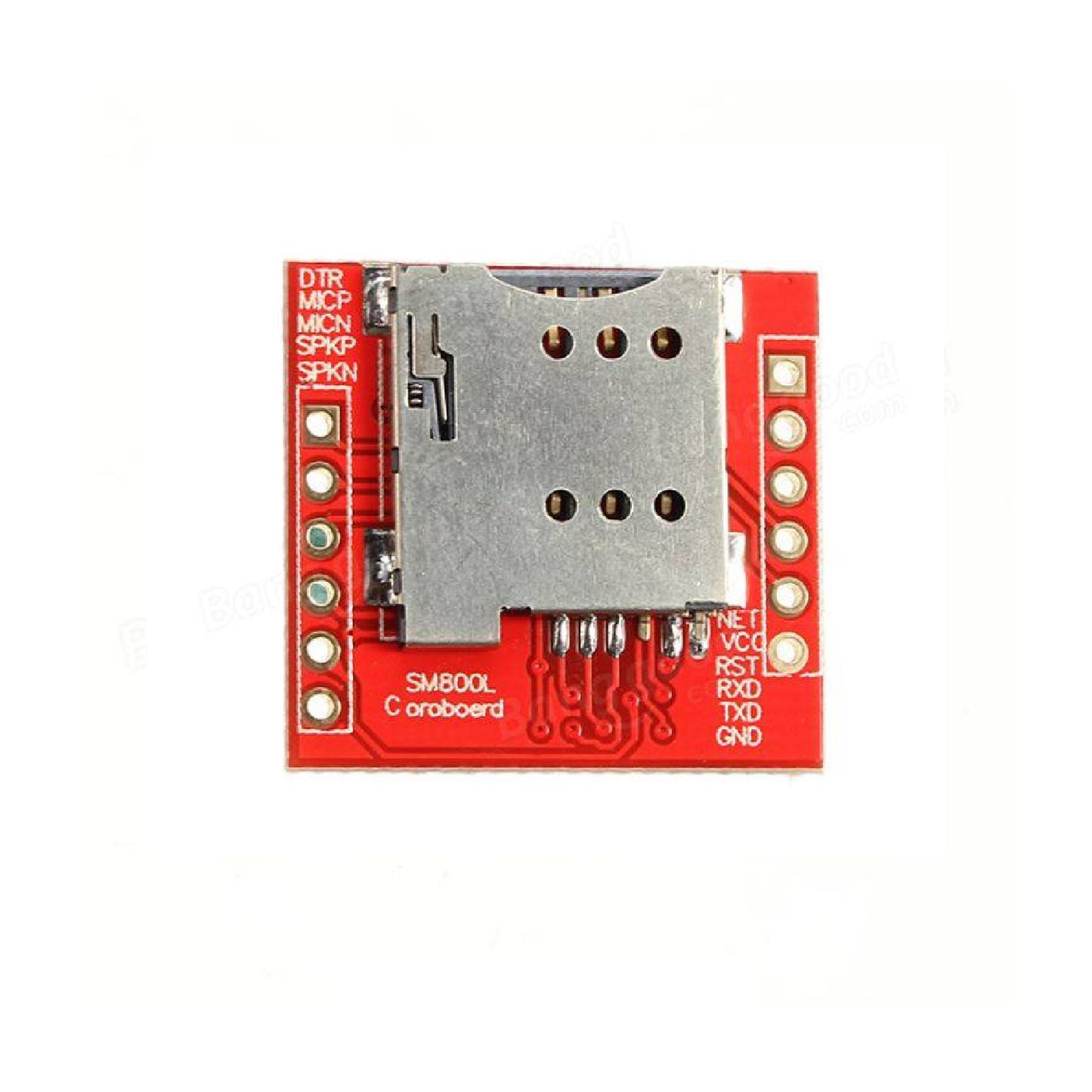

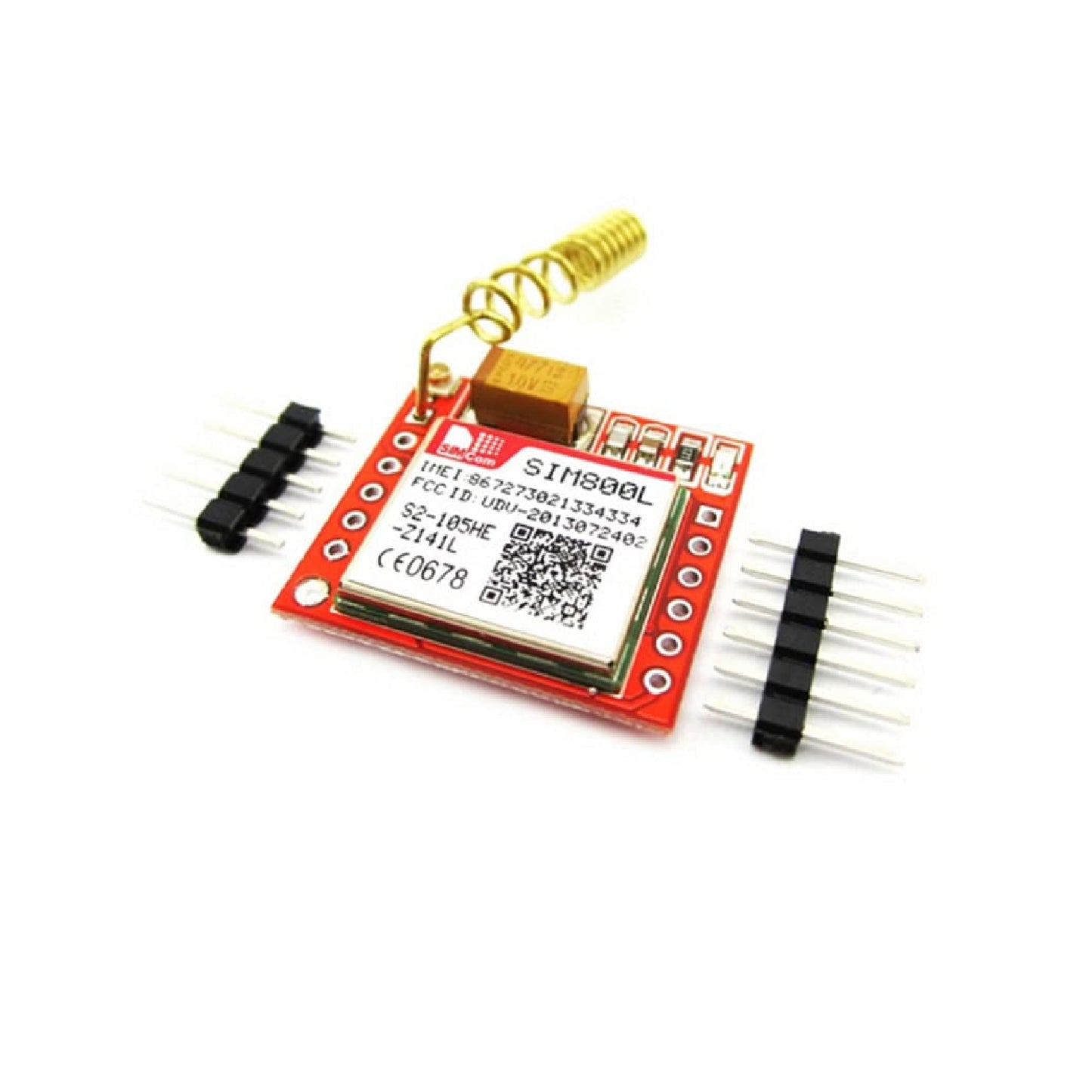

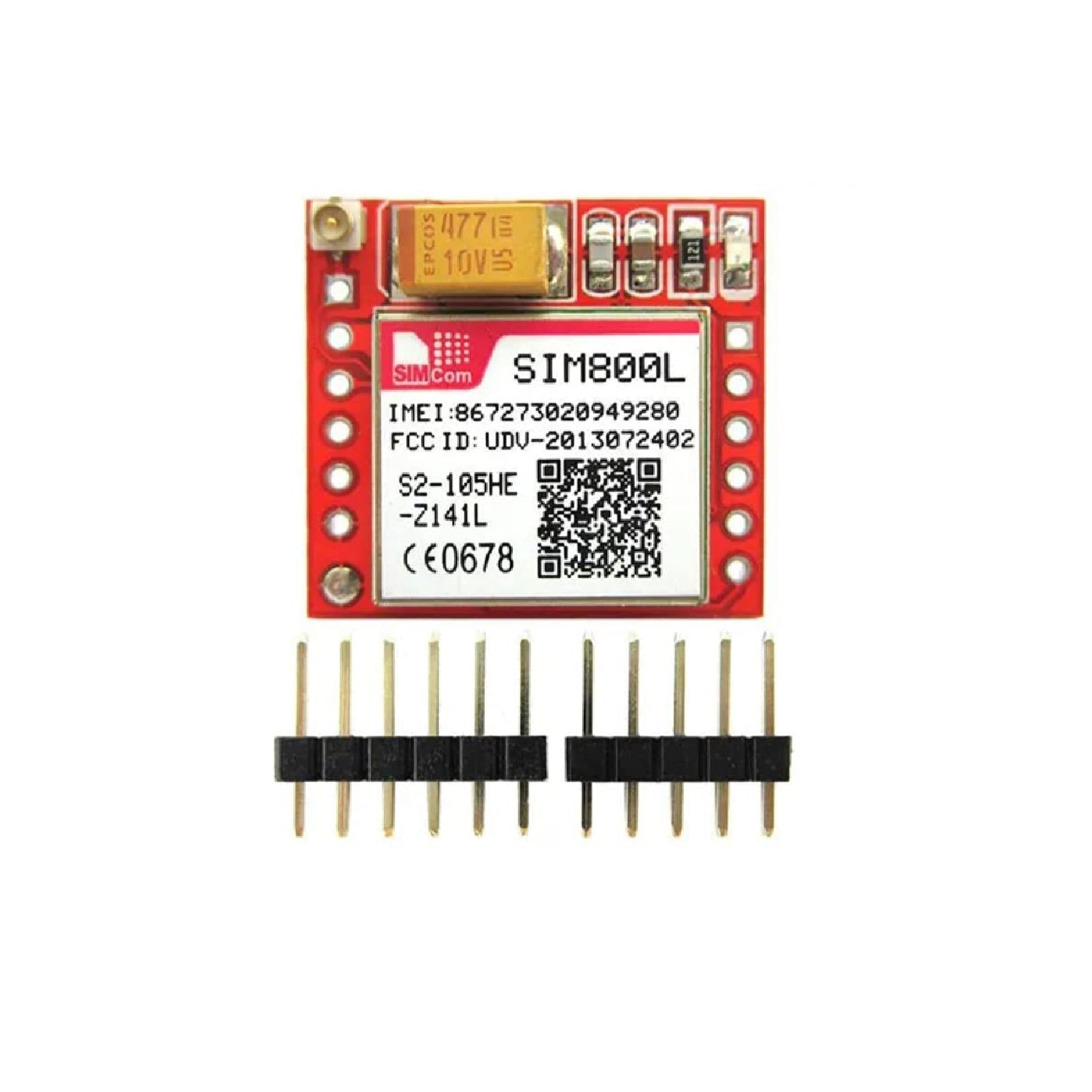

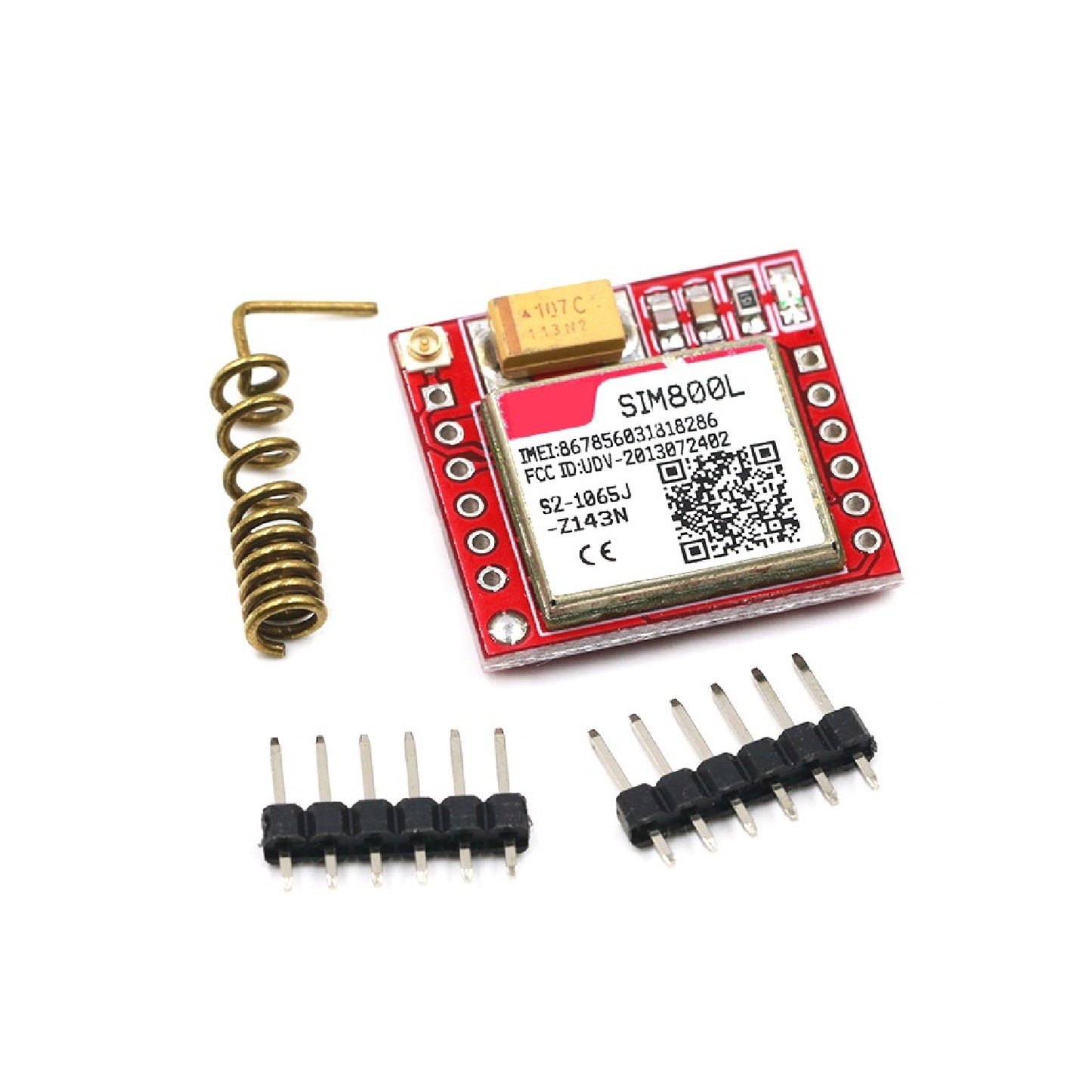

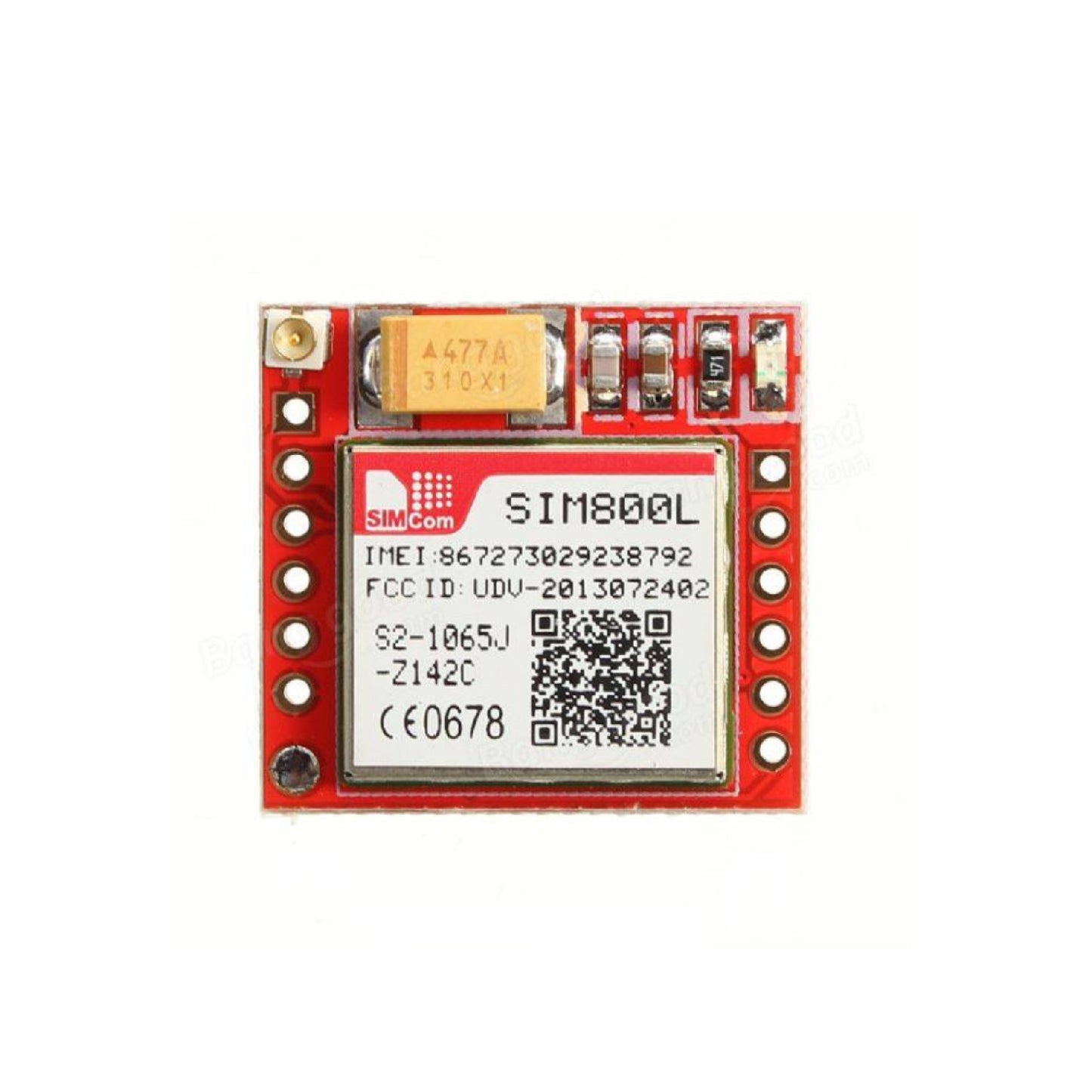

Mini SIM800L GSM GPRS Module, MicroSIM TTL Card Serial Interface for microcontroller for Arduino Uno/Raspberry PI - NA243

Mini SIM800L GSM GPRS Module, MicroSIM TTL Card Serial Interface for microcontroller for Arduino Uno/Raspberry PI - NA243

SKU:NA243

488 in stock

Regular price Rs. 310.00
Regular price Sale price Rs. 310.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • IC Chip: SIM800L
  • Operating Voltage: 3.7 ~ 4.2V DC
  • Peak Current: 2A

Description:

SIM800L GSM/GPRS module is a miniature GSM modem, which can be integrated into a great number of IoT projects. You can use this module to accomplish almost anything a normal cell phone can; SMS text messages, make or receive phone calls, connecting to the internet through GPRS, TCP/IP, and more! To top it off, the module supports quad-band GSM/GPRS network, meaning it works pretty much anywhere in the world

First is made of wire (which solders directly to NET pin on PCB) – very useful in narrow places.

The main drawback of this module is working on 3.7 to 4.2 volts so you cannot power it directly through Arduino or Raspberry Pi. Moreover, the sim800L GSM and GPRS module requires up to 2 ampere current so accordingly, design your power supply. You can use a 3.7-volt lipo battery to directly power the GSM module. You can communicate with the SIM800l module via the UART port, which supports commands including 3GPP TS 27.007, 27.005 and SIM COM enhanced AT Commands.

Specification:

  • IC Chip: SIM800L
  • Operating Voltage: 3.7 ~ 4.2V DC
  • Peak Current: 2A

Features:

  • Quad-band 850/900/1800/1900MHz - connect onto any global GSM network with any 2G SIM (in the USA, T-Mobile is suggested).
  • Make and receive voice calls using a headset or an external 8Ω speaker and electret microphone.
  • PWM/Buzzer vibration motor control
  • AT command interface with "auto baud" detection
  • Send and receive SMS messages.
  • Send and receive GPRS data (TCP/IP, HTTP, etc.).
  • Scan and receive FM radio broadcasts.
  • Lead-out buzzer and vibration motor control port.
  • AT command interface with "auto baud" detection.
  • Onboard IPEX socket that can be connected to an external antenna.
  • Breakouts for external 8W speaker and electret mic if you don't want to use a headphone
  • Level shifting circuitry so you can run it with 2.8V to 5V logic.
  • Vibrational motor (buzzer) driver so you can have noiseless notifications
  • uFL or SMA connections for external antenna
  • Indicator LEDs for power and network connectivity
  • Standard SIM slides into the back

Package Included:

1 x Mini SIM800L GSM GPRS Module, MicroSIM TTL Card Serial Interface for a microcontroller for Arduino Uno/Raspberry PI
