Description:

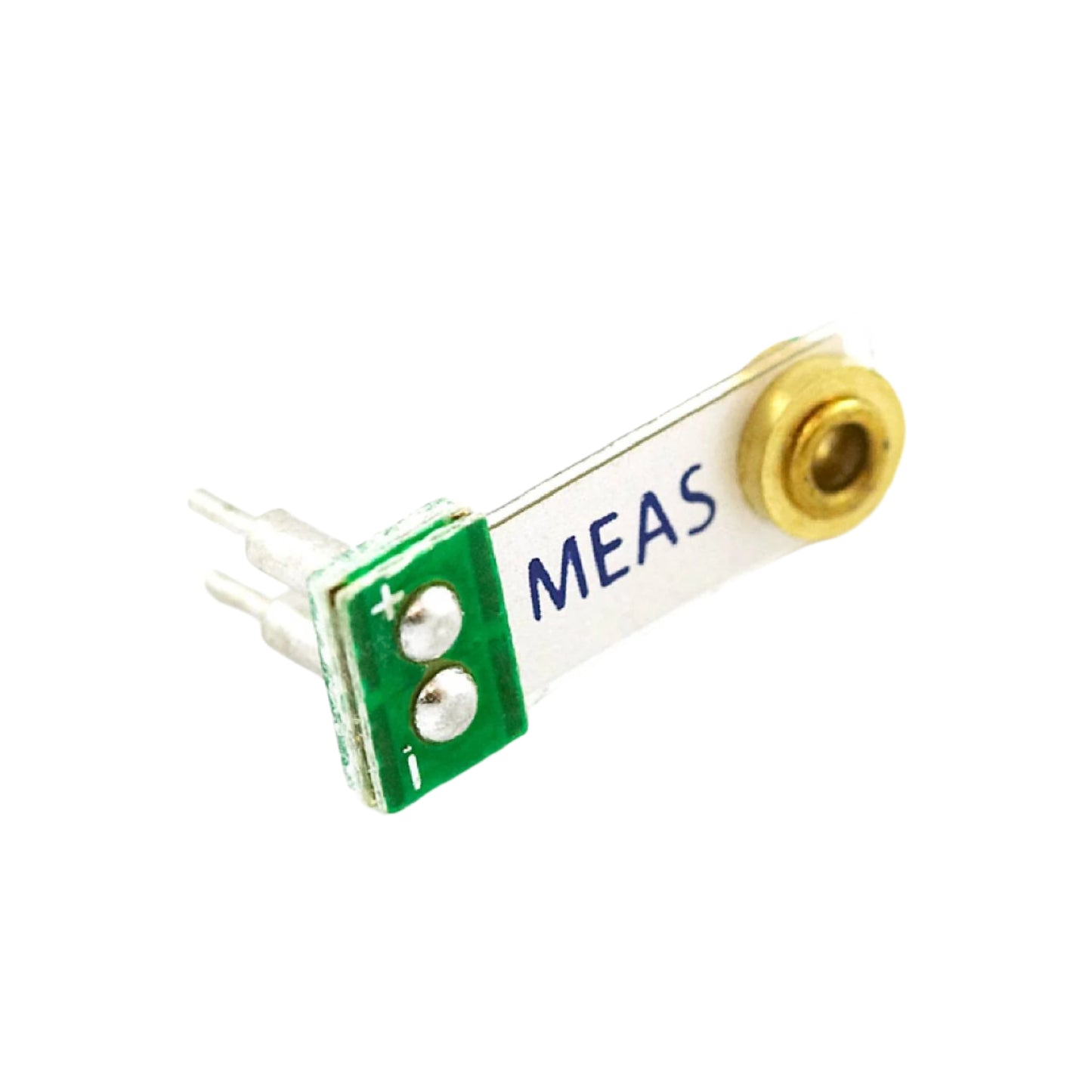

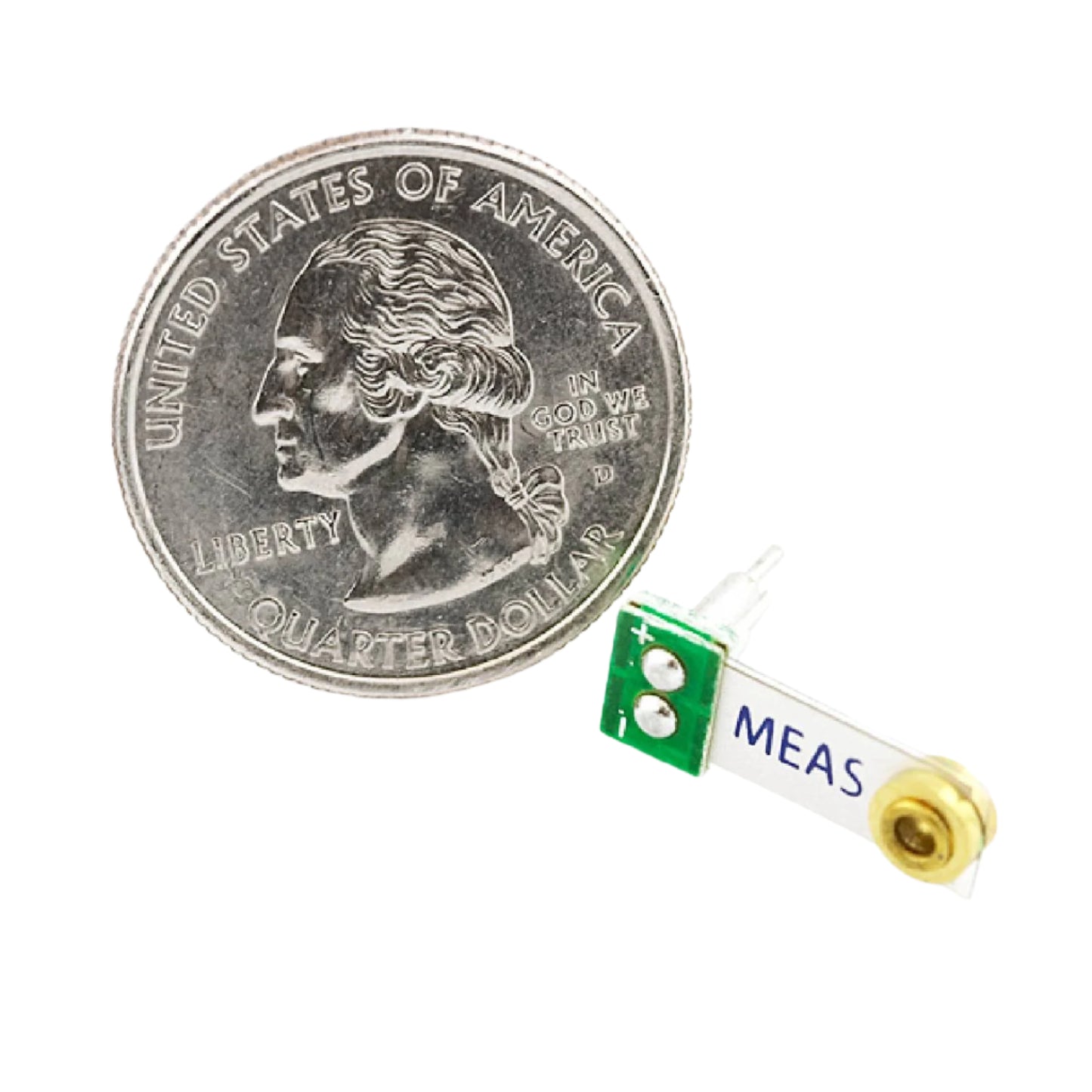

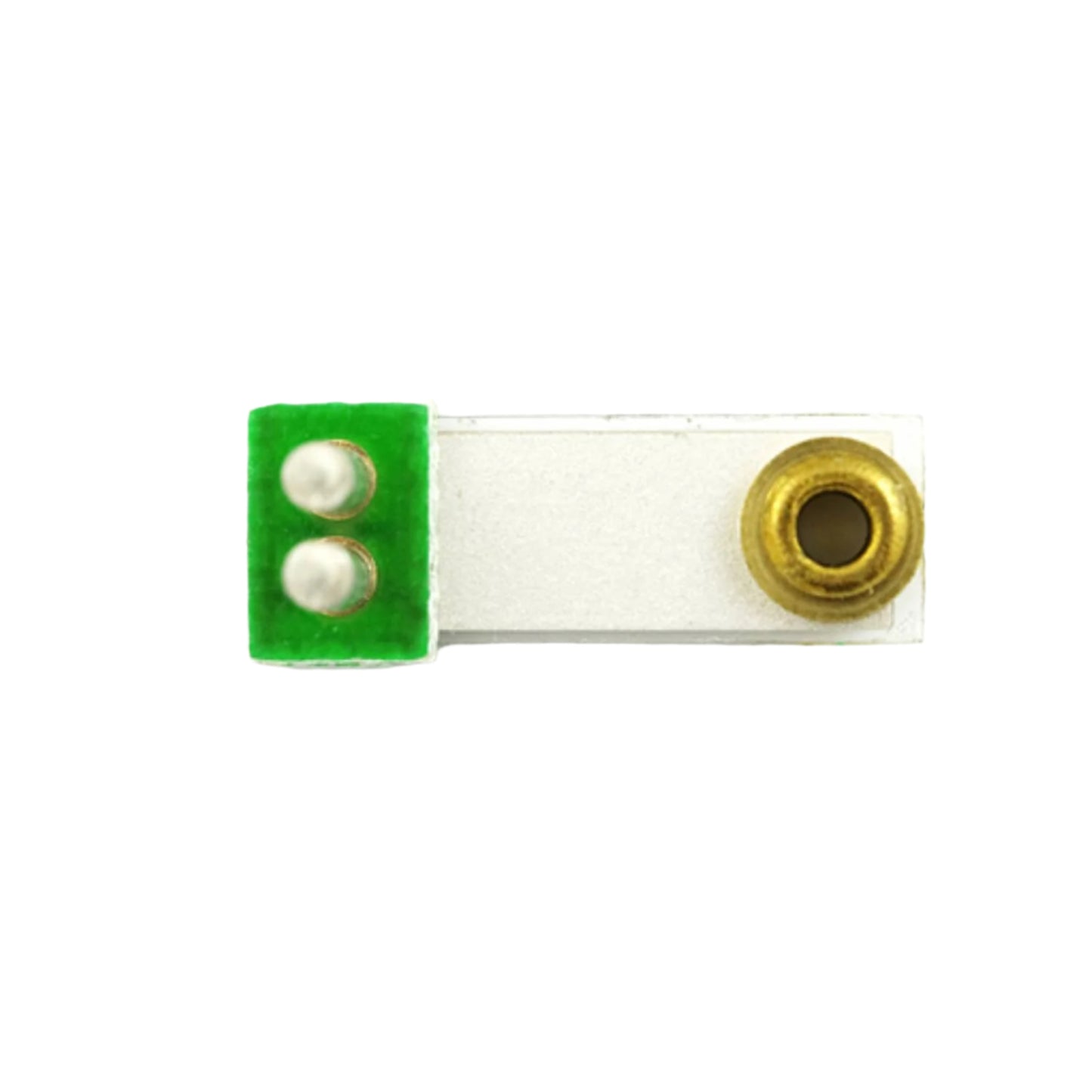

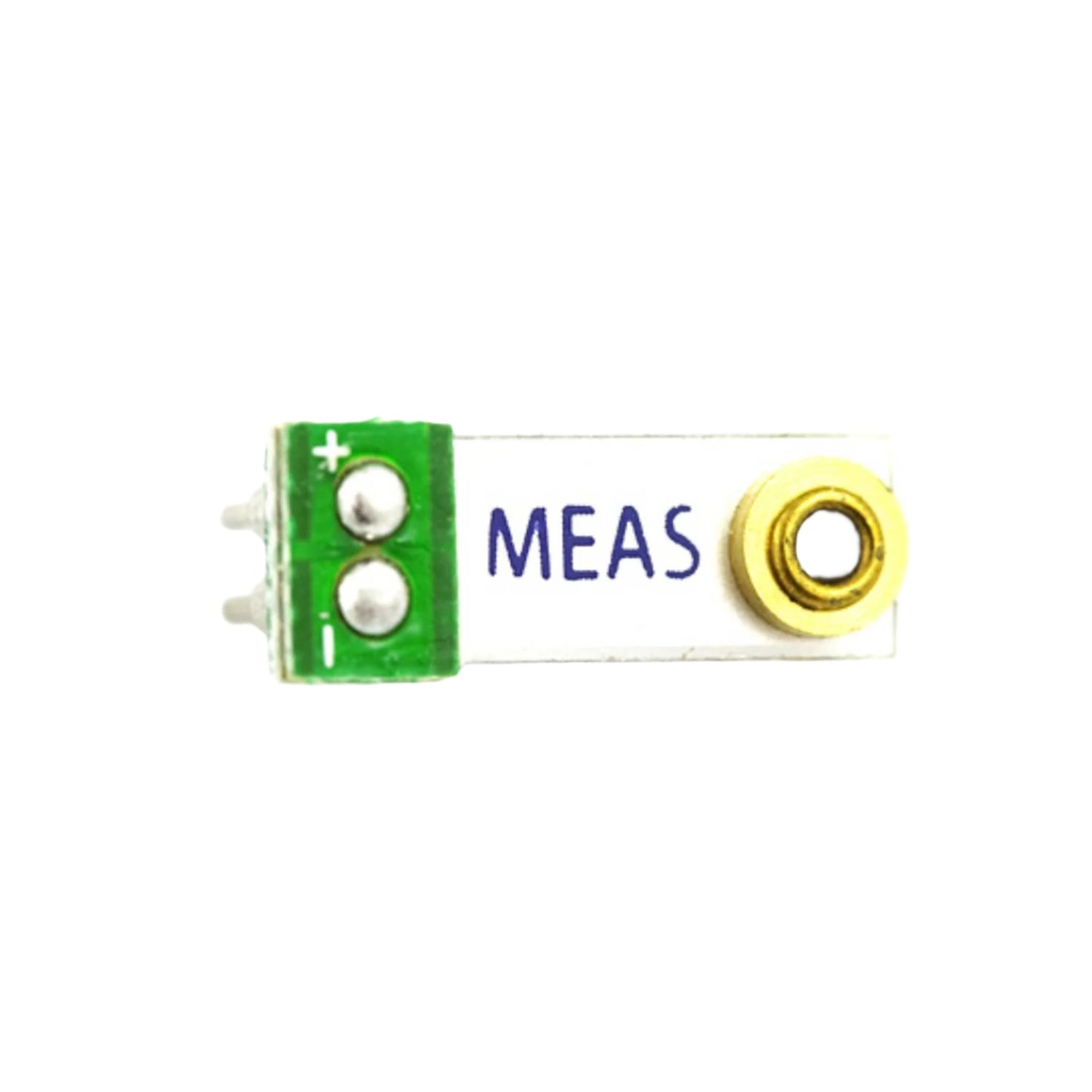

The subtle nuances of vibration with our compact and sensitive Piezo Vibration Sensor. Designed for horizontal mounting, this low-cost sensor utilizes a cantilever beam loaded with a mass to achieve exceptional sensitivity at lower frequencies.
The Minisense 100 from Measurement Specialties is a low-cost cantilever-type vibration sensor loaded by a mass to offer high sensitivity at low frequencies. Useful for detecting vibration and 'tap' inputs from a user.
A small AC and large voltage (up to +/-90V) is created when the film moves back an forth. A simple resistor should get the voltage down to ADC levels. Can also be used for impact sensing or a flexible switch.
Specifications:
- Model Type: Piezo Vibration Sensor
- Frequency (Hz): Upper Limiting Frequency (+3 dB) 42Hz
- Resonance Frequency: 75 Hz
- Storage Temperature (°C): -40 ~ +80°C
- Dissipation Factor (%): 0.018
- Operating Temperature (°C): -20 ~ +60
Features:
- Laminated for higher voltage output
- Breadboard friendly leads.
- Flexible PVDF Piezo Polymer Film
- Wide dynamic range
Applications:
- Anti-Theft Devices
- Vital Signs Monitoring
- Tamper Detection
- Impact Sensing
- Washing Machine Load Imbalance
- Vehicle Motion Sensor
Package Included:
1 x Mini Piezo Vibration Sensor
