Description:

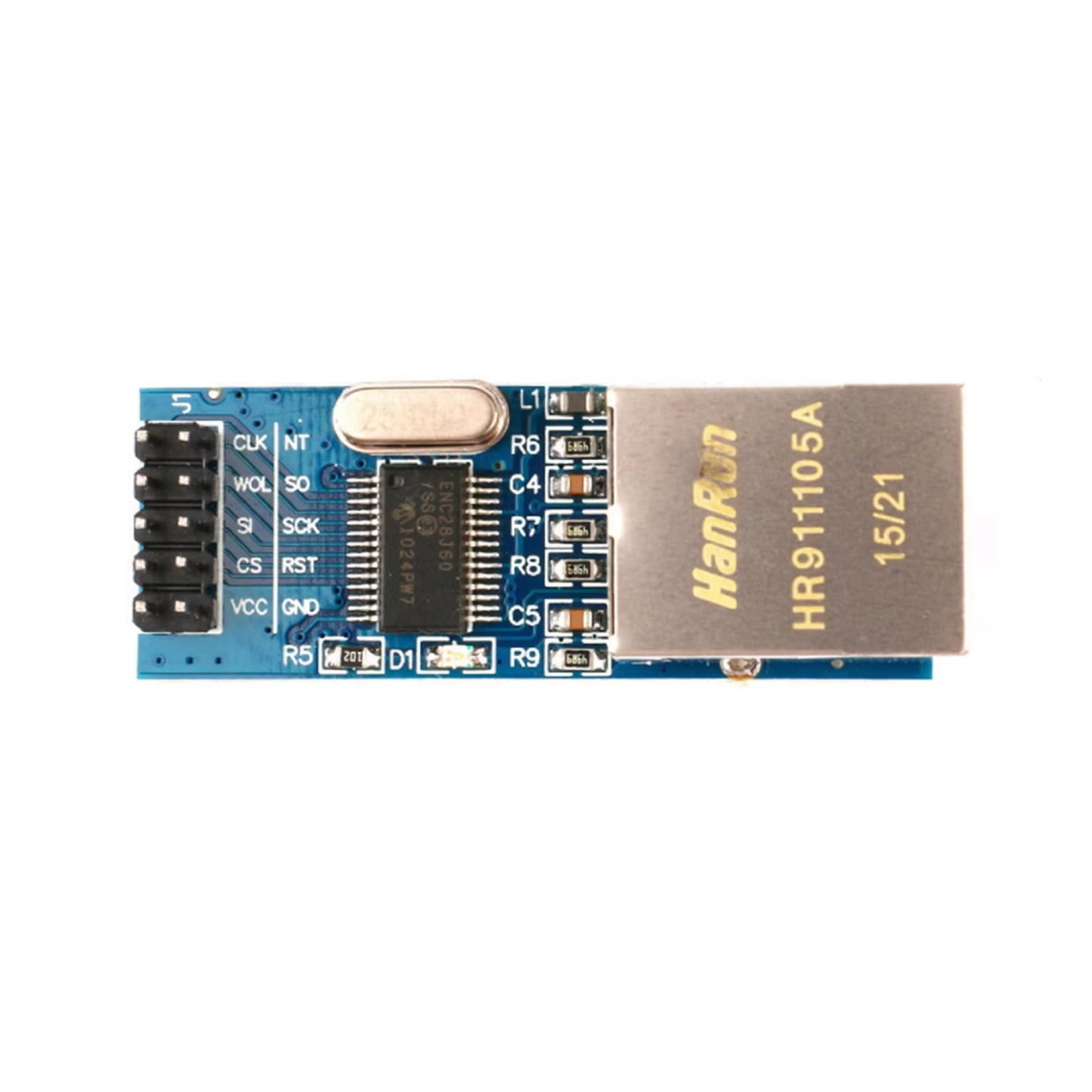

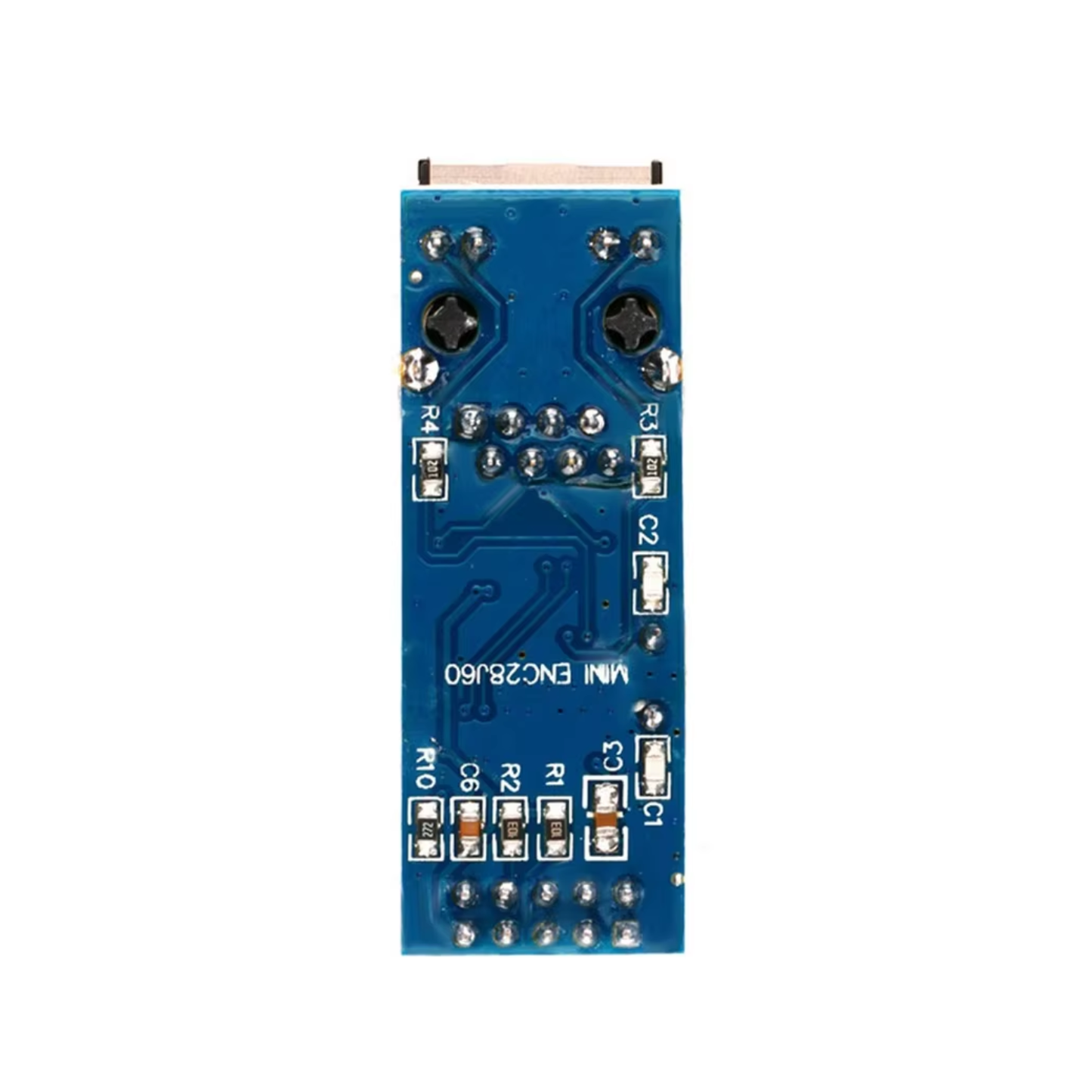

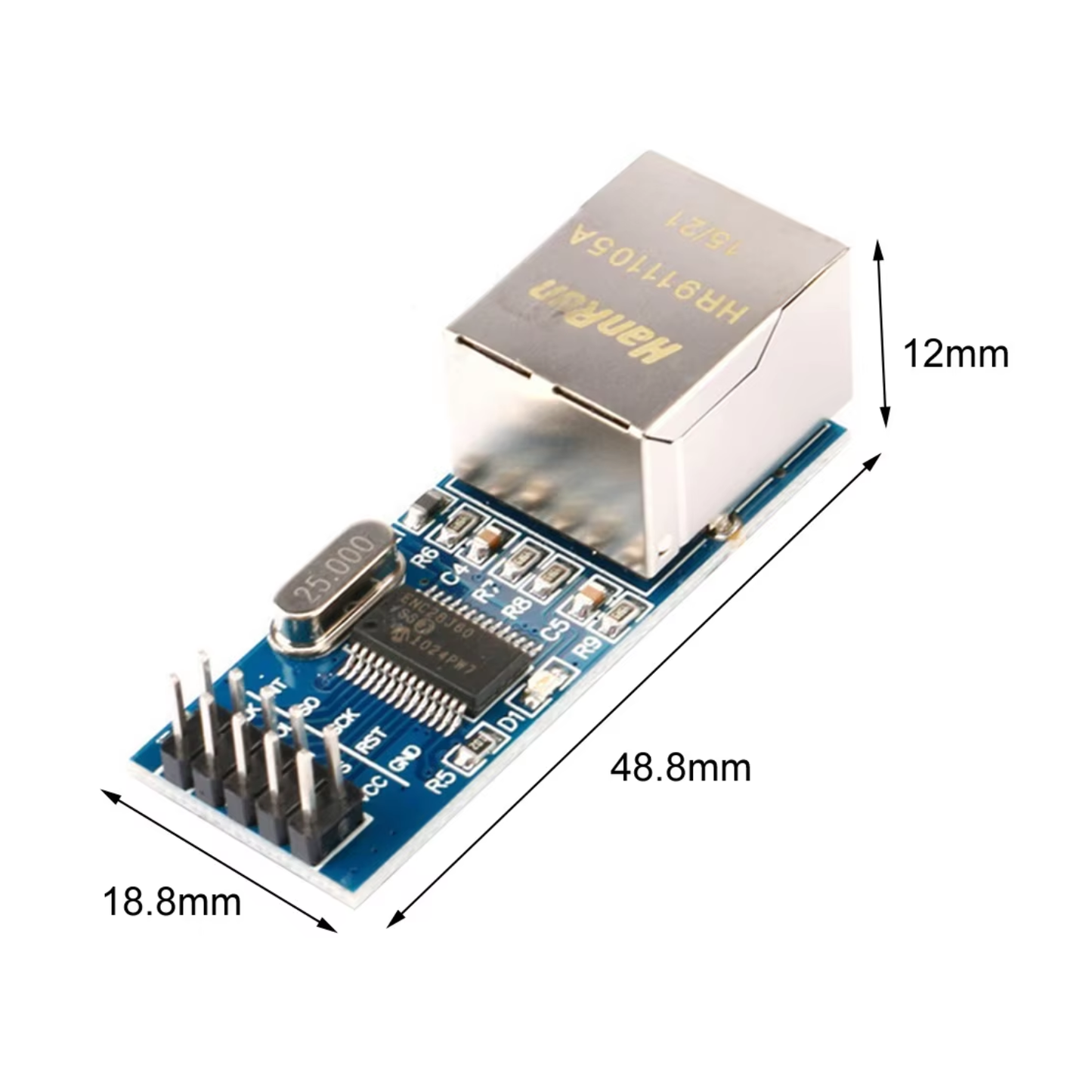

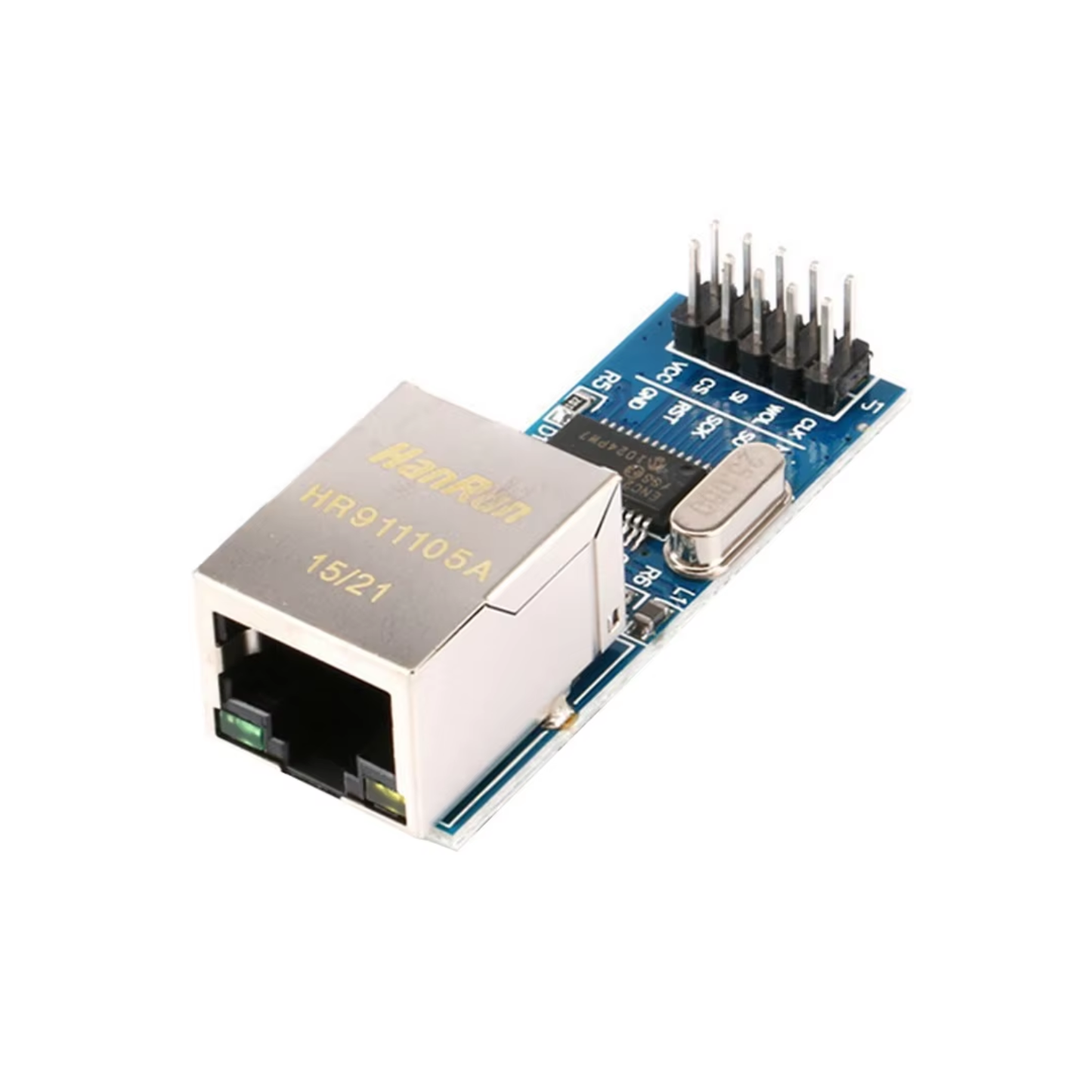

This compact and versatile Mini ENC28J60 Ethernet LAN Network Module provides a simple and efficient way to add Ethernet connectivity to your projects. Designed for use with popular microcontroller platforms like Arduino, AVR, PIC, and LPC, this module utilizes the widely recognized ENC28J60 Ethernet Controller IC from Microchip.
The 10-pin SP1 Ethernet Module communicates with your microcontroller via the industry-standard Serial Peripheral Interface (SPI), making integration straightforward. It functions as a standalone Ethernet controller, handling the essential network protocol requirements, and connects directly to most microcontrollers, allowing you to easily network your embedded systems.
This Module is an ideal solution for a wide range of applications, from home automation to industrial control.
Specification:
- Driver Chip: ENC28J60
- Supply Voltage: 3.3V
- Crystal Oscillator: 25 MHz
- Ethernet Port: HanRun HR911105A
Features:
- Microchip ENC28J60 Ethernet Chip supporting Microchipâs TCP/IP protocol stack, with IPv4, UDP, TCP, DHCP, ICMP, FTP, and HTTP support
- Compatible with all controllers having an SPI interface, SPI interface takes only a few pins to add an Ethernet interface to your microcontroller project
- Suitable for 3.3V Interface
- LAN connector with build in a transformer
- Link and Activity LEDs on Ethernet connector
- 8-pin standard interface connector with the spacing of 0.1â (2.54 mm) row pins
- IEEE 802.3 Compatible with Integrated MAC and 10Base-T PHY
- Fully Compatible with 10/100/1000Base-T Networks
- Supports One 10Base-T Port with Automatic Polarity Detection and Correction
- Supports Full and Half-Duplex modes
- Programmable Automatic Retransmit on Collision
- Programmable Padding and CRC Generation
- Programmable SPI Interface with Clock Speeds Up to 20 MH
Major Seven Functions:
- An SPI interface that serves as a communication channel between the host controller and the ENC28J60.
- Control registers which are used to control and monitor the ENC28J60.
- A dual port RAM buffer for received and transmitted data packets.
- An arbiter to control the access to the RAM buffer when requests are made from DMA, transmit, and receive blocks.
- The bus interface interprets data and commands received via the SPI interface.
- The MAC (Medium Access Control) module implements the IEEE 802.3-compliant MAC logic.
- The PHY (Physical Layer) module encodes and decodes the analog data that is present on the twisted-pair interface.
Package Included:
1 x Ethernet LAN Module ENC28J60 Network RJ45 SPI Arduino UNNA003O 2560 AVR ARM PIC
