- Operating Voltage: DC4.5V-35V
- Output Current: 0-5A
- Output Power: 90W (max)
- PWM Duty Cycle: 1% -100%
Description:

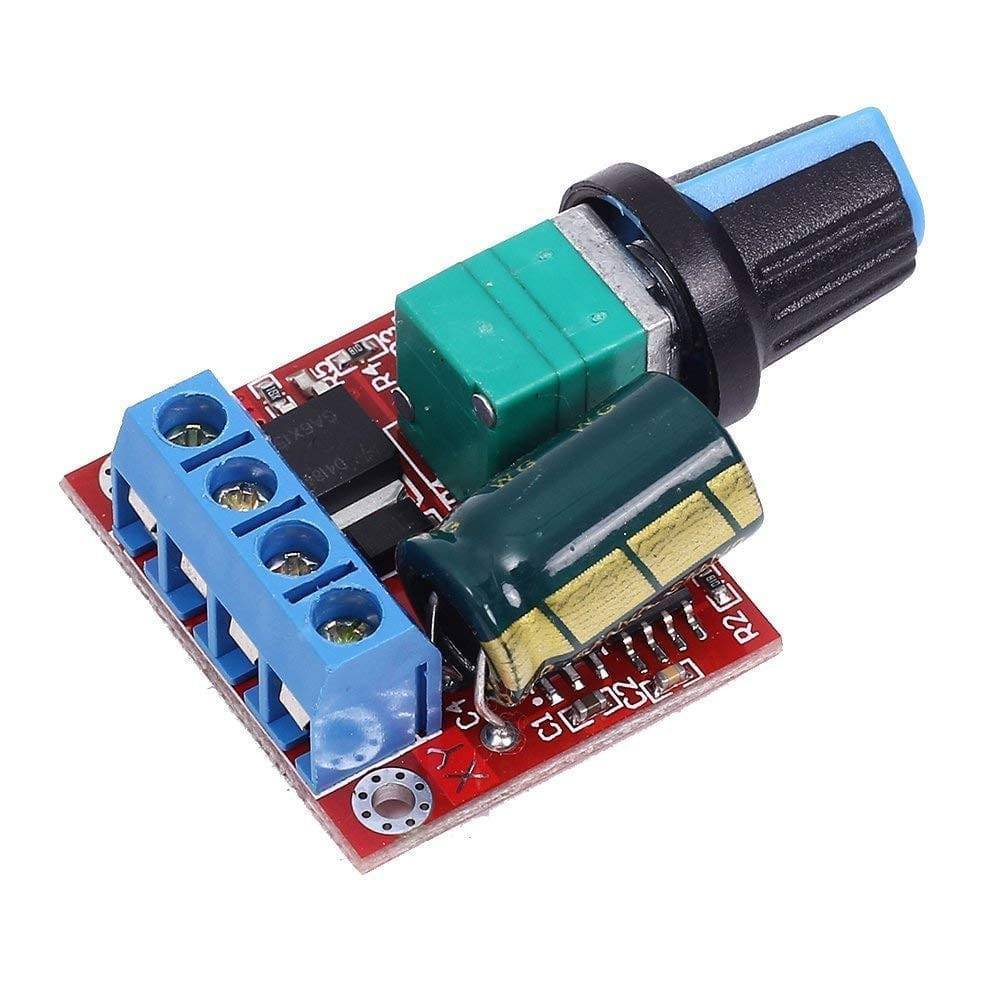

This is 3V 6V 12V 24V 35V PWM 5A DC Motor Speed Regulator is a Mini Style DC Motor Speed Regulator that controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).
Specification:
- Operating Voltage: DC4.5V-35V
- Output Current: 0-5A
- Output Power: 90W (max)
- PWM Duty Cycle: 1% -100%
- PWM Frequency: 20khz
Features:
- Mini DC 4.5-35V 5A PWM Motor Speed Controller.
- Wide voltage DC motor speed controller.
Precautions:
- DC motor governor input is DC, and can not directly connect to the AC (for example home 220V AC), otherwise, it will burn!
- DC power supply positive and negative terminals do not reverse, otherwise, the governor may be damaged.
- The motor can be positive or negative when the direction of operation and expectations do not match, you can adjust the line order to change the direction.
- Adjust the potentiometer knob to change the governor output duty cycle, and the motor speed changes.
Package Included:
1 x Mini DC Motor PWM Speed Controller, DC 5V-35V 5A Speed Adjustable Switch Module, 6V 12V 24V Variable Voltage Regulator
