Description:

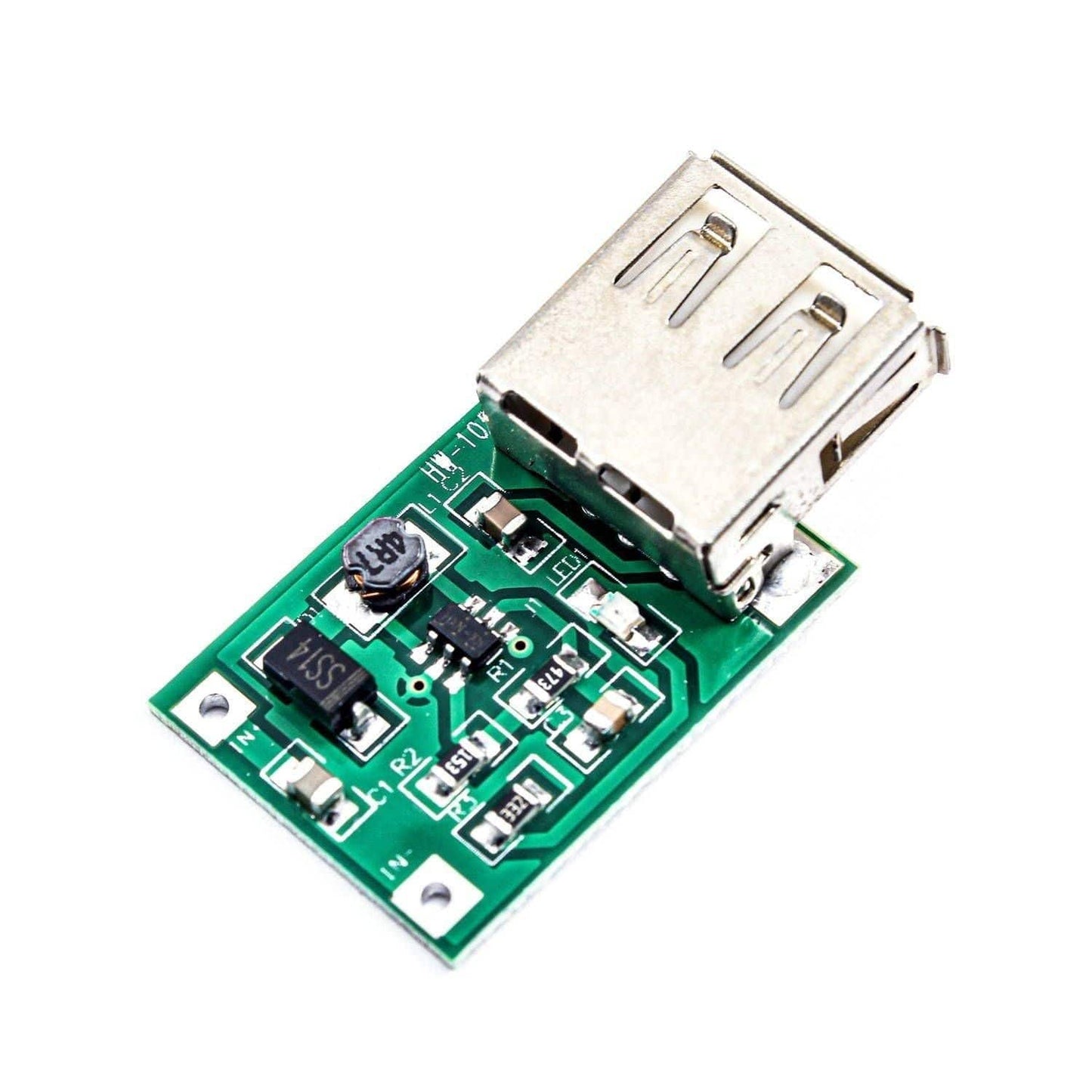

This is DC 3V to 5V Boost Converter USB Output Mini Step up boost Power Converter Module. It has Mini PFM Control and on-board input voltage indicator. High conversion efficiency, maximum to 96%. Any DC voltage input 0.9V ~ 5V, output 5V DC voltage can be stable, with two AA batteries input to the output current of 500-600MA, single AA battery power supply output current about 200MA. It has on-board USB female can supply power directly to the USB interface.
Specification:
- Input Voltage Range: 0.9 ~ 5V
- Output Voltage Range: 5.1 ~ 5 .2V
- Output Current: Rated 1A ~ 1.5A (single lithium input), the maximum 1.5A (single lithium input)
- Efficiency: Up to 96% (the higher the input voltage, the higher the efficiency)
- Switching Frequency: 500 KHz
Features:
- Mini PFM Control
- Onboard input voltage indicator
- High conversion efficiency, maximum to 96%
- Onboard USB female can supply power directly to the USB interface
Applications:
- DIY mobile power supply, only needs one battery, you can output 5V voltage for your phone, MP3, MP4, PSP charger, very easy.
- In order to power your electronic devices when your device needs the 5V power supply when you only have a lithium battery, this module can be directly step-up to 5V, solve your problems.
Package Included:
1 x Mini PFM control DC-DC USB 0.9V-5V to 5V DC boost step-up
