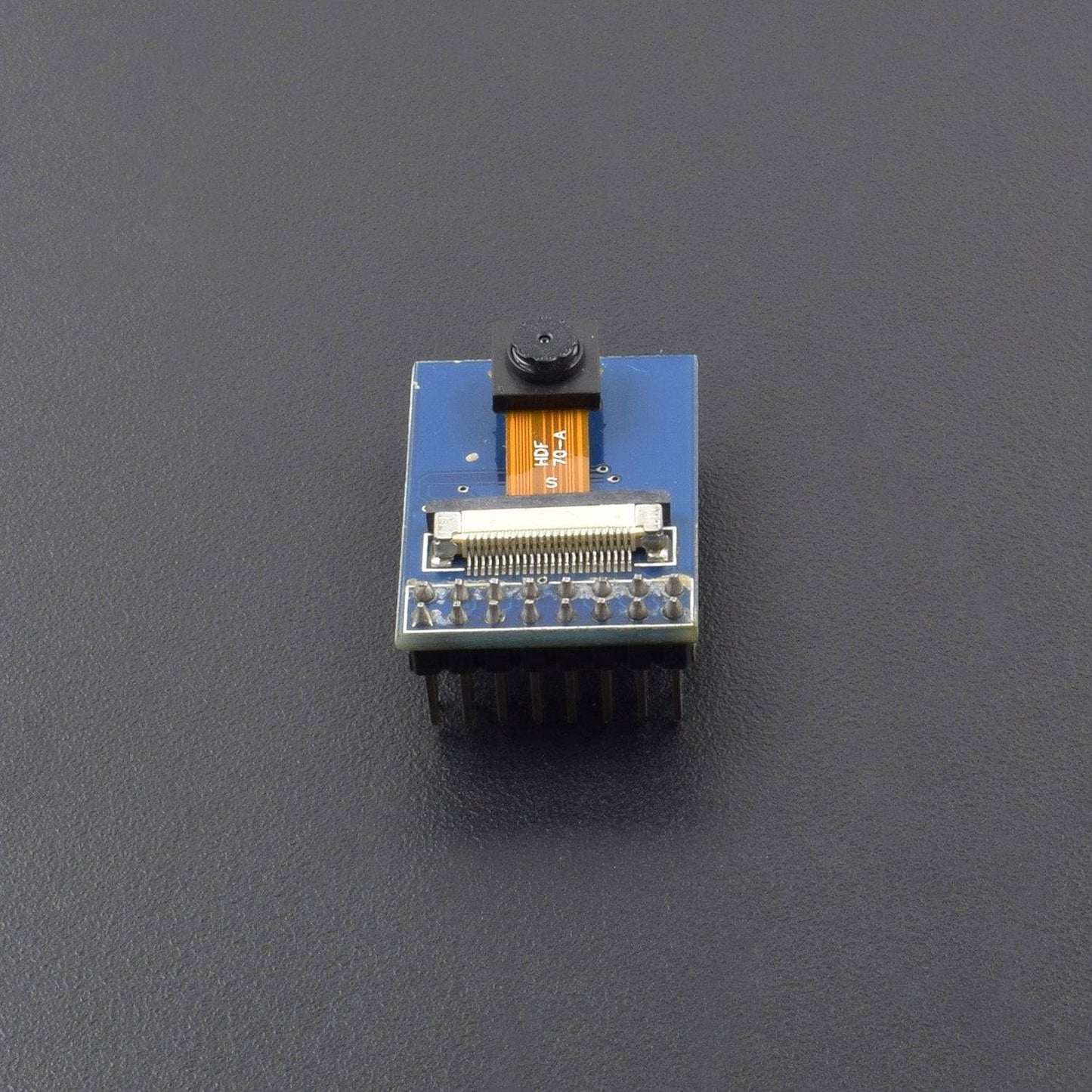

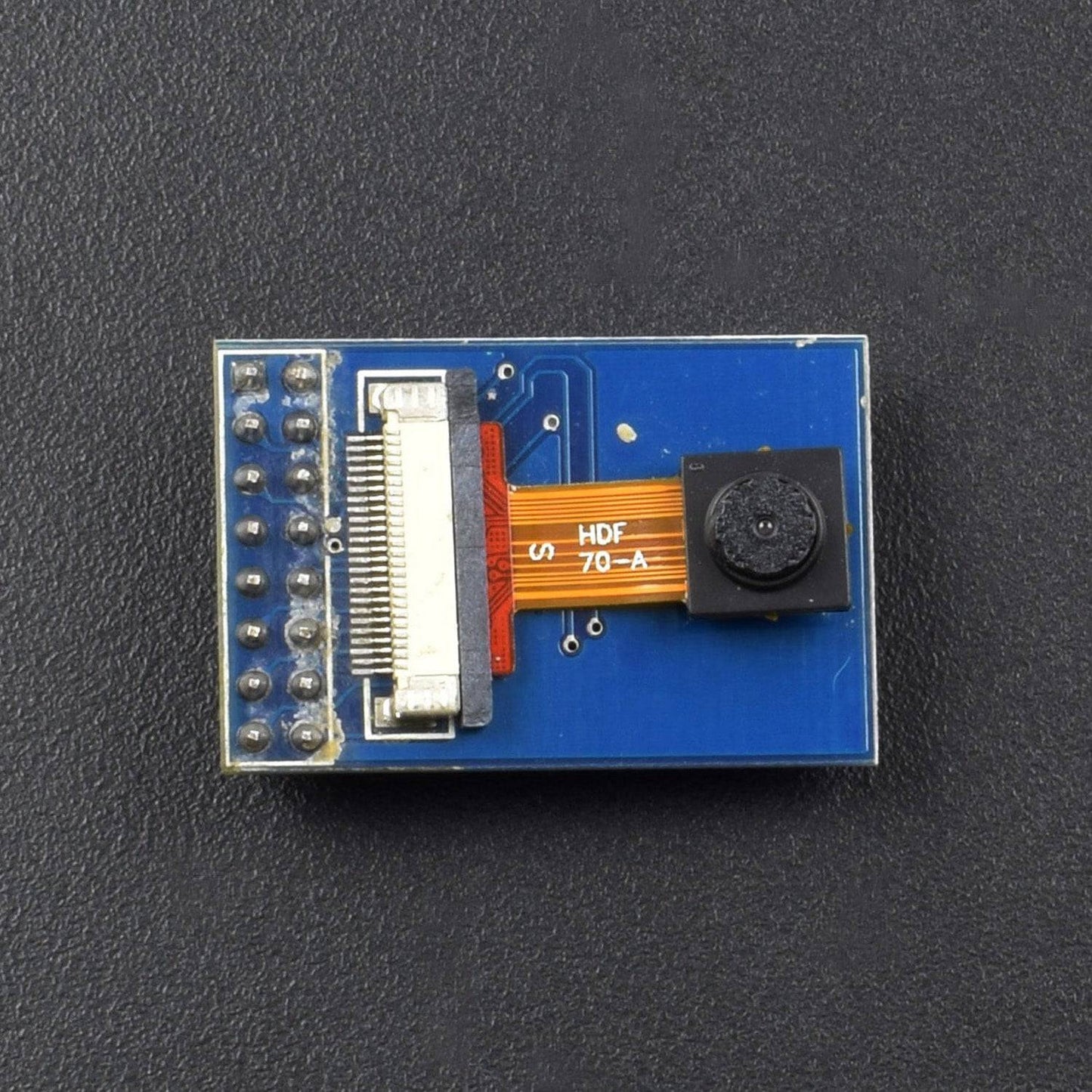

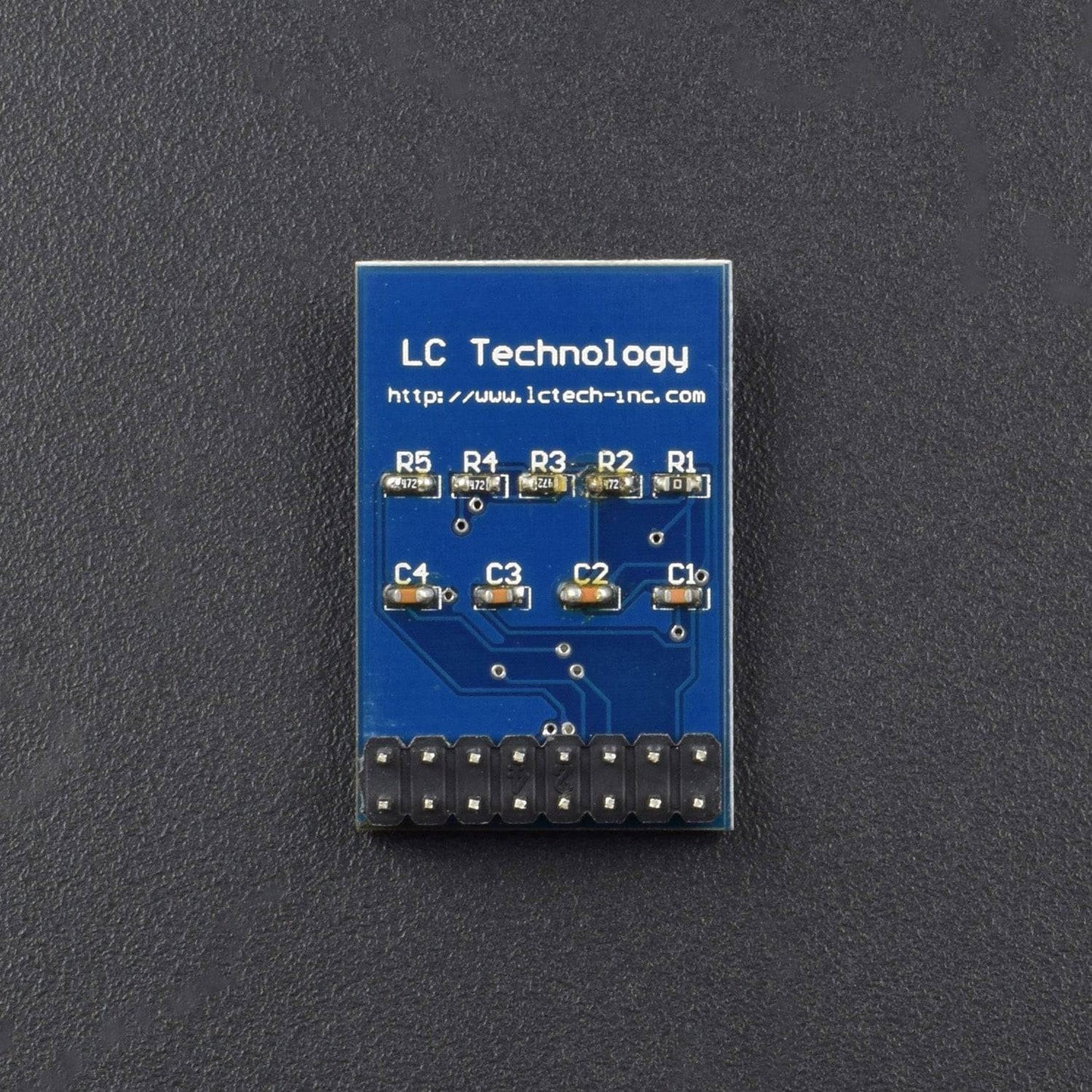

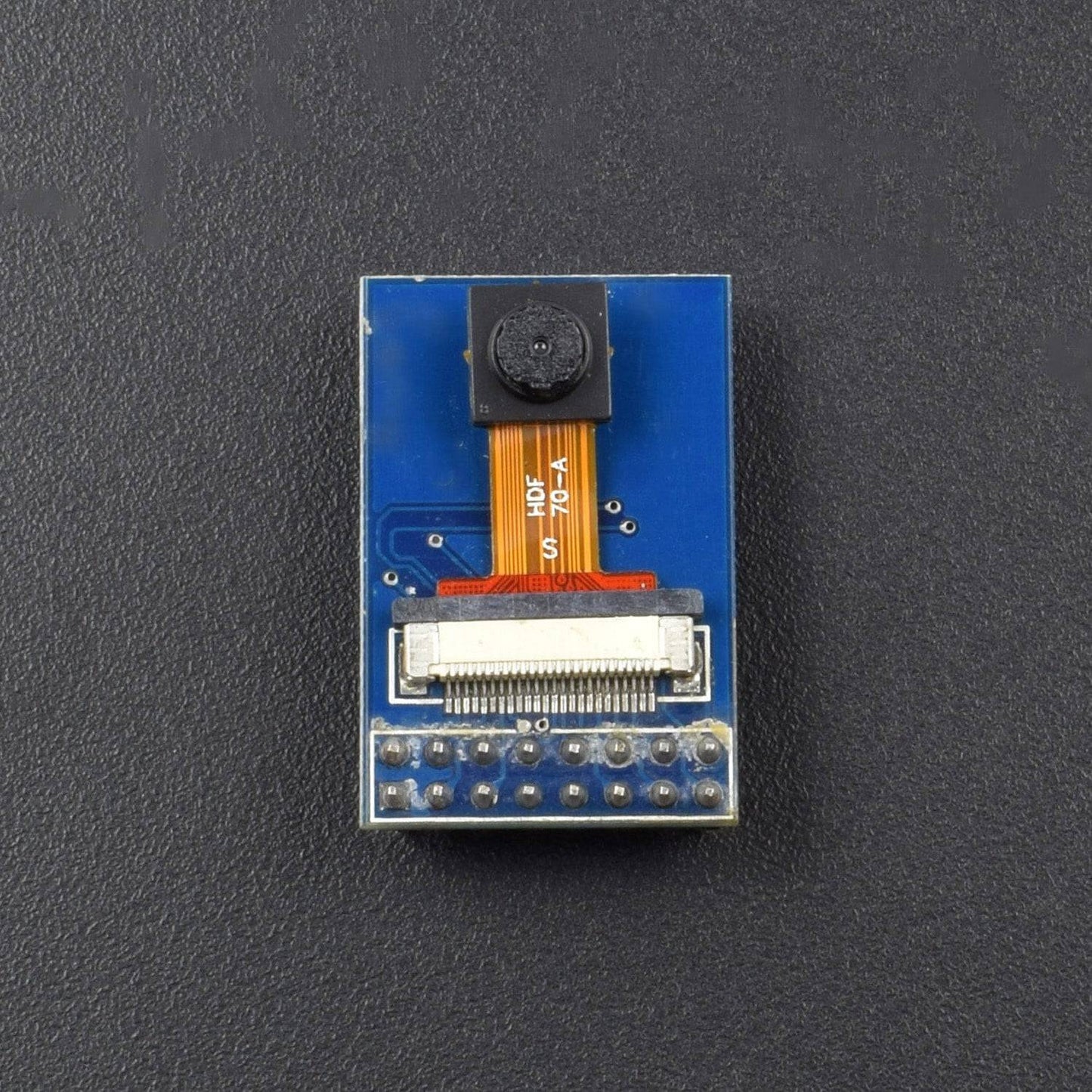

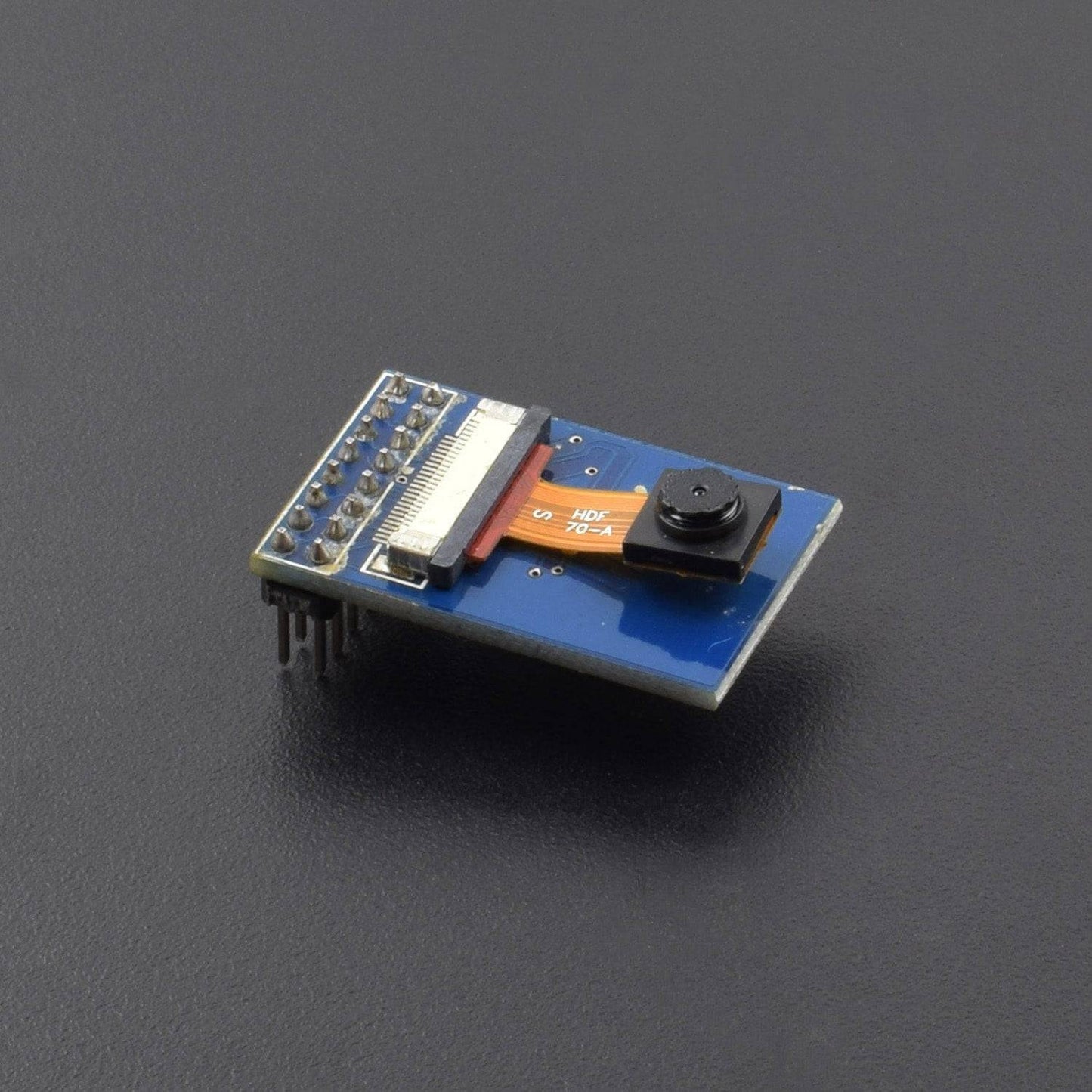

Mini Camera Shield with OV2640 2 Megapixels Lens for Arduino UNO Mega2560 Board -RS228

Mini Camera Shield with OV2640 2 Megapixels Lens for Arduino UNO Mega2560 Board -RS228

SKU:RS228

In stock

Regular price Rs. 1,000.00
Regular price Sale price Rs. 1,000.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • 2 megapixels image sensor OV2640
  • M12 mount or CS mount lens holder with changeable lens options
  • IR sensitive with proper lens combination
  • I2C interface for the sensor configuration
  • SPI interface for camera commands and data stream
  • All IO ports are 5V/3.3V tolerant

Description:

It integrates 2MP CMOS image sensor OV2640, and provides miniature size, as well as the easy to use hardware interface and open source code library. The Arducam mini can be used in any platforms like Arduino, Raspberry Pi, Maple, Chipkit, Beaglebone black, as long as they have SPI and I2C interface and can be well mated with standard Arduino boards. Arducam mini not only offers the capability to add a camera interface which doesn’t have in some low cost microcontrollers, but also provides the capability to add multiple cameras to a single microcontroller.

Features:

  • 2 megapixels image sensor OV2640
  • M12 mount or CS mount lens holder with changeable lens options
  • IR sensitive with proper lens combination
  • I2C interface for the sensor configuration
  • SPI interface for camera commands and data stream
  • All IO ports are 5V/3.3V tolerant
  • Support JPEG compression mode, single and multiple shoot mode, one time capture multiple read operation, burst read operation, low power mode and etc.
  • Well mated with standard Arduino boards
  • Provide open source code library for Arduino, STM32, Chipkit, Raspberry Pi, BeagleBone Black
  • Small form of factor

Application:

  • IoT cameras
  • Robot cameras
  • Wildlife cameras
  • Other battery-powered products
  • Can be used in MCU, Raspberry Pi, ARM, DSP, FPGA platforms

Circuit Connection:

Package Included:

1 x Mini Camera Shield with OV2640 2 Megapixels Lens for Arduino UNO Mega2560 Board
