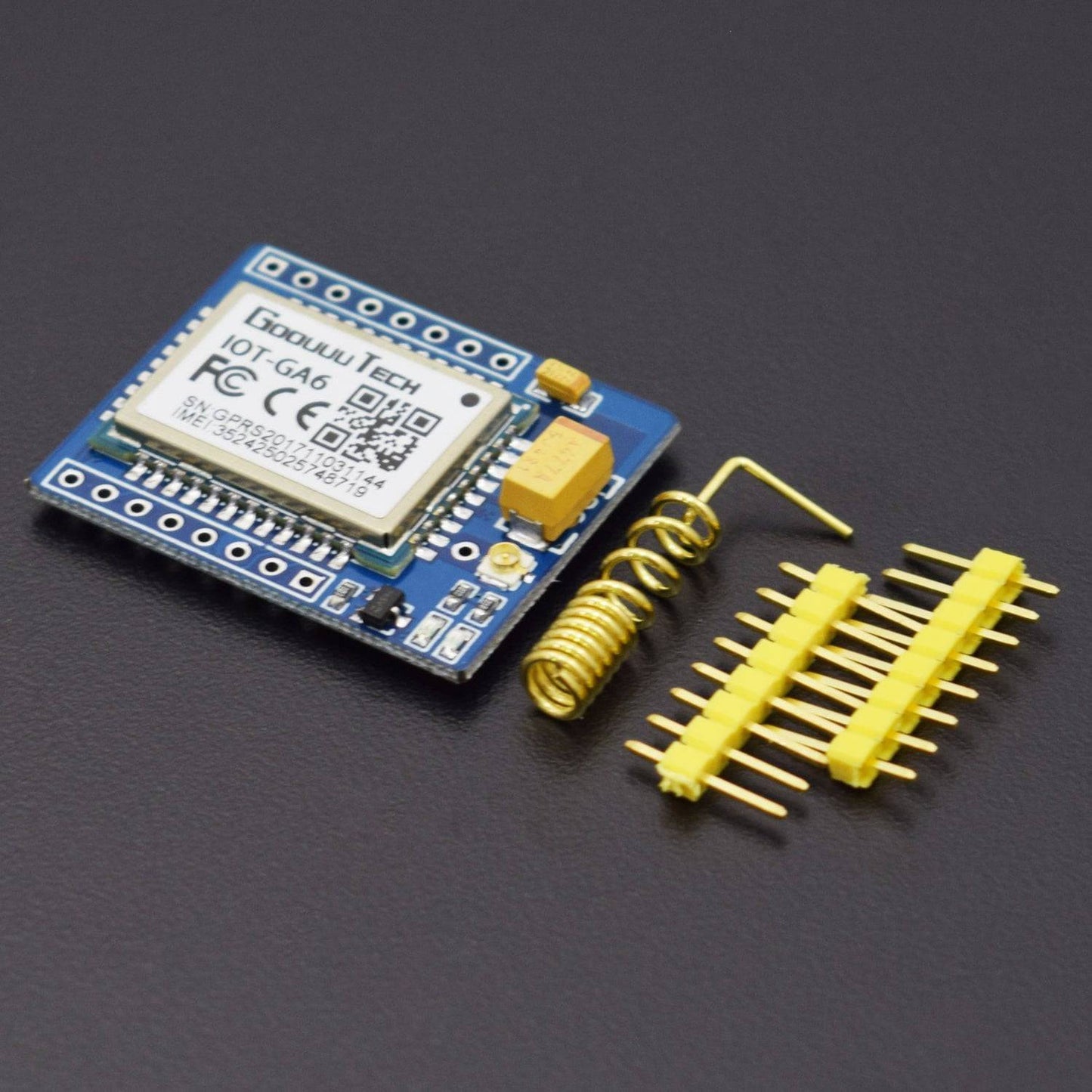

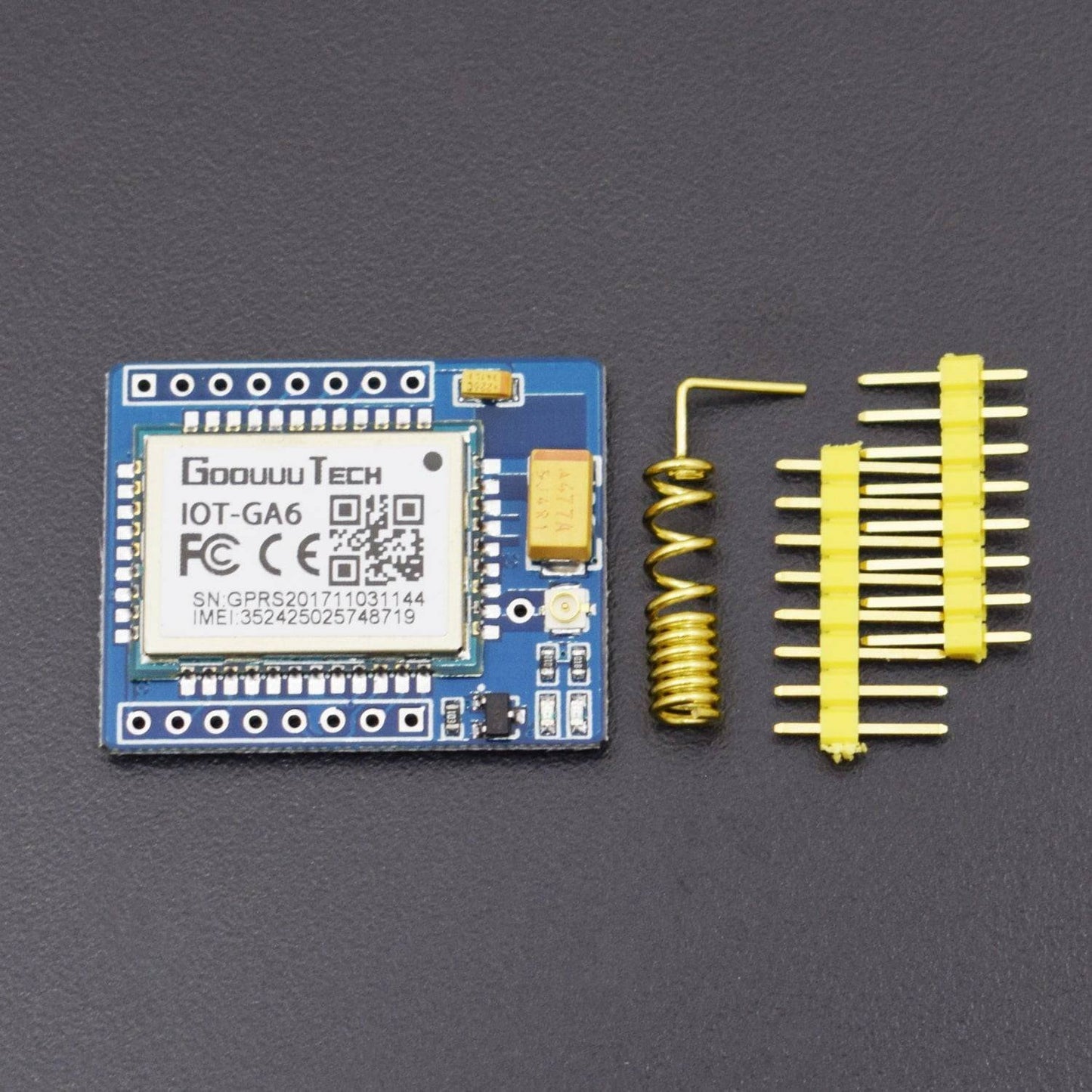

Mini A6 GPRS GSM Wireless Extension Data Transmission Module replace SIM800L GPRS Quad-band Antenna SMS voice - RS1075

Mini A6 GPRS GSM Wireless Extension Data Transmission Module replace SIM800L GPRS Quad-band Antenna SMS voice - RS1075

SKU:RS1075

40 in stock

Regular price Rs. 590.00
Regular price Sale price Rs. 590.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Power voltage> 3.4V
  • Working voltage 3.3V-4.2V
  • Dimensions 22.8 × 16.8 × 2.5mm
  • Working temperature -30 to + 80
  • Standby average current 3ma less
  • Support GSM / GPRS quad-band, including 850,900,1800,1900MHZ
  • Support China Mobile and China Unicom's 2G GSM network worldwide
  • GPRS Class 10
  • Sensitivity <-105;
  • Support voice calls
  • Support SMS text messaging

Description:

  • Normal operating temperature: -30℃ ~ +80℃
  • Limited operating temperature: -40℃ ~ -30 ℃ and +80 ℃ ~ +85 ℃
  • Working voltage: 3.5V-4.2V
  • Starting voltage: >3.5V
  • The flow consumption in SLEEP mode is 0.9mA
  • Four frequency: GSM850, EGSM 900 and DCS 1800, PCS1900 can automatically search for four bands. L conforms to GSM Phase 2 / 2+ L GPRS Class 10;
  • Sensitivity: <-107
  • Support voice calls
  • Support SMS text messages
  • Support mobile and Unicom 2G, as well as global GSM network
  • GPRS data features, data rates, Download 85.6Kbps, upload 42.8Kbps;
  • Support the serial reuse function in accordance with GSM 7.10 protocol
  • Support 2 serial ports, a download serial port, a AT command port
  • The AT command supports standard AT and TCP/IP command interfaces
  • Support for digital audio and analog audio, support for HR, FR, EFR, AMR speech coding
  • Support FCC, CE certification
  • SMT 42PIN package
  • GA6 dimensions: 22.8 x 16.8 x 2.2mm

Features:

  • Wide area coverage: GPRS has a good coverage, basically, you can use GPRS wireless Internet in the places where your cell phone can make a phone call.
  • Always online: as soon as the GPRS application is activated, it will remain online, similar to the wireless private line network service.
  • Charge by byte: although the GPRS service is always online, you don't have to worry about the cost; it's only charged when traffic is generated.
  • High speed transmission: at present, GPRS can support 85.6Kbps peak transmission rate, and the theoretical peak transmission can reach more than 100 Kbps.
  • Low price: relative to the SIM module, the price is only half of that. Greatly lowered the threshold for networking devices.
  • With small size, low power consumption and wide operating temperature range, GA6 is the ideal solution for M2M application, which provides GSM / GPRS SMS, data transmission and voice services. Suitable for automotive, industrial and PDA, personal tracking, power environment detection, wireless POS, intelligent metering, and other M2M applications.

Package included:

1 x GA6 5V mini GPRS / GSM module
