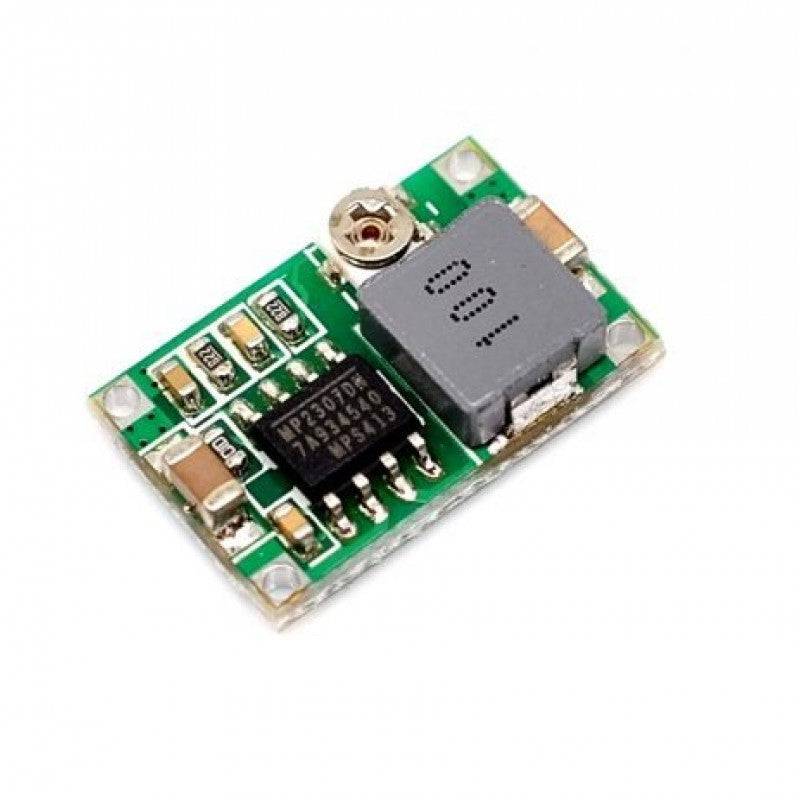

Mini 360 Step-Down Buck Converter Power Module - RS3012
Mini 360 Step-Down Buck Converter Power Module - RS3012
SKU:RS3012
350 in stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
- Regulator IC: MPS MP2307DN
- Input Voltage Range: 4.75 – 23VDC
- Selectable Output Voltage: 1.0 – 17VDC
Description:
Mini 360 Step-Down Buck Converter Power Module use an integrally moulded power inductor and synchronous rectifier control chip, smaller and more efficient. This Module can be used as a DIY mobile power, monitor power supply, power buggies, camera power supply, car power, communications equipment supply, various right size and weight for demanding applications (such as aviation models, etc.
Specification:
| Regulator IC | MPS MP2307DN |
| Input Voltage Range | 4.75 – 23VDC |
| Selectable Output Voltage | 1.0 – 17VDC |
| Rated Current | 1.8A Continuous |
| Maximum conversion efficiency | 95% (5Vin, 3.3Vout ~200mA output) |
| Switching Frequency | 340kHz |
| No-load output Ripple | 30mV |
| Load Regulation | 0.5% |
| Voltage Regulation | 2.5% |
| Operational Temperature Range | -40 to +85°C |
Features:
- Module: Non-isolated step-down module (BUCK)
- Rectification: Synchronous rectification
- Built-in 160°C thermal shutdown
- Output ripple: 30mV (no-load)
Package Included:
1 x Mini 360 Step-Down Buck Converter Power Module
