- This Raspberry PI PCD8544 shield V3.0 screen does not contain a diagram of the motherboard
- PCD8544 tutorial for Raspberry pie driving: Connection mode of B version.
- Insert the B+ version of the B+ 2x20P pin: remember the former 2x13P needle and B version is fully compatible, also is the signal definition completely consistent. So the B+ program and B are fully compatible with
Description

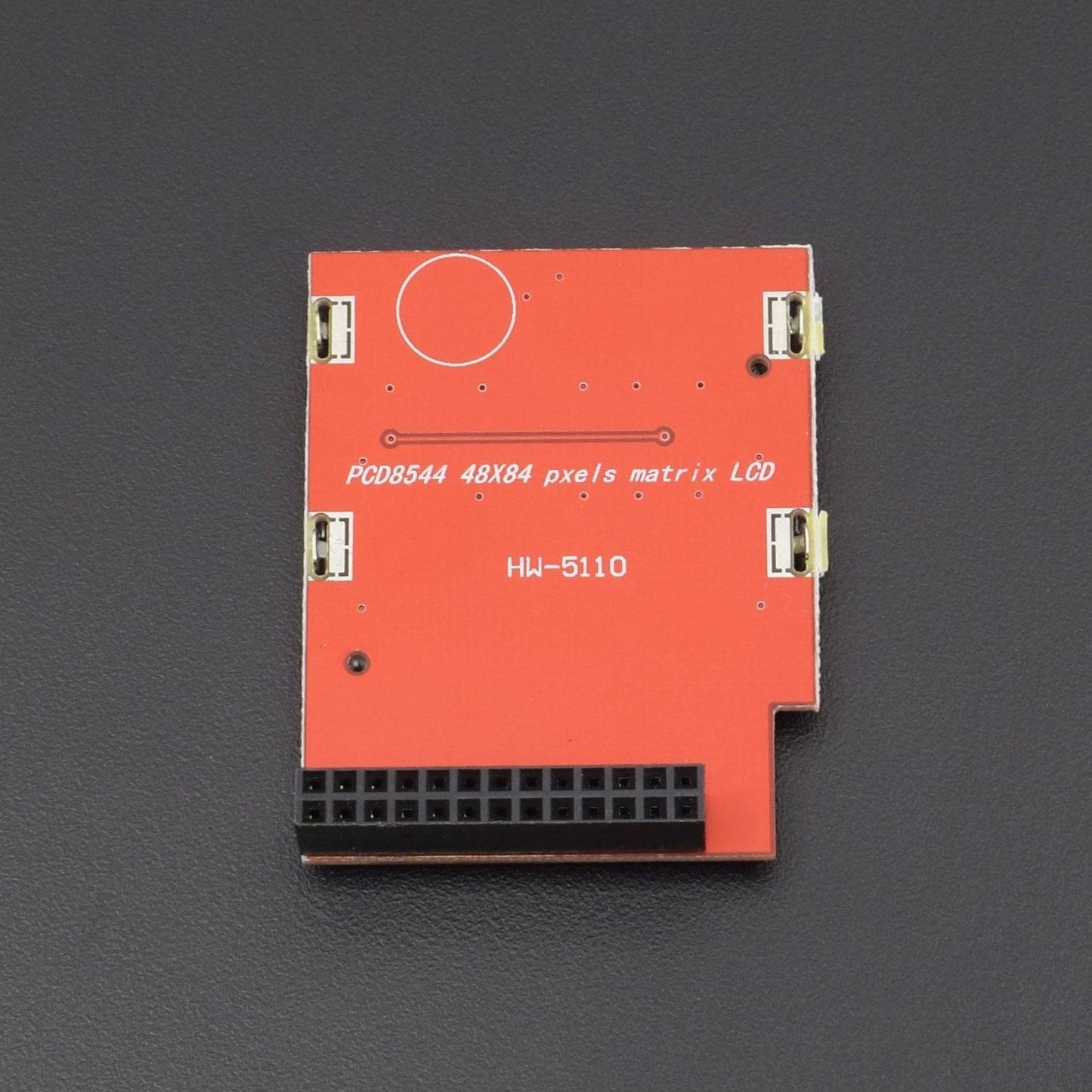

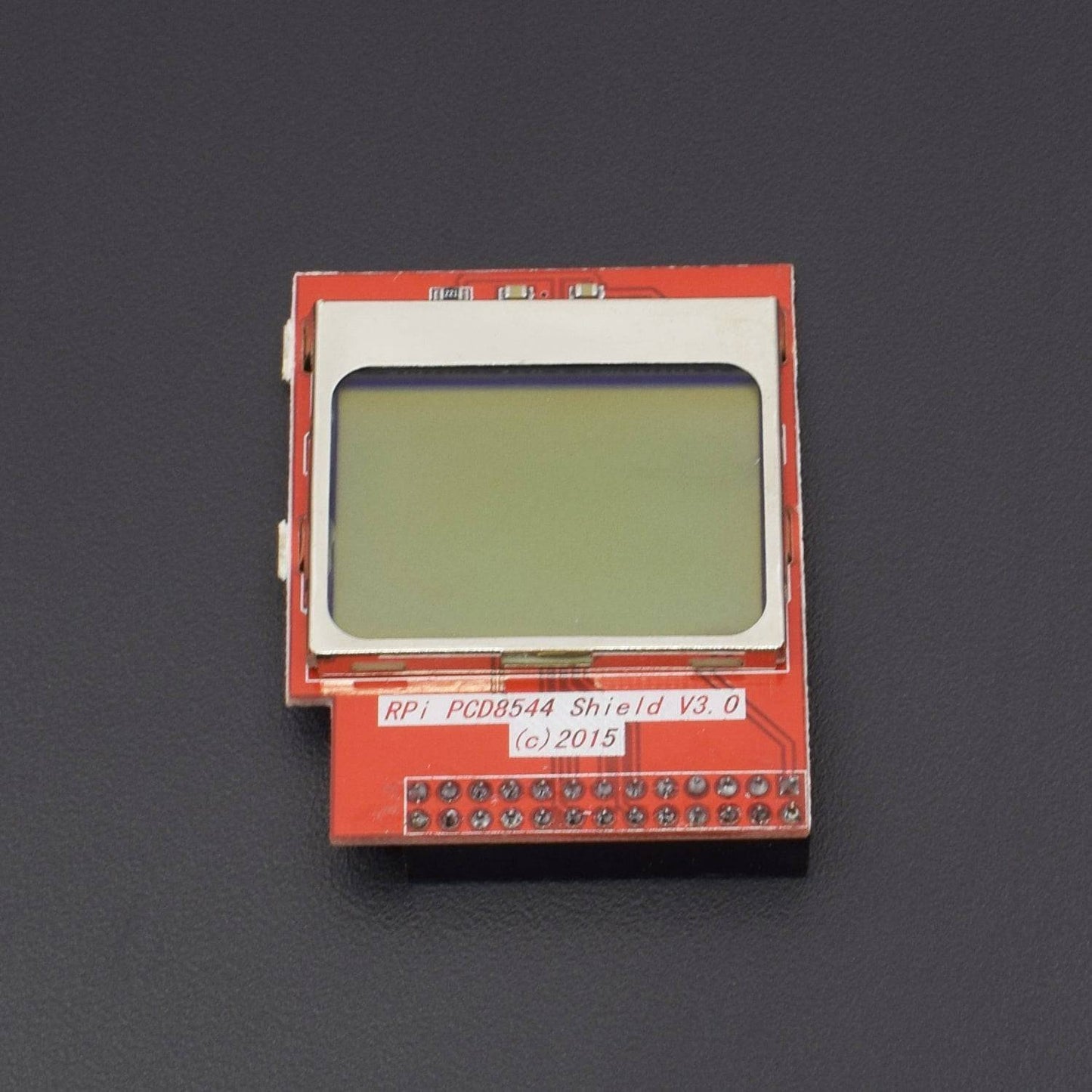

- This Mini 1.6 inch RPI PCD8544 Shield V3.0 CPU Info Pixel Matrix LCD with Backlight for Raspberry Pi 3 84x48 Resolution is compatible with Raspberry Pi Model B+ and B.
- With a resolution of 84 x 48, this Mini LCD screen displays the CPU utilization and the memory occupancy rate that runs on your Raspberry Pi through Raspberry Pi internal Python programming.
- It is clear at a glance.
- Geek players can also program by themselves to display any content.
- When the Raspberry Pi is used as a server, you can also see the operating condition of Raspberry Pi at night. Package Includes : 1 x Mini 1.6 inch RPI PCD8544 Shield V3.0 CPU Info Pixel Matrix LCD with Backlight for Raspberry Pi 3 84x48 Resolution.
