• Mikroe HALL CURRENT 15 CLICK
  • 600V Isolated Sensor
  • HALL CURRENT 15 CLICK
  • High-Accuracy Current Monitor
  • Isolated Current Sensor
1 5

Mikroe

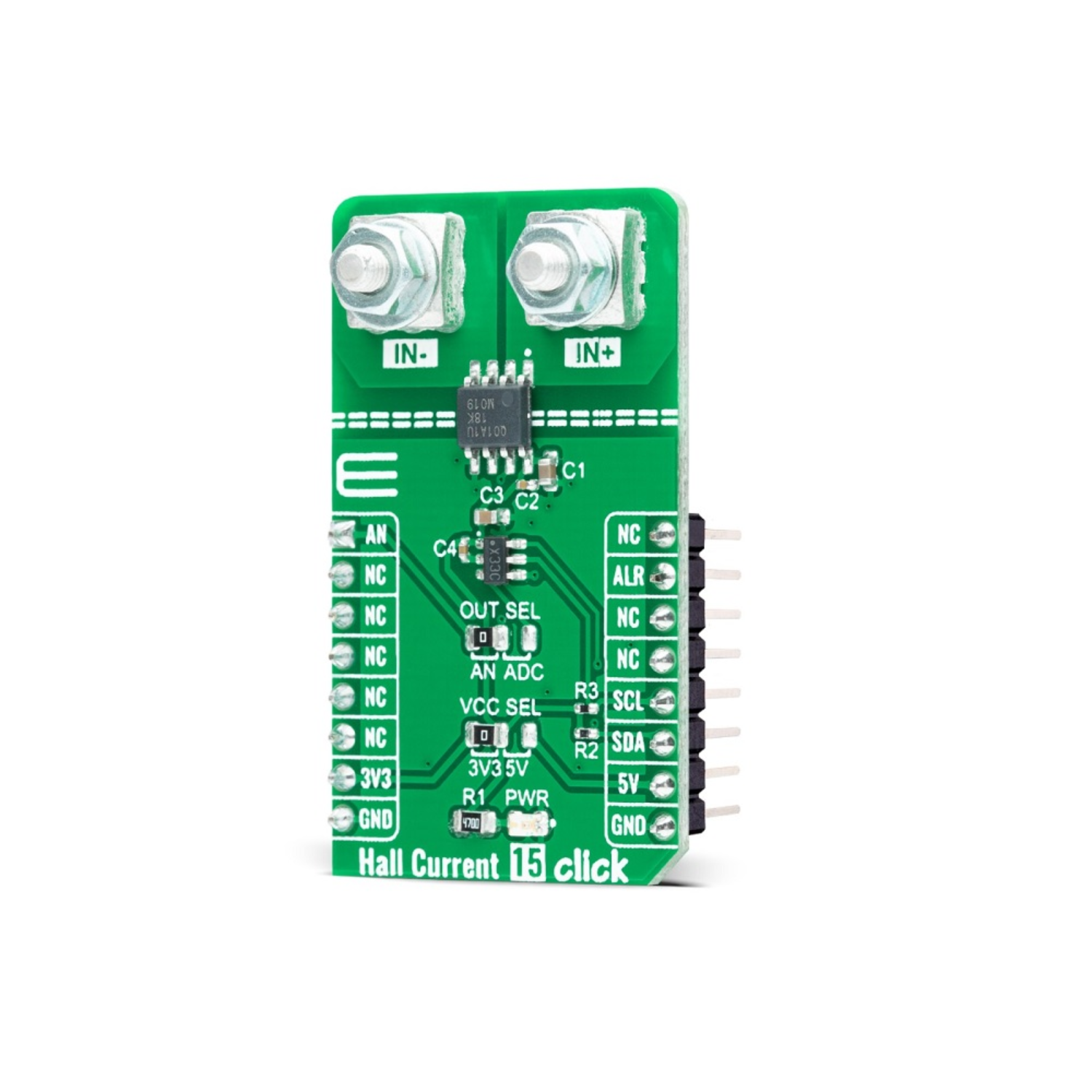

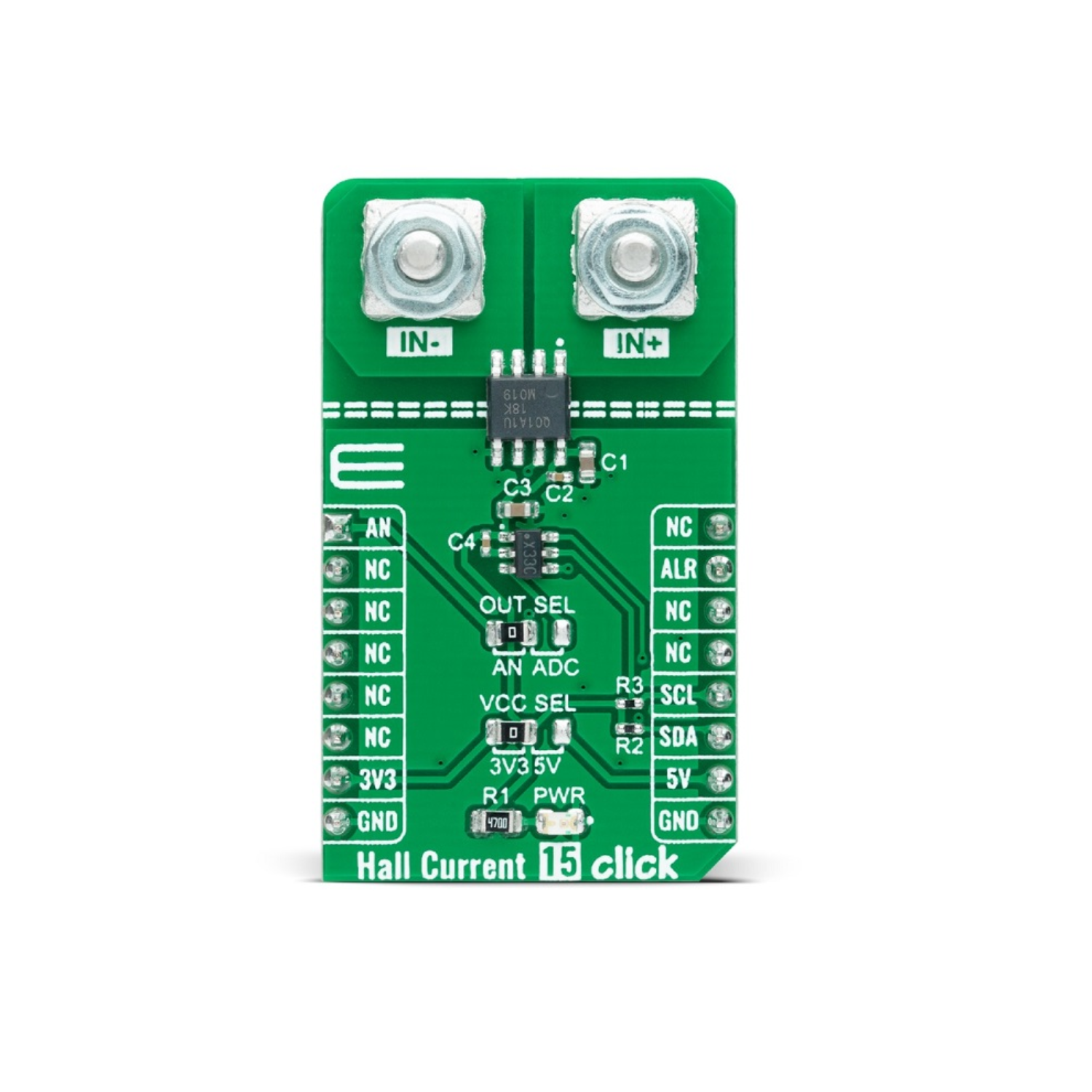

Mikroe HALL CURRENT 15 CLICK Isolated Current Sensor AC/DC Current Measurement

Mikroe HALL CURRENT 15 CLICK Isolated Current Sensor AC/DC Current Measurement

In stock

Rs. 1,800.00
Rs. 1,800.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

Accurate and Versatile AC/DC Current Sensing with 600V Isolation: Introducing Hall Current 15 Click. Powered by the Texas Instruments TMCS1101-Q1, this Click board offers precise Hall-effect current measurements for both unidirectional and bidirectional currents. Benefit from its low 1.8mΩ internal conductor for minimal power dissipation and a wide 80 kHz bandwidth suitable for diverse applications.

The integrated Hall-effect sensor and precision signal chain guarantee high accuracy (<1.5% full-scale error over temperature) and exceptional temperature stability, thanks to comprehensive offset and sensitivity compensation. Hall Current 15 Click provides a reliable and isolated solution for all your current monitoring needs.

Specifications:

  • Type: Hall Current Sensor Module
  • Interface Analog, I2C
  • Input Voltage 3.3V or 5V
Mikroe Hall Current 15 Click: Precise Current Sensor

Features:

  • Highly accurate and stable measurements.
  • 3kV isolation, 600V working voltage for safety.
  • It handles both DC and AC, bidirectional and unidirectional currents.
  • Uses TI's TMCS1101-Q1 module

Package Included:

1 x Mikroe HALL CURRENT 15 CLICK
