Description:
The Micro Minim OSD Flight Controller was engineered to bring users a very powerful OSD at an unreal cost. After all the community mods, we re-engineered the OSD so every usable pin was easily available. (no more surface soldering) From the manufacturers of the WitesSpy KV Team OSD, all your requests have now been involved in the Micro MinimOSD! The only difference is that It does NOT have the DC/DC converter. this means less heat when powered off a Flight controller.
The F3 Naze32 Flight Controller is the same as the older MinimOSD hardware but has been modified to take advantage of custom firmware options. You can choose firmware that is MAVLink compatible for ArduCopter, or MultiWii Serial compatible for MultiWii and Baseflight/Cleanflight control boards. You can connect two batteries up to 4S so you can see the main flight battery voltage. the second port will allow your FPV battery voltage on the display as well. we also did not forget about the pin for analog or digital PWM RSSI and a connection where you can attach a current sensor.
Specifications:
- Item Type: Module
- Input Voltage (V): 5
- Current Consumption (mA): 500
- Monochrome OSD: MAX7456
- Operating Temperature (°C): -40 ~ +85
Features:
- Solder jumper for PAL video option.

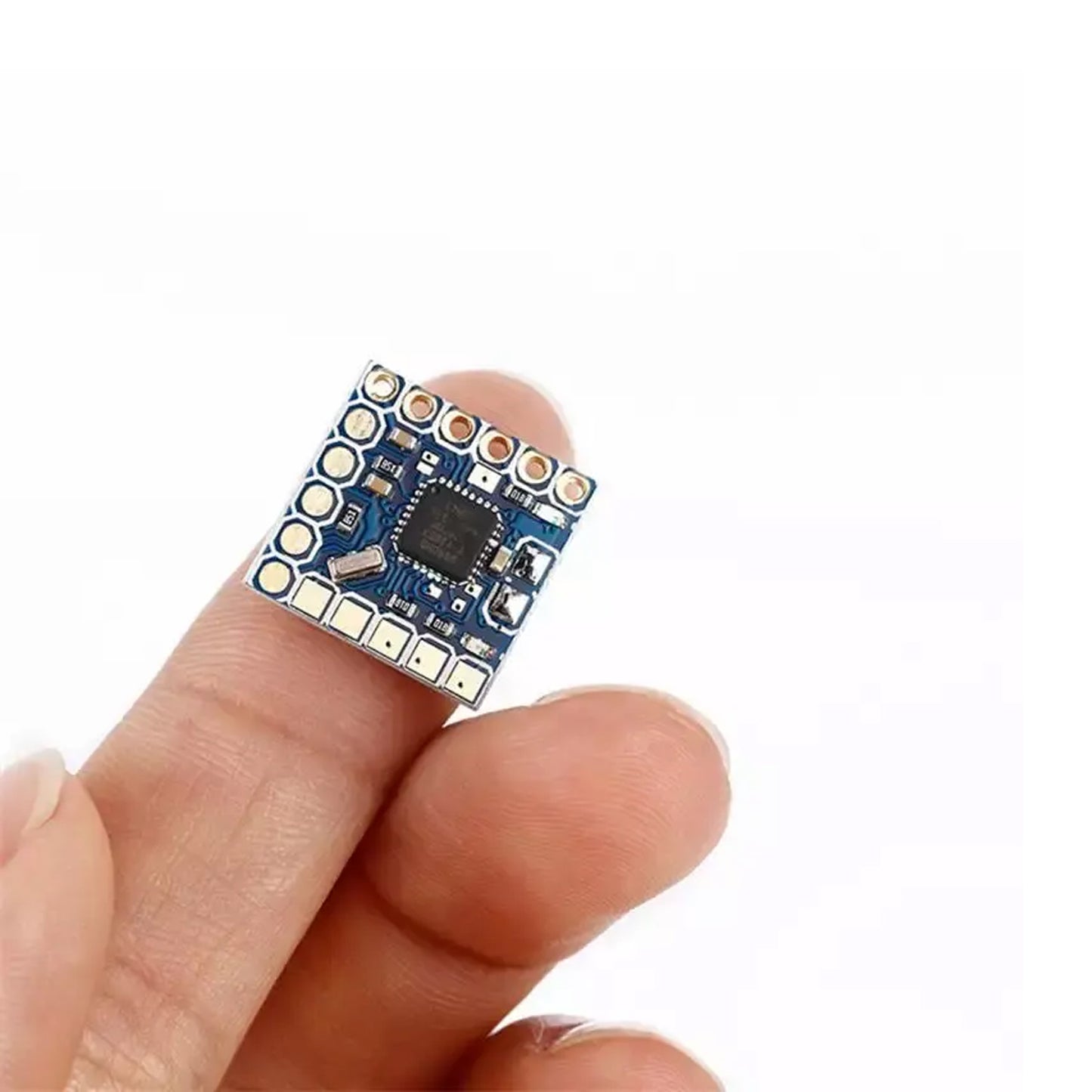

- Exposed test points for HSYNC and LOSAll the same features as the original, but less the half the size.
- NO Onboard DC/DC converter hence less heating.
- FTDI cable compatible pinout.
- The standard 6-pin ISP header.

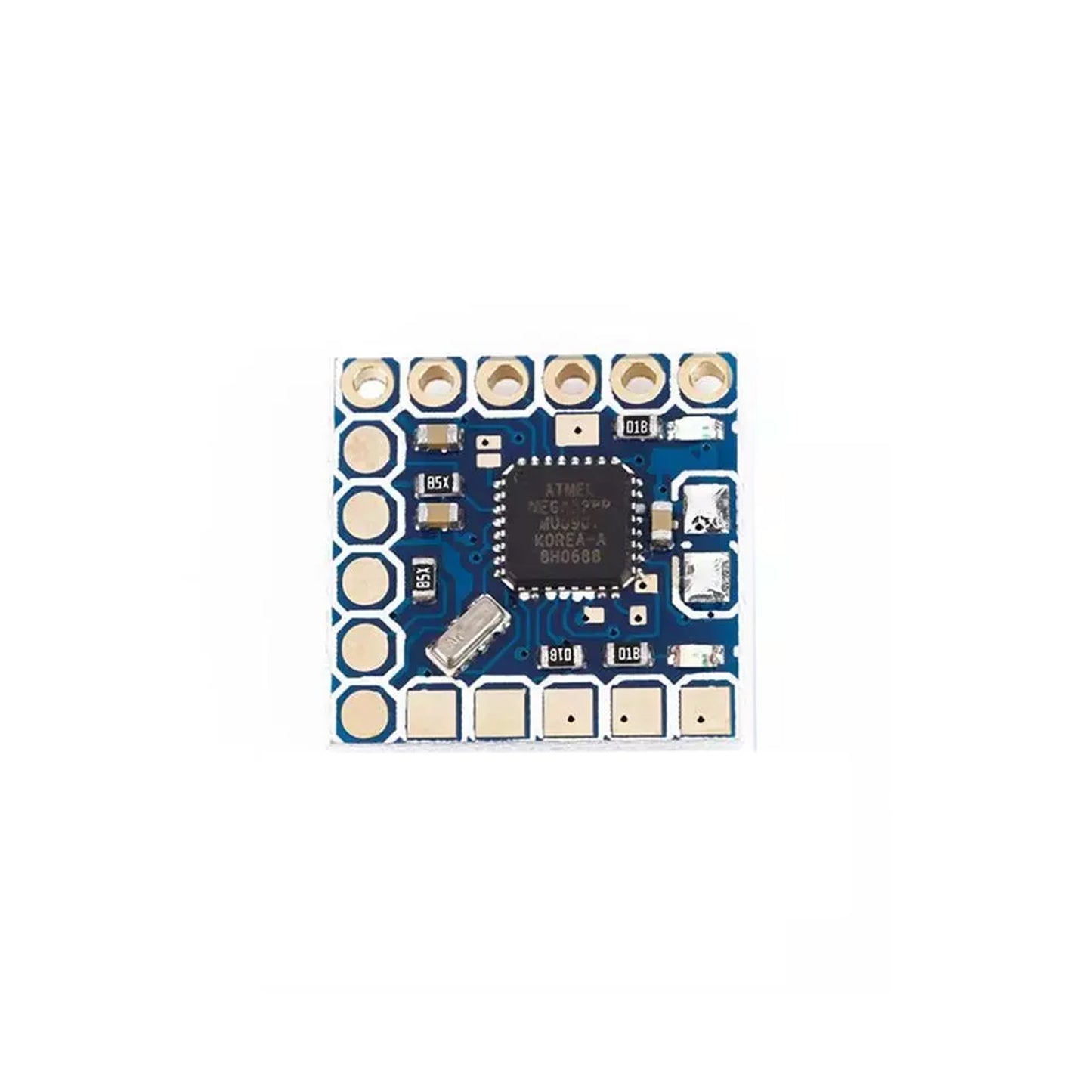

- ATmega328P with Arduino bootloader.

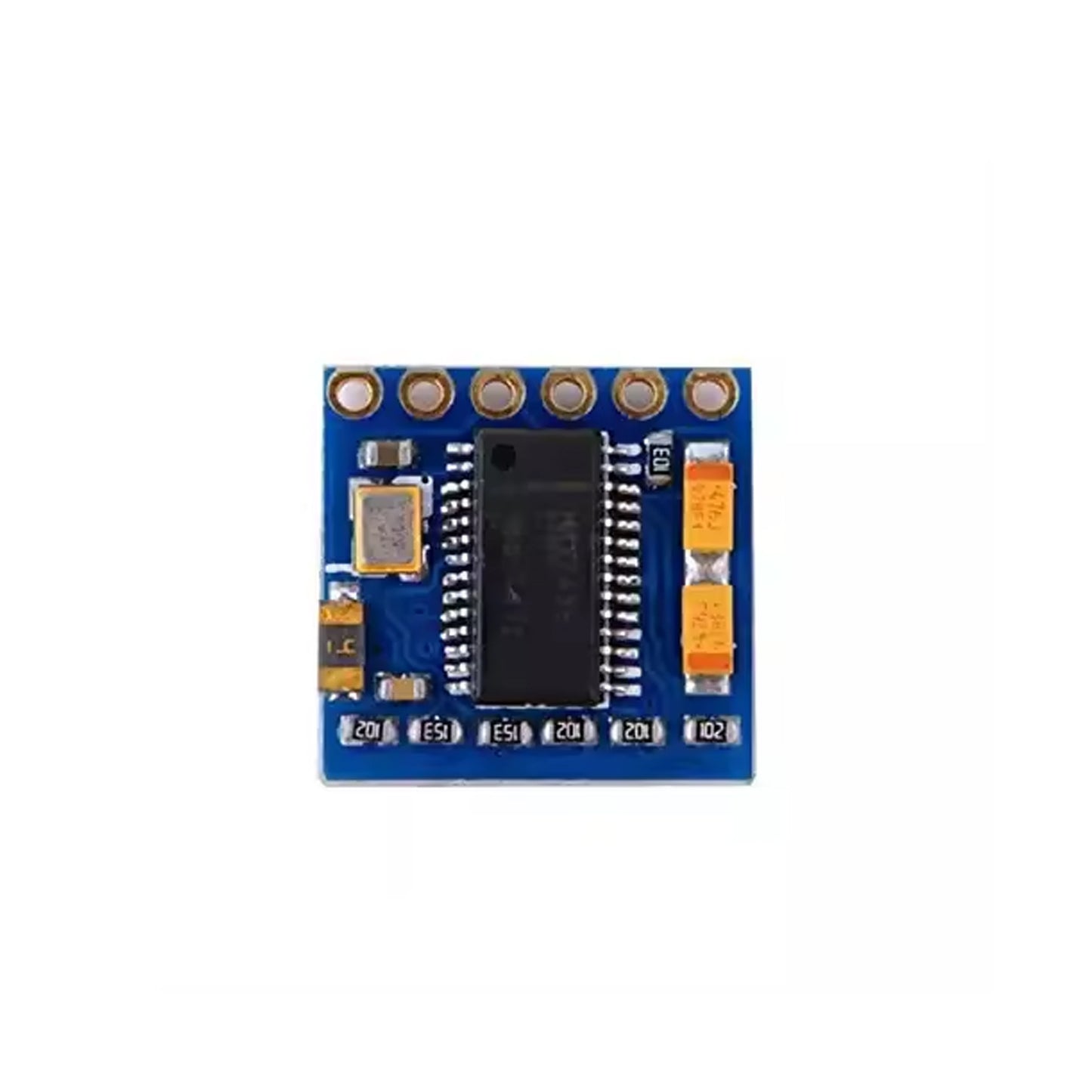

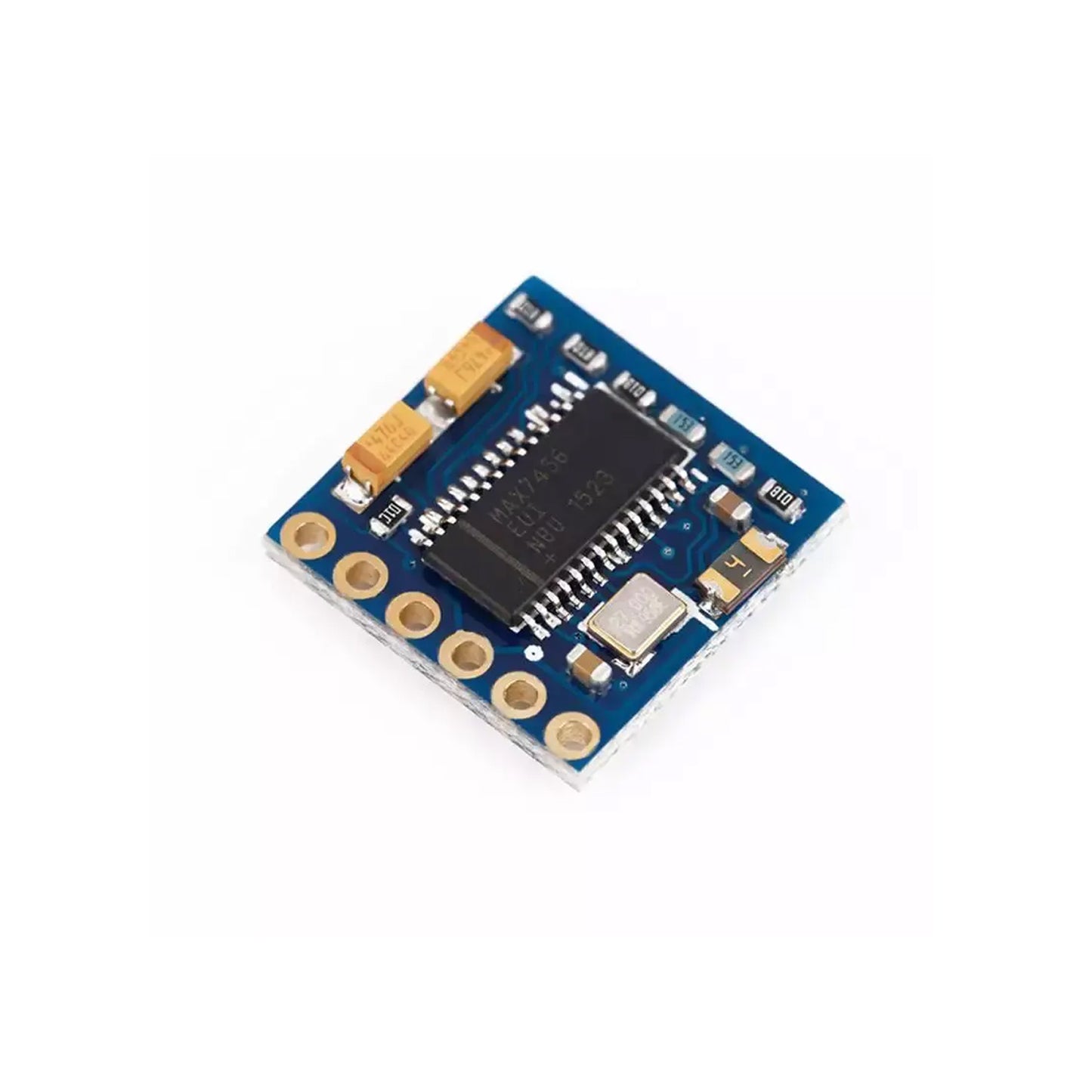

- MAX7456 monochrome on-screen display.
- Two independent power sections with two LED indicators on each.
- Solder jumpers for combining the power sections.
- Modifications for direct connection of two batteries (up to 4S).
- Pad for an Analog or Digital PWM RSSI signal.
- Pad for the connection of a Current Sensor.
- Standalone, or with APM/ Flip / Flip32+ flight controllers.
- This hardware takes the hardware mods for this firmware and builds them into an RTF solution.
Package Included:

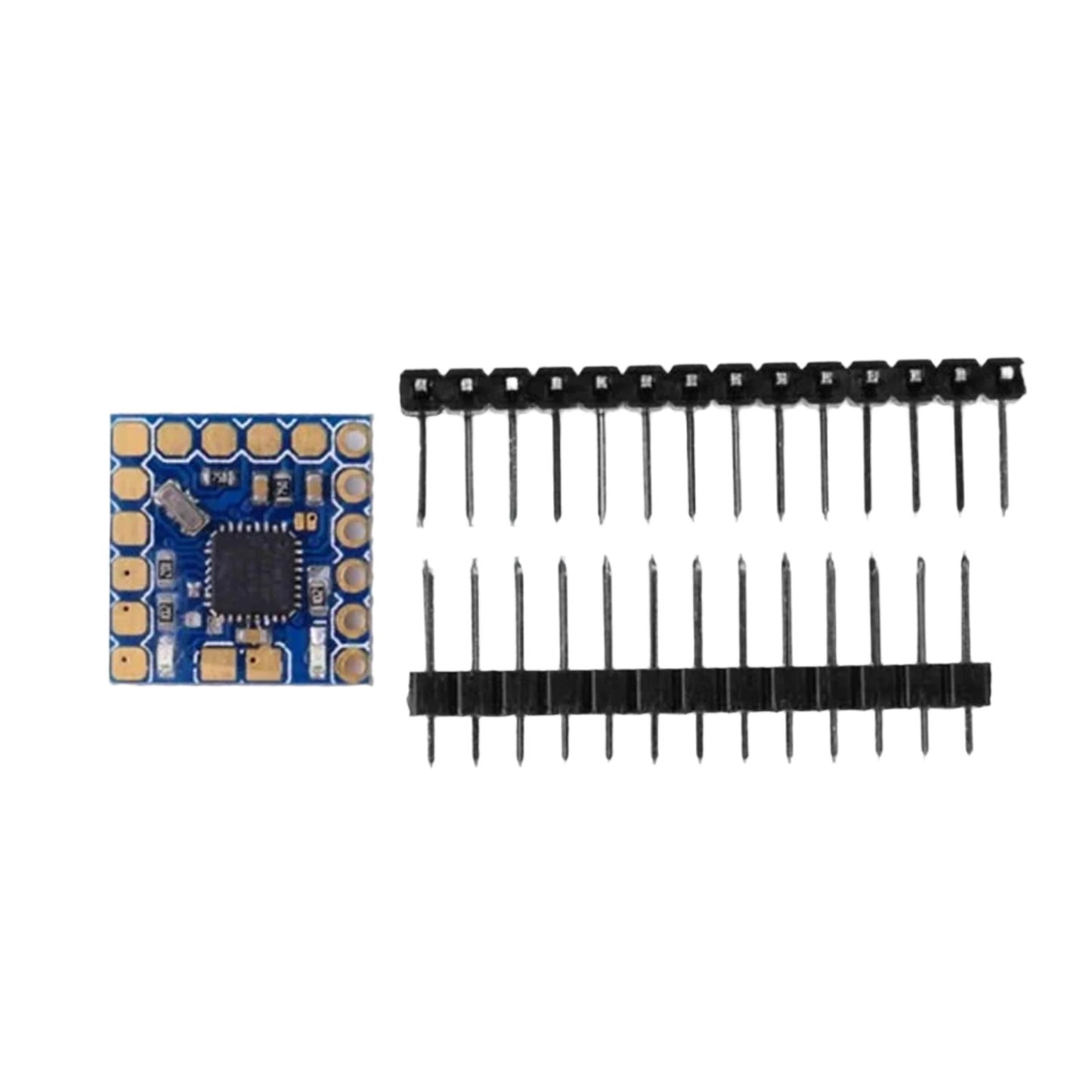

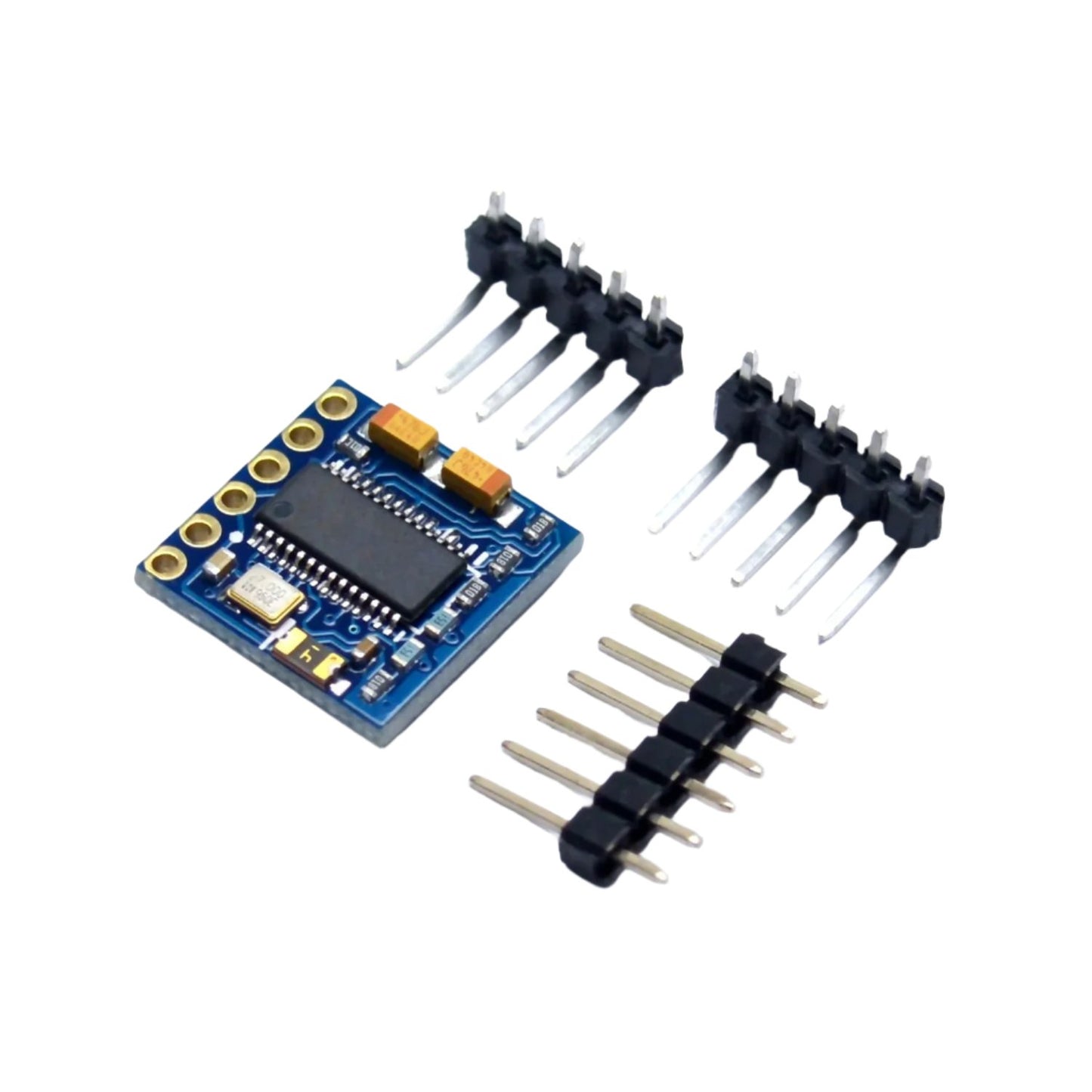

1 x Micro Minim OSD Flight Controller F3 Naze32 Flight Controller RC Drone For Racing Minim OSD High-Quality Minim OSD For Racing Drones Micro Minim OSD-Compatible With F3/Naze32 Flight Controllers
