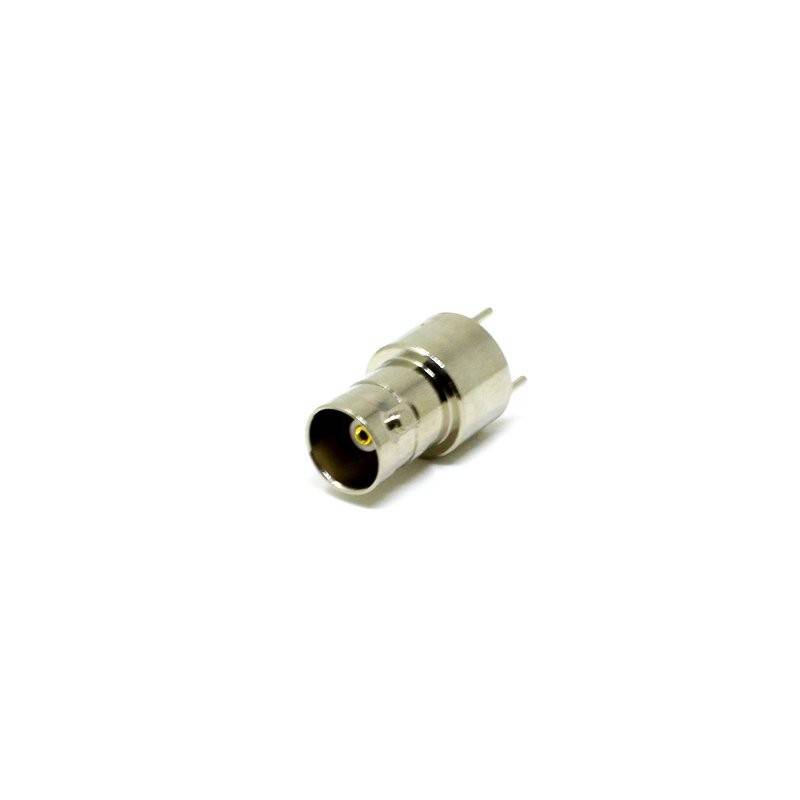

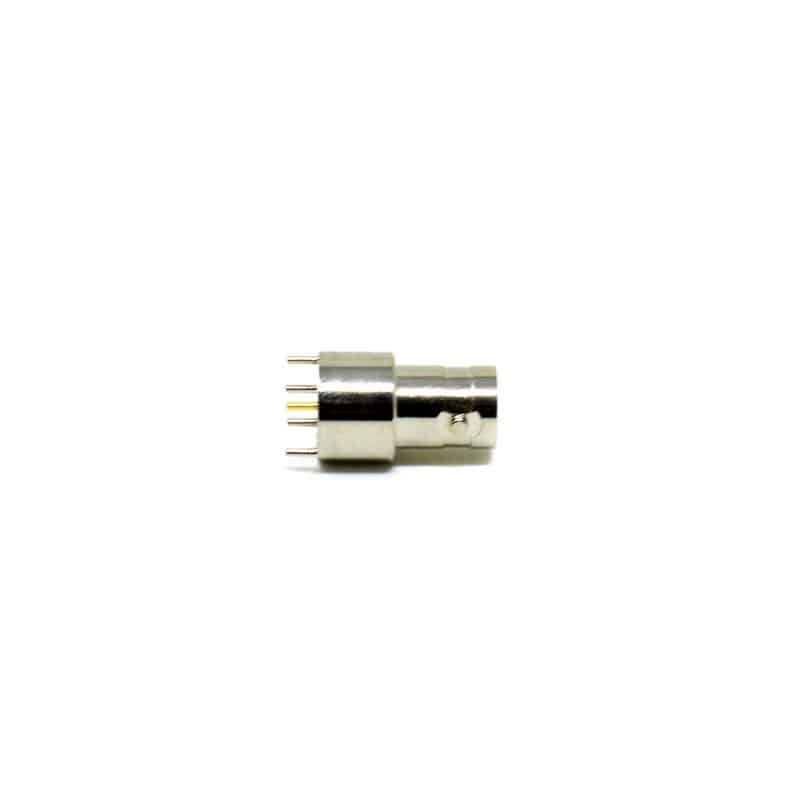

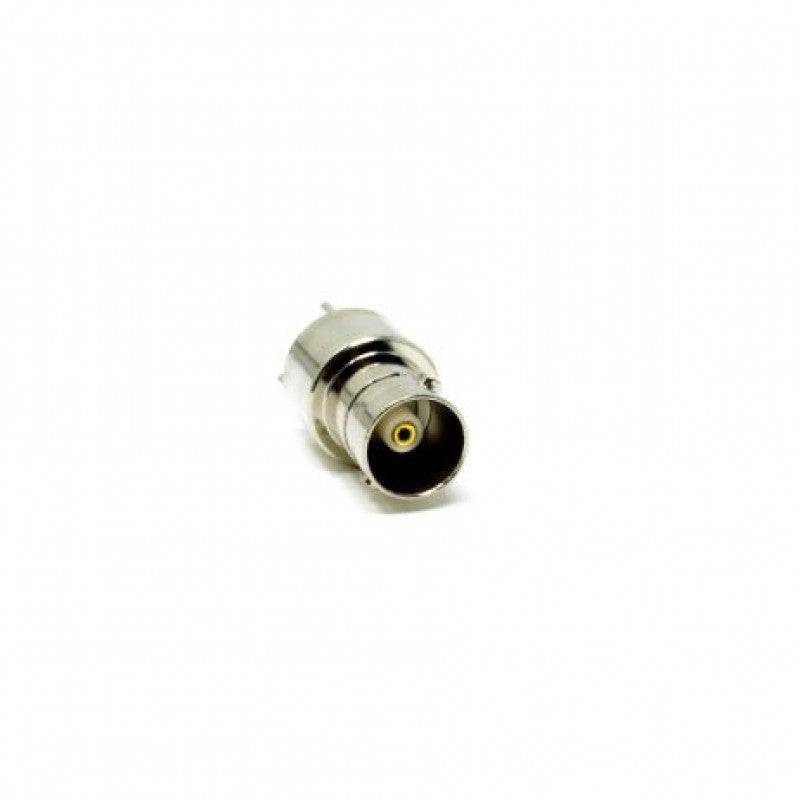

Micro Female BNC Connector Micro BNC Connector Panel Mount Straight Female For PCB Mount - RS3382

Micro Female BNC Connector Micro BNC Connector Panel Mount Straight Female For PCB Mount - RS3382

RS3382

11 in stock

Rs. 49.00
Rs. 49.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

Micro Female BNC Connector is designed to terminate to industry-standard 50-ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish.

Specifications:

  • Impedance: 75 ohm
  • Frequency Range: 0~3 GHz
  • VSWR: Straight type 1.22/3GHz / R/A type 1.30/3GHz
  • Dielectric Withstanding Voltage: 1500 V RMS
  • Working Voltage: 500 V RMS
  • Center Contact Resistance: 1.5 m (Milliohms max.)
  • Outer Contact Resistance: 2.0 m (Milliohms max.)
  • Insulation Resistance: 5 10 m (Milliohms min.)

Features:

  • Pcb Mount, Jack/female, Straight/180, 75
  • Compact Design for less installation space required
  • Micro Female BNC Connector is easy quick connect and disconnect coupling

Package Included:

1 x Micro Female BNC Connector Micro BNC Connector Panel Mount Straight Female For PCB Mount
