Description:

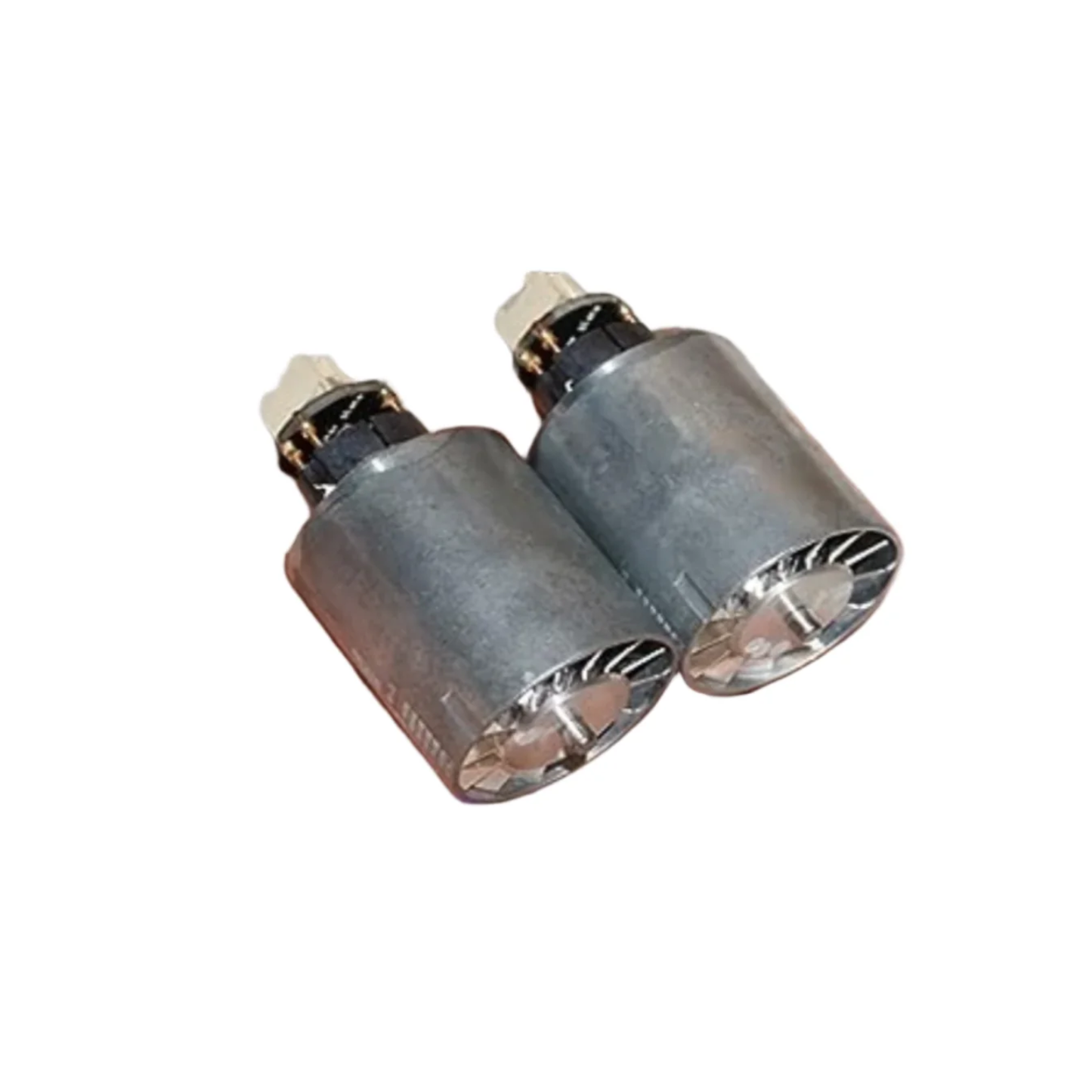

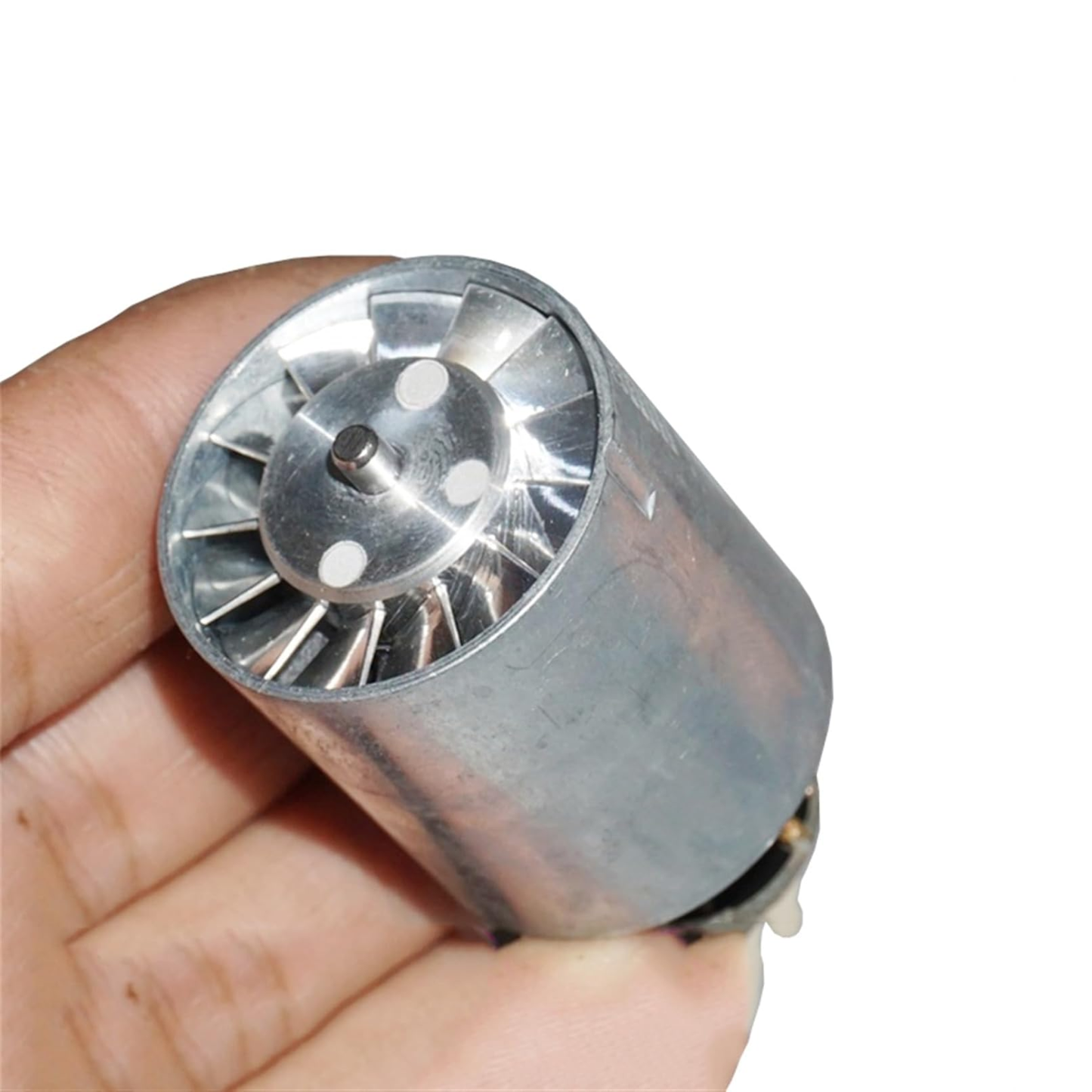

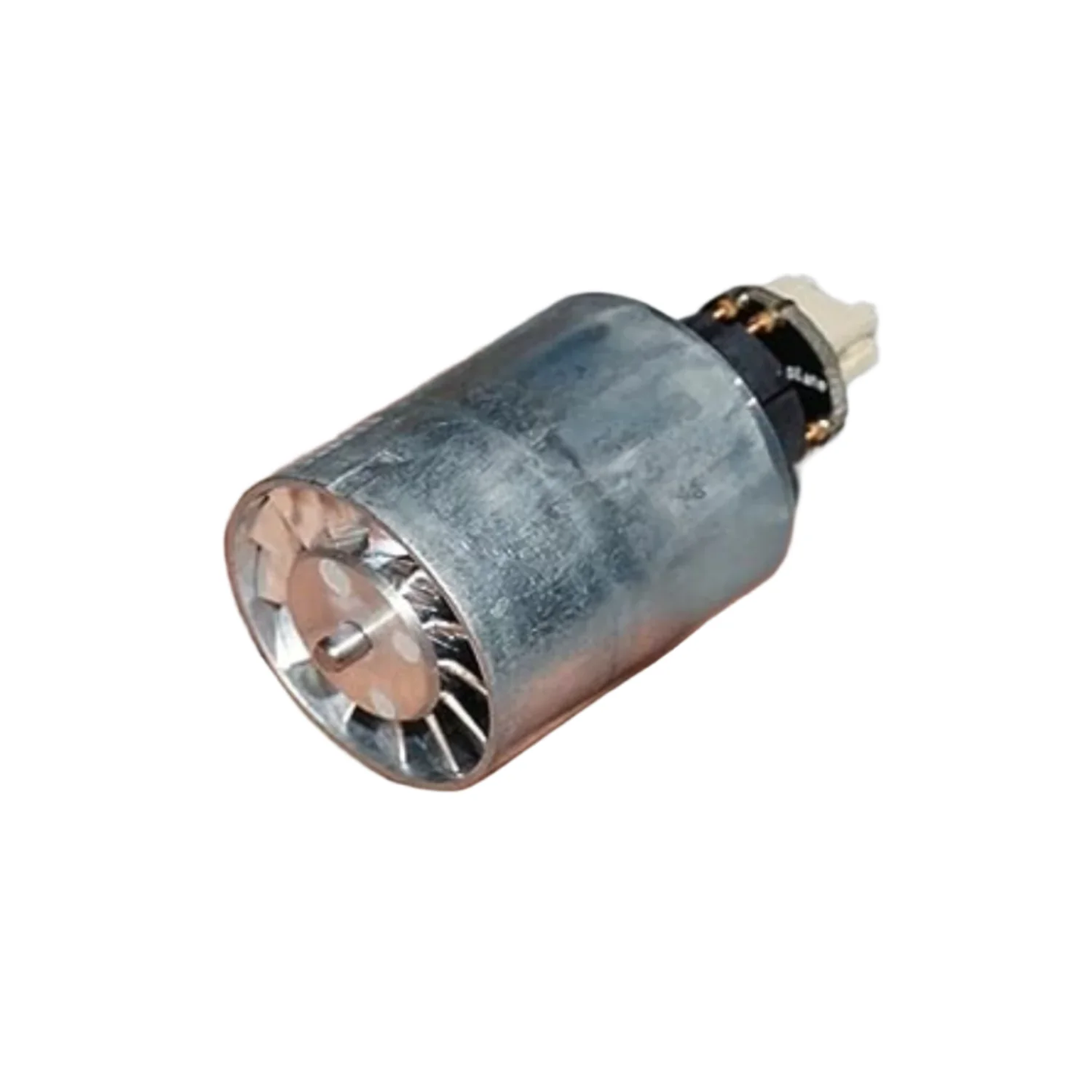

The 100000 rpm ultra high speed brushless mini fan and disassembled machine has a good overall color. There is no dust on the wind blades. The work of the fan is good. The measured voltage CNC machining aluminum alloy impeller is equipped with laser dynamic balance correction. It was originally used on high-end hair dryers.

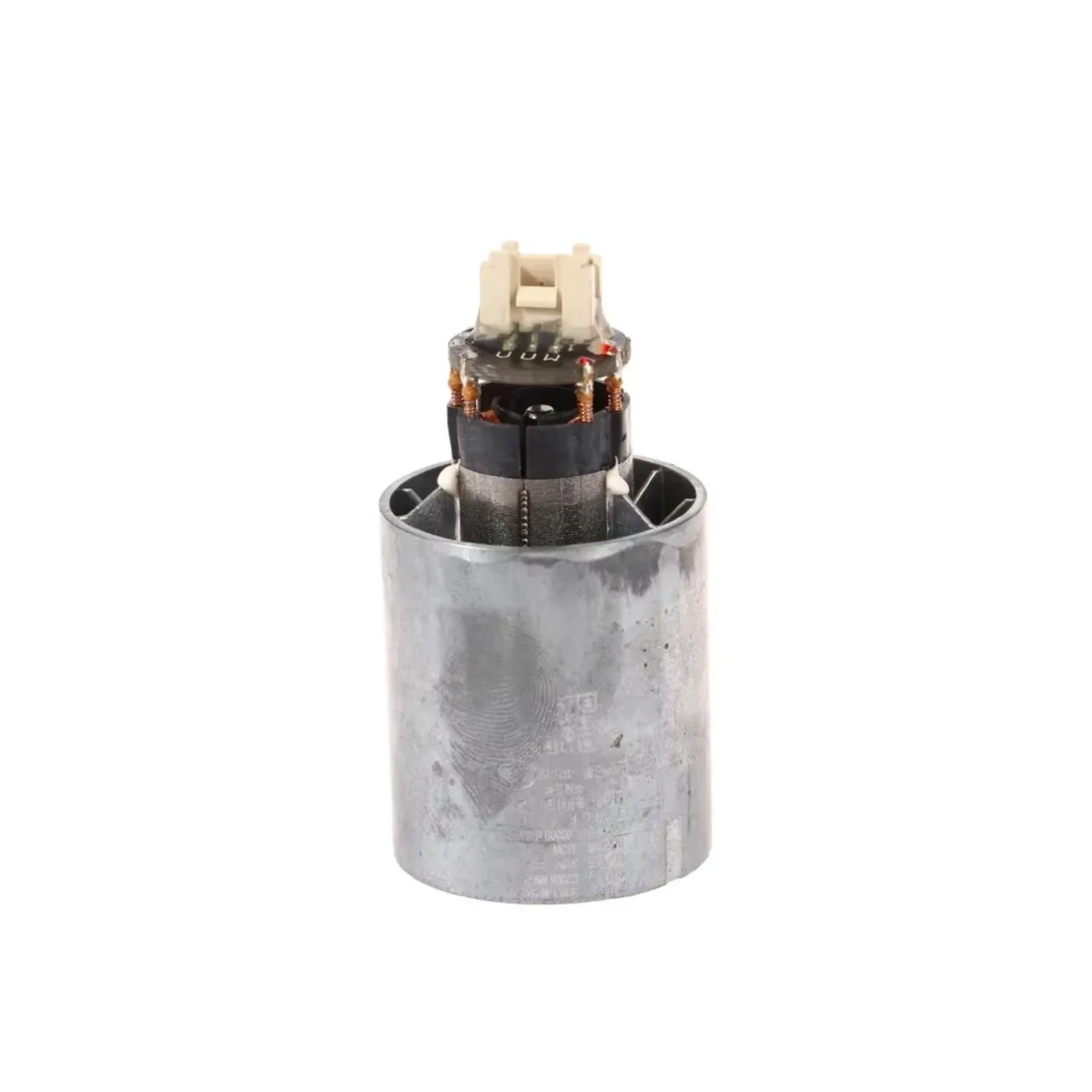

The stator of this fan motor is relatively easy to disassemble because the stator does not require high-strength thread glue and directly uses 2twoflat screws to support the stator. And then pushes against the edge of the case to pry hard. Generally, it is not very difficult to disassemble. After disassembling, the coil can be rewound by itself. Netizens' feedback about 12-15 turns of 0.4-0.5mm, the y-shaped wiring method is used, and a 12V brushless electric drive is allowed.
Specifications:
- Material: Metal
- Color: Silver
- Rated Speed: 100000 (rpm)
Features:
- This ultra-high-speed brushless ducted fan is engineered for exceptional performance, reaching speeds of over 100,000 rpm.
- Crafted with a CNC machined aluminum impeller, it ensures durability and efficiency, making it ideal for high-end hair dryers and other applications.
- The fan's design allows for easy disassembly and maintenance, enhancing user convenience.
Package Included:
1 x Micro Brushless Ducted Fan
