Description:
This MH-M38 Audio Receiver Module with Cable is a low-power Bluetooth design solution that supports the latest Bluetooth 4.2 transmission and 2-channel stereo lossless playback, and the MH-M38 Audio Receiver Module can be connected to Bluetooth to quickly realize Bluetooth wireless transmission, which is very convenient. In an open environment, the Bluetooth 4.2 connection distance can reach 20 meters. Widely used in a variety of Bluetooth audio reception, and a variety of audio DIY modifications. After the MH-M38 Audio Receiver Module is powered on, the mobile phone searches for the Bluetooth name MH-M38, and can play music after connecting Bluetooth.
Specifications:
- Bluetooth Version: V4.2
- Bluetooth Support Protocol: HFPV1.7 A2DPV1.2 AVRCPV1.5 AVCTPV1.2 AVDTPV1.2
- Support form Support: WAV / WMA / FLAC / APE / MP3 decoding, stereo two-channel output
- Operating Voltage: 5V / 3.7V-4.2V
- Broadcast is not connected to the case: 5.5MA
- The status of work contact: 20MA
- Deep Sleep: 3uA
- Wireless Range: 20 meters (empty or low interference environment)
- Operating Temperature: -40°C to + 85°C
- Sensitivity: -87dbm
Features:
- Bluetooth V4.2 version, support Bluetooth automatic connection technology,
- Support WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo dual channel output
Package Included:

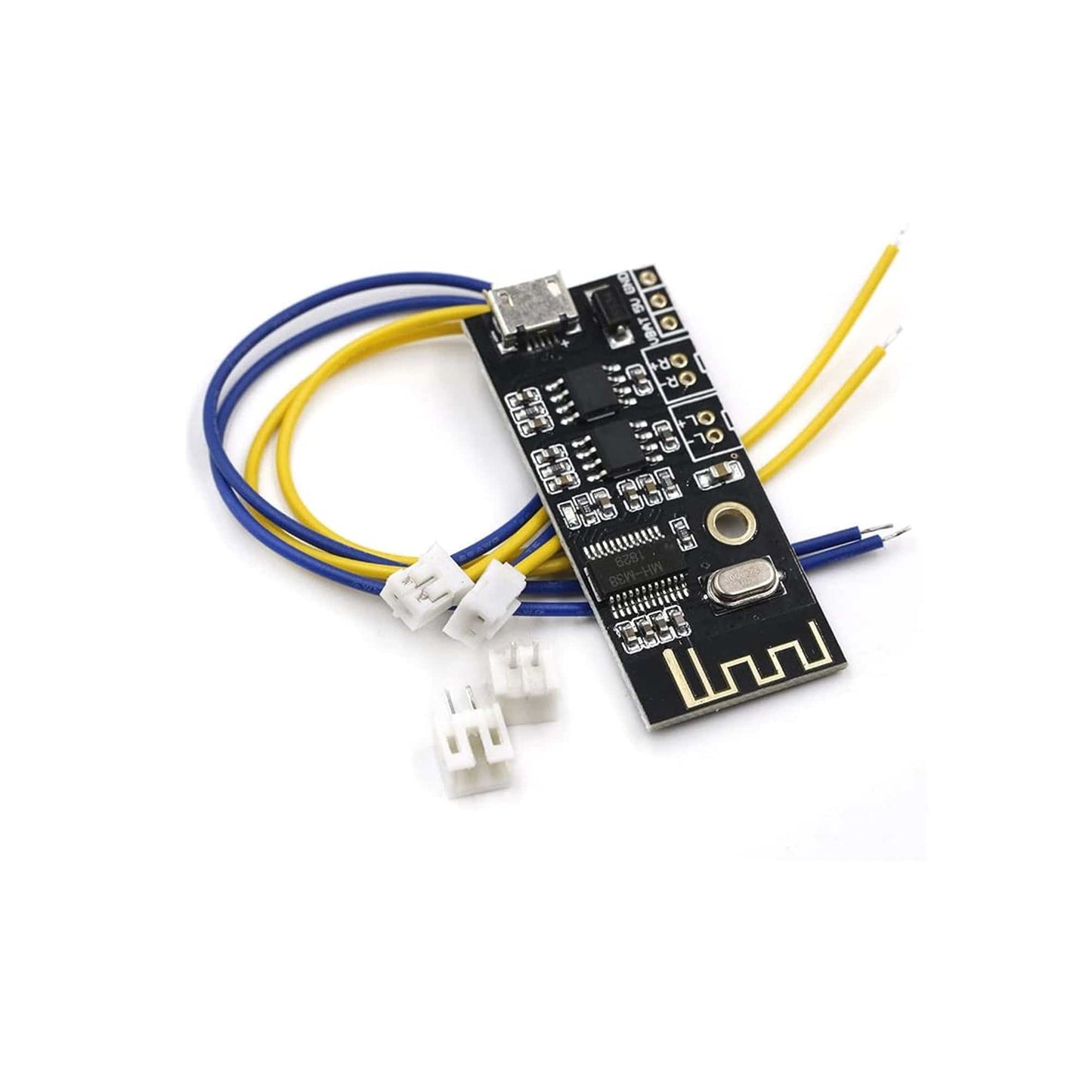

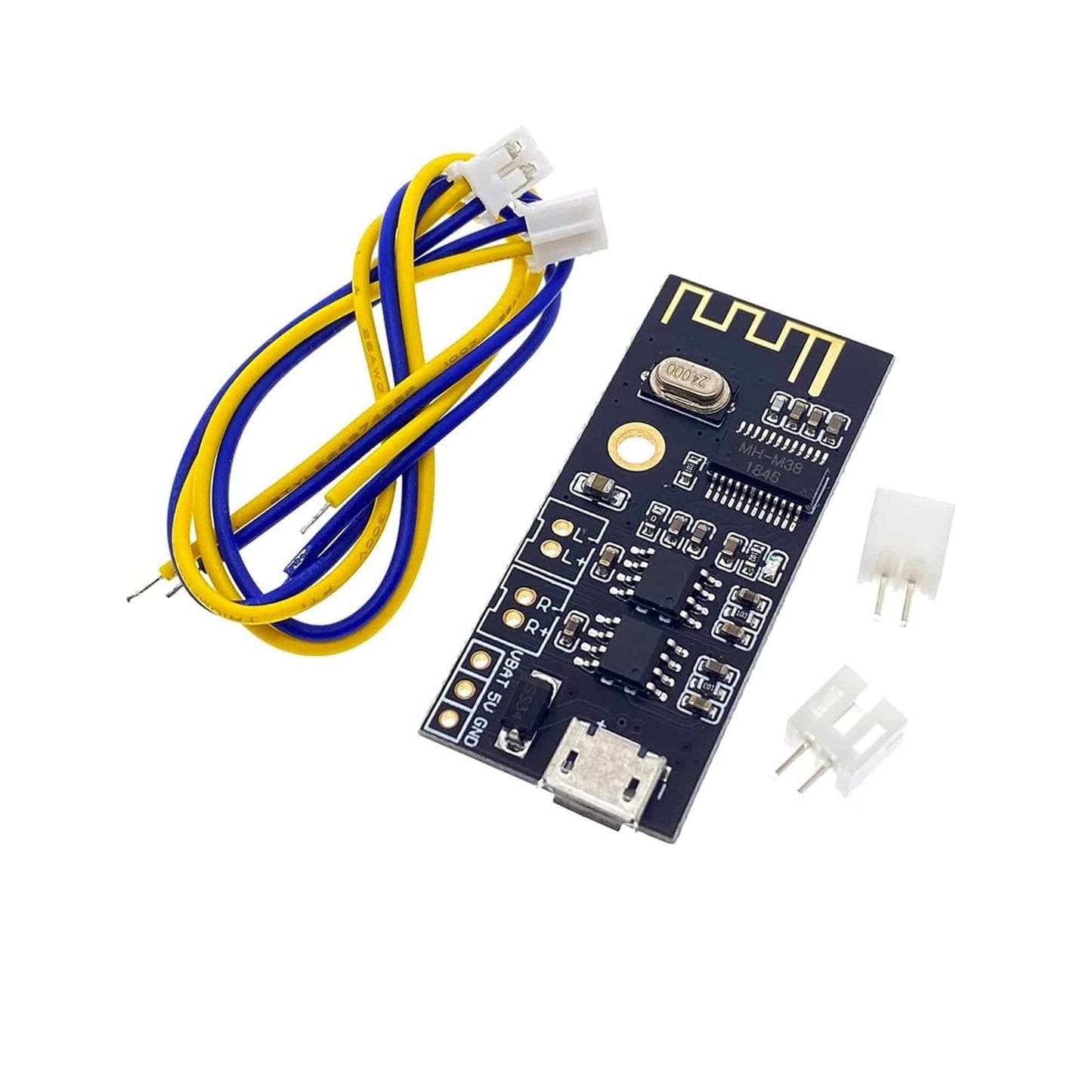

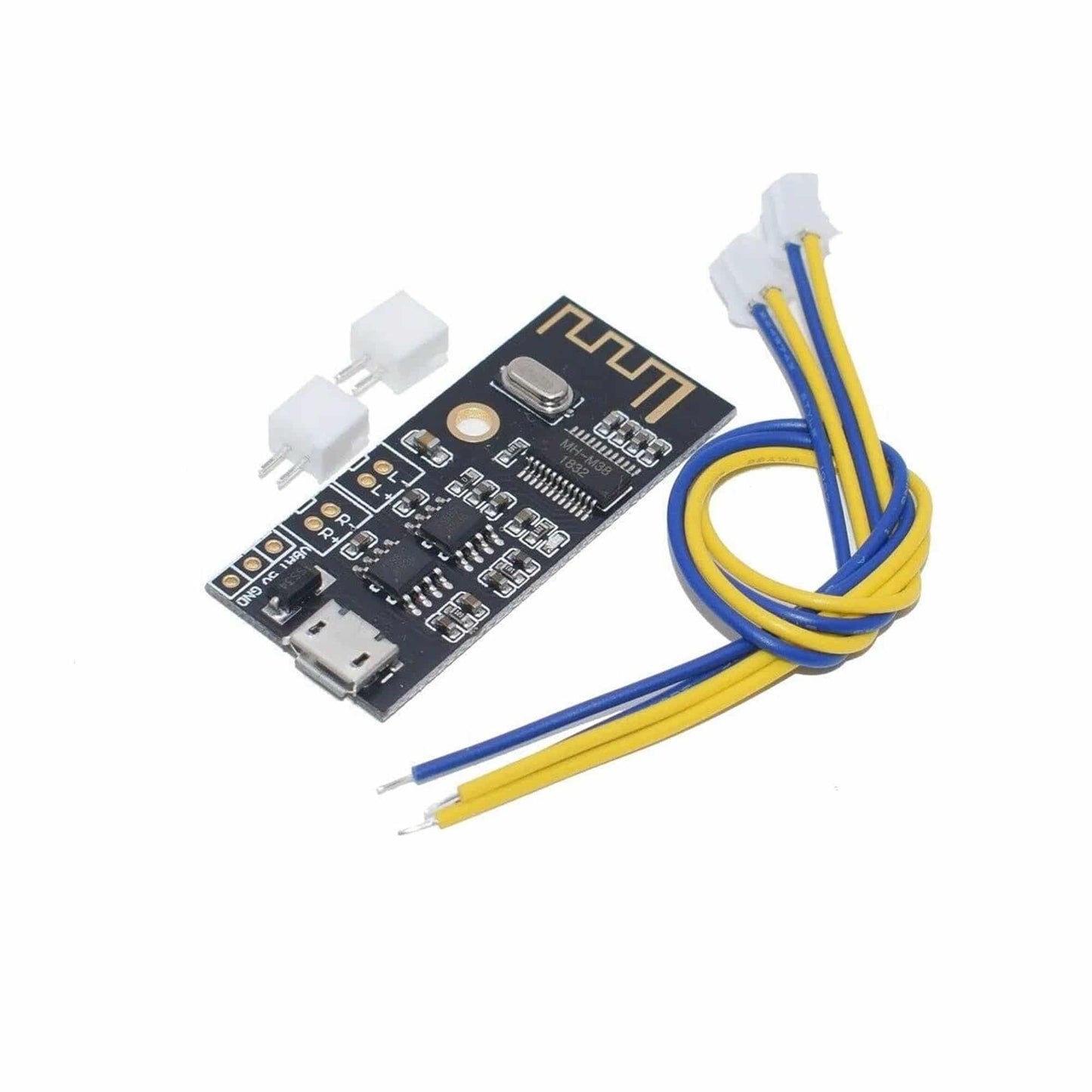

1 x MH-M38 Audio Receiver Module MH-M38 Wireless Bluetooth Audio Receiver Module with Cable
