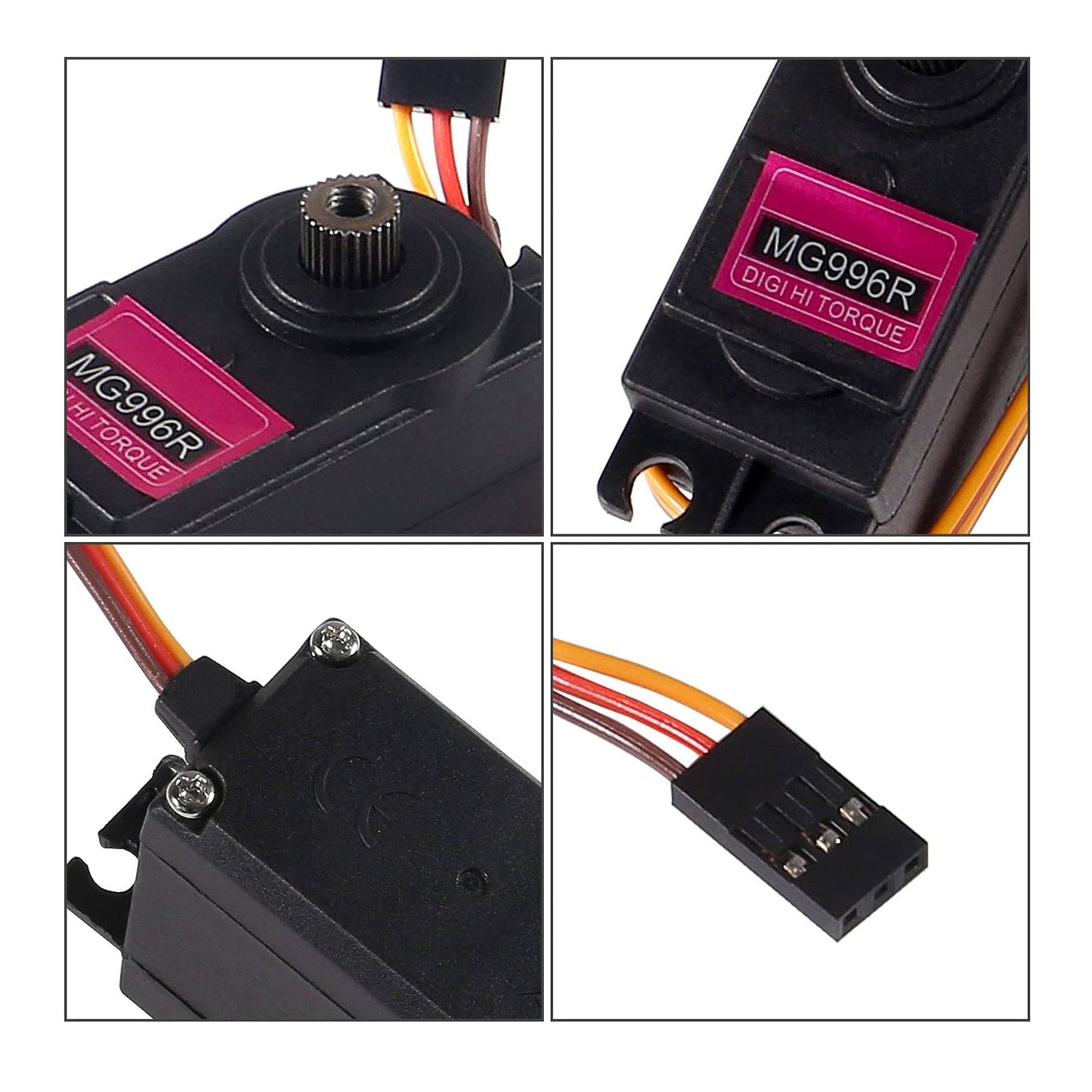

MG996R Servo Motor MG996R Metal Gear Servo Motor - 180 Degree - AA023

MG996R Servo Motor MG996R Metal Gear Servo Motor - 180 Degree - AA023

SKU:AA023

In stock

Regular price Rs. 225.00
Regular price Sale price Rs. 225.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details

Description:

This MG996R Servo Motor features metal gearing resulting in extra high 10kg stalling torque in a tiny package. The MG996R Servo Motor is essentially an upgraded version of the famous MG995 servo and features upgraded shock-roofing and a redesigned PCB and IC control system that makes it much more accurate than its predecessor. The gearing and motor have also been upgraded to improve dead bandwidth and centring. The MG996R Servo Motor comes complete with a 30cm wide and a 3 pins ‘S’ type female header connector that fits most receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum and Hitec.

Specifications:

  • Operating Voltage: 4.8 V - 7.2 V
  • Running Current 500 mA – 900 mA (6V)
  • Stall Current 2.5 A (6V)
  • Temperature Range: 0 ºC – 55 ºC
  • Control System: Analog
  • Operating Angle: 180degree
  • Required Pulse: 900us-2100us
  • Direction: CCW
  • Operating speed: 0.17 s/60º (4.8 V), 0.14 s/60º (6 V)
  • Dead band width: 5 μs
  • Connector: 3 pins 'S' type female header

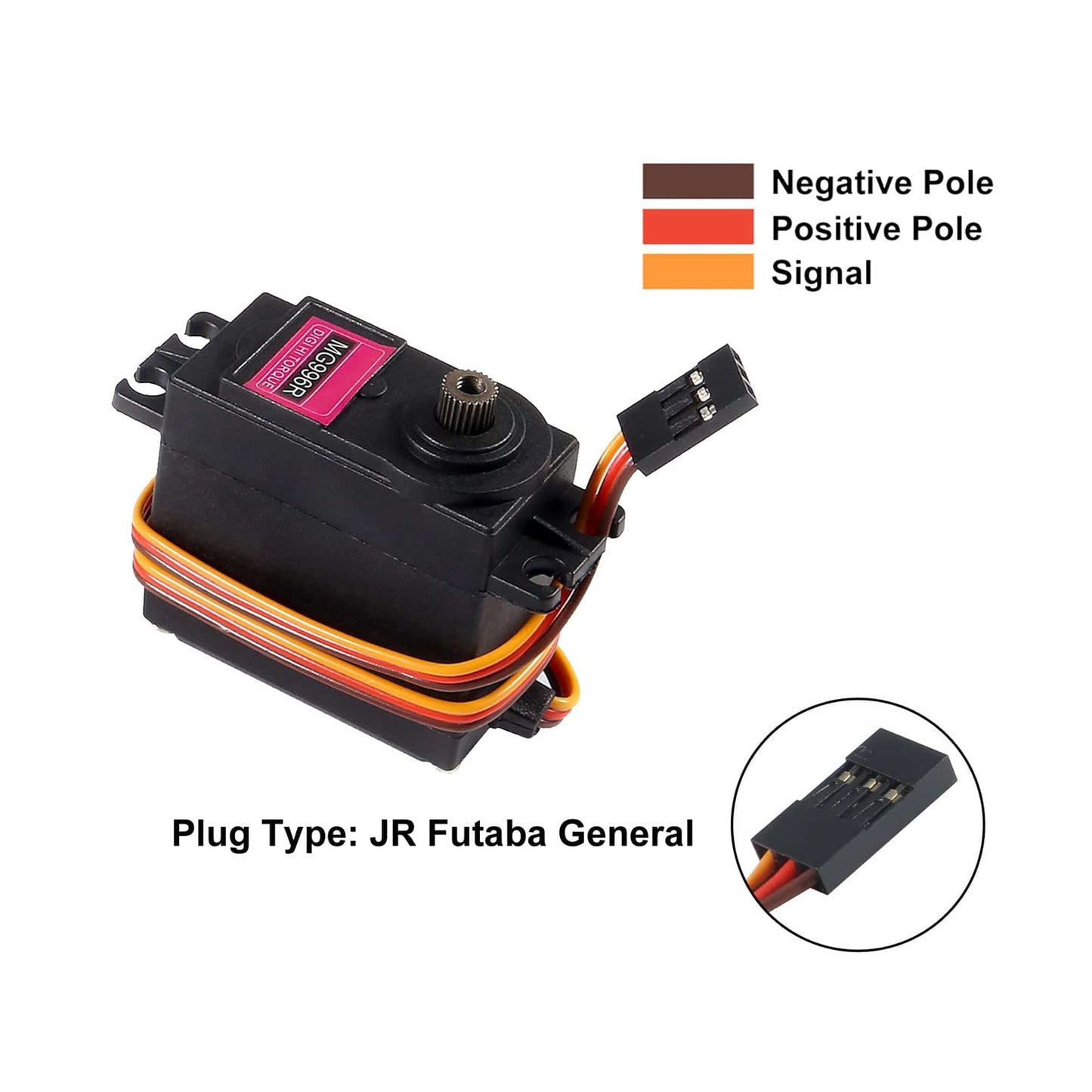

Wire Configuration:

  • RED: Positive
  • Brown: Negative
  • Orange: Signal (PWM)

Package Included:

1 x MG996R Servo Motor MG996R Metal Gear Servo Motor - 180 Degree
