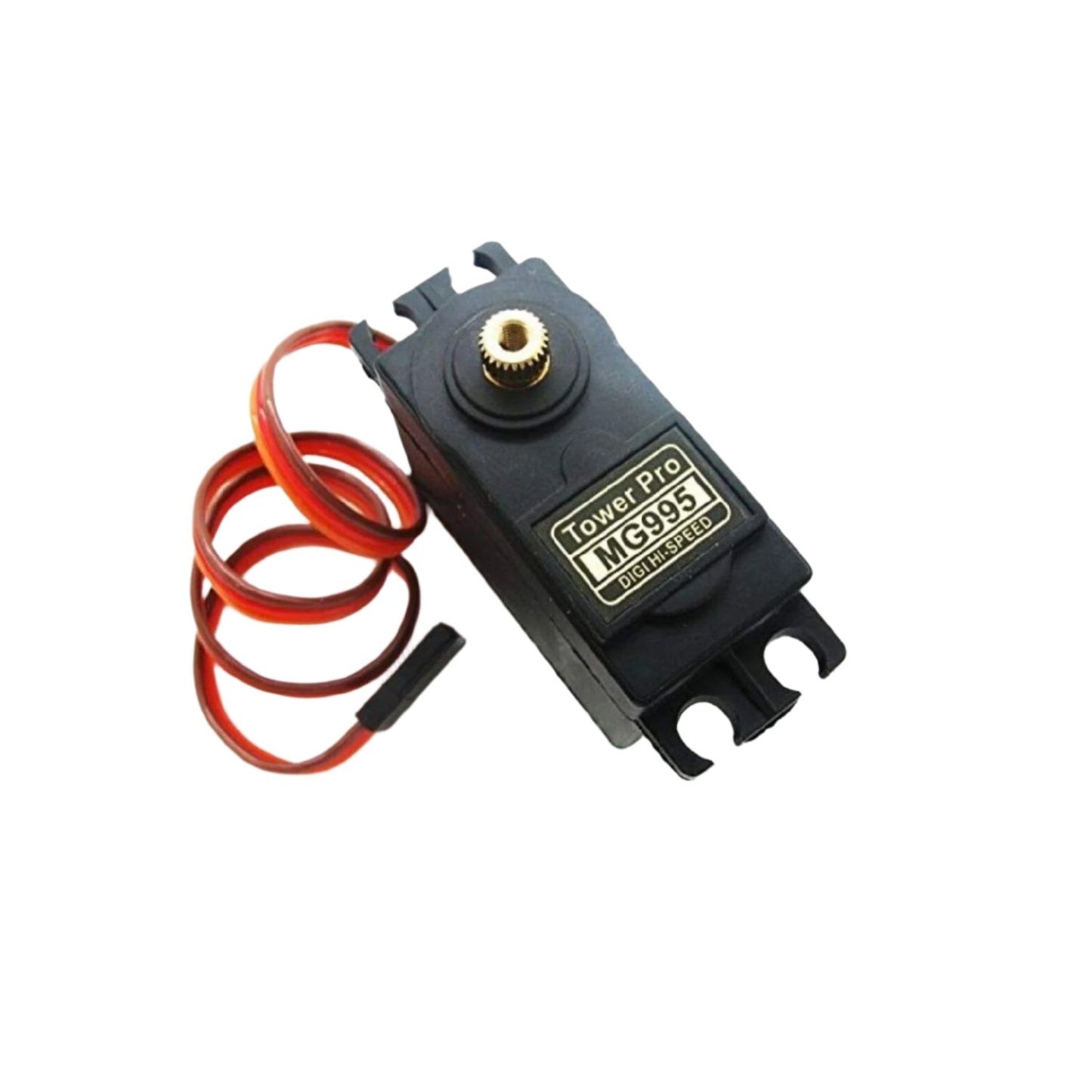

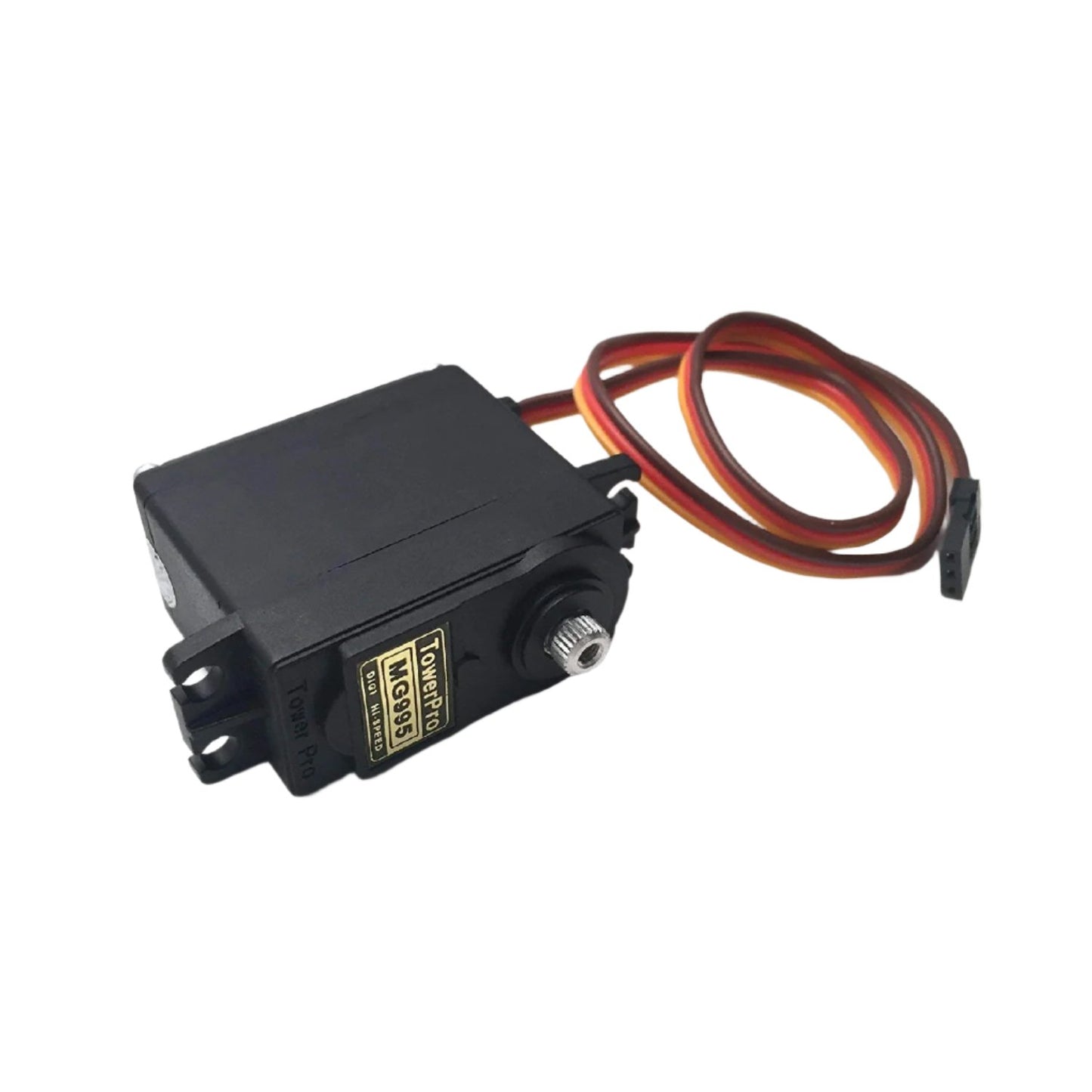

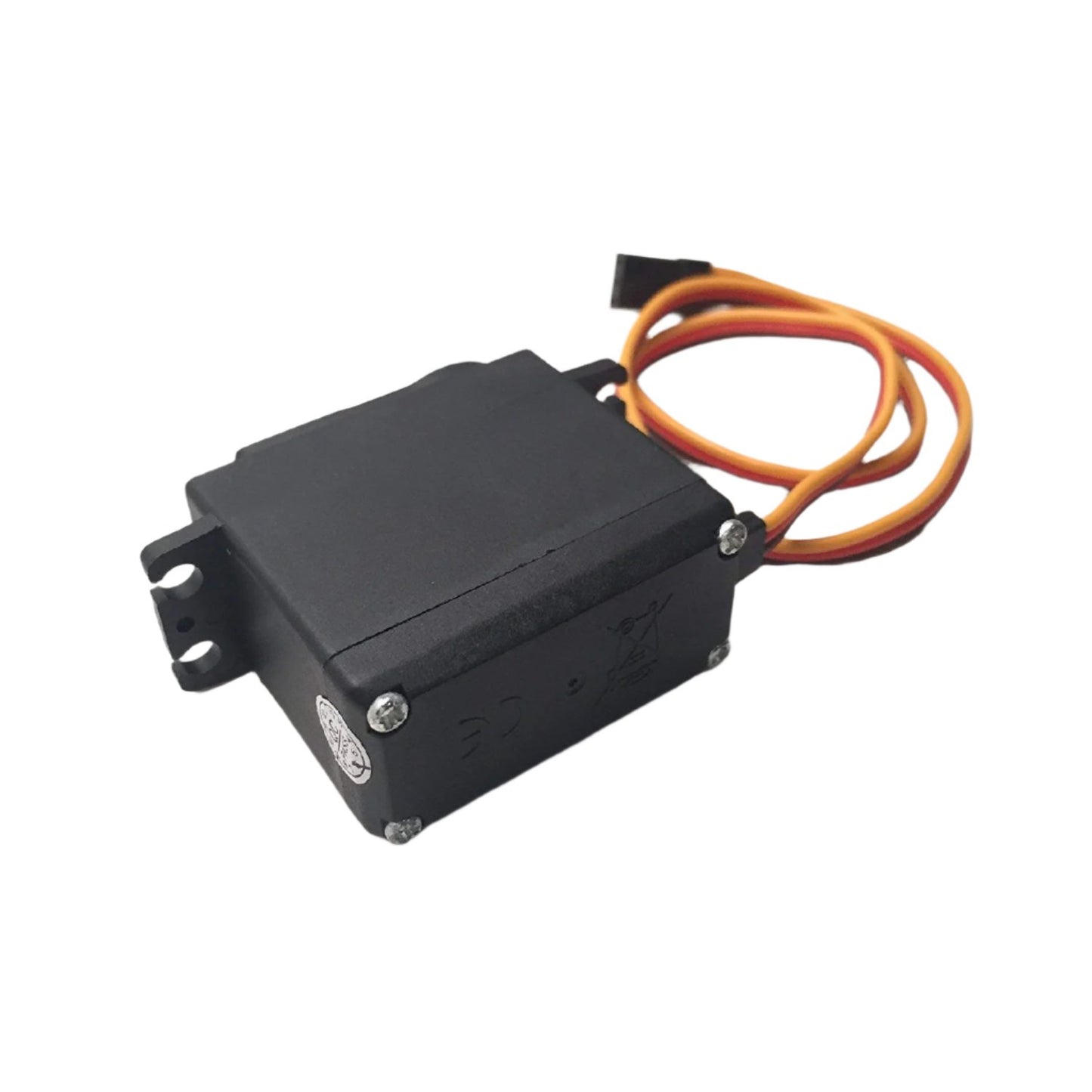

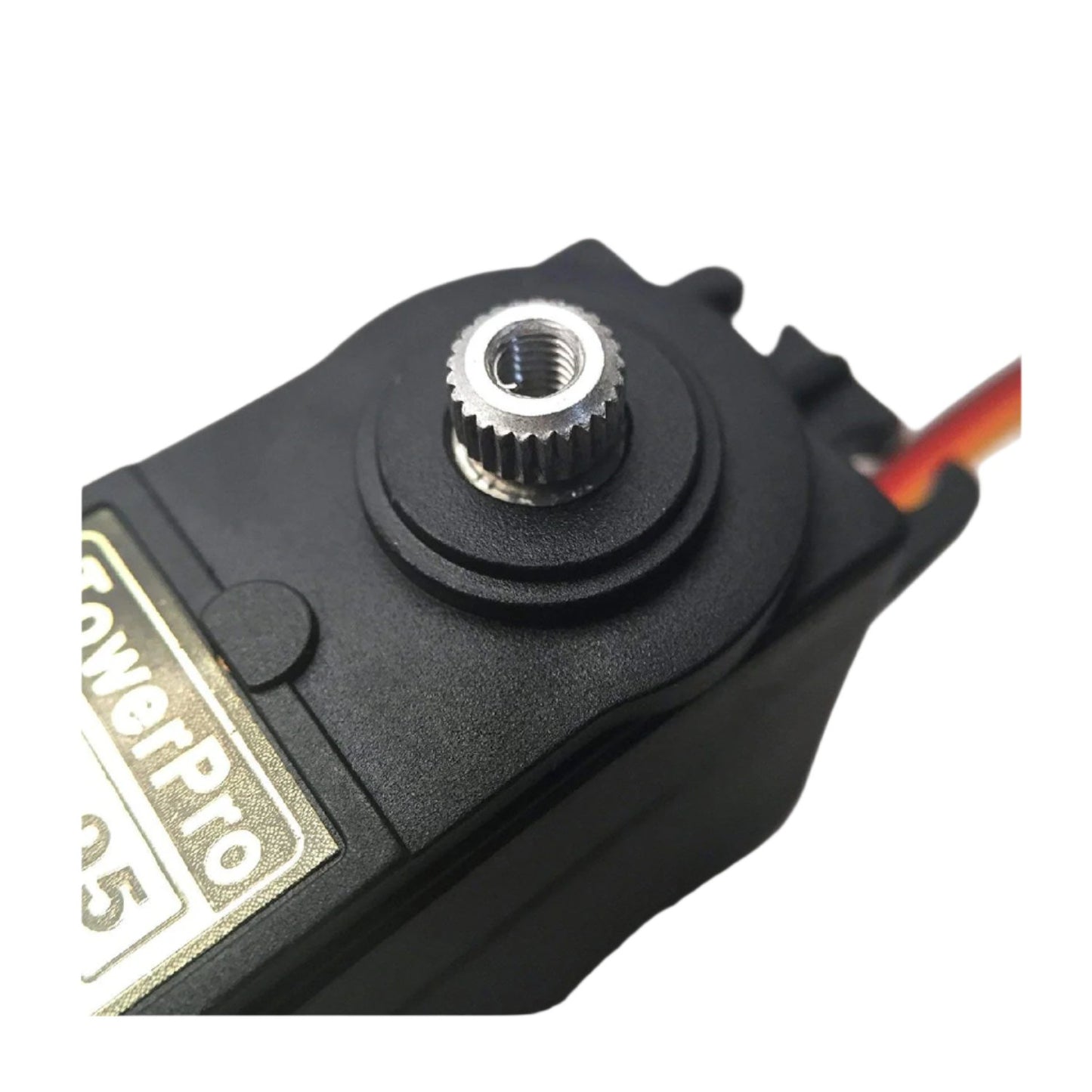

MG995 Tower Pro Copper Servo Gear For RC Car / Plane / Helicopter(180°) - MR037

MG995 Tower Pro Copper Servo Gear For RC Car / Plane / Helicopter(180°) - MR037

SKU:MR037

Regular price Rs. 210.00
Regular price Sale price Rs. 210.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Modulation: digital
  • Torque: 48V: 1305 Oz-in (940 Kg-cm) 60V: 1528 Oz-in (1100 Kg-cm)
  • Speed: 48V: 020 Sec/60 degree 60V: 016 Sec/60 degree
  • Dimensions: length: 160 In (407 Mm) width: 078 In (197 Mm) height: 169 In (429 Mm)

Description :

The TowerPro MG995 High-Speed Digital Servo Motor rotates 90° in each direction making it a 180° servo motor. It is a Digital Servo Motor that receives and processes PWM signals faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces. They are packed within a tight, sturdy plastic case, making them water and dust-resistant which is a handy feature in RC planes, Boats, RC Monster Trucks, etc. It also equips a 3-wire JR servo plug compatible with Futaba connectors.

Specification:

  • Dimension: 40.7×19.7×42.9mm
  • Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6v)
  • Operating speed: 0.20sec/60degree (4.8v); 0.16sec/60degree (6.0v)
  • Operating voltage: 4.8~ 6.6v
  • Gear Type: Metal gear
  • Temperature range: 0- 55deg
  • Dead bandwidth: 1us
  • servo wire length: 32cm
  • Current draw at idle 10MA
  • No load operating current draw 170MA
  • Stall current draw 1200MA
  • Servo Plug: JR (Fits JR and Futaba)

Features:

  • The connection cable is thicker.
  • Equips high-quality motor.
  • High resolution
  • Accurate positioning
  • Fast control response
  • Constant torque throughout the servo travel range
  • Excellent holding power

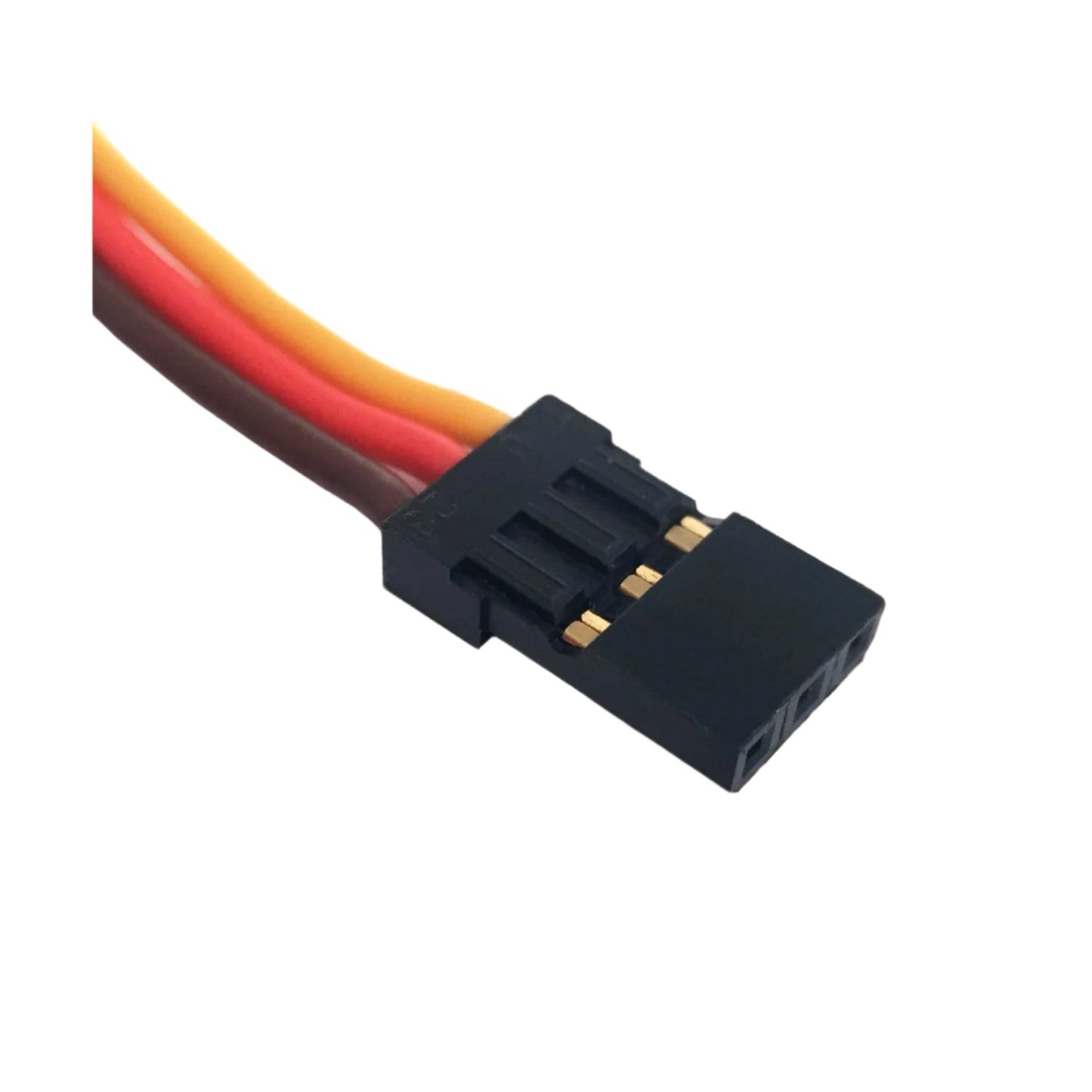

Wire Description:

  • Red: Positive
  • Brown:Negative
  • Orange: Signal

Package Included:

1 x MG995 Tower Pro Copper Servo Gear For RC Car / Plane / Helicopter
