MG946R Digital Servo Motor With High Torque Servo Motor Powerful Digital Servo For Robotics And RC Applications - RS3477

MG946R Digital Servo Motor With High Torque Servo Motor Powerful Digital Servo For Robotics And RC Applications - RS3477

RS3477

30 in stock

Rs. 289.00
Rs. 289.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

MG946R Metal Gear Digital High Torque Servo is an upgraded version of Tower Pro MG945. It's a new PCB and IC control system which makes it more accurate. Its internal gearing and motor are also upgraded to improve dead bandwidth and centering. MG946R is for 1/8 buggy monster and many RC model. The product configure table is provided in the attachments.

Specifications:

  • Angle of rotation:180 degrees
  • Operating Voltage: 4.8 ~ 6.6VDC
  • Temperature Range: 0- 55
  • Servo wire length: 32cm
  • Dead band width: 1uS
  • Pulse Cycle: 1mS
  • Current draw (at idle):10mA
  • Operating current draw (at no load):170mA
  • Stall current draw:1200mA
  • Stall Torque @ 4.8V (Kg-Cm):10.5
  • Stall Torque @6V:13kg/cm
  • Operating Speed @4.8V :0.20sec/60
  • Operating Speed @6V :0.17sec/60

Features:

  • Servo Plug: JR (Fits JR and Futaba)
  • Gear Type: Metal gear
  • Power Supply: Through External Adapter

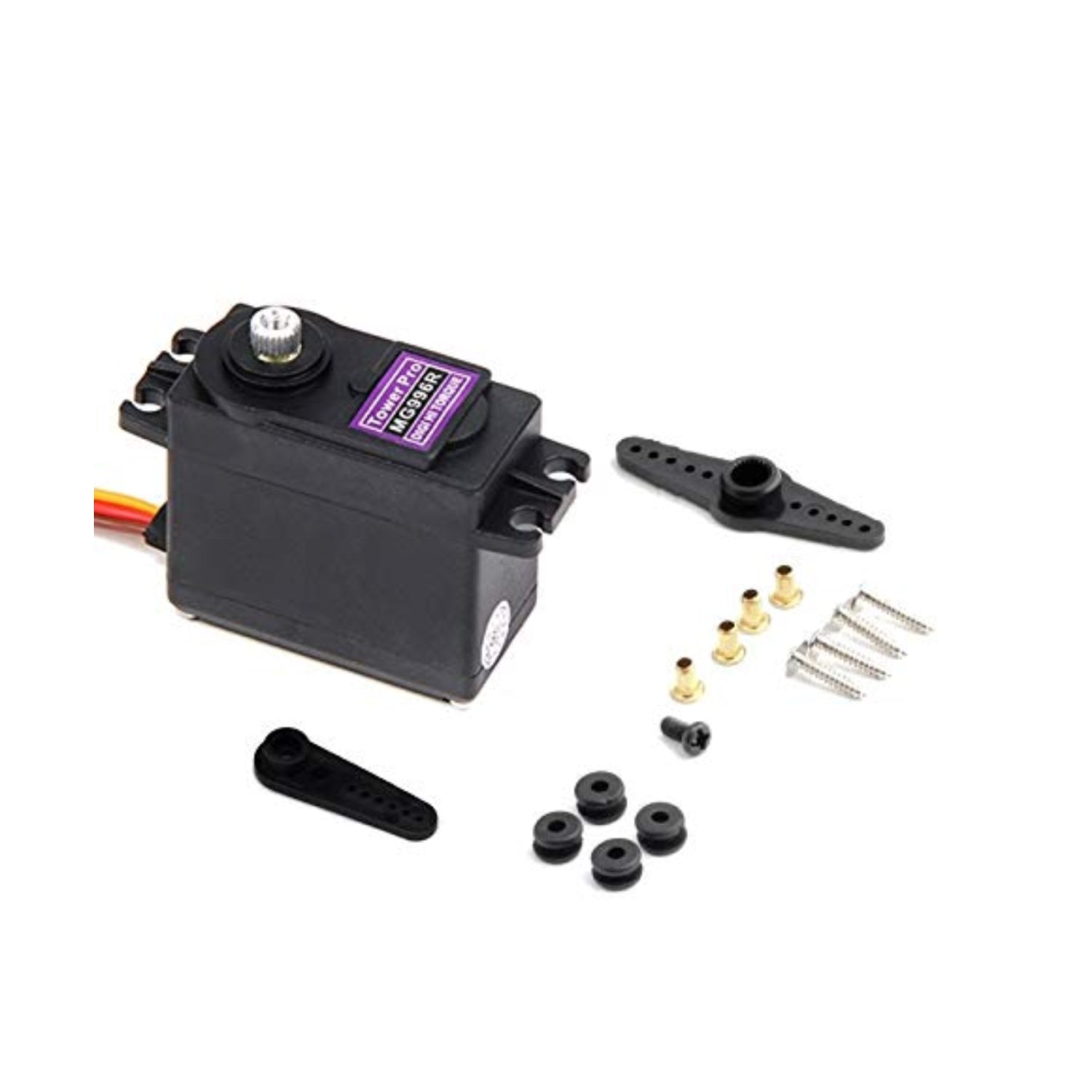

  • Servo arms, screws included, and fit with a Futaba servo arm
  • It's a universal S-type connector that fits most receivers, including Futaba, JR, Hitec, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, and Spektrum.
  • CE RoHS approved.
  • Upgraded the servo gear set and shaft to aluminum 6061-T6. It is stronger and lighter than copper.

Wire Description:

  • Red- Positive
  • Brown- Negative
  • Orange- Signal

    Package Included:

    1 x Tower Pro MG946R Digital Servo Motor
