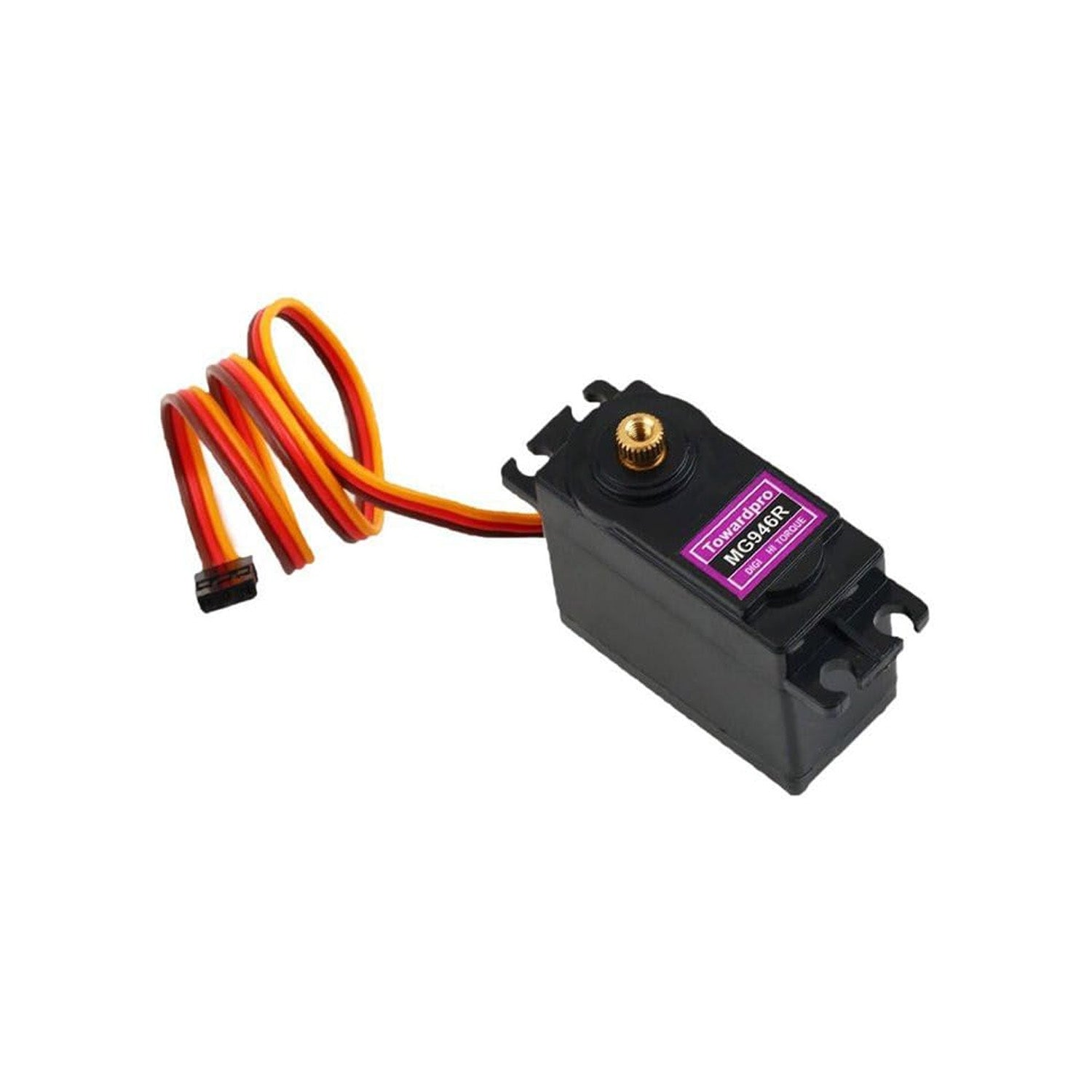

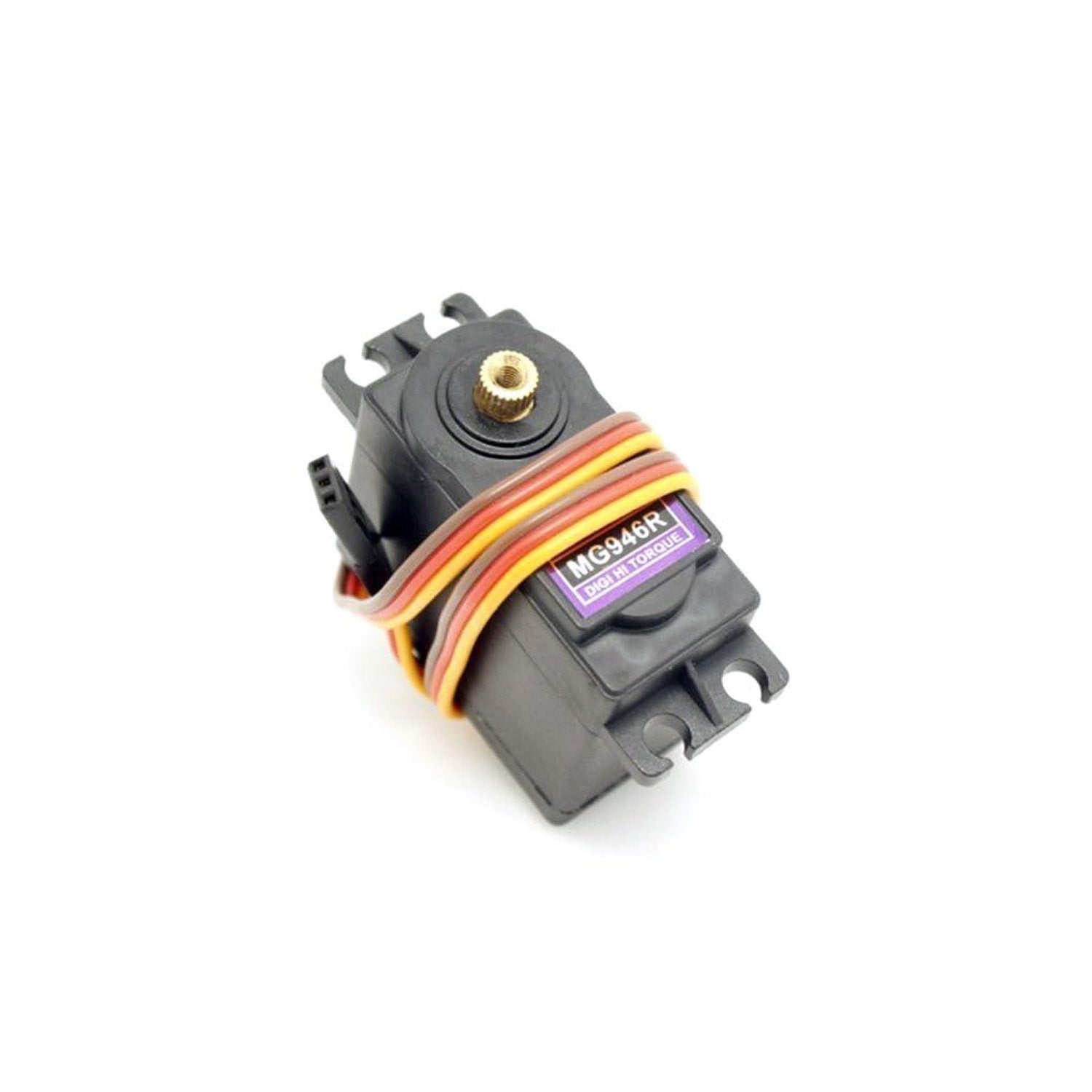

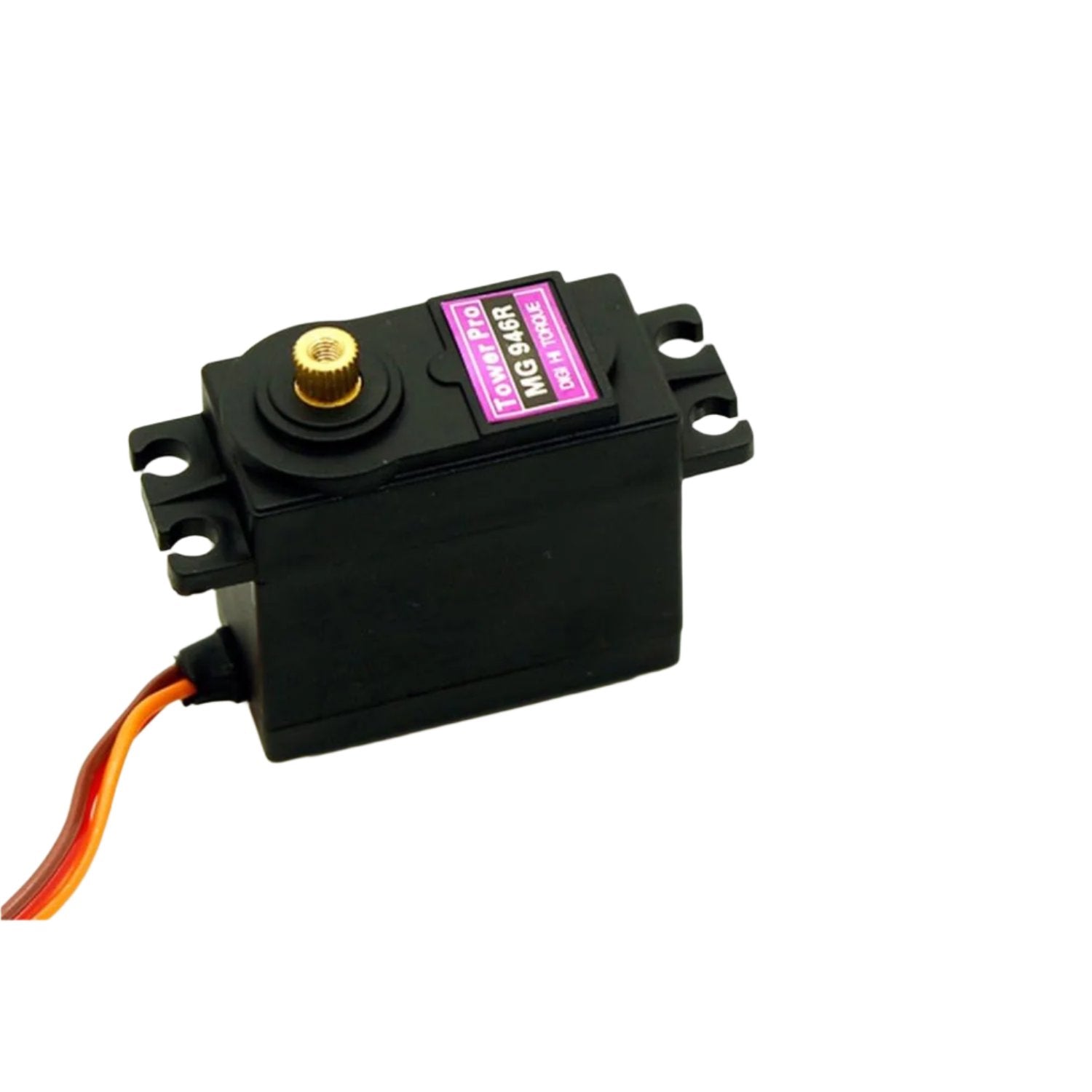

MG946R Digital Servo Motor With High Torque Servo Motor Powerful Digital Servo For Robotics And RC Applications - RS3477

MG946R Digital Servo Motor With High Torque Servo Motor Powerful Digital Servo For Robotics And RC Applications - RS3477

RS3477

24 in stock

Rs. 289.00
Rs. 289.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

MG946R Metal Gear Digital High Torque Servo is an upgraded version of Tower Pro MG945. It's a new PCB and IC control system which makes it more accurate. Its internal gearing and motor are also upgraded to improve dead bandwidth and centering. MG946R is for 1/8 buggy monster and many RC model. The product configure table is provided in the attachments.

Specifications:

  • Angle of rotation:180 degrees
  • Operating Voltage: 4.8 ~ 6.6VDC
  • Temperature Range: 0- 55
  • Servo wire length: 32cm
  • Dead band width: 1uS
  • Pulse Cycle: 1mS
  • Current draw (at idle):10mA
  • Operating current draw (at no load):170mA
  • Stall current draw:1200mA
  • Stall Torque @ 4.8V (Kg-Cm):10.5
  • Stall Torque @6V:13kg/cm
  • Operating Speed @4.8V :0.20sec/60
  • Operating Speed @6V :0.17sec/60

Features:

  • Servo Plug: JR (Fits JR and Futaba)
  • Gear Type: Metal gear
  • Power Supply: Through External Adapter

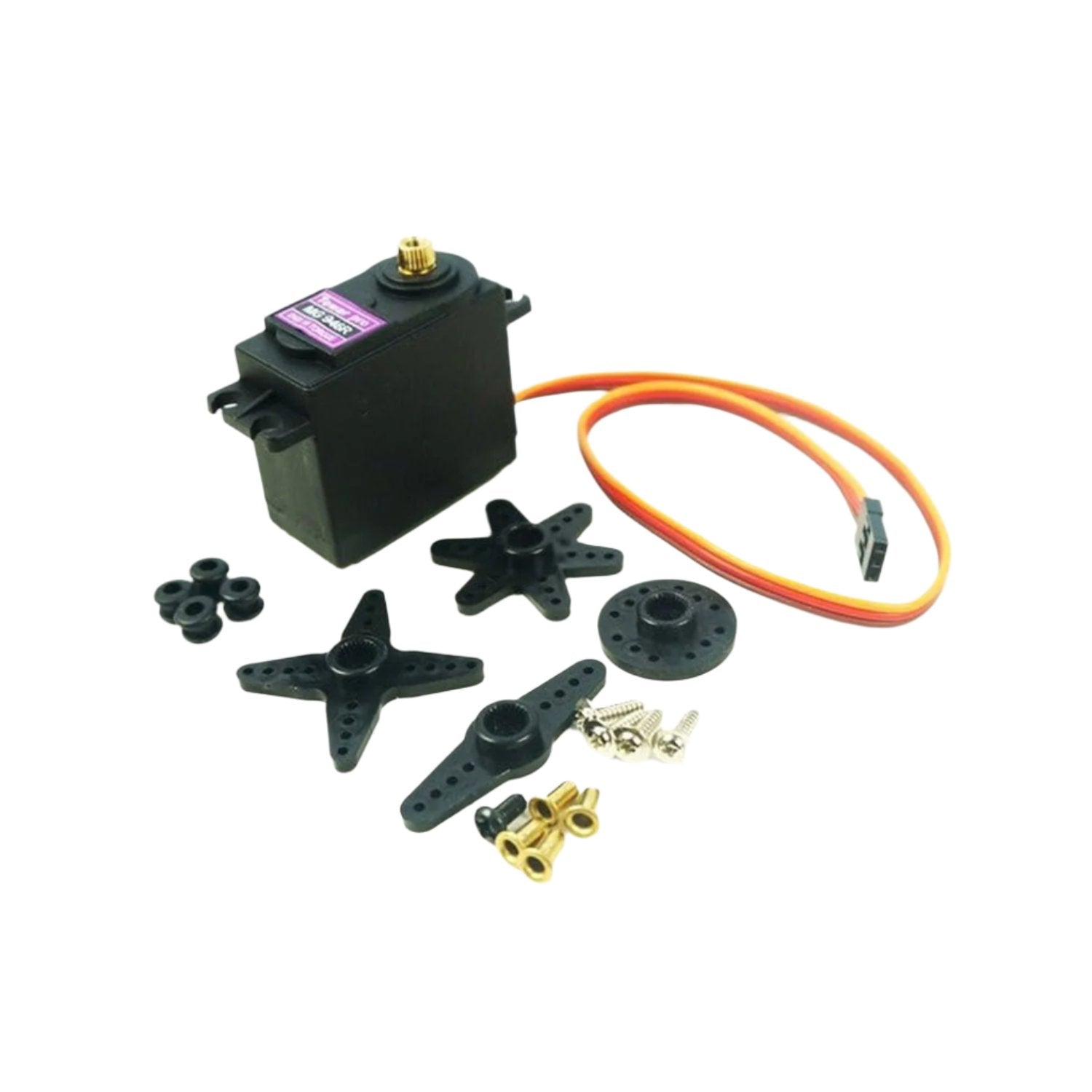

  • Servo arms, screws included, and fit with a Futaba servo arm
  • It's a universal S-type connector that fits most receivers, including Futaba, JR, Hitec, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, and Spektrum.
  • CE RoHS approved.
  • Upgraded the servo gear set and shaft to aluminum 6061-T6. It is stronger and lighter than copper.

Wire Description:

  • Red- Positive
  • Brown- Negative
  • Orange- Signal

    Package Included:

    1 x Tower Pro MG946R Digital Servo Motor
