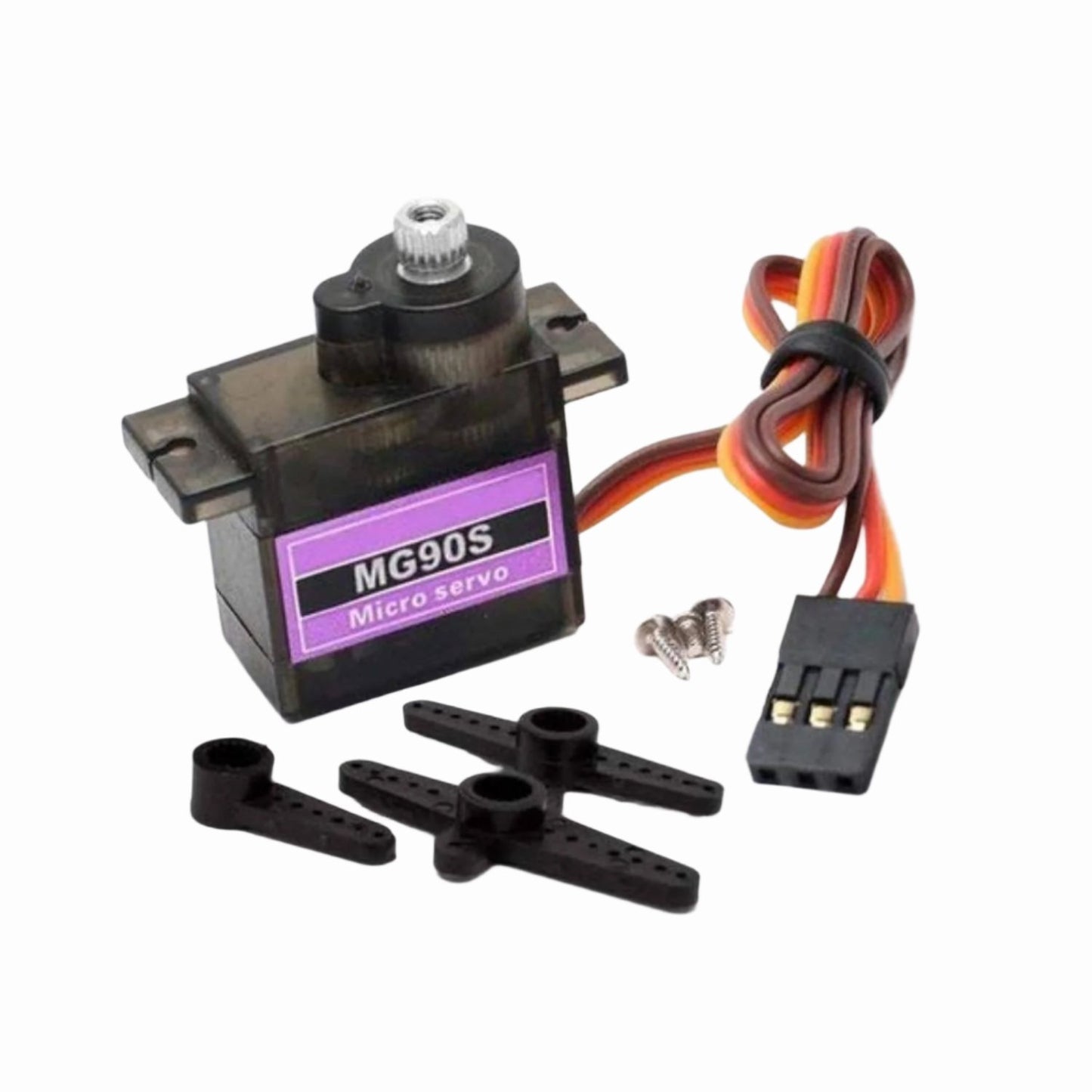

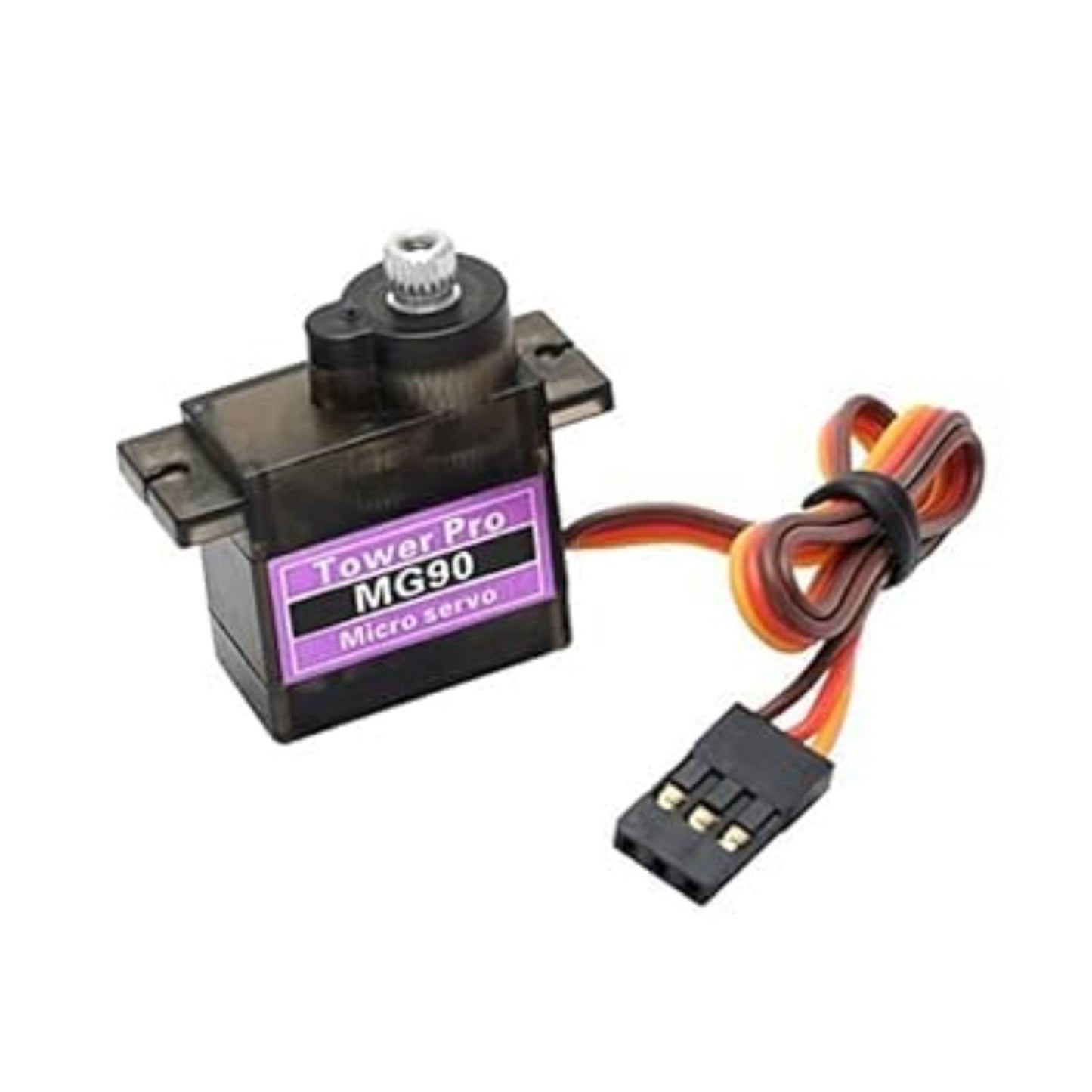

Description:
The MG90 Metal Gear Servo Motor offers precise control over angular position, making it ideal for applications requiring accurate and repeatable movements. Its compact and lightweight design allows for easy integration into space-constrained projects without adding excessive weight.
High Torque 180 Degree Servo Motor typically operates within a wide voltage range, allowing flexibility in power supply options and compatibility with different control systems. These servos provide rapid response to control signals, ensuring quick and efficient movements, which is crucial in robotics and remote-control applications.
Specifications:
- Model: MG90
- Material: Metal
- Modulation: Analog
- Torque : 4.8V: 2.20 kg-cm , 6.0V: 2.50 kg-cm
- Speed : 4.8V: 0.11 sec/60°
- Rotation/Support: Dual Bearings

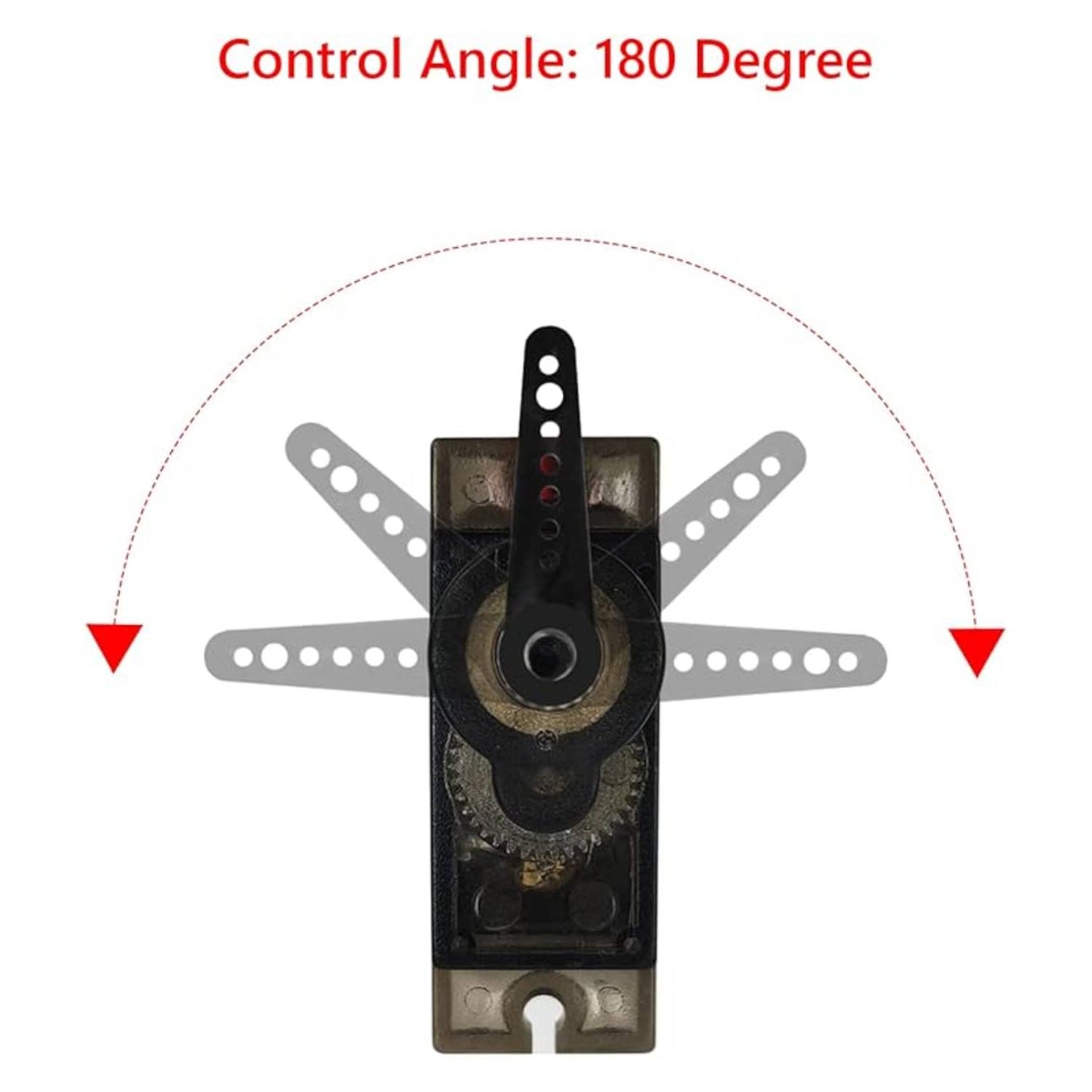

- Rotational Range: 180°
- Pulse Cycle: 20 ms
- Pulse Width: 400-2400 µs
Features:
- High quality and high-cost performance.
- Metal Gear with less noise.
- Small size and lightweight.

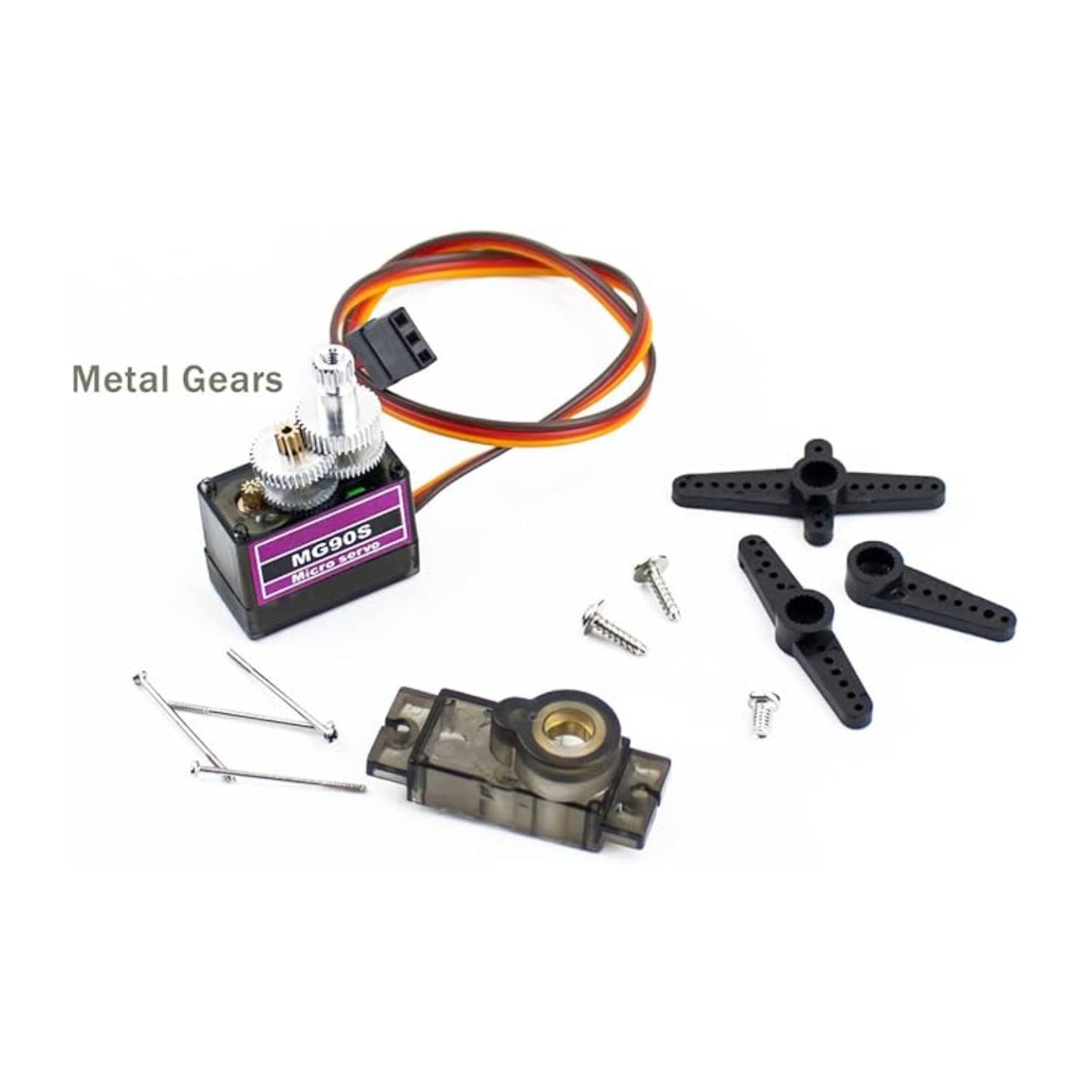

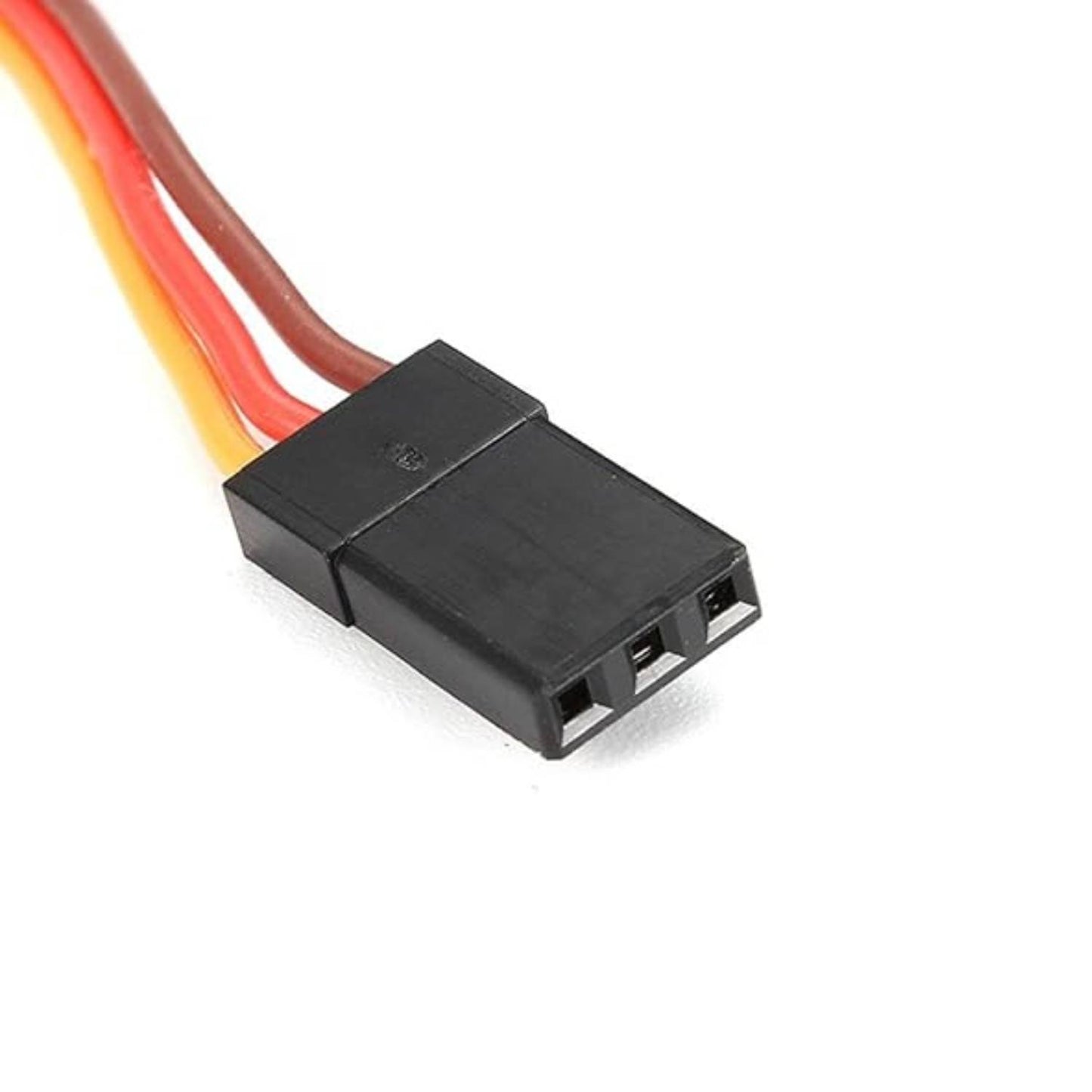

- 245mm connector wire with 3 sets of servo horns and fittings.
Package Included:
1 x MG90 Metal Gear Servo Motor 180 Degree Metal Gear Servo High-Torque MG90 Servo(180 Degree Rotation)
