Description:

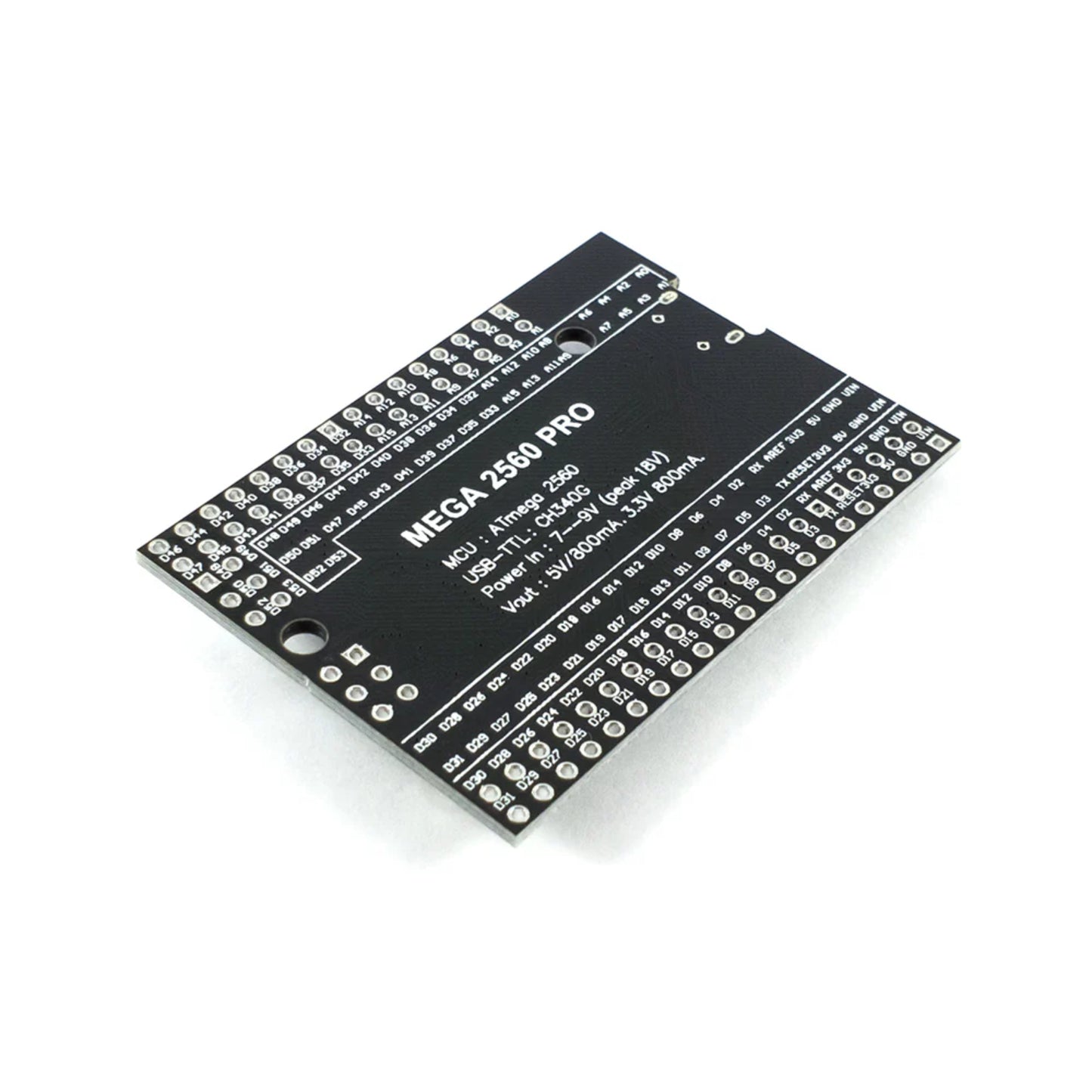

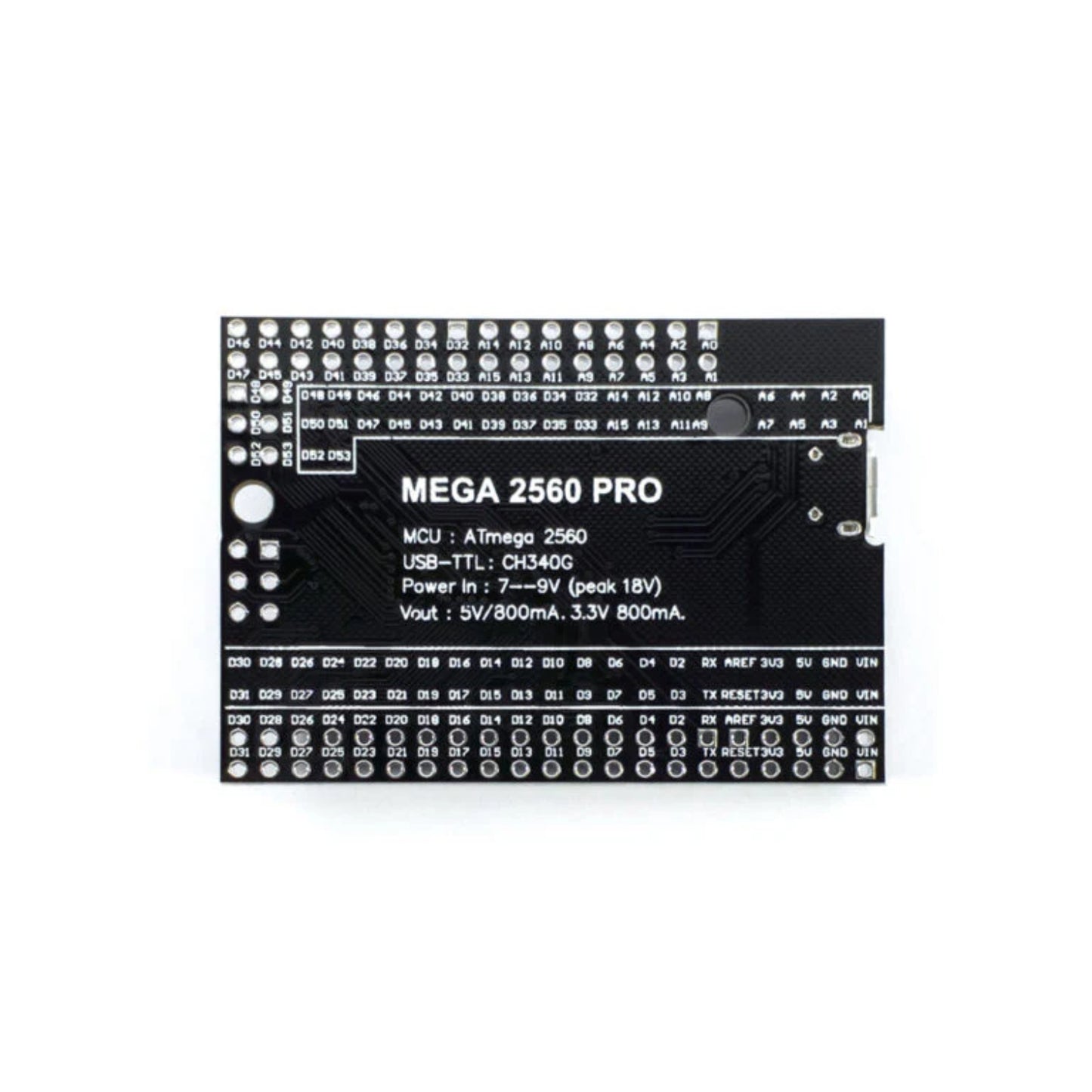

The Mega Pro Mini board is based on the ATmega2560 microcontroller and the USB-UART adapter CH340. The Mega Pro Mini Board is compatible with Arduino Mega 2560. The Mega Pro Mini Board has a compact form factor of 38 x 55mm and is an excellent solution for developing projects based on ATmega2560. The Mega Pro Embed functionalities are compatible with Arduino Mega 2560. Even though it is an Embed board, it is solid as stable as the Mega Board.

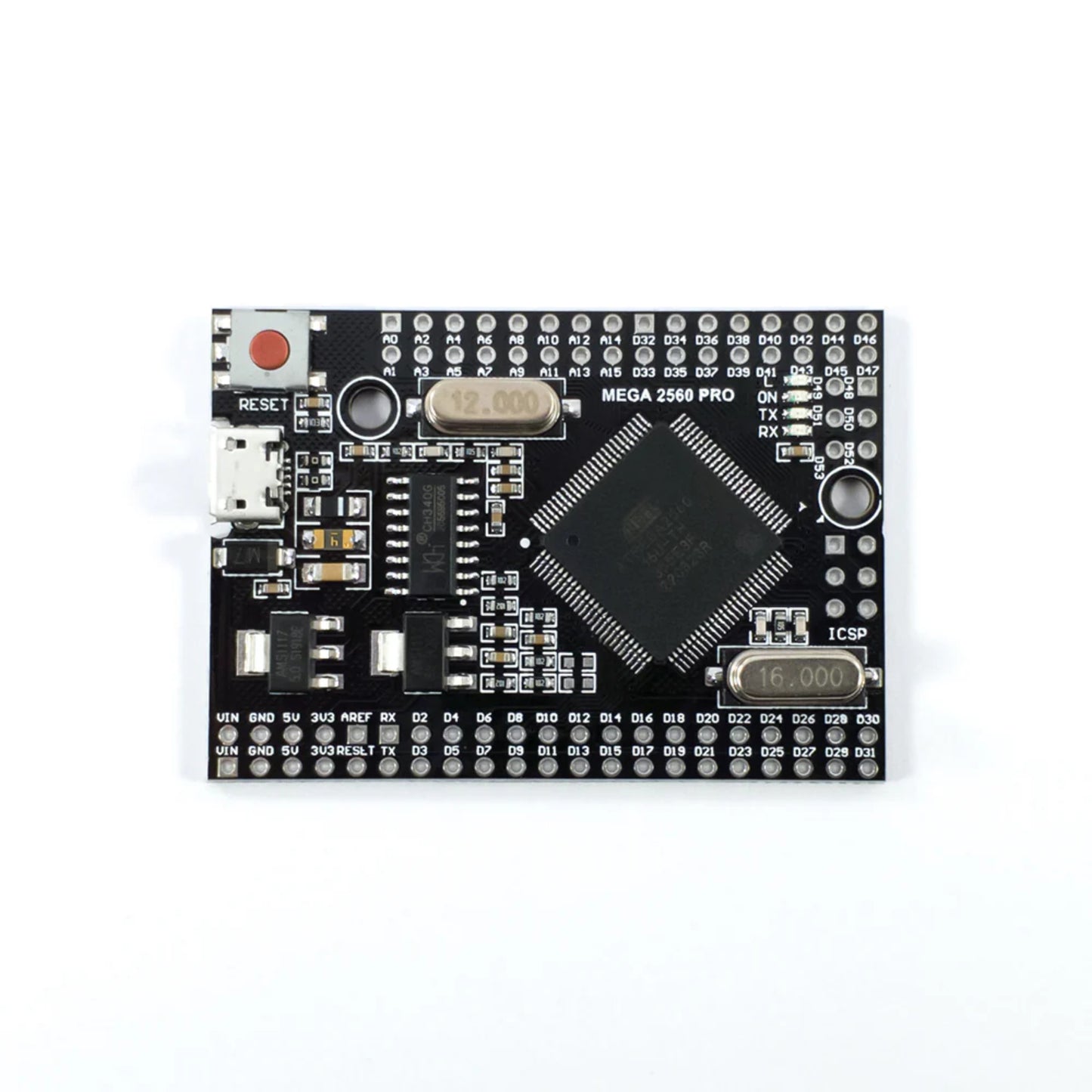

Mega Pro Mini uses the original chip, and 16 MHz high-quality quartz resonators are present on the board. The Mega Pro Mini Board has a Micro USB connector that allows you to connect the microcontroller to the computer via the USB-UART adapter CH340. The board can be powered directly through the Micro USB connector, or via the corresponding contact on the board (Vin). The voltage regulator allows to use of up to 18V as an input value, however, we do not recommend exceeding the recommended values aforementioned, since this can lead to excessive heat and damage the device.

Specifications:

  • Microcontroller: ATmega2560
  • Operating Voltage: 5V
  • Input Voltage (Recommended): 6V~9V
  • Input Voltage (Limit): 12V
  • Digital I/O Pins: 54 (of which 15 provide PWM output)
  • Analog Input Pins: 16
  • DC Current for 5V Pin: 800mA
  • DC Current for 3.3V Pin: 800mA
  • Flash Memory: 256KB (8KB used by the bootloader)
  • SRAM: 8KB
  • EEPROM: 4KB
  • Clock Speed: 16MHz
  • Built-in LED: 13

Features:

  • The Mega Pro Mini Board can be powered directly through the Micro USB connector
  • The maximum output current upon 5V is around 800mA, while on the 3.3V it is about 800mA.
  • The board is compatible with Mega 2560.
  • Mega Pro Mini is an excellent solution for developing projects based on ATmega2560.

Package Included:

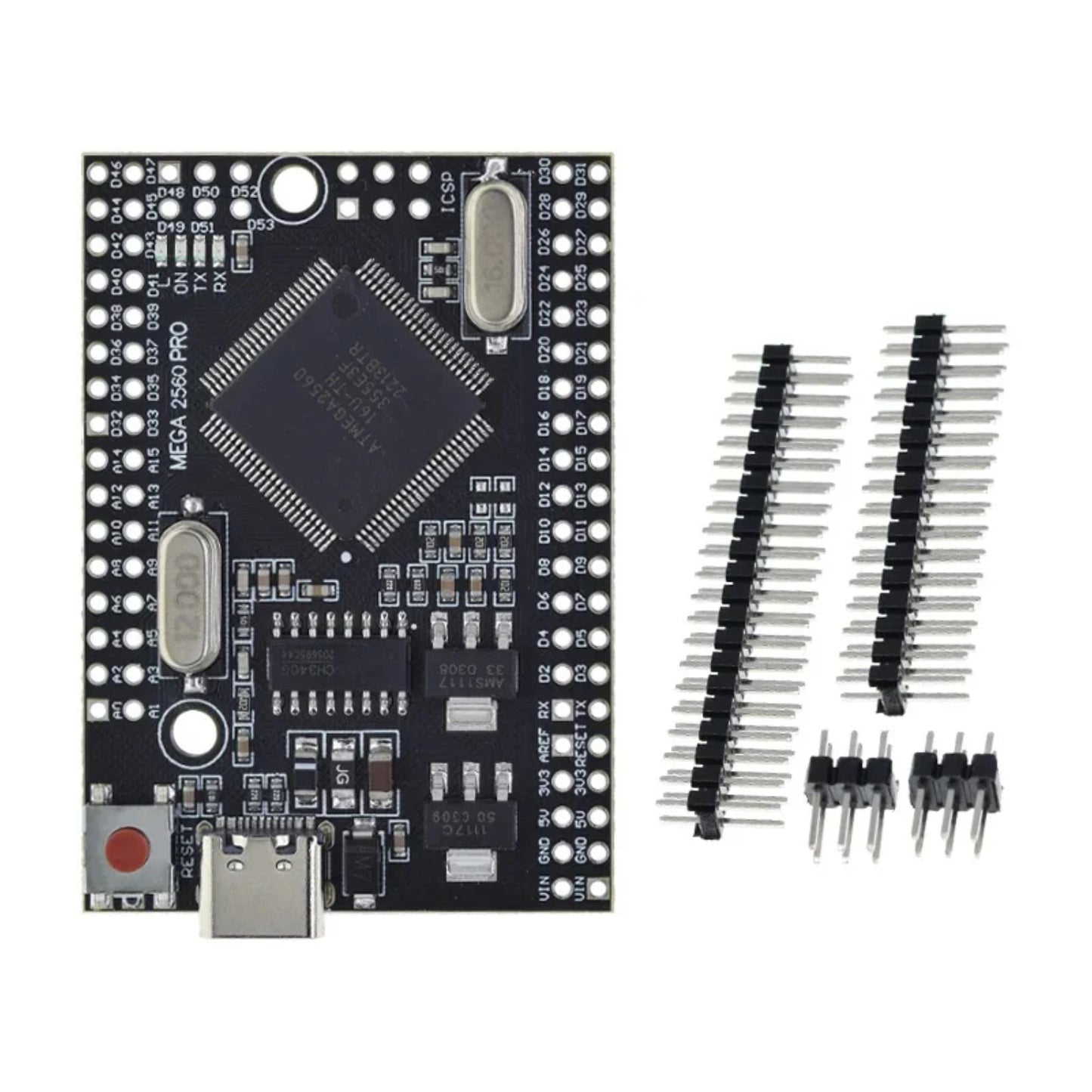

1 x Mega Pro Mini MEGA2560 Pro ATMEGA2560-16AU USB CH340G Development Board
