Measuring the distance using HC SR-04 and Display the Data on LCD interfacing with Arduino uno - KT930

Measuring the distance using HC SR-04 and Display the Data on LCD interfacing with Arduino uno - KT930

SKU:KT930

999 in stock

Regular price Rs. 949.00
Sale price Rs. 949.00 Regular price
Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

The REES52 Promise

We want you to build, not worry. Here is exactly what happens if something goes wrong with your order.

Dead on arrival or defective? We replace it.

If your item is dead on arrival or has a manufacturing defect, tell us within 7 days of delivery. Email support@rees52.com with your order number and a short video or a couple of photos showing the problem. Our team will get back to you within 24 hours and arrange a free pickup from your doorstep - you never pay return shipping for a defective item. Once we verify the issue, your replacement ships out right away. If the item is out of stock, you get a full refund instead.

Refunds, with real timelines.

  • Approved refunds go back to your original payment method within 6-7 working days.
  • Missing item in your package? Tell us within 7 days with photos of what arrived and the parcel label. Once confirmed, the refund for the missing item reaches you in 2-3 working days - or we ship the missing piece free, your choice.
  • Every refund comes with a reference number by email or WhatsApp, so you can track it with your bank instead of chasing us.

Wrong item or not as described?

Email us your order number and a photo of what you received. We arrange the return pickup, and ship the correct item as soon as the return is on its way. Prefer your money back instead? That is fine too - full refund, same 6-7 working day timeline.

About lead times on some products.

A few items on rees52.com are sourced from our overseas partner warehouses and are not sitting on our shelf. Those products show a lead time of about 20-25 working days on the product page, before you pay. If you order one, we keep you posted as it moves. Changed your mind while waiting? You can cancel any time before dispatch and get a full refund within 6-7 working days. No cancellation fee, no questions.

Talk to a human.

Email support@rees52.com or call/WhatsApp +91 95995 94520, Monday to Saturday, 10:30 AM to 7:00 PM. Real people, order number in hand, actual answers.

View full details

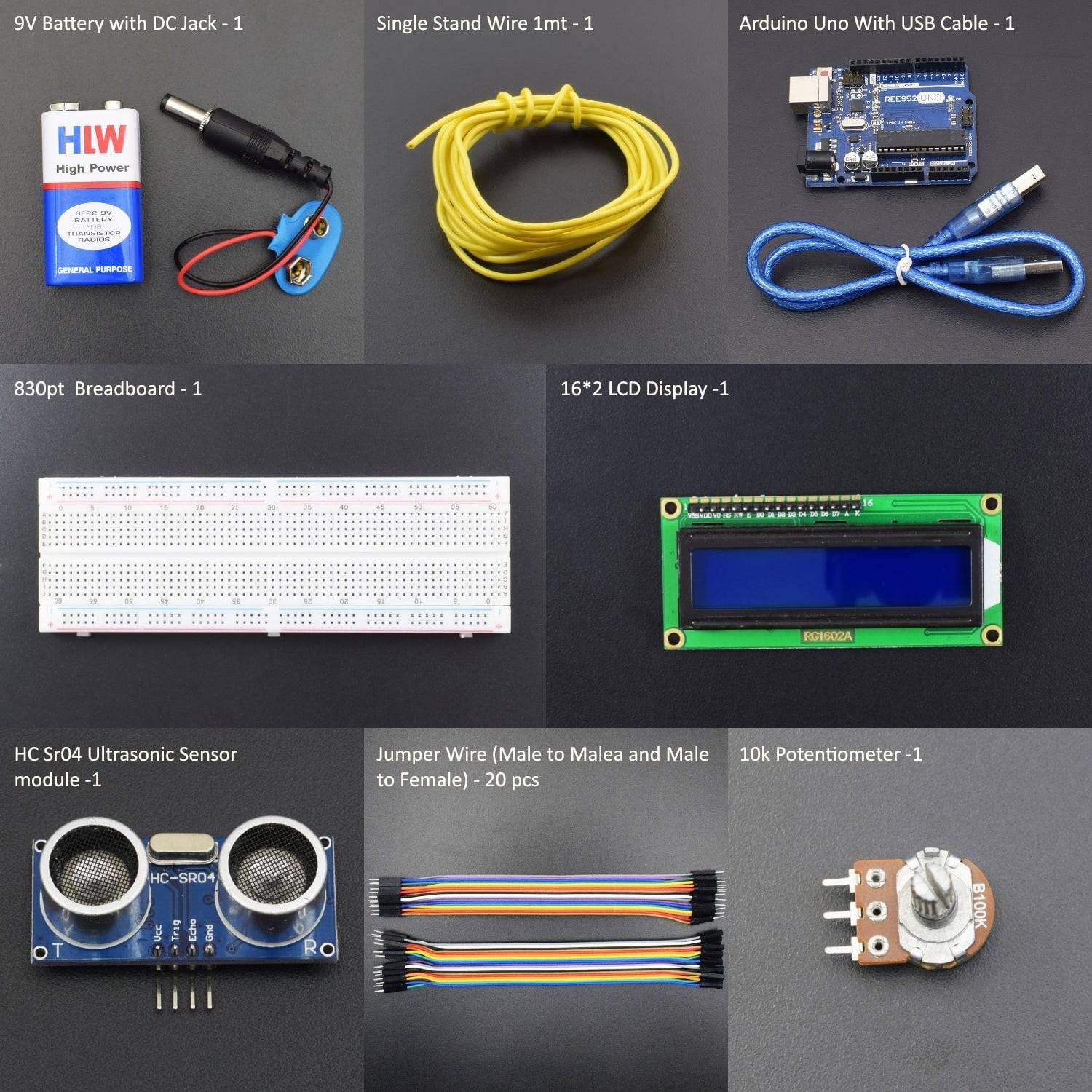

HARDWARE REQUIRED

SOFTWARE REQUIRED

Arduino IDE 1.8.5 (Programmable Platform for Arduino Boards)
Click to download the software: https://www.arduino.cc/en/Main/Software

PIN DESCRIPTION

HC SR04 ULTRASONIC SENSOR

16*2 LCD DISPLAY

10K POTENTIOMETER

CIRCUIT DESCRIPTION

Connection for LCD 16*2 Display with Arduino uno

LCD 16 * 2

Arduino

VSS

GND

VCC

5V

RS

PIN 11

R/W

PIN 10

E

PIN 9

DB4

PIN 2

DB5

PIN 3

DB6

PIN 4

PIN 5

LED+ (A)

5V

LED- (K)

GND

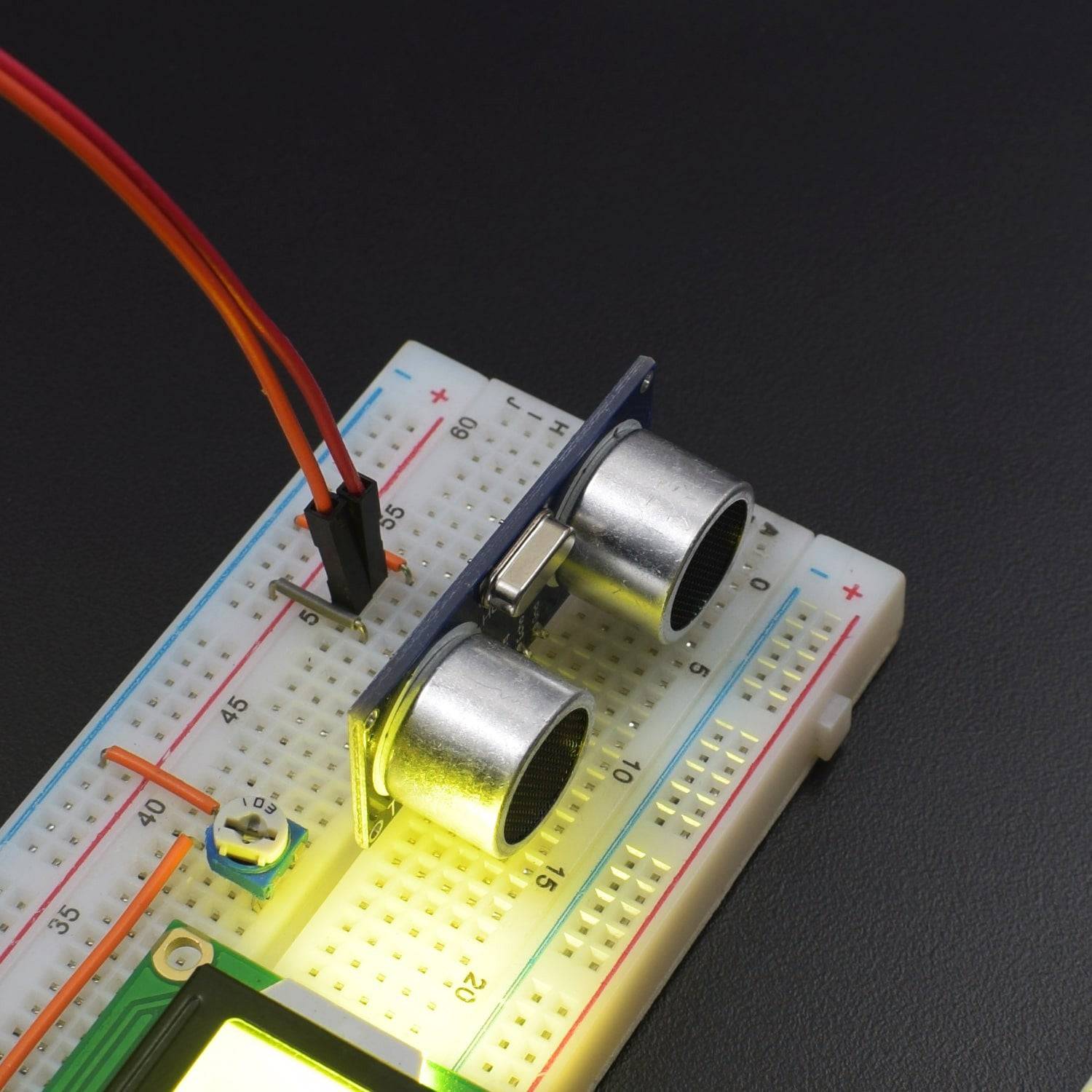

Connection for HC SR-04 Ultrasonic Sensor with Arduino UNO

Ultrasonic Sensor

Arduino

VCC

5V

GND

GND

ECHO

Pin 12

TRIG

Pin 13

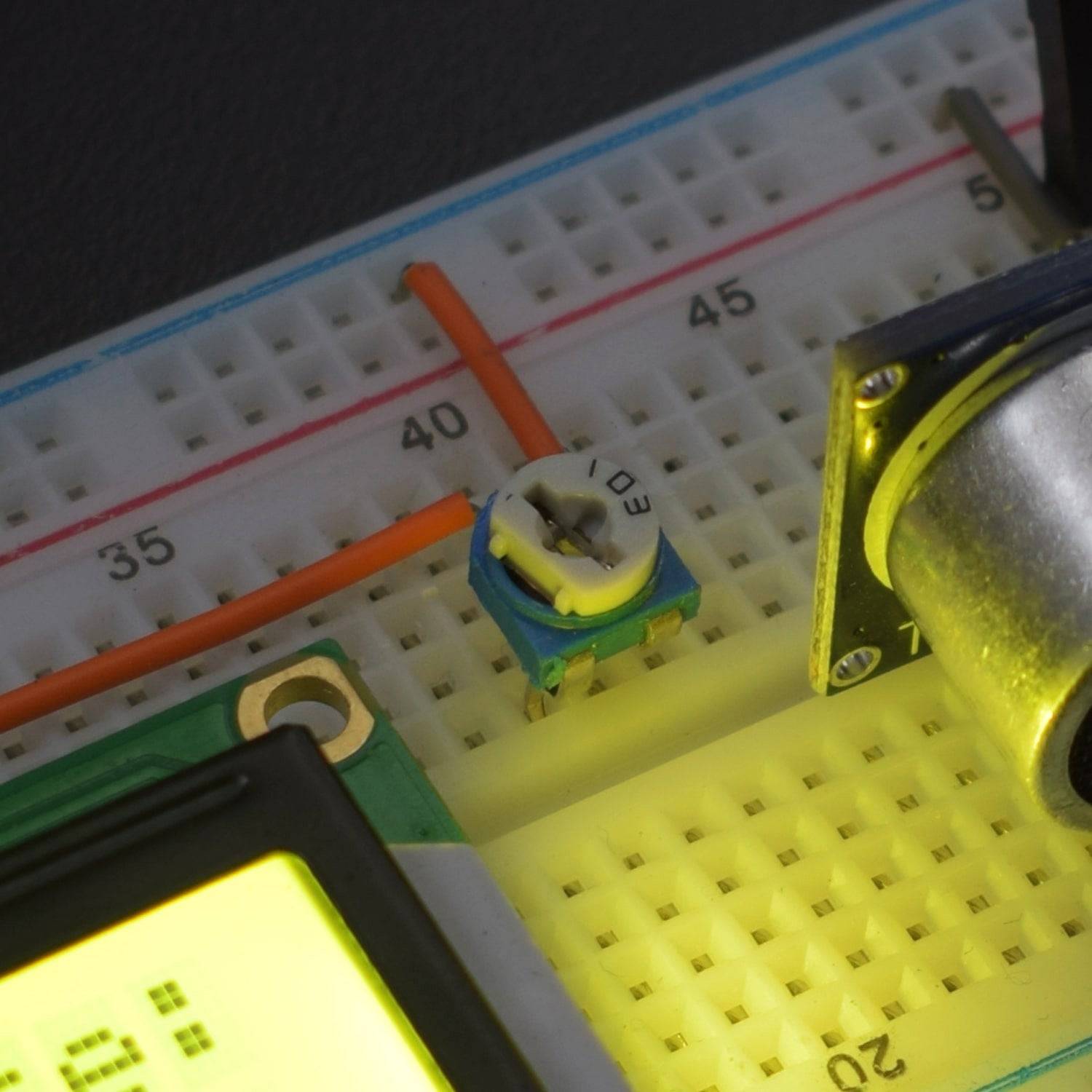

Connection for the potentiometer with LCD 16*2 and Breadboard

Potentiometer

LCD

Breadboard

Pin 1 (left)

5v

Pin 2(mid)

Pin 3

Pin 3 (right)

Gnd

CODE

Before coding, you have to install new ping library

https://drive.google.com/open?id=11gy_6v61-Eq0sAz8RJF_sn5Tl0g7z8Cj

Sketch > Include library > Manage Library > Search NEWPING library > download it

Or you download NewPing Library from other site.

https://drive.google.com/open?id=107vaWoBXZ8t6xtLExf7GQPetTcTP6glO


RUN SKETCH AND VERIFY OUTPUT

After compiling, uploading and running it

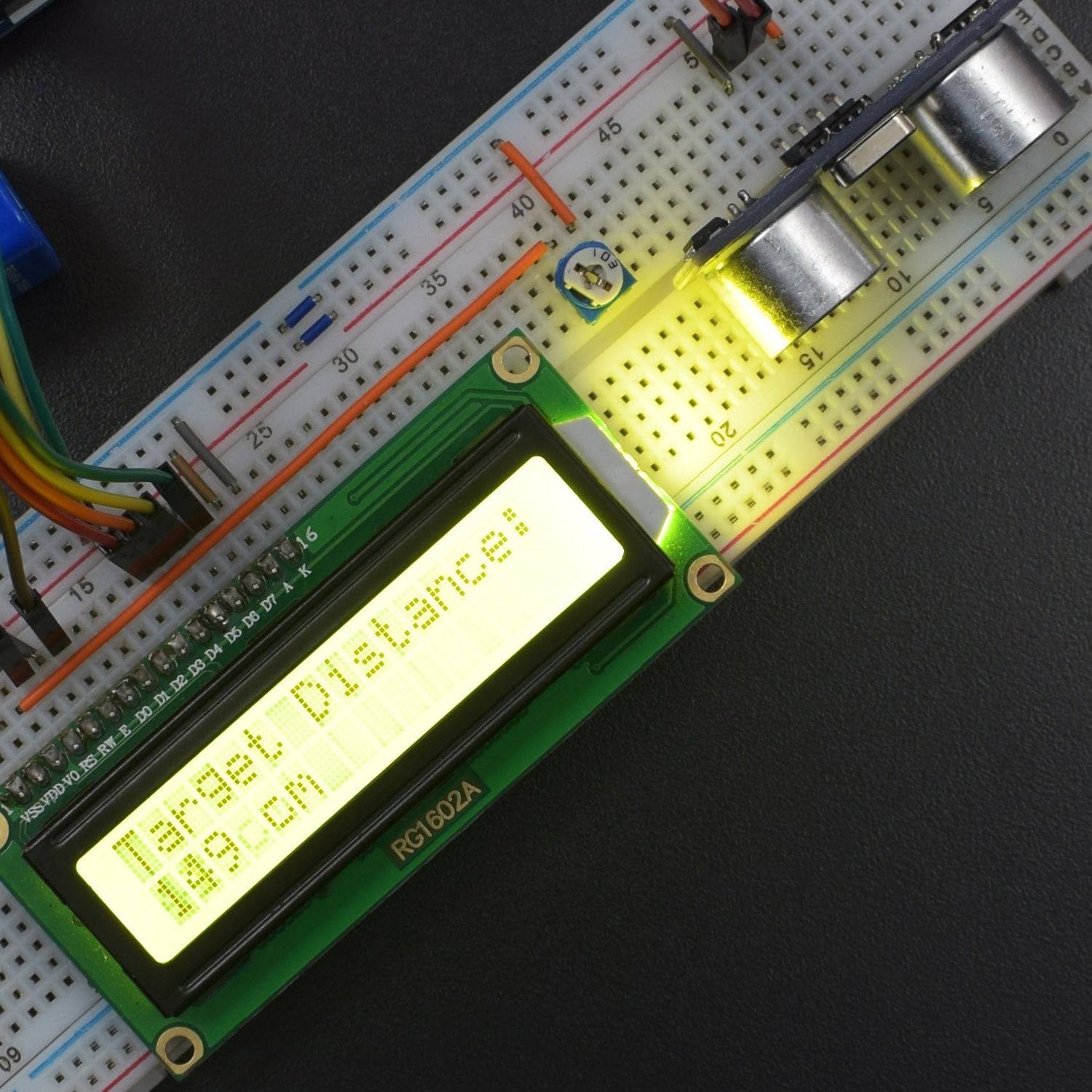

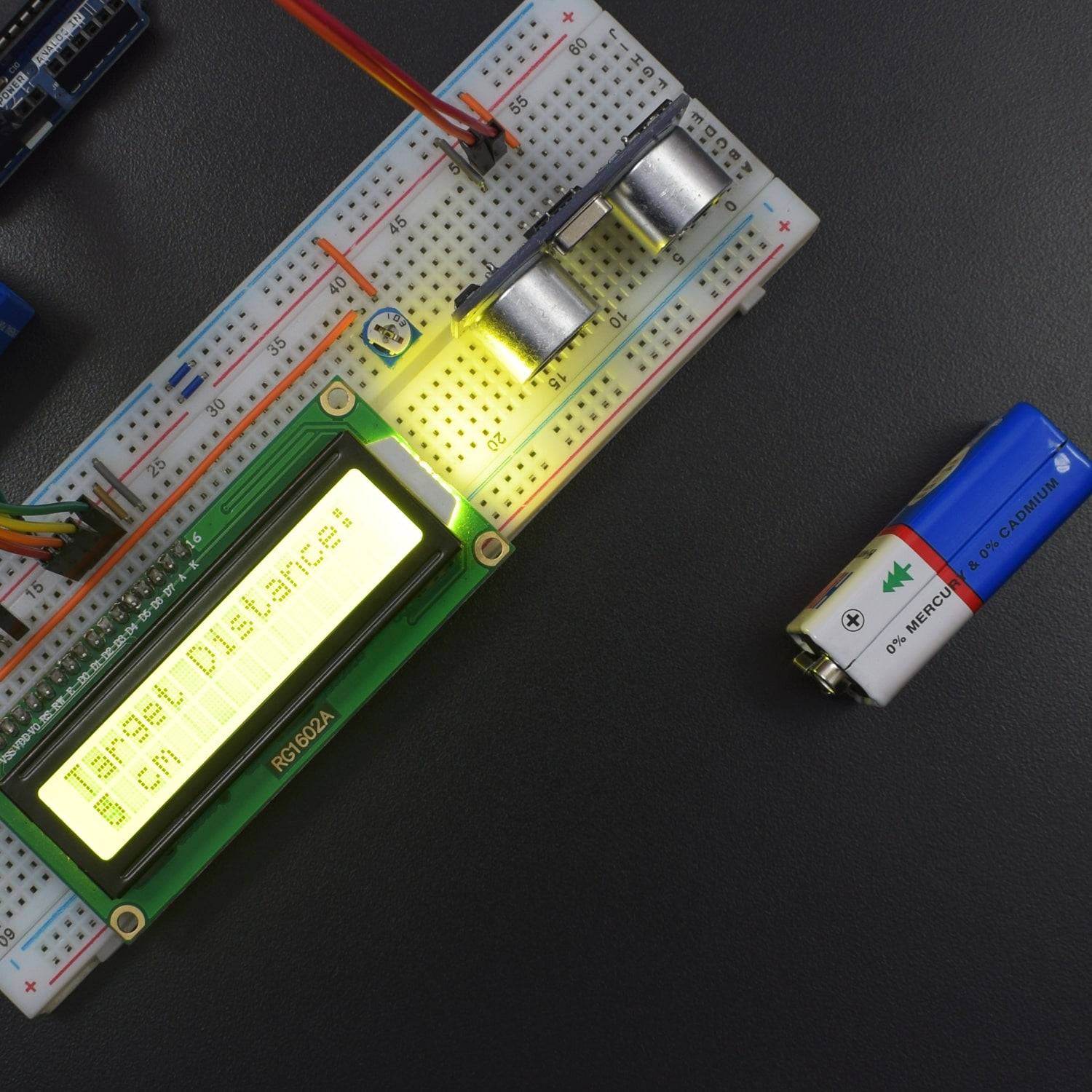

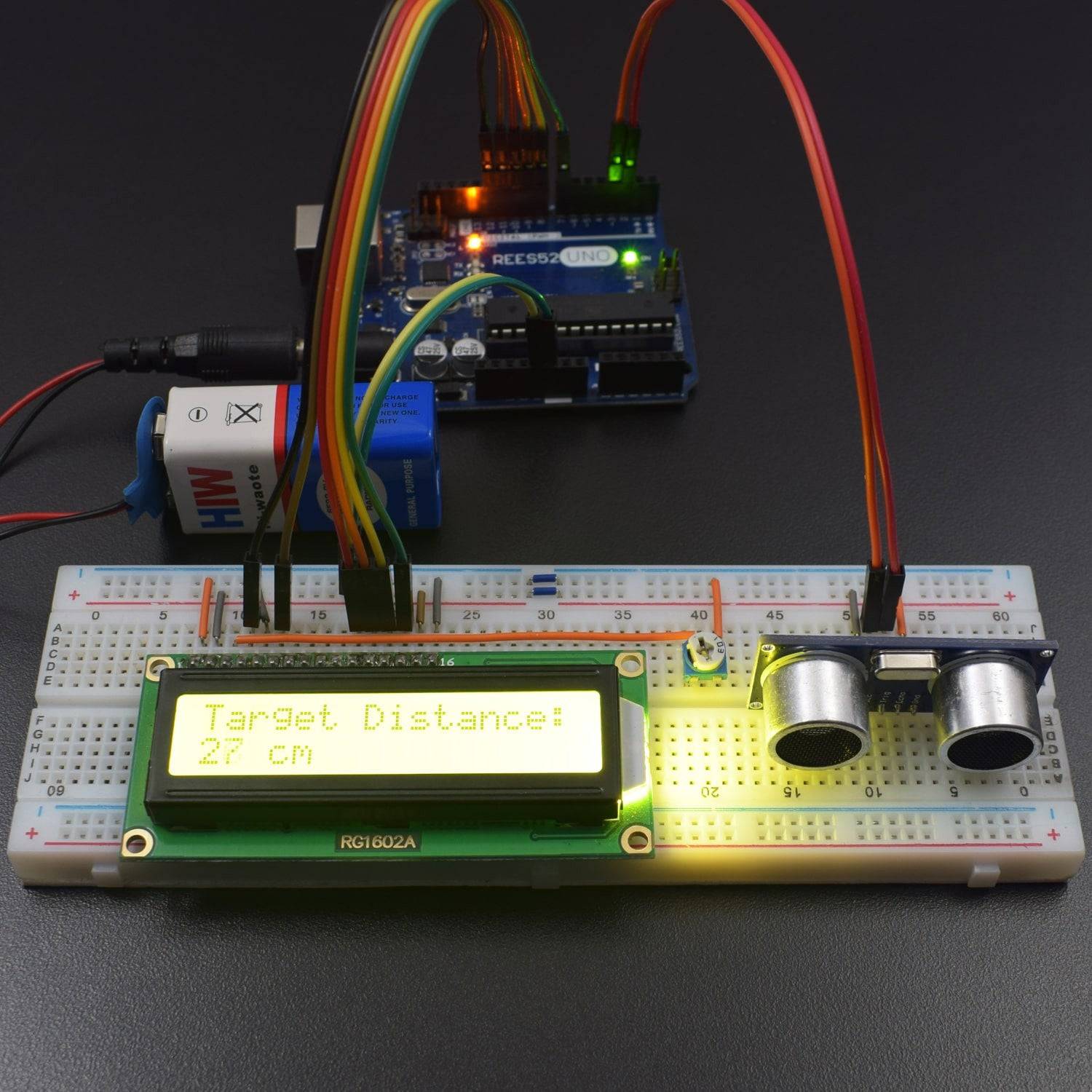

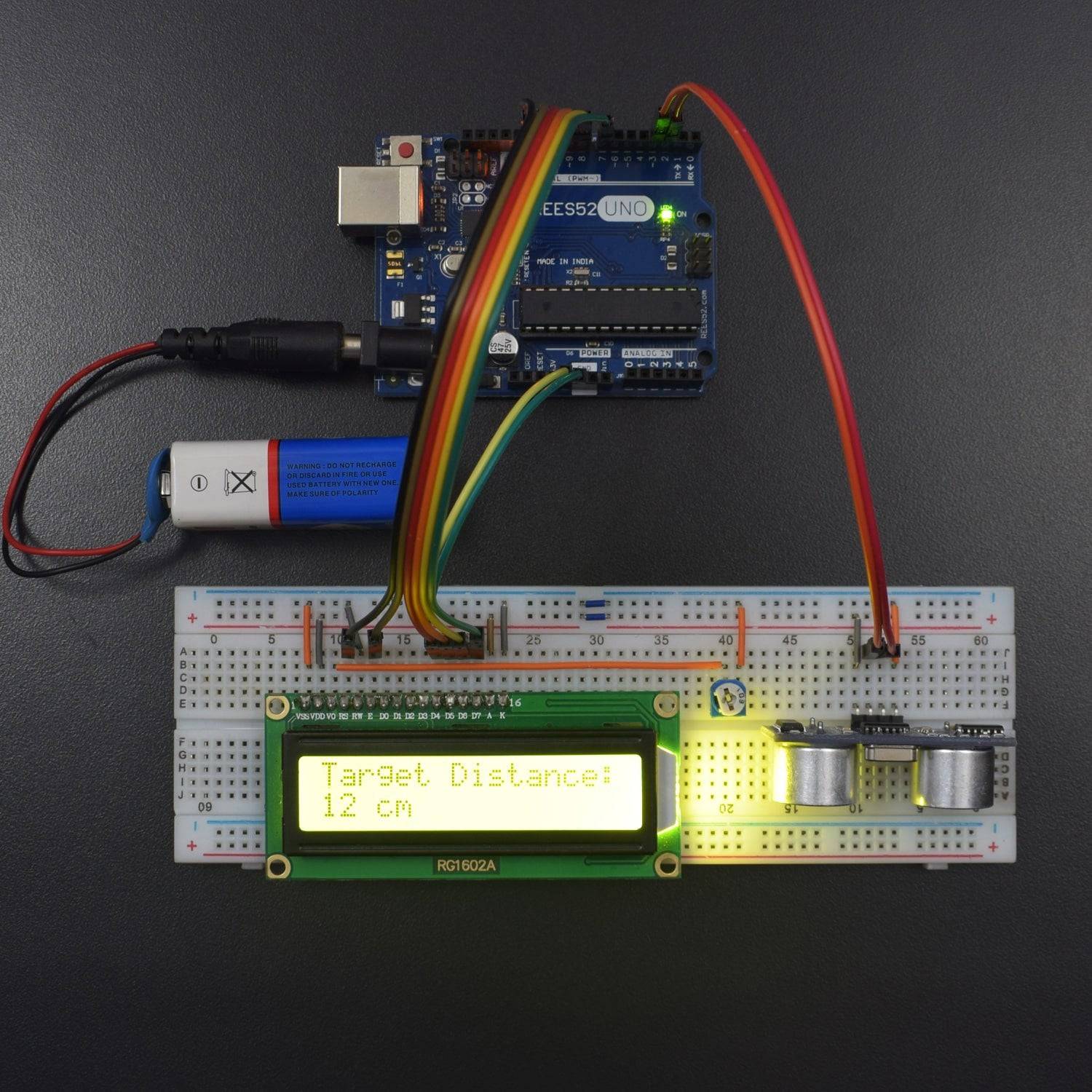

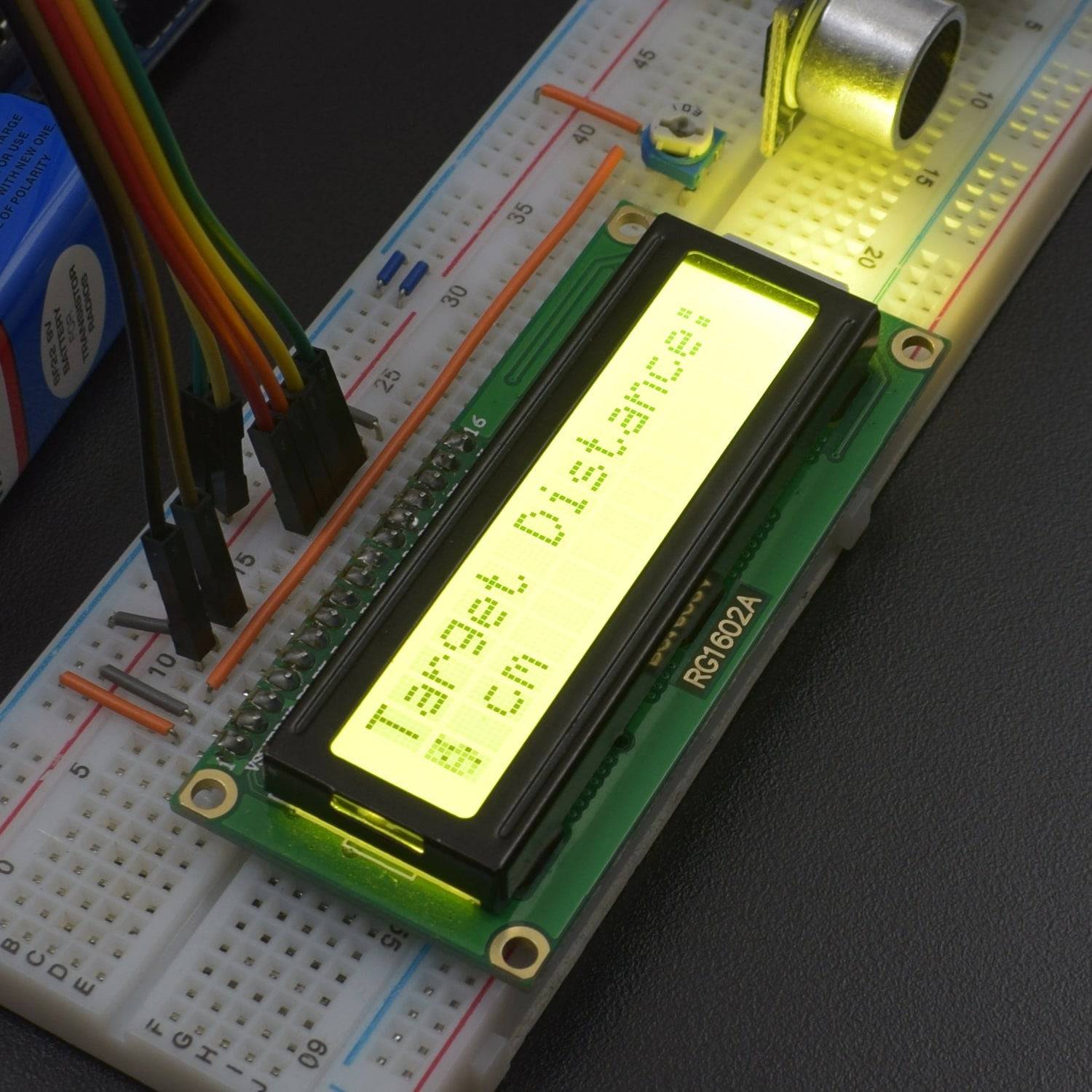

As far as the object goes far from the ultra-sonic sensor, Distance will be vary and measured distance will be show in LCD

in the Serial Monitor (Tools -> Serial Monitor or Ctrl + Shift + M) the sensor was sending correct data

Note: Must Set the baud Rate to 115200

Ping: 36 cm or the value shown in the serial monitor depends on the object distance from the ultra-sonic sensor.
