Measure the value of water flow using water flow sensor and DC water pump 12 V interfacing with Arduino uno - KT860

Measure the value of water flow using water flow sensor and DC water pump 12 V interfacing with Arduino uno - KT860

SKU:KT860

100 in stock

Regular price Rs. 1,599.00
Sale price Rs. 1,599.00 Regular price
Sold out
Exclusive of GST
Shipping calculated at checkout.
REES52 REWARDS
Earn an estimated 16 points on this order
Found a better price?

Send the competitor link and price to our team. No automatic price match.

This website form routes enquiries to our support team. Your email app will not open.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

Cash on Delivery is currently unavailable for new orders

Existing COD Orders Only

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

The REES52 Promise

We want you to build, not worry. Here is exactly what happens if something goes wrong with your order.

Dead on arrival or defective? We replace it.

If your item is dead on arrival or has a manufacturing defect, tell us within 7 days of delivery. Email support@rees52.com with your order number and a short video or a couple of photos showing the problem. Our team will get back to you within 24 hours and arrange a free pickup from your doorstep - you never pay return shipping for a defective item. Once we verify the issue, your replacement ships out right away. If the item is out of stock, you get a full refund instead.

Refunds, with real timelines.

  • Approved refunds go back to your original payment method within 6-7 working days.
  • Missing item in your package? Tell us within 7 days with photos of what arrived and the parcel label. Once confirmed, the refund for the missing item reaches you in 2-3 working days - or we ship the missing piece free, your choice.
  • Every refund comes with a reference number by email or WhatsApp, so you can track it with your bank instead of chasing us.

Wrong item or not as described?

Email us your order number and a photo of what you received. We arrange the return pickup, and ship the correct item as soon as the return is on its way. Prefer your money back instead? That is fine too - full refund, same 6-7 working day timeline.

About lead times on some products.

A few items on rees52.com are sourced from our overseas partner warehouses and are not sitting on our shelf. Those products show a lead time of about 20-25 working days on the product page, before you pay. If you order one, we keep you posted as it moves. Changed your mind while waiting? You can cancel any time before dispatch and get a full refund within 6-7 working days. No cancellation fee, no questions.

Talk to a human.

Email support@rees52.com or call/WhatsApp +91 95995 94520, Monday to Saturday, 10:30 AM to 7:00 PM. Real people, order number in hand, actual answers.

View full details

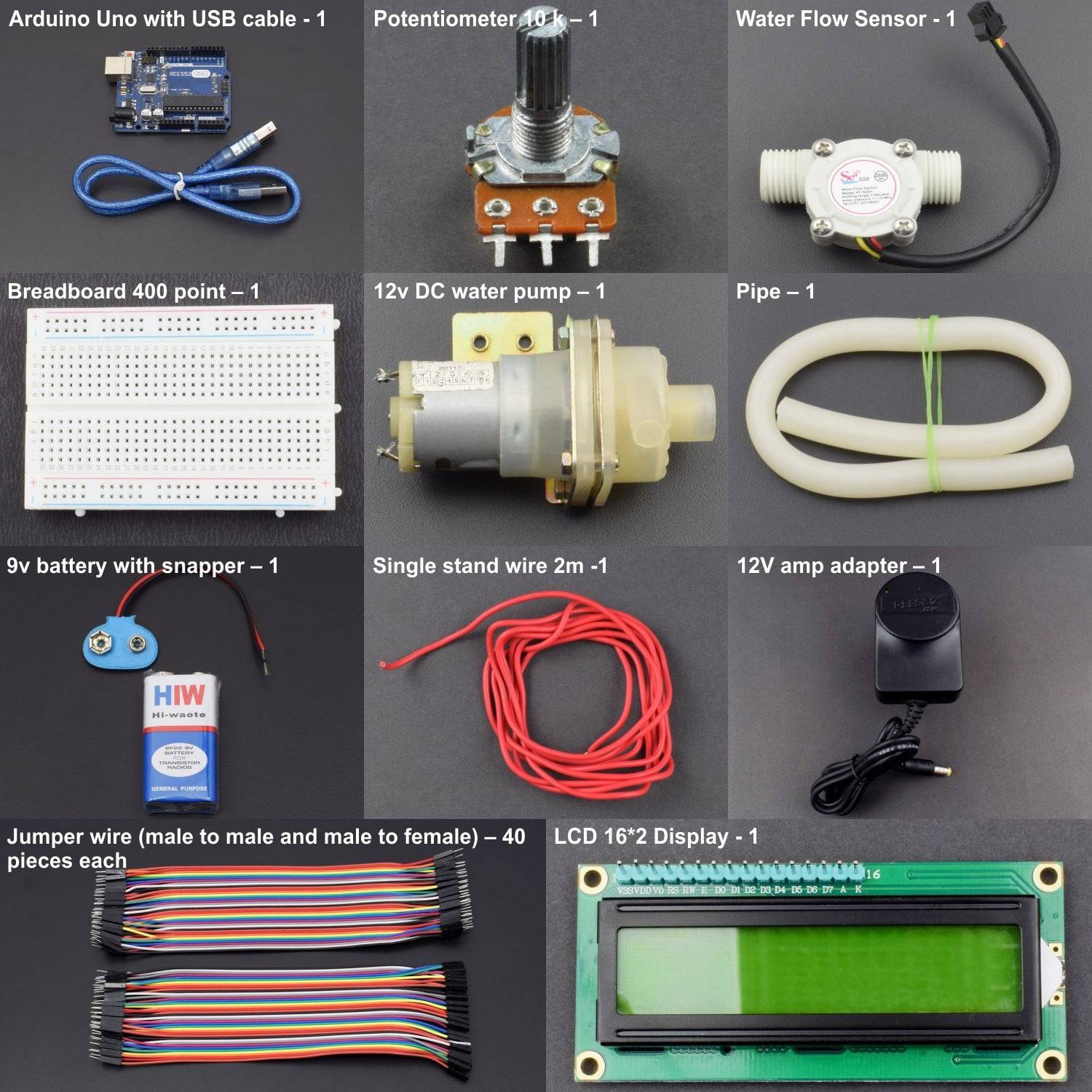

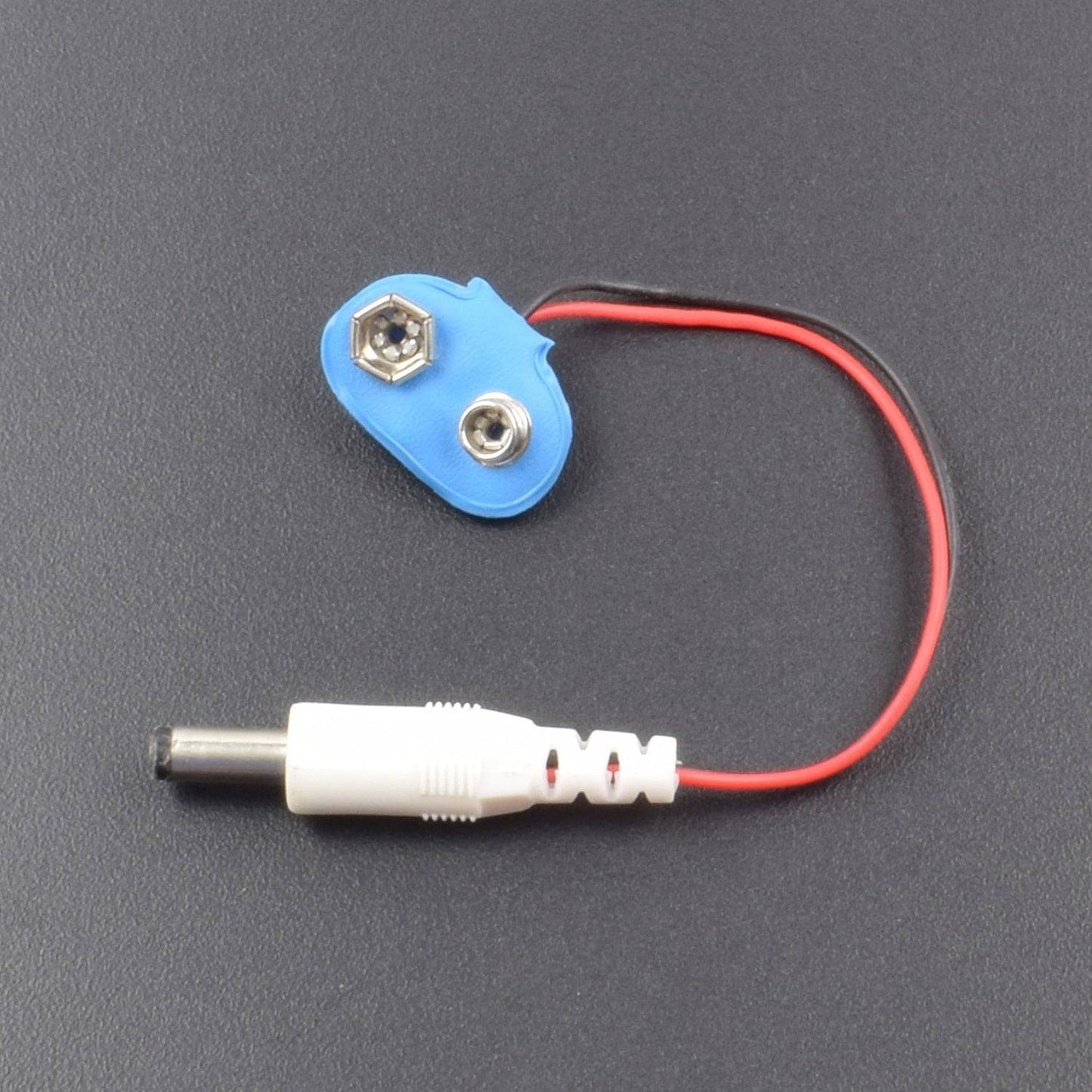

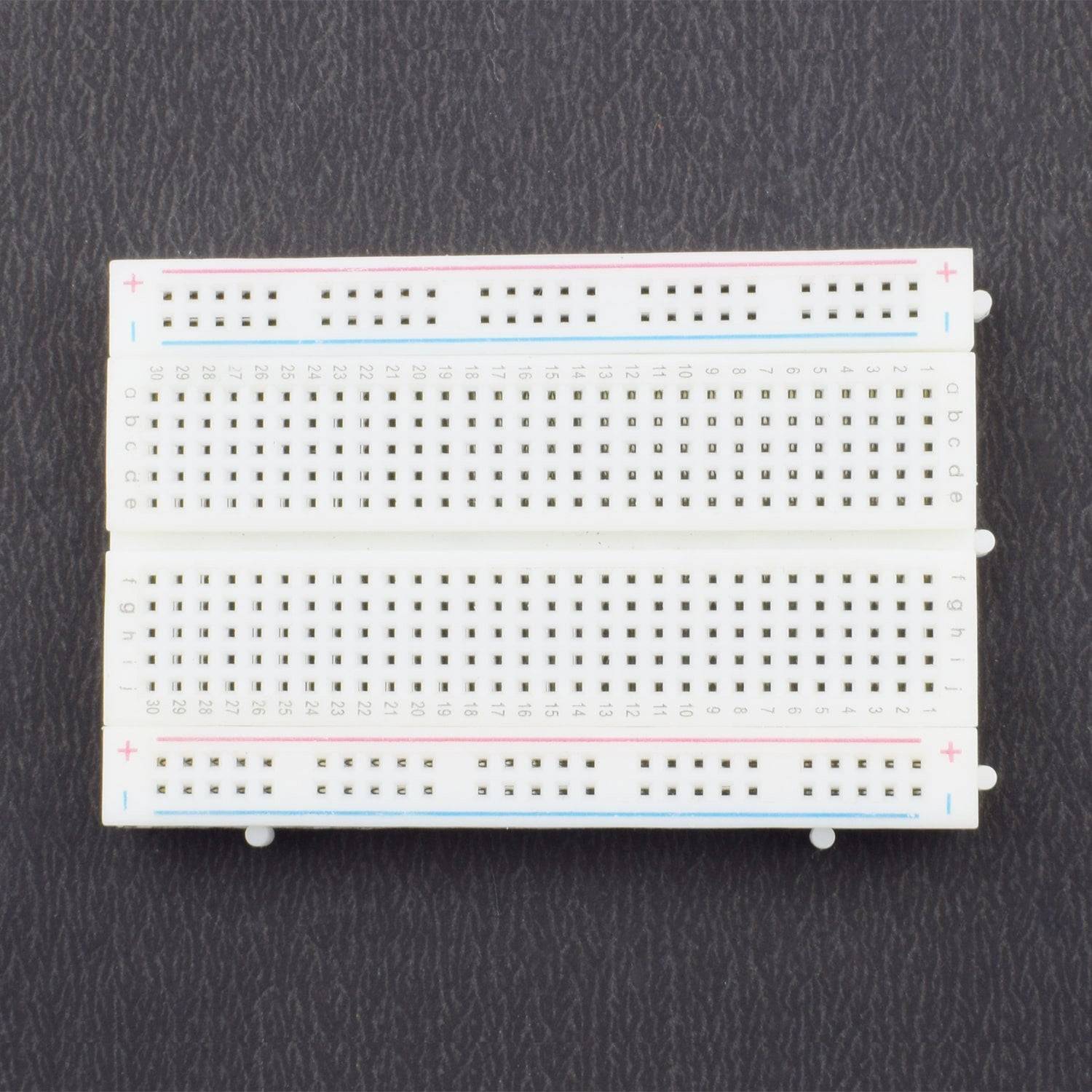

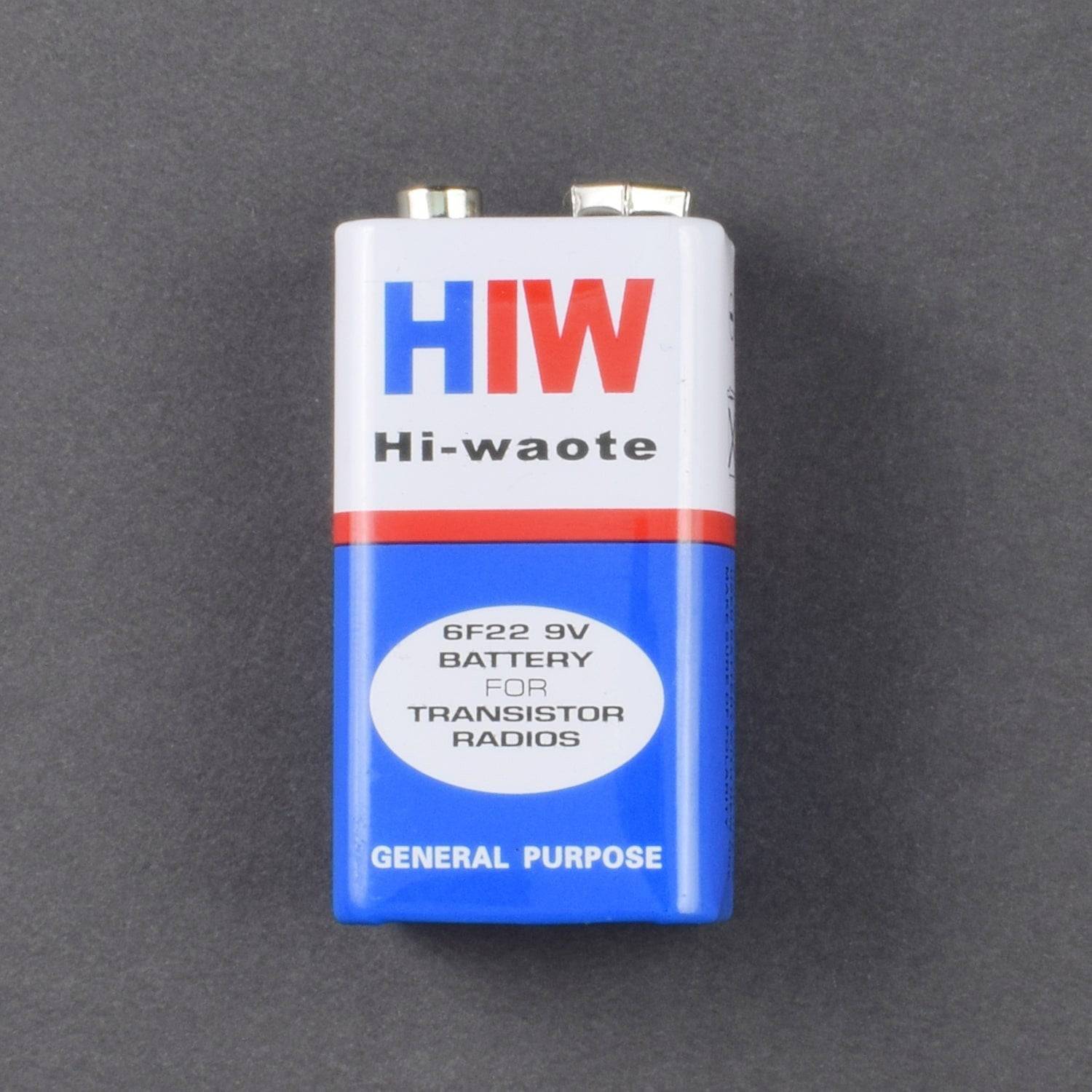

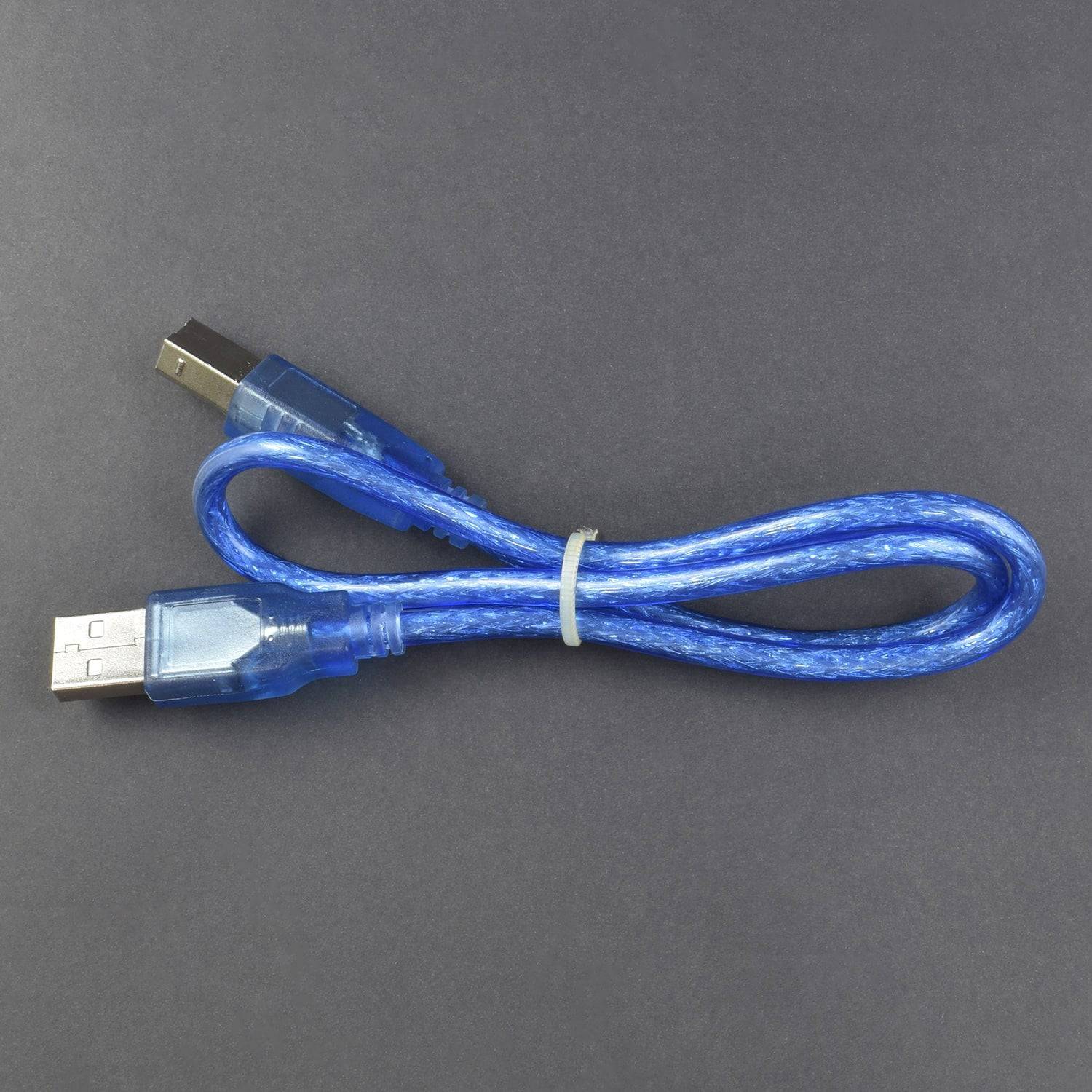

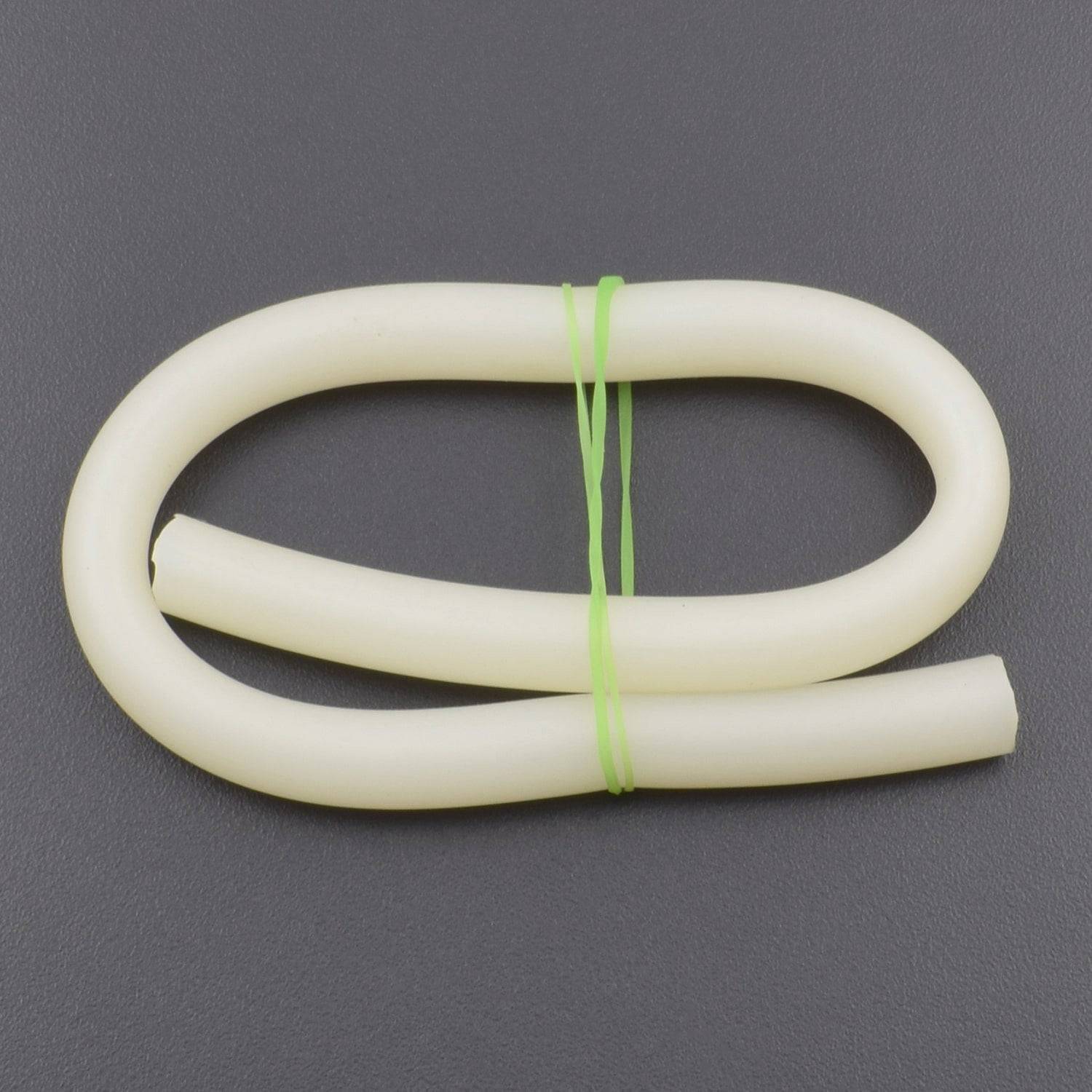

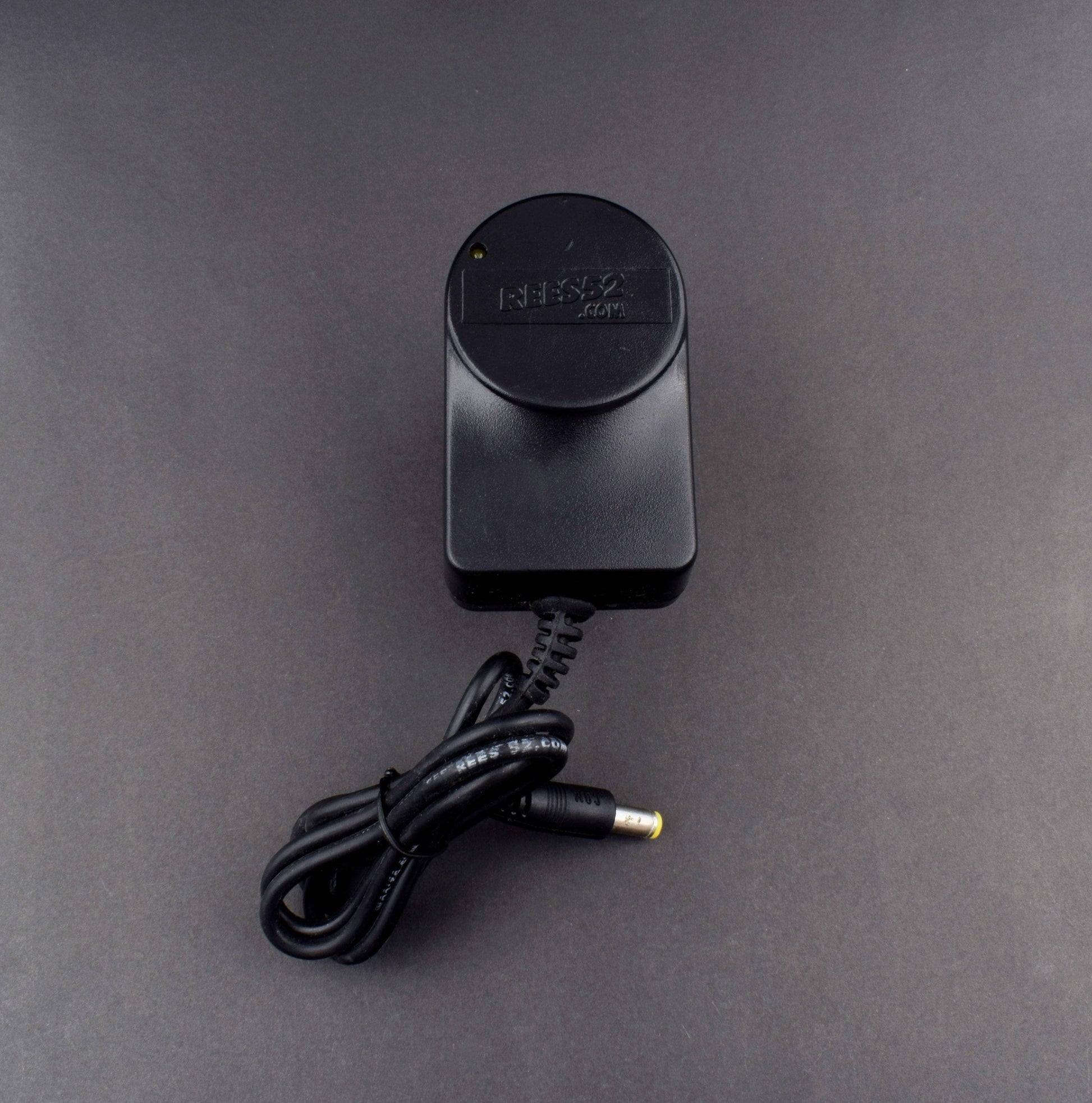

KIT INCLUDES:


HARDWARE REQUIRED

SPECIFICATIONS

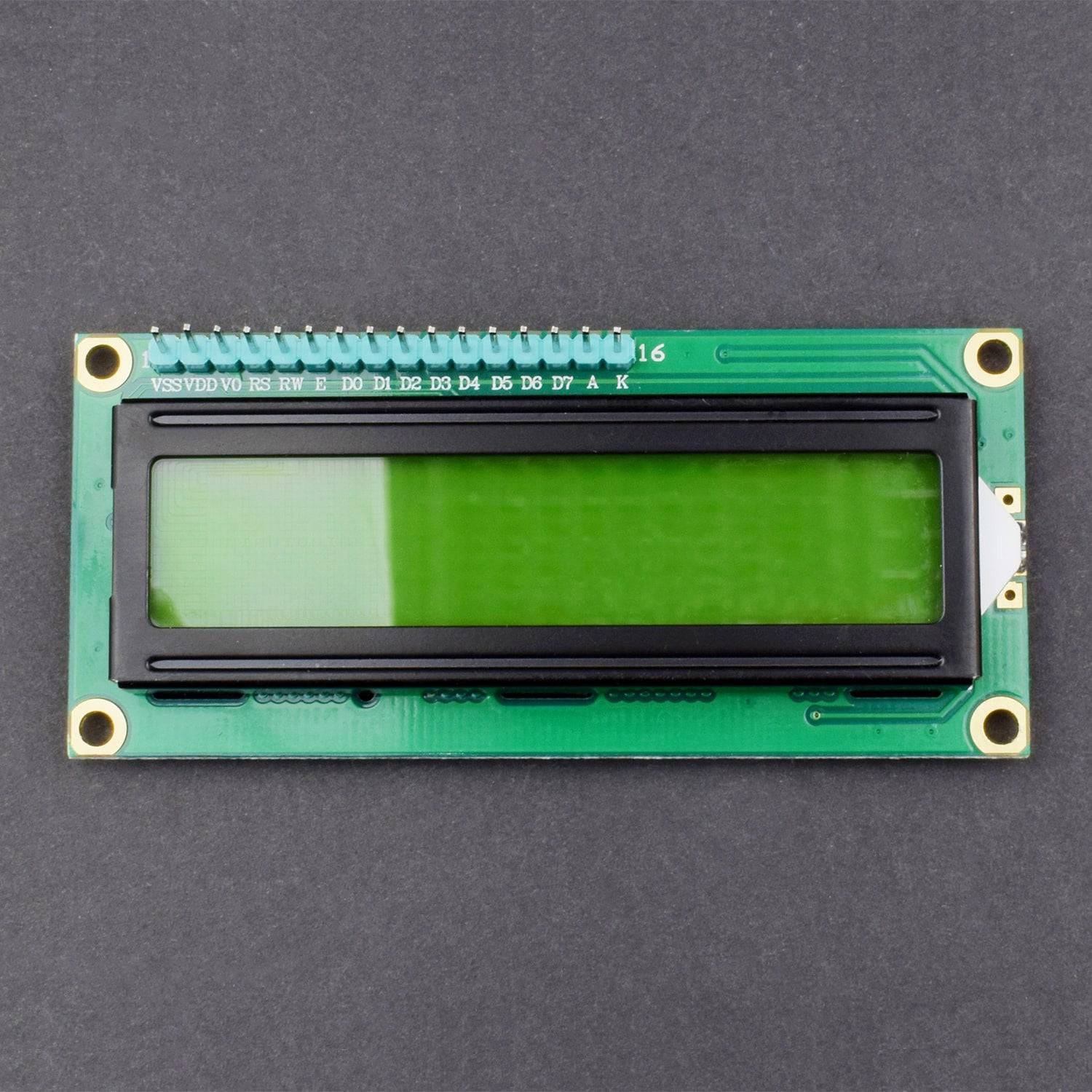

16*2 LCD DISPLAY

  • LCD Display Mode: STN, Positive, Transflective
  • Display Color: Deep Blue/ Yellow Green
  • Viewing Angle: 6H
  • Driving Method : 1/16 duty, 1/5 bias
  • Back Light : Yellow-Green LED backlight
  • Outline Dimension: 803615.8 MAX

CAUTIONS

• The LCD panel is made by glass. Any mechanical shock (eg. dropping from high place) will damage the LCD module.
• Do not add excessive force on the surface of the display, which may cause the Display color change abnormally.
• The polariser on the LCD is easily get scratched. If possible, do not remove the LCD protective film until the last step of installation.
• Never attempt to disassemble or rework the LCD module.
• Only Clean the LCD with Isopropyl Alcohol or Ethyl Alcohol. Other solvents (eg.water) may damage the LCD.
• When mounting the LCD module, make sure that it is free form twisting, warping and distortion.
• Ensure to provide enough space(with cushion) between case and LCD panel to prevent external force adding on it, or it may cause damage to the LCD or degrade the display result.
• Only hold the lCD module by its side. Never hold LCD module by add force on the heat seal ot TAB.
• Never add force to component of the LCD module. It may cause invisible damage or degrade of the reliability.
• LCD module could be easily damaged by static electricity. Be careful to maintain an optimum anti-static work environment to protect the LCD module.
• When peeling off the protective film from LCD, static charge may cause abnormal display pattern. It is normal and will resume to nomal in a short while.
• Take care and prevent get hurt by the LCD panel sharp edge.
• Never operate the LCD module exceed the absolute maximum ratings.
• Keep the signal line as short as possible to prevent noisy signal applying to LCD module.
• Never apply signal to the LCD module without power supply.
• IC chip(eg. TAB or COG) is sensitive to the light. Strong lighting environment could possibly cause malfunction. Light sealing structure casing is recommend.
• LCD module reliability may be reduced by temperature shock.

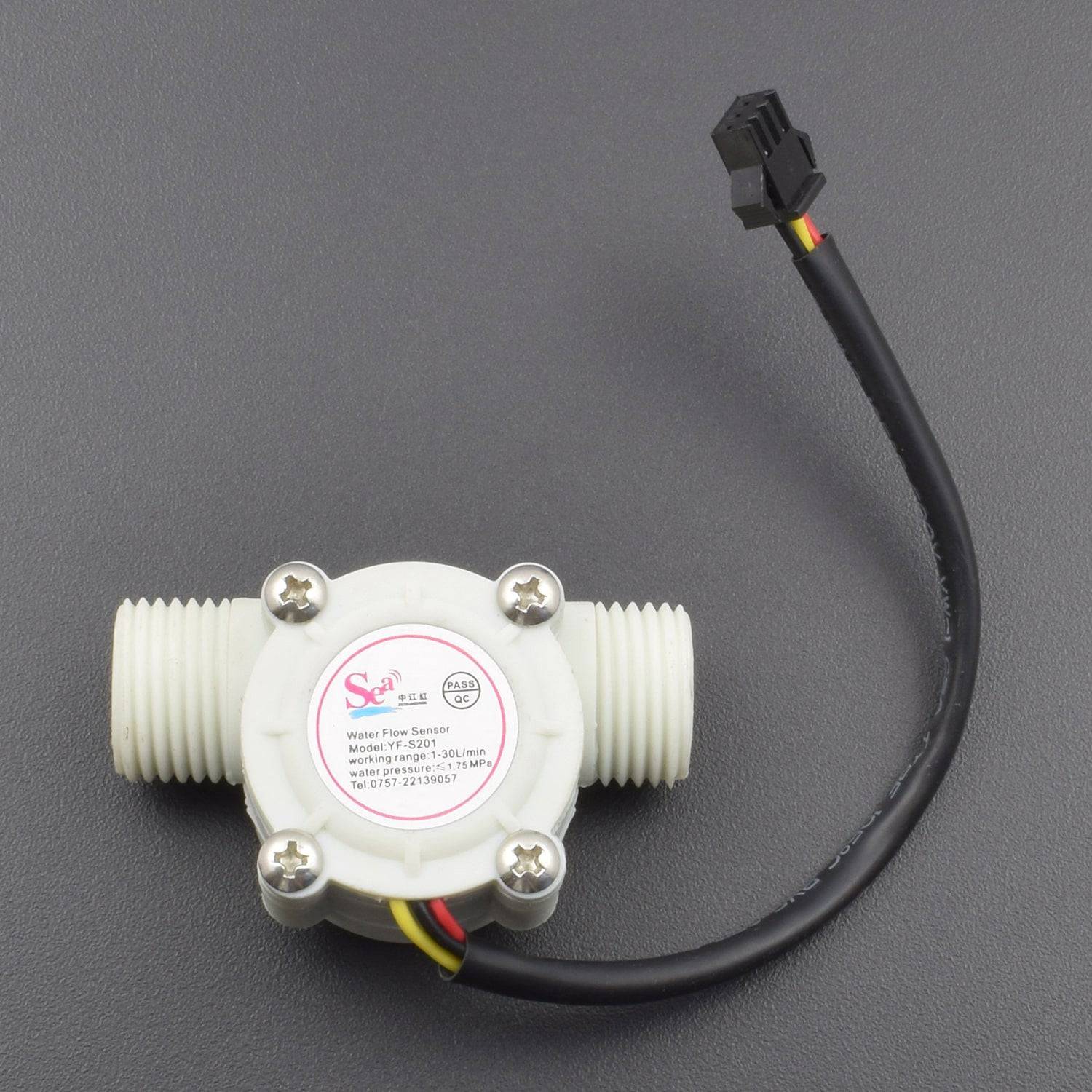

WATER FLOW SENSOR

  • Sensor Type: Hall effect
  • Working Voltage: 5 to 18V DC (min tested working voltage 4.5V)
  • Max current draw: 15mA @ 5V
  • Output Type: 5V TTL
  • Working Flow Rate: 1 to 30 Liters/Minute
  • Working Temperature range: -25 to +80℃
  • Working Humidity Range: 35%-80% RH
  • Accuracy: ±10%
  • Maximum water pressure: 2.0 MPa
  • Output duty cycle: 50% +-10%
  • Output rise time: 0.04us
  • Output fall time: 0.18us
  • Flow rate pulse characteristics: Frequency (Hz) = 7.5 * Flow rate (L/min)
  • Pulses per Liter: 450
  • Durability: minimum 300,000 cycle

SOFTWARE REQUIRED

Arduino IDE ( programmable software for Arduino boards )

You can download the software from this link : https://www.arduino.cc/en/Main/Software

PIN DESCRIPTION

10K POTENTIOMETER

16*2 LCD DISPLAY

WATER FLOW SENSOR

CIRCUIT DESCRIPTION

Flow sensor Yellow Wire is output and it gives pulses in proportion with flow.

Flow Sensor Connections

Yellow --- Pin 2

Red --- +5V

Black --- GND

LCD Connections

LCD RS pin to digital pin 12

LCD Enable pin to digital pin 11

LCD D4 pin to digital pin 6

LCD D5 pin to digital pin 5

LCD D6 pin to digital pin 4

LCD D7 pin to digital pin 3

LCD R/W pin to ground

1K resistor:

One end to ground

Another end to LCD VO pin (pin 3)

CODE

click to see the code

https://docs.google.com/document/d/e/2PACX-1vQp-DYSluOk_Q_PVx5ZkdDL9RjJiDOpfbo7XQfNN5CS-92FbX_3lrSKXbf6x1Opb_DuVEgHM5OqT4Of/pub

WORKING

1. Blow air or allow water flow through the sensor
2. Observe the reading on LCD or Serial Monitor
3. Readings get updated at every 1 Sec

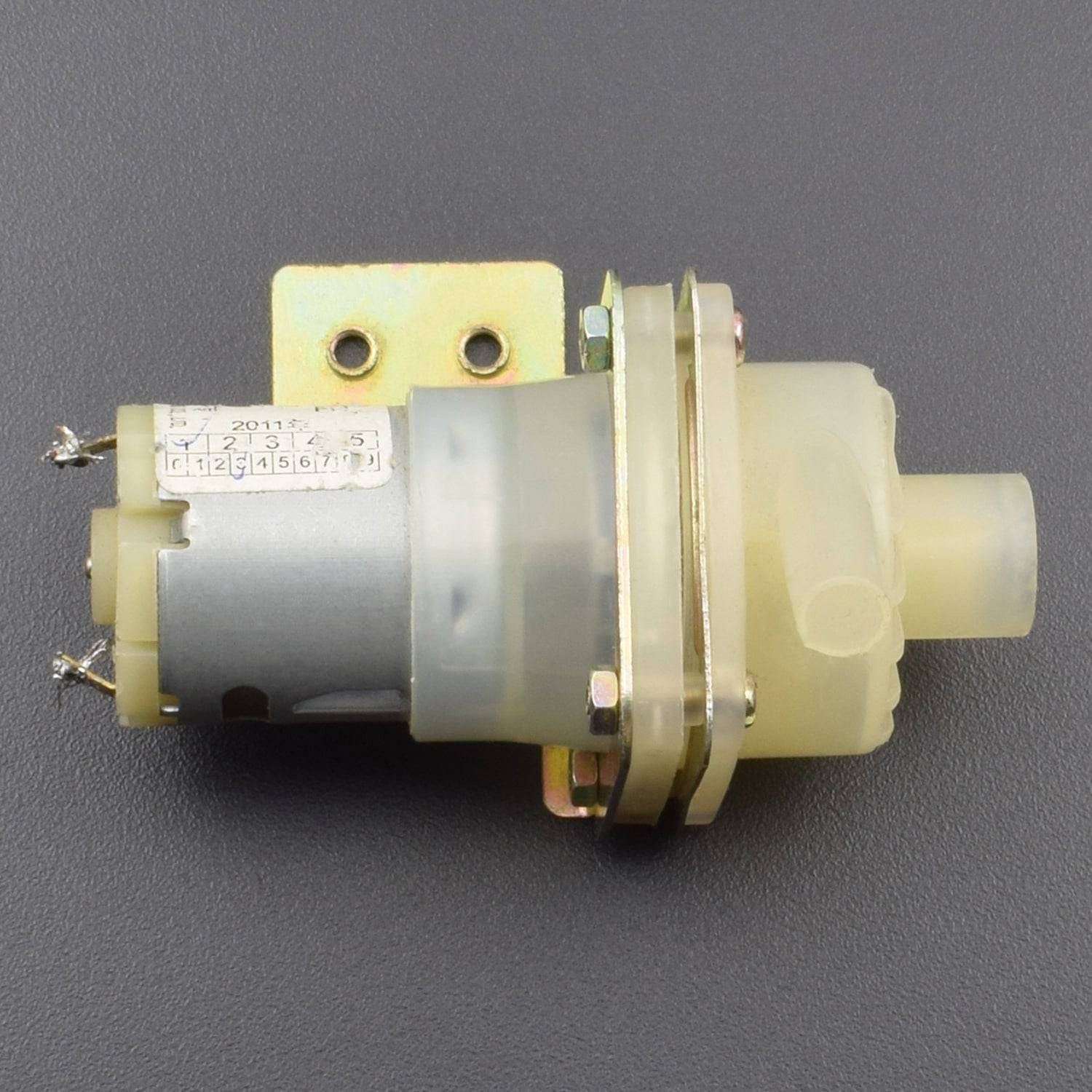

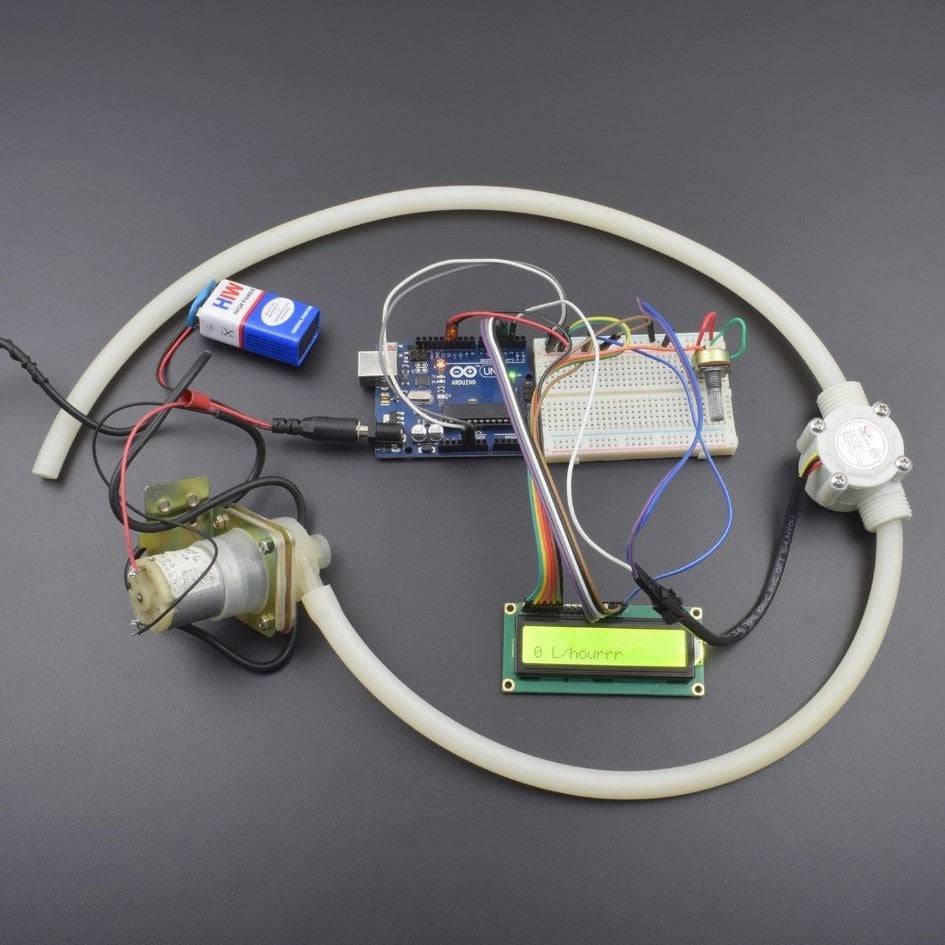

HERE we connect the water flow pump 12 dc motor use for flow the water between the water flow sensor you see the result on lcd 16*2
