Description:

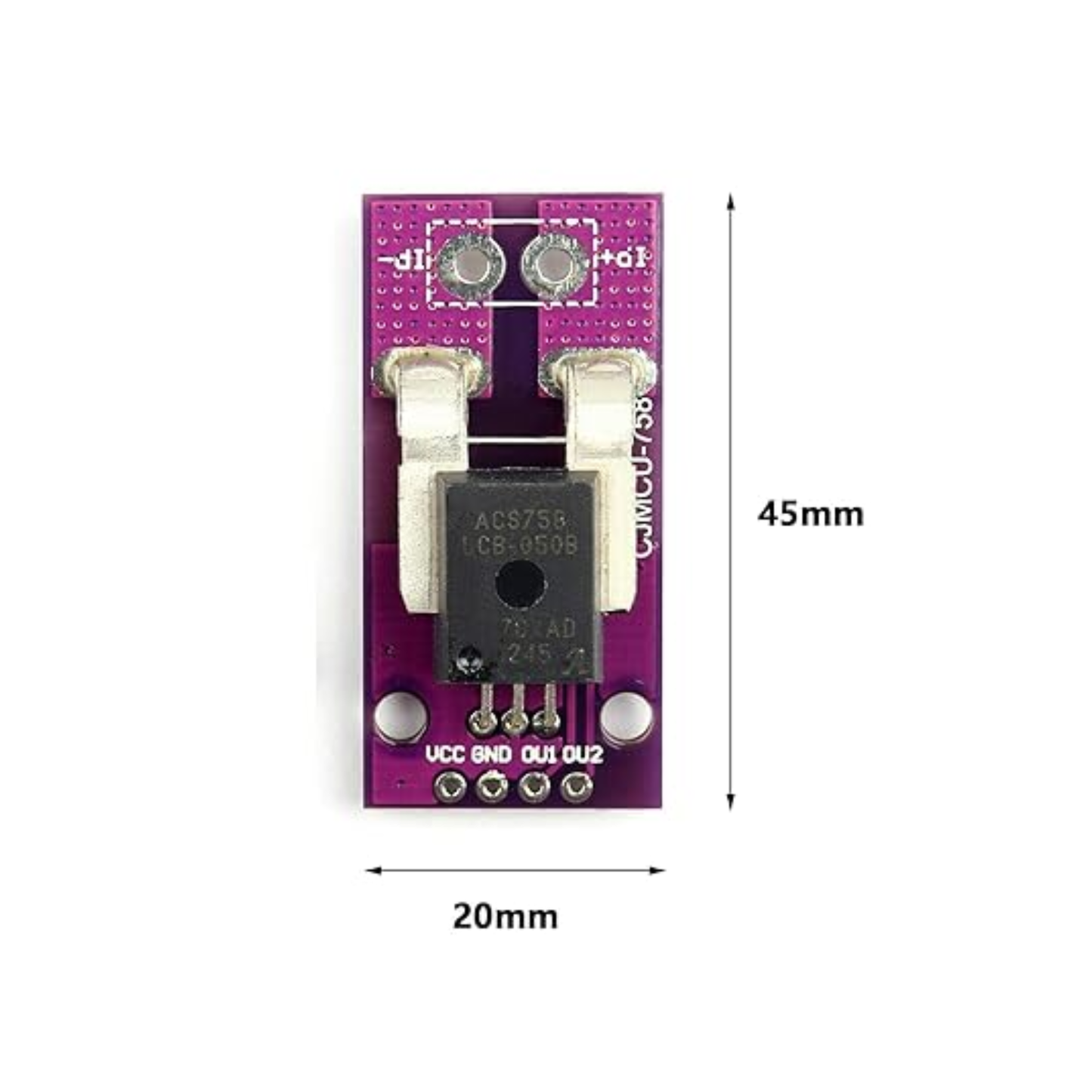

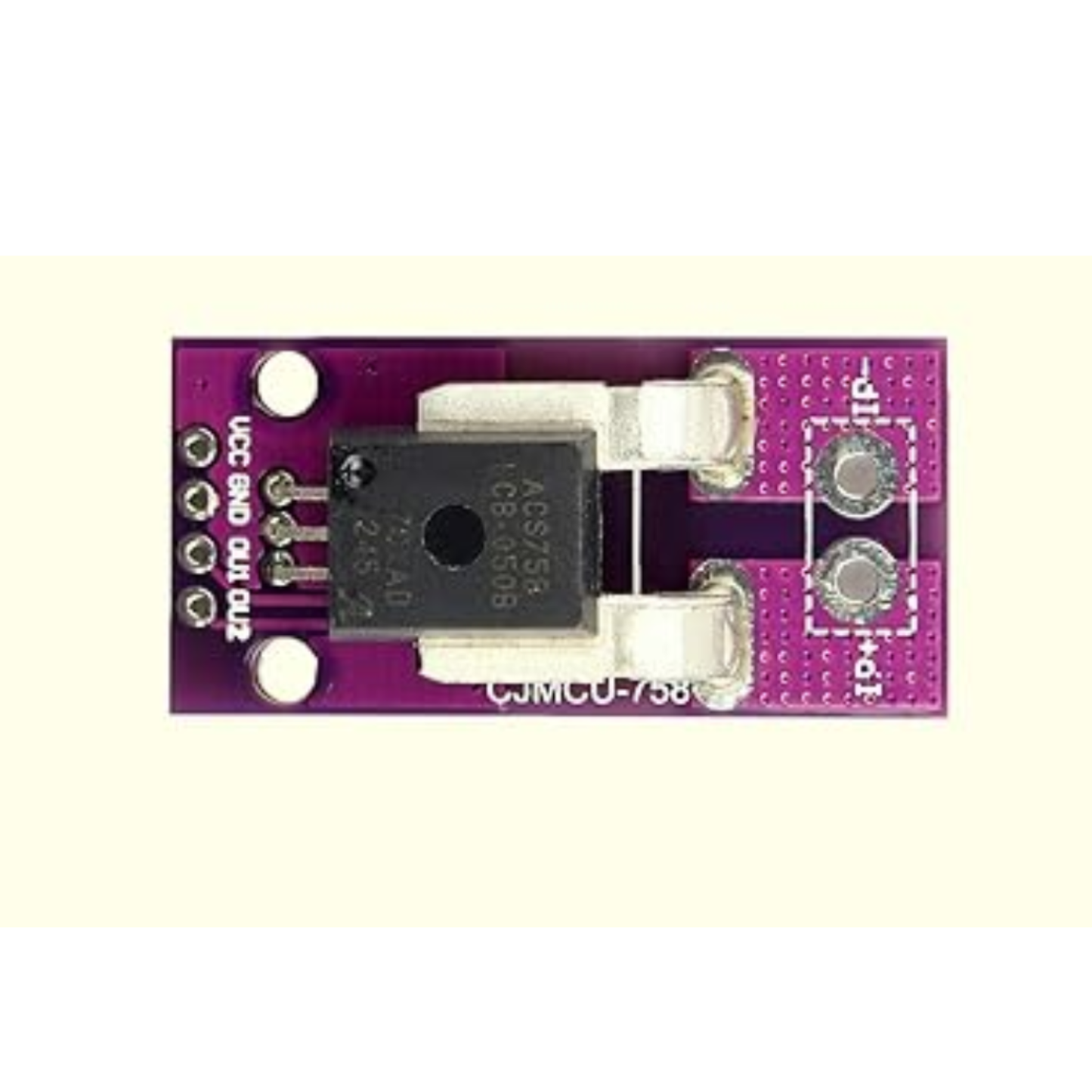

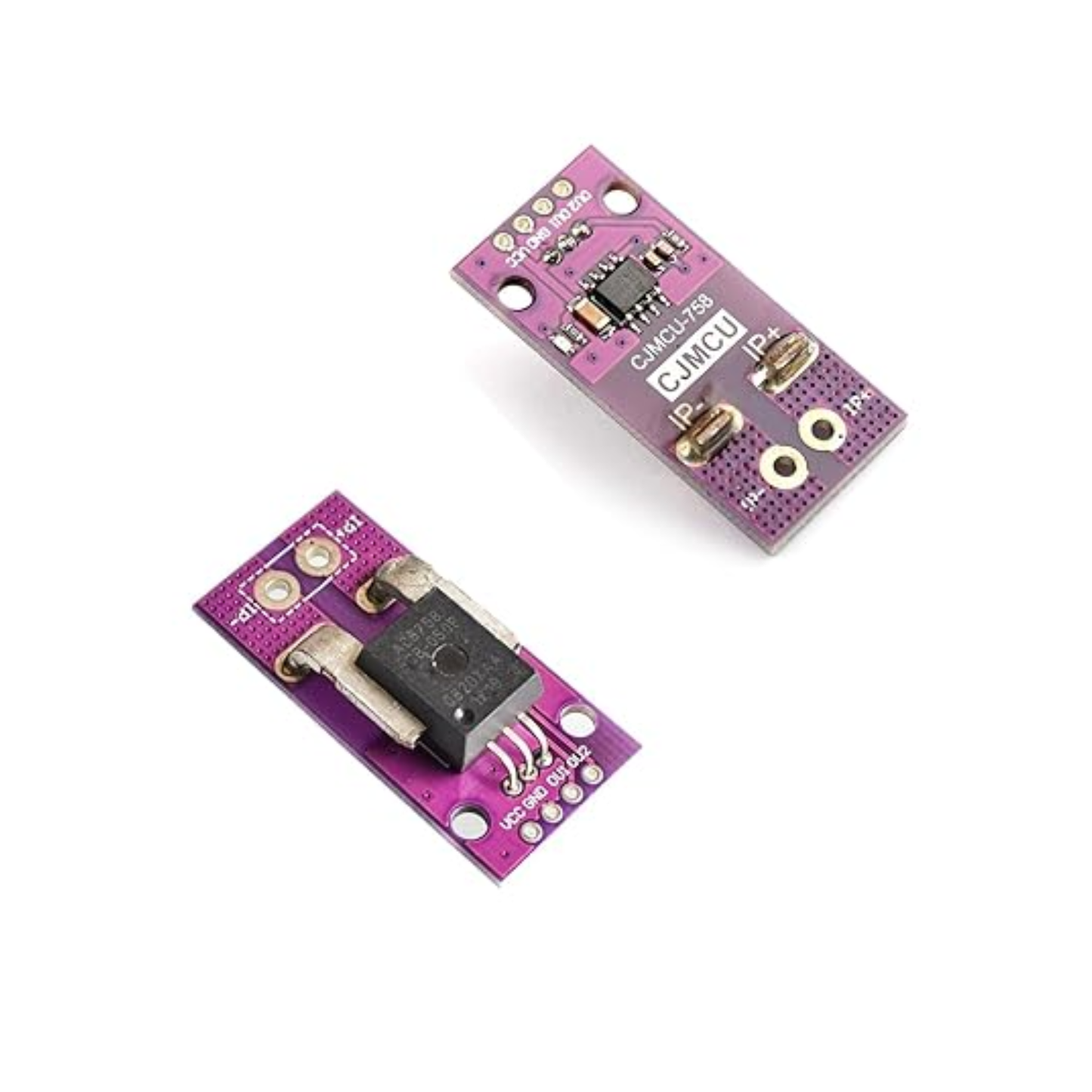

MCU-758 ACS758LCB-050B- PFF-T Hall Current Sensor Module is a high-precision current sensing solution built around the Allegro ACS758LCB-050B Hall-effect-based linear current sensor IC. This module is specifically designed for measuring bi-directional currents up to 50 Amperes.
The sensor operates on the principle of the Hall effect, providing a linear relationship between the measured current and the output voltage. The output voltage, VOUT, can be expressed as
Specification:
- Model Type: Hall Current Sensor
- Working Voltage: 3V-5V (MAN SV)
- Static Output Voltage: VCCi2
- Working Current: 135m2A (MAX)
Features:
- Compact and easy to mount.
- Highly reliable monolithic Hall IC.
- Stable output offset voltage.
- Factory-calibrated for accuracy.
- Minimal magnetic hysteresis.
Package Included:

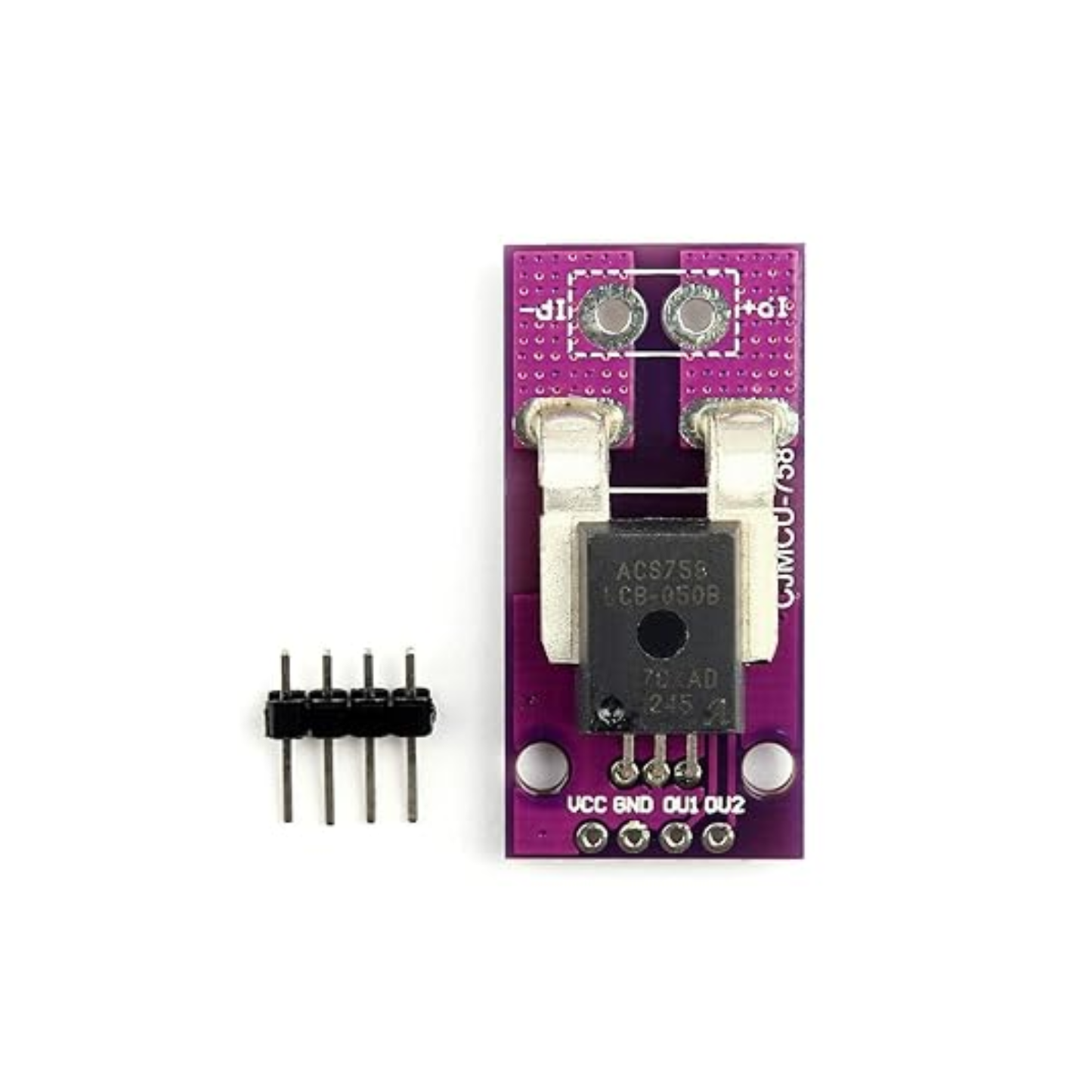

1 x MCU-758 Hall Current Sensor
