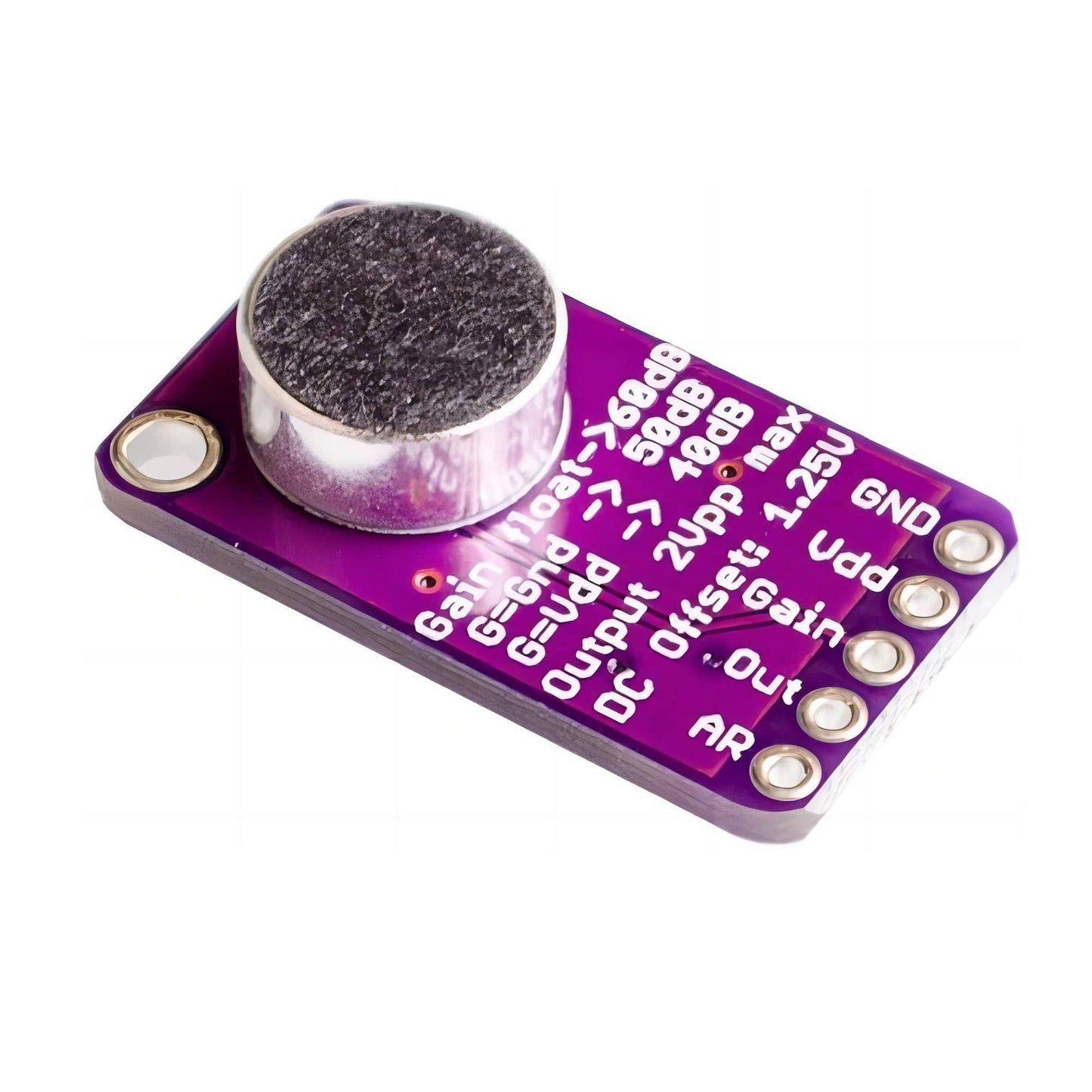

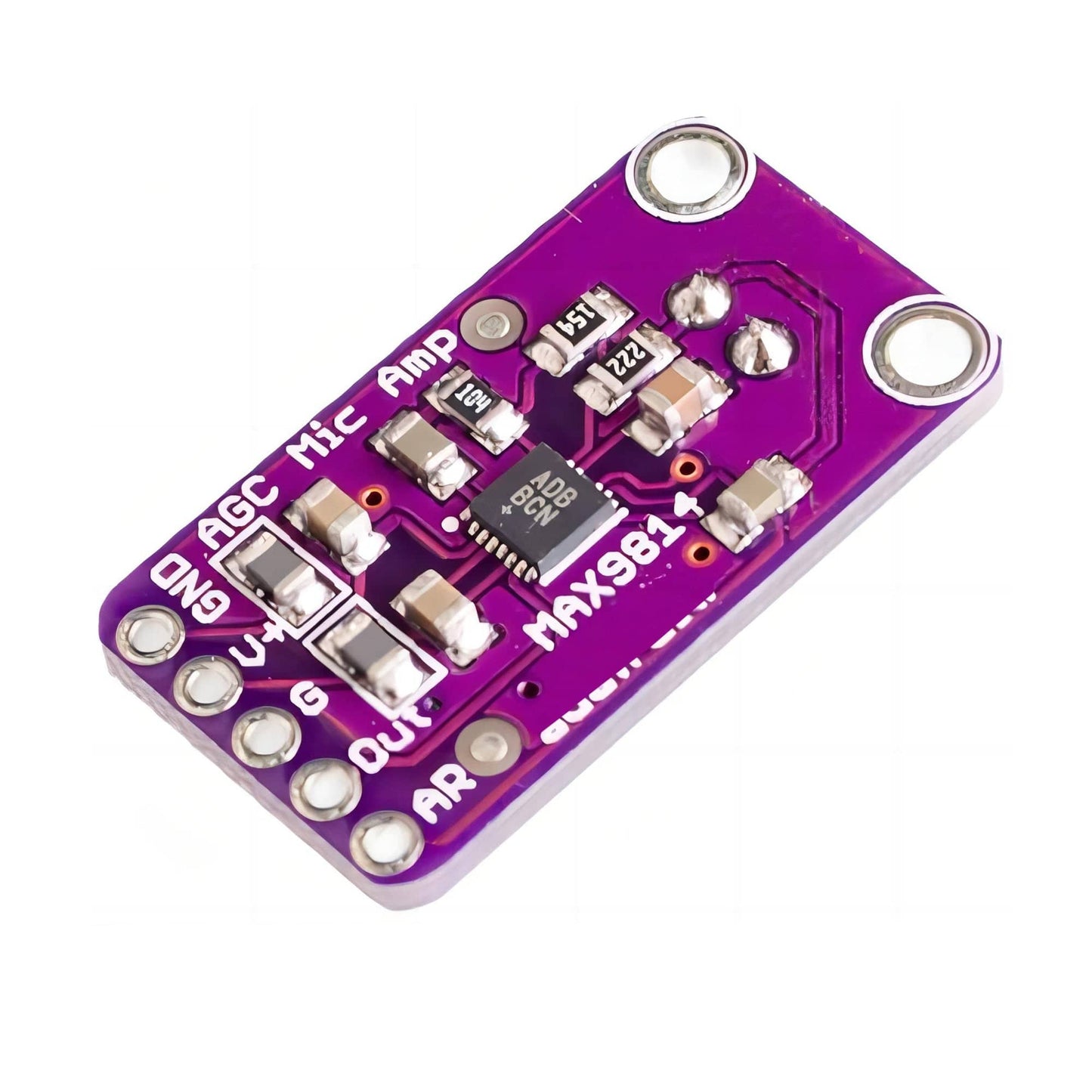

MAX9814 Amplifier Module MAX9814 High Performance Microphone AGC Amplifier Module - RS5880

MAX9814 Amplifier Module MAX9814 High Performance Microphone AGC Amplifier Module - RS5880

RS5880

In stock

Rs. 209.00
Rs. 209.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The MAX9814 Amplifier Module is a low-cost, high-performance microphone amplifier with automatic gain control (AGC) and low-noise microphone bias. The MAX9814 Amplifier Module has a low-noise front-end amplifier, variable gain amplifier (VGA), output amplifier, microphone bias voltage generator and AGC control circuit An external resistive divider controls the AGC threshold and a single capacitor programs the attack/release times. A tri-level digital input programs the ratio of attack-to-release time. The hold time of the AGC is fixed at 30ms. The low-noise microphone-bias-voltage generator can bias most electric microphones.

Specifications:

  • Supply Voltage: 2.7v - 5.5v @ 3mA current
  • Output: 2Vpp on 1.25V bias
  • Frequency Response: 20Hz – 20 KHz
  • Low Input-Referred Noise Density of 30nV
  • Low THD: 0.04% (typical)

Features:

  • Automatic Gain Control (AGC).
  • Programmable action time.
  • Programmable action and release time ratio.
  • Low-power shutdown mode.
  • MAX9814 Amplifier Module has built-in 2 Volt low noise microphone bias.

Applications:

  • High-Quality Portable Recorders
  • IP Phones/Telephone Conferencing
  • Bluetooth Headsets
  • Two-Way Communicators

Package Included:

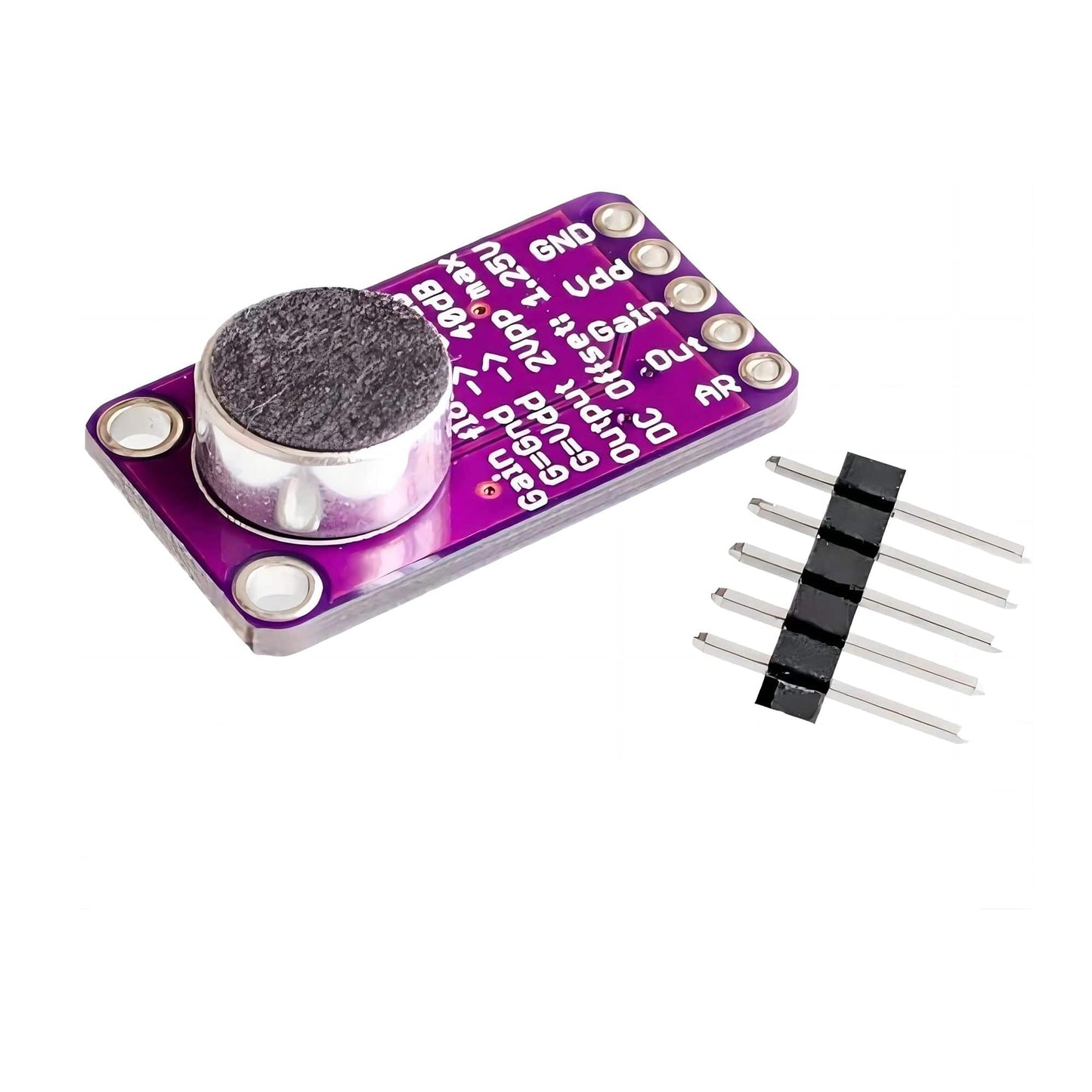

1 x MAX9814 Amplifier Module MAX9814 High Performance Microphone AGC Amplifier Module
