MAX7219 4-in-1 8x32 LED Dot Matrix Display Module For Arduino, ESP32, Raspberry Pi And DIY Projects - RS237
MAX7219 4-in-1 8x32 LED Dot Matrix Display Module For Arduino, ESP32, Raspberry Pi And DIY Projects - RS237
SKU:RS237
67 in stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:

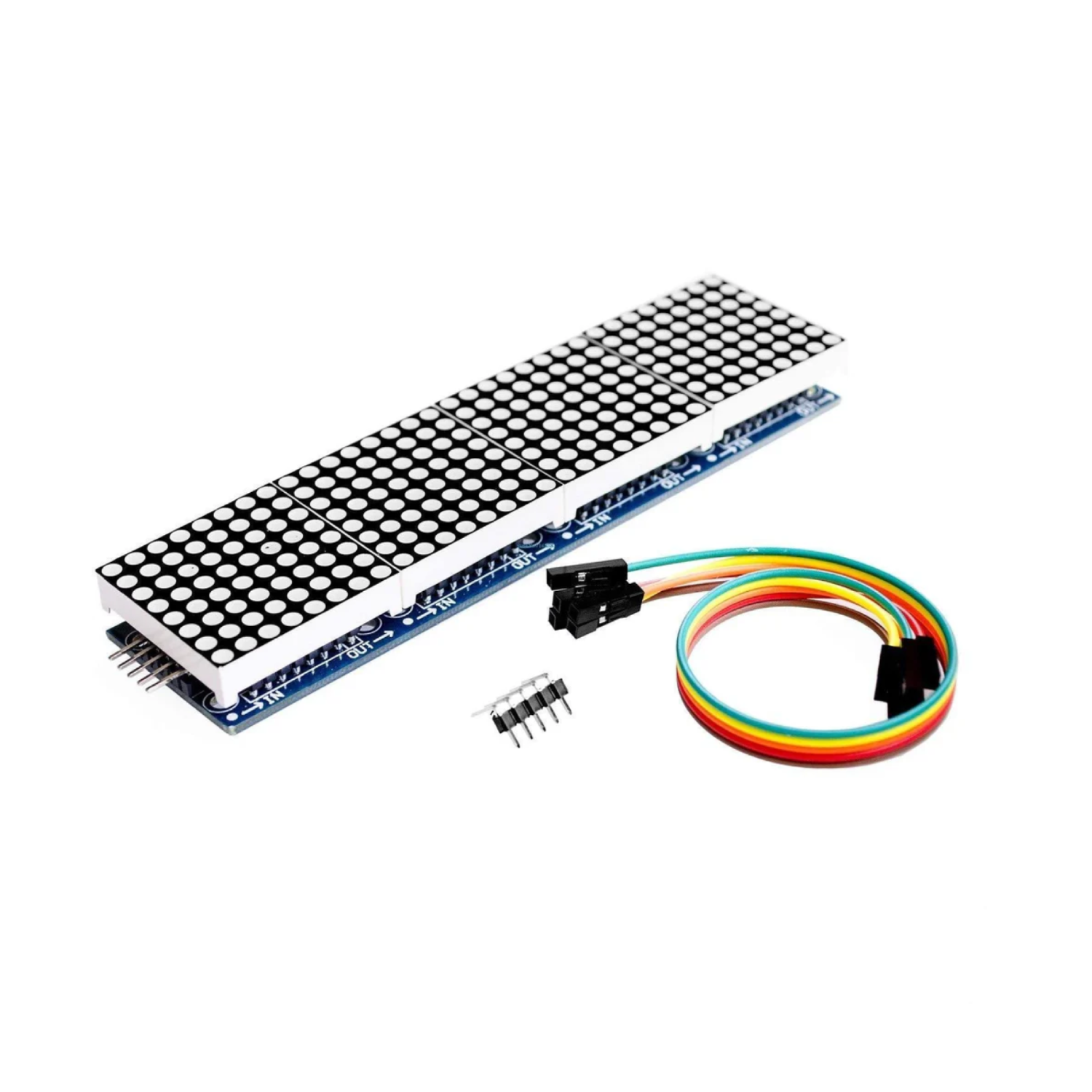

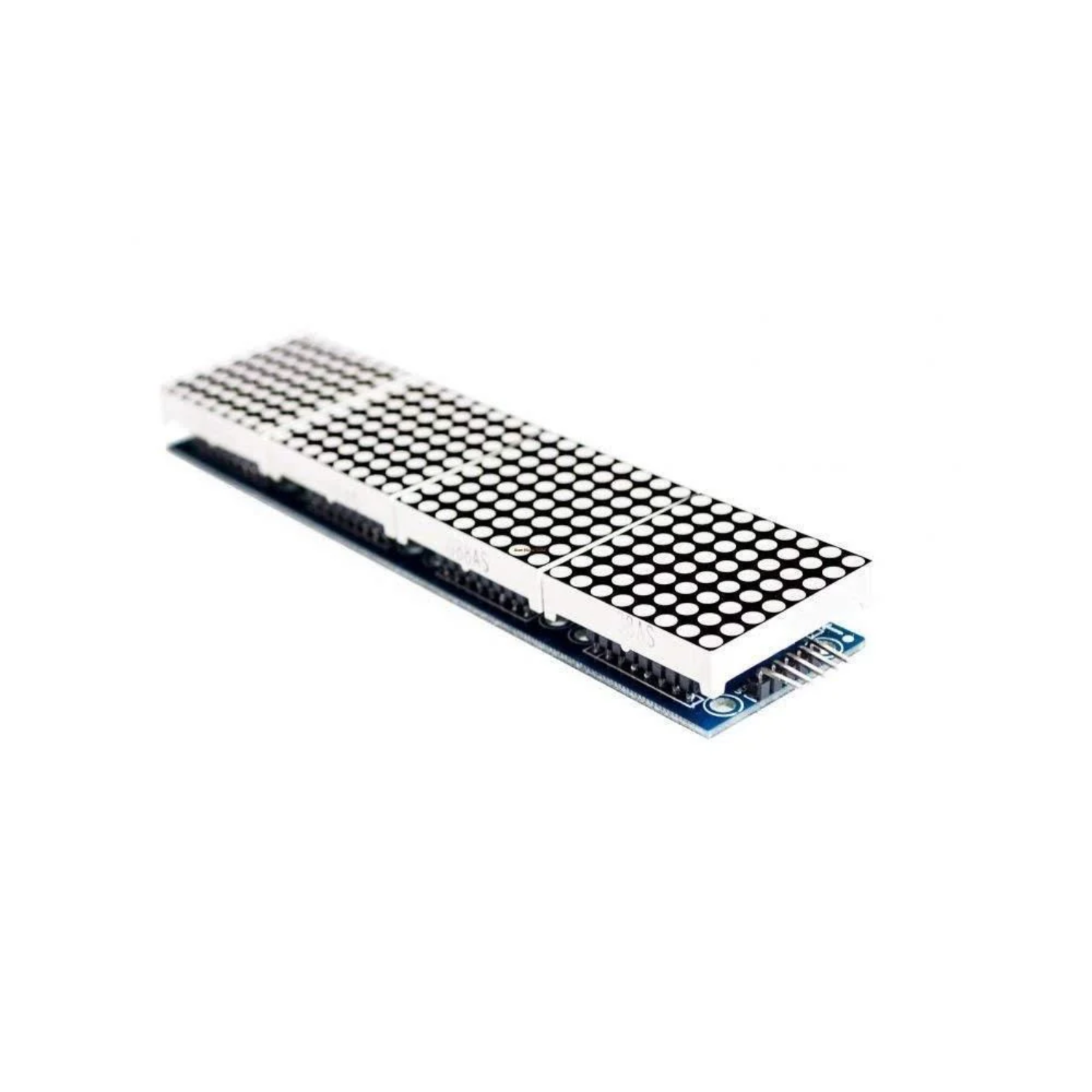

Enhance your electronics projects with the MAX7219 LED Dot Matrix Module X4 (8x32 Display), a versatile and easy-to-use display solution for Arduino, ESP32, ESP8266, Raspberry Pi, and other microcontrollers. Featuring four cascaded 8x8 LED matrices driven by the powerful MAX7219 IC, this module can display scrolling text, animations, symbols, sensor data, clocks, counters, and custom messages with excellent brightness and clarity. Its simple SPI-compatible interface minimises wiring requirements, making it perfect for beginners and professionals alike. Whether you're building an IoT dashboard, digital notice board, smart clock, scoreboard, or DIY electronics project, the MAX7219 LED Matrix Module delivers reliable performance, low power consumption, and seamless expandability.
Specifications:
- Type: MAX7219 4-in-1 LED Dot Matrix Display Module
- Driver IC: MAX7219
- Display Type: LED Dot Matrix
- Matrix Size: 8x32 (4 × 8x8 Matrices)
- Number of LEDs: 256 LEDs
- Control Pins: DIN, CS, CLK
- Communication Interface: SPI Serial Interface
- Compatibility: Arduino, ESP32, ESP8266, Raspberry Pi, STM32, AVR, PIC
Wiring instructions:
- The left side of the module as an input port, an output port on the right.
- If a single control module, simply connect the input port connected to CPU
- cascading multiple modules, input and output termination CPUs, input and output ends of the second module of the first module, the first two modules of the first three input termination modules, and so on.
Pin Description:
Dot Matrix Display Module to the Arduino
- VCC: 5V
- GND: GND
- DIN: Pin 12
- CS: Pin 10
- CLK: Pin 11
