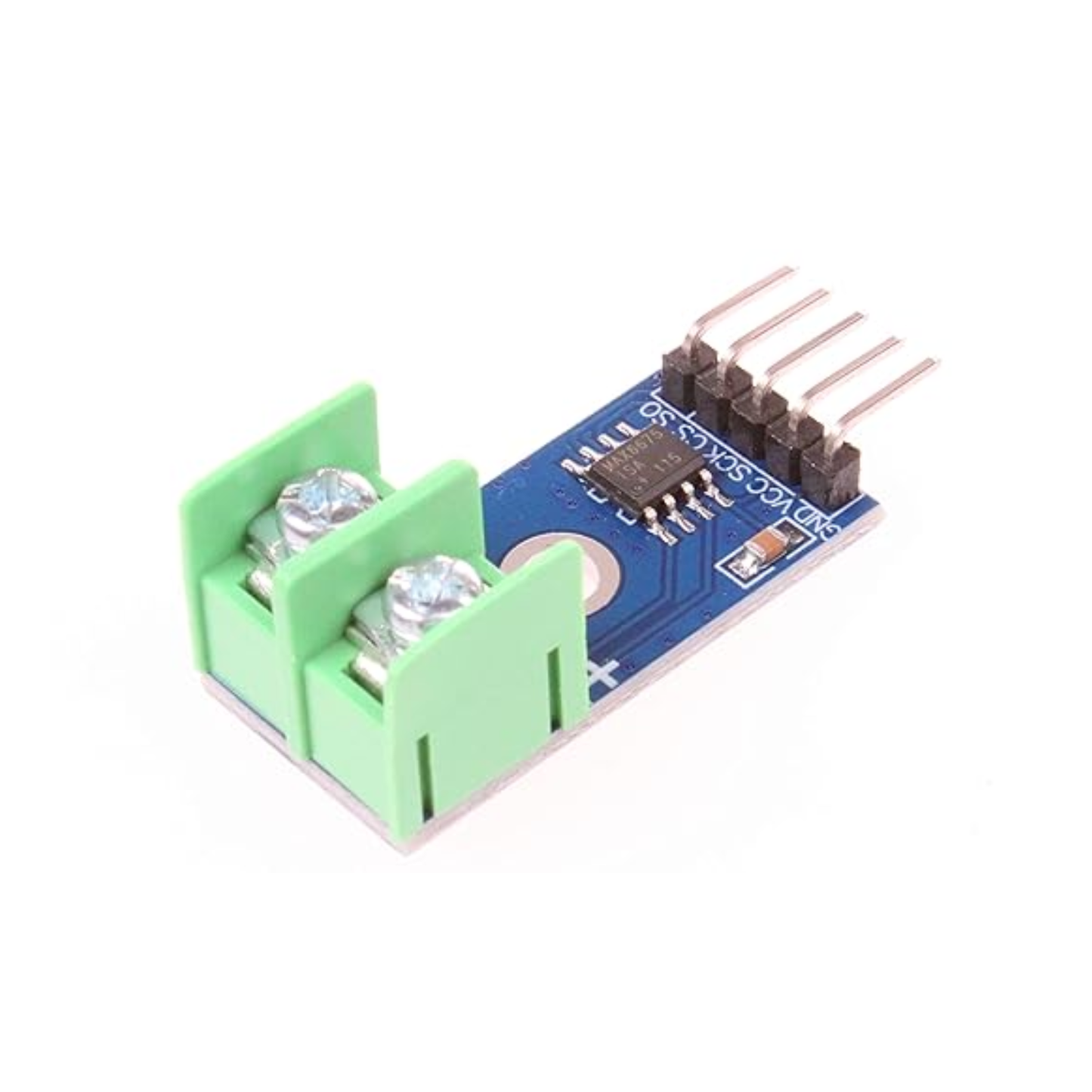

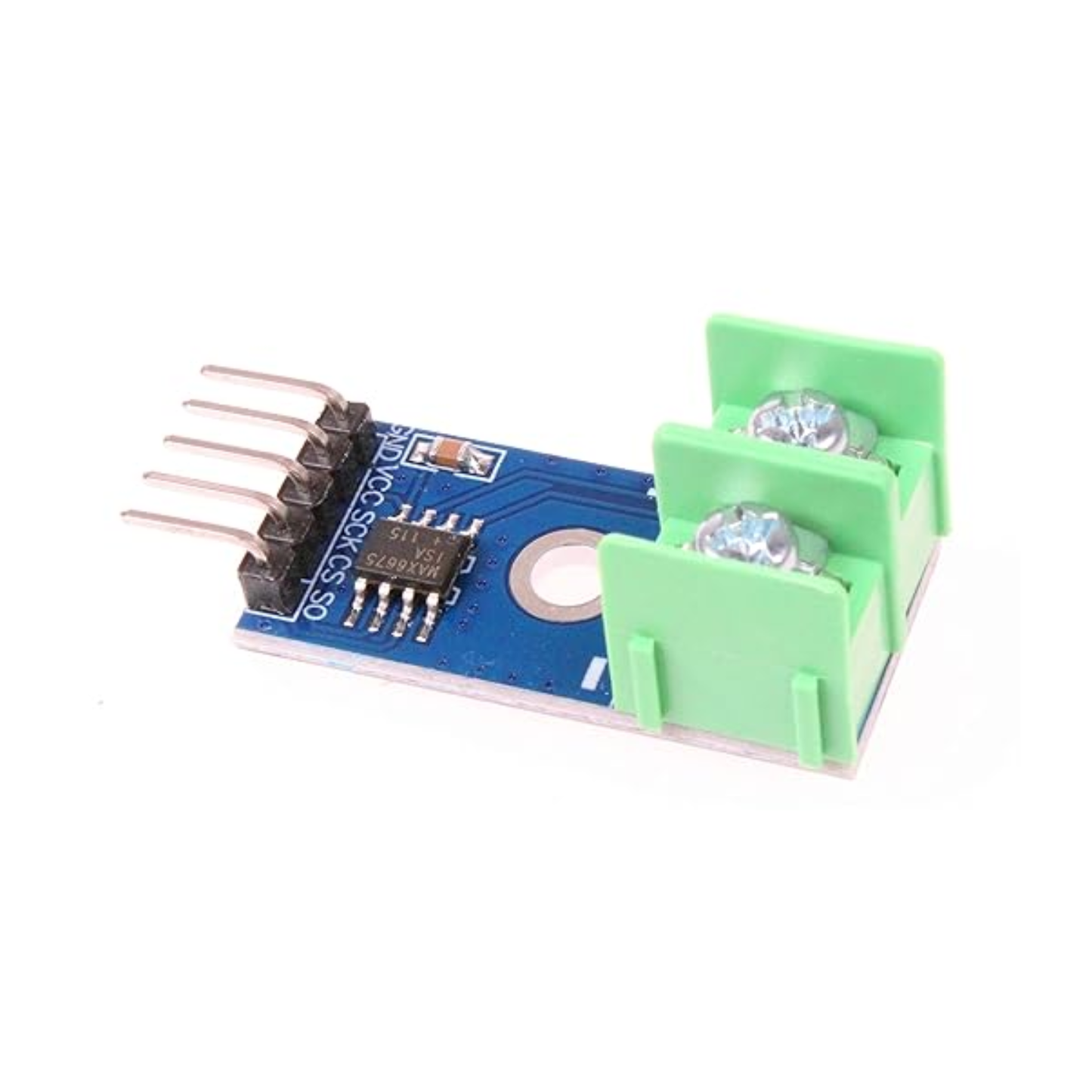

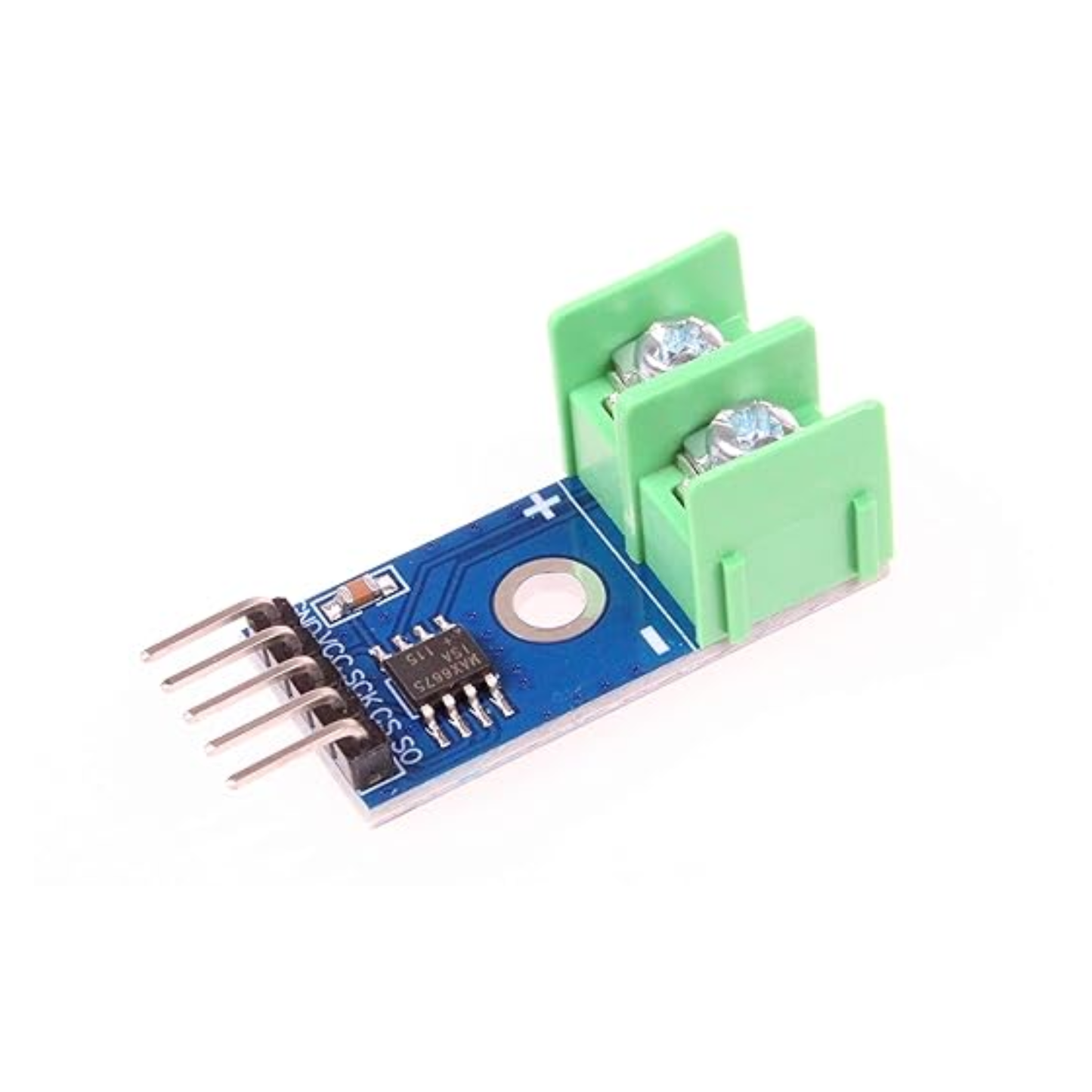

MAX6675 Thermocouple Temperature Sensor Module K Temperature Measurement Sensor For Arduino, Microcontrollers - RS4539

MAX6675 Thermocouple Temperature Sensor Module K Temperature Measurement Sensor For Arduino, Microcontrollers - RS4539

RS4539

18 in stock

Rs. 132.00
Rs. 132.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The MAX6675 Thermocouple Sensor Module utilizes the Maxim MAX6675 K-Thermocouple to digital converter IC, offering a straightforward solution for precise temperature measurement. It converts the K-type thermocouple's output into a 12-bit digital value accessible via an SPI interface. The module provides a temperature resolution of 0.25°C, supports measurements up to +1024°C, and boasts a thermocouple accuracy of ±2°C (±8 LSBs) within the 0°C to +700°C range, with integrated cold junction compensation.

Specifications:

  • Model Type: Thermocouple Sensor Module
  • Rated Voltage: 5V
  • Operating Current: 0.05A
  • Temp. Measuring Range: -2°C to 800 °C
  • Temp. Measuring Accuracy: ± 1.5 °C
  • Resolution: Temperature 0.25 °C
  • Storage Temperature: -20 ~ 80 °C
High-Accuracy MAX6675 Thermocouple Sensor Module

Features:

  • High impedance differential inputs.
  • Internal cold junction compensation.
  • Converts temperature to 12-bit digital output.
  • Compatible with K-type thermocouples.
  • Thermocouple break detection.
  • 2000V ESD protection.
  • Simple SPI serial output.

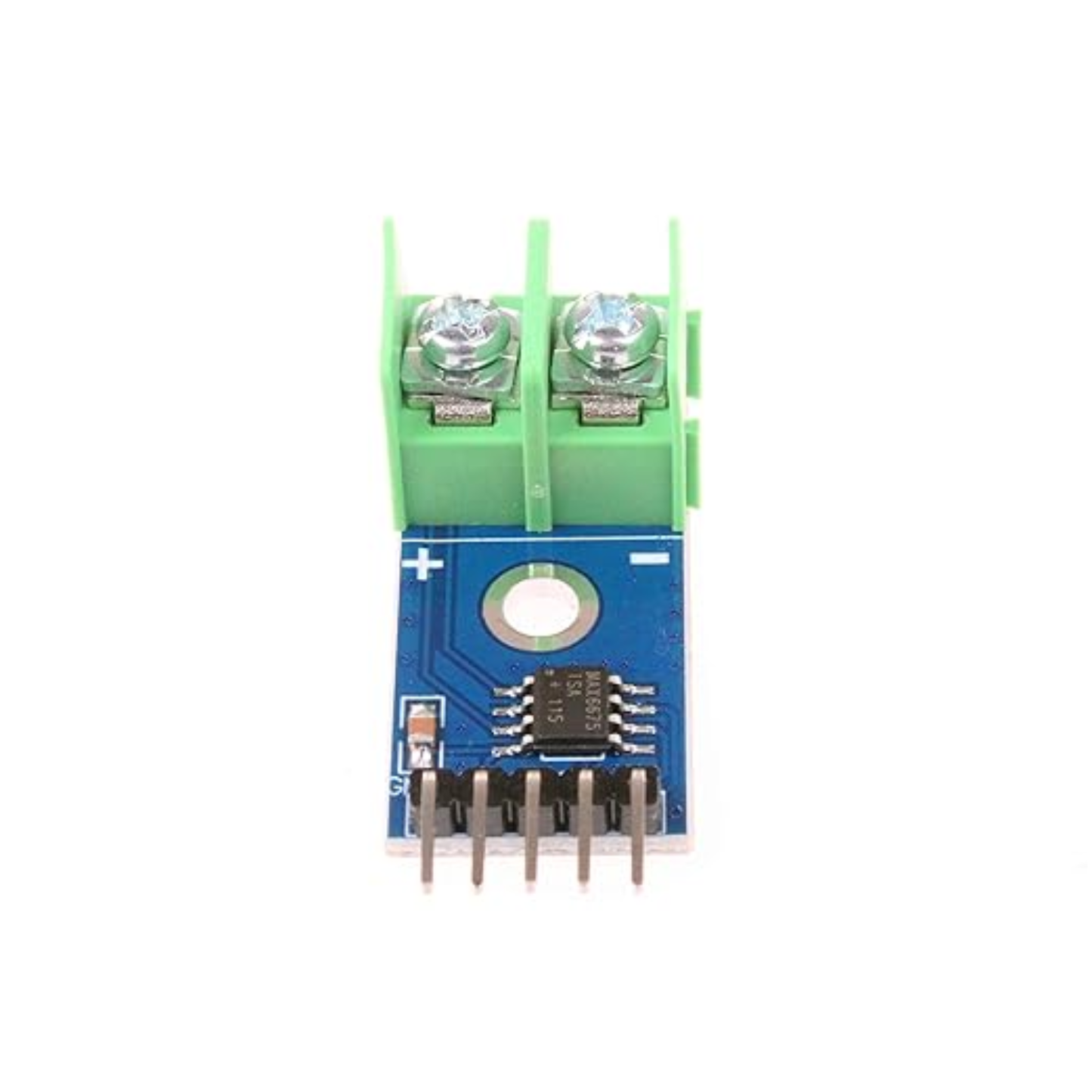

MAX6675 Module Pin Outs:

  • SO (Serial Output): Data output to your Arduino.
  • CS (Chip Select): Activates the module for communication.
  • SCK (Serial Clock): Clock signal from your Arduino.
  • VCC (5V): Power supply.
  • GND (Ground): Ground connection.
  • - (Minus): Negative terminal for K-type thermocouple.
  • + (Plus): Positive terminal for K-type thermocouple.

Package Included:

1 x MAX6675 Thermocouple Sensor Module
