Description:

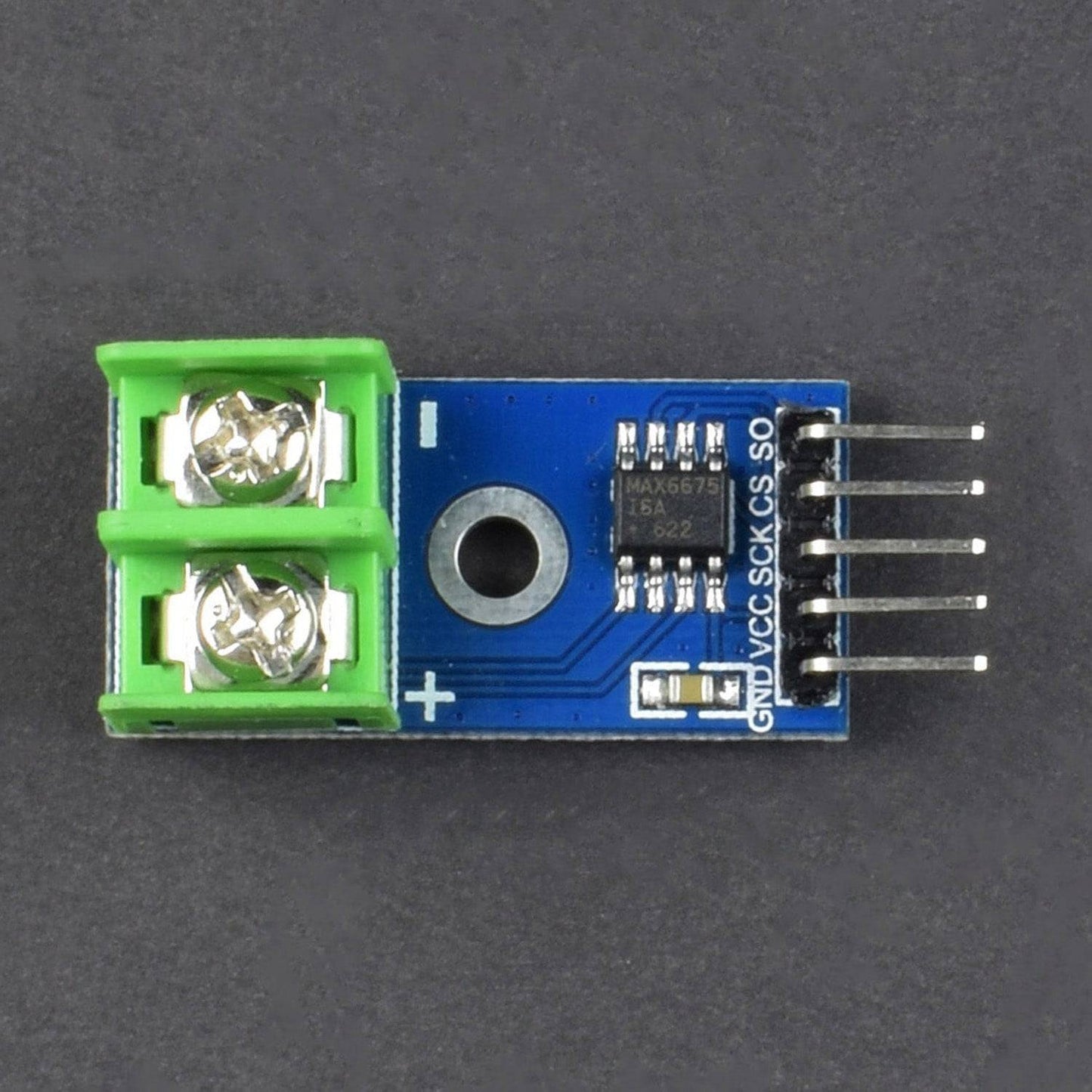

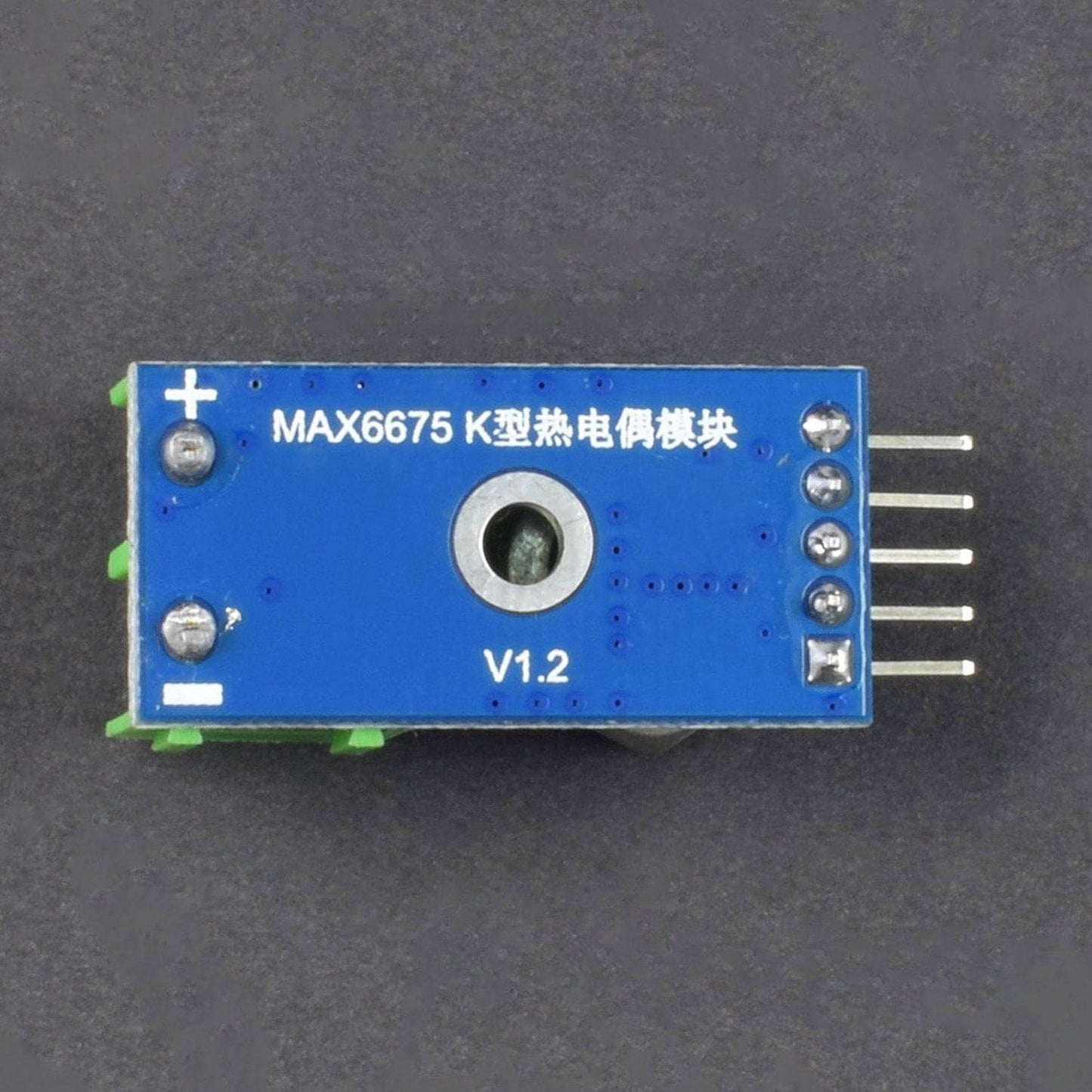

This MAX6675 Module + K Type Thermocouple Sensor Measure 1024°C Temperature sensor makes use of the Maxim MAX6675 K-Thermocouple to digital converter IC to provide a microcontroller-compatible digital serial interface (SPI compatible) for giving an accurate temperature-compensated measurement of the supplied K-Type thermocouple sensor. It has a 12-bit resolution providing temperature readings from 0°C to 1024°C (max temperature of the supplied sensor is 450°C) with a resolution of 0.25°C. Screw terminals allow for connection to the thermocouples spade connectors and a 5-pin standard 0.1″ header provides an interface to a microcontroller such as an Arduino development board.
Specification:
- Model: MAX6675
- Operating Voltage: 3 ~ 5.5V DC
- Temperature Range: 0 ~ +1024°C
- Cold Junction Compensation Range: -20 ~ +80°C
- Resolution: 0.25°C
Features:
- Internal integrated cold junction compensation circuit;
- Temperature signal can be converted into 12-bit digital
- Embedded thermocouple break detection circuitry.
- K-type temperature probe
- Simple SPI serial output temperature.
- High impedance differential inputs.
- Thermocouple break detection.
- 2000V of ESD signal.

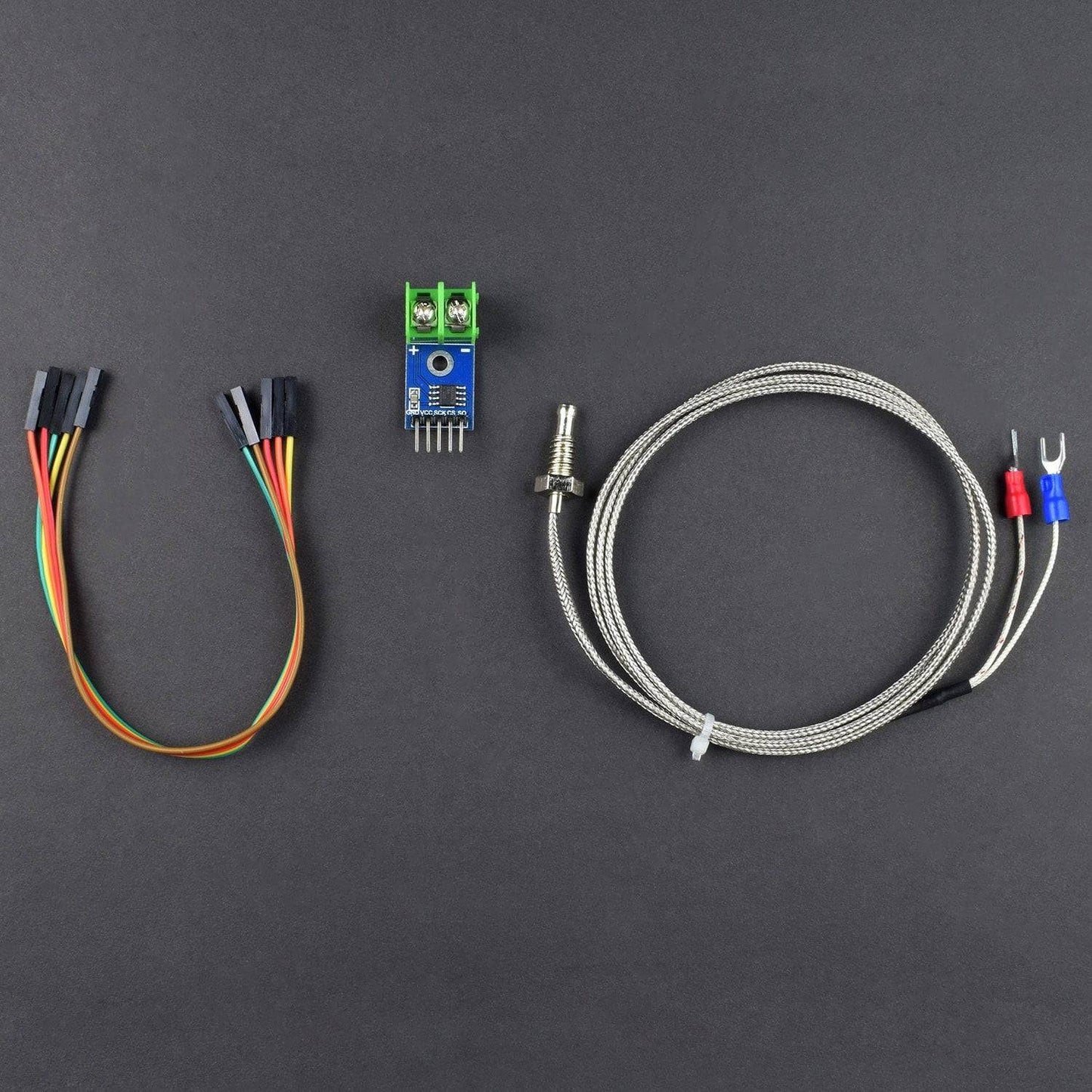

Package Included:
- 1 x MAX6675 Module

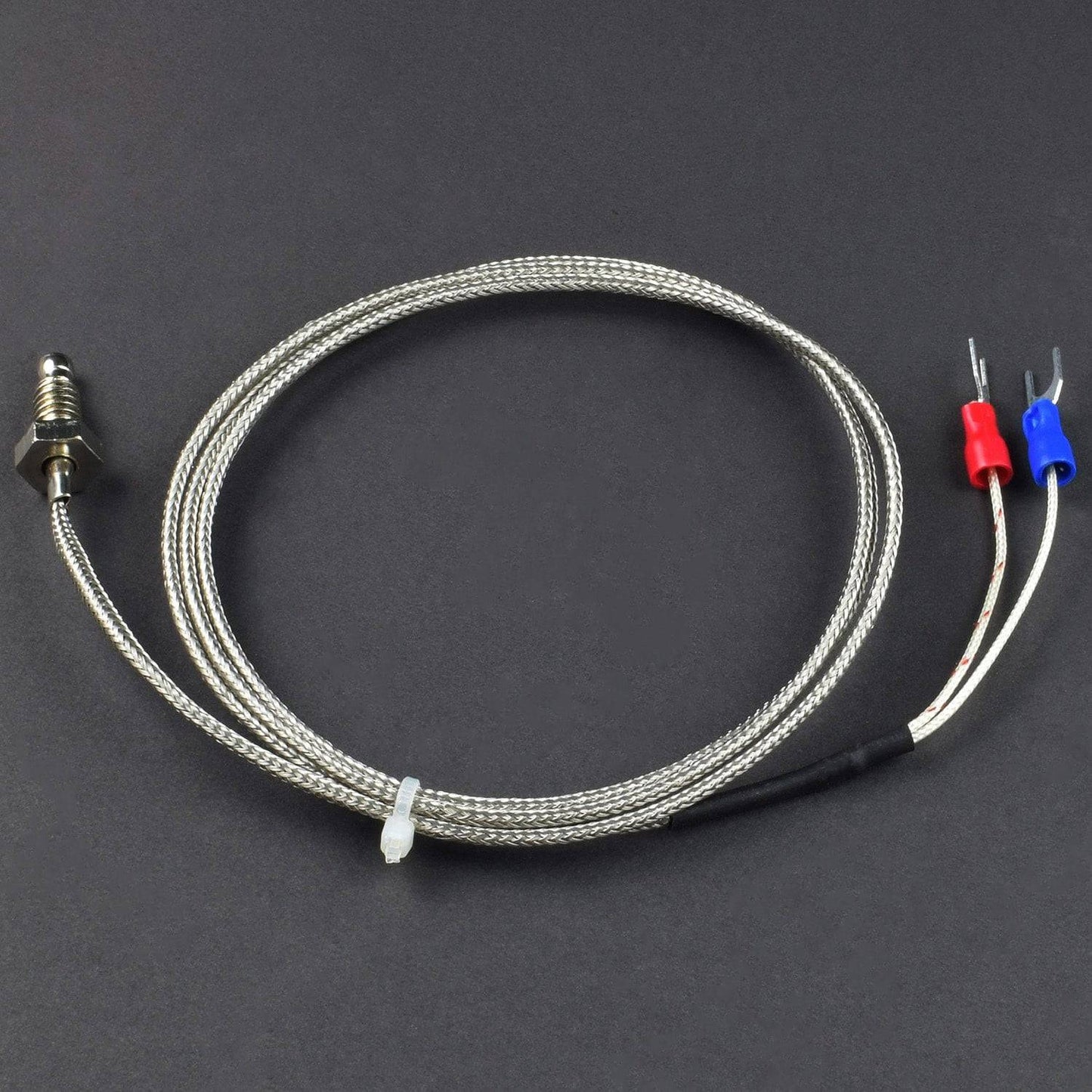

- 1 x K Type Thermocouple Thermocouple Sensor
- 1 x x 4-Pin F-F Jumper Wire
