- Operating Voltage (VDC) : 3.3 ~ 5
- Accuracy : 0.25 degree temperature
- Interface : SPI
- Temperature Measuring Range (C) : -200 to 1350
- Resolution : 14 bit
Description :

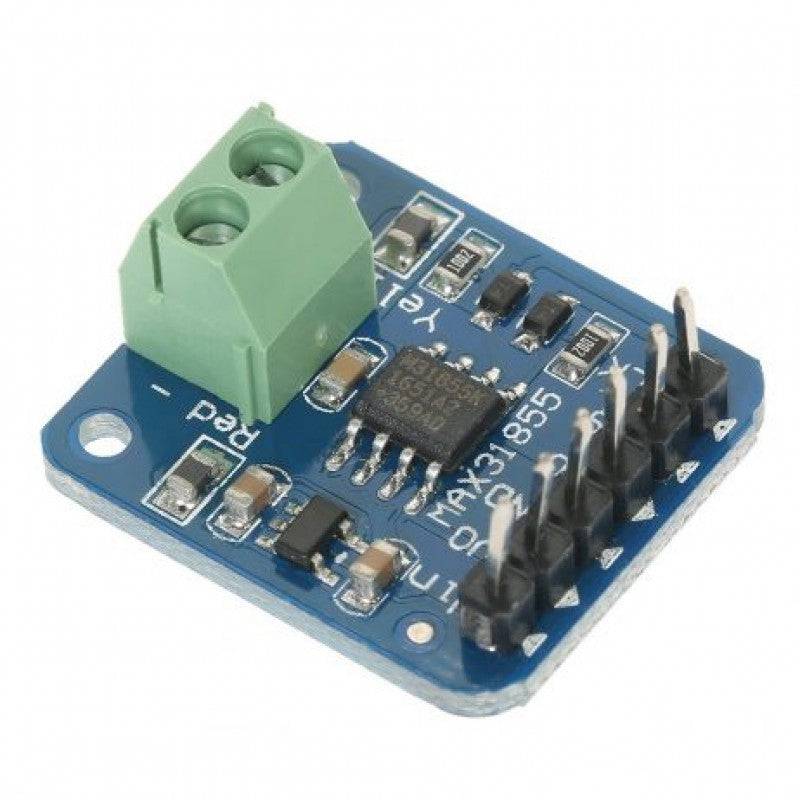

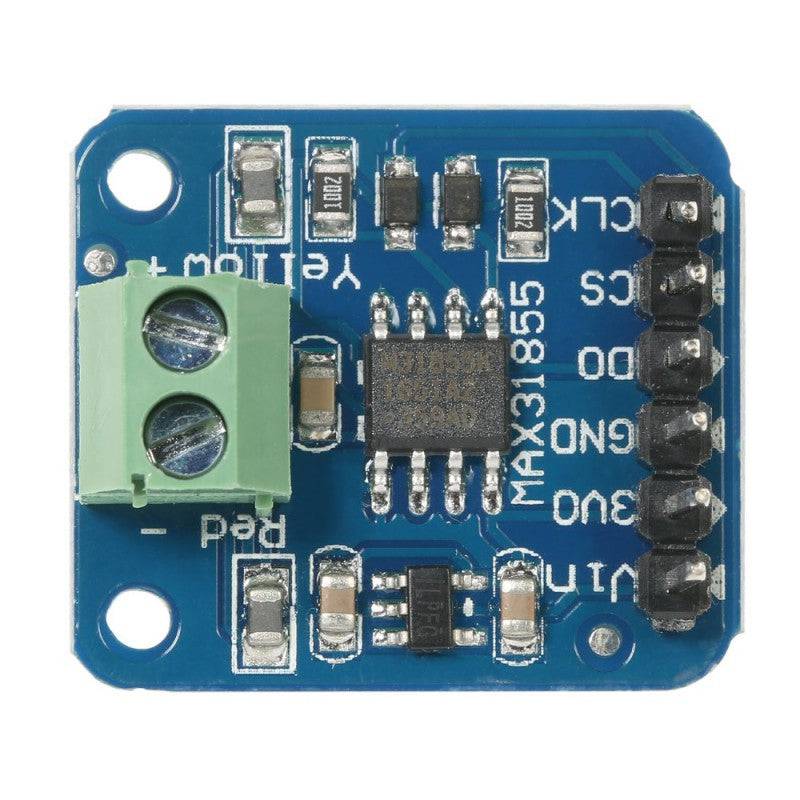

Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference. The MAX31855K does everything for you and can be easily interfaced with any microcontroller, even one without an analog input. This breakout board has the chip itself, a 3.3V regulator with 10uF bypass capacitors, and level shifting circuitry, all assembled and tested. Comes with a 2 pin terminal block (for connecting to the thermocouple) and pin header (to plug into any breadboard or perfboard).
Features:
- Works with any K type thermocouple
- Will not work with any other kind of thermocouple other than K type
- -200C to +1350C output in 0.25-degree increments note that K thermocouples have about 2C to 6C accuracy
- Internal temperature reading
- 3.3 to 5v power supply and logic level compliance!
- SPI data output requires any 3 digital I/O pins.

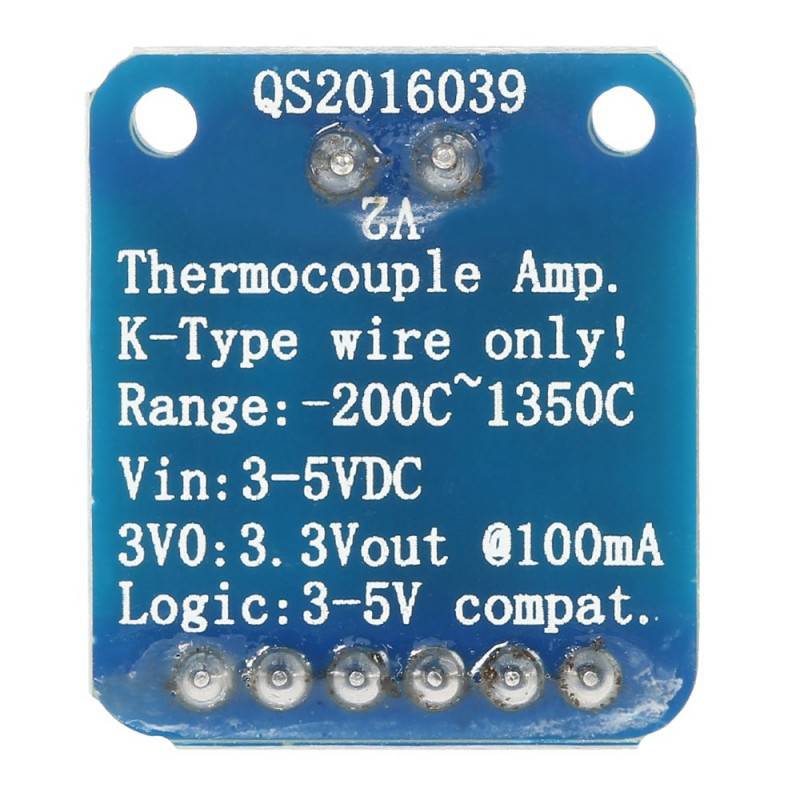

Specifications :
- Operating Voltage (VDC) : 3.3 ~ 5
- Accuracy : 0.25 degree temperature
- Interface : SPI
- Temperature Measuring Range (C) : -200 to 1350
- Resolution : 14 bit
Package Included:
1 x MAX31855 K-type thermocouple module
