- Display: Blue backlight LCD, 1999 counts, updates 2-3/sec.
- Measuring Method: Dual-slope integration A/D converter.
- Power: 9V battery, NEDA 1604 or 6F22 type.
- Fuse Protection: 200mA/250V.
DESCRIPTION

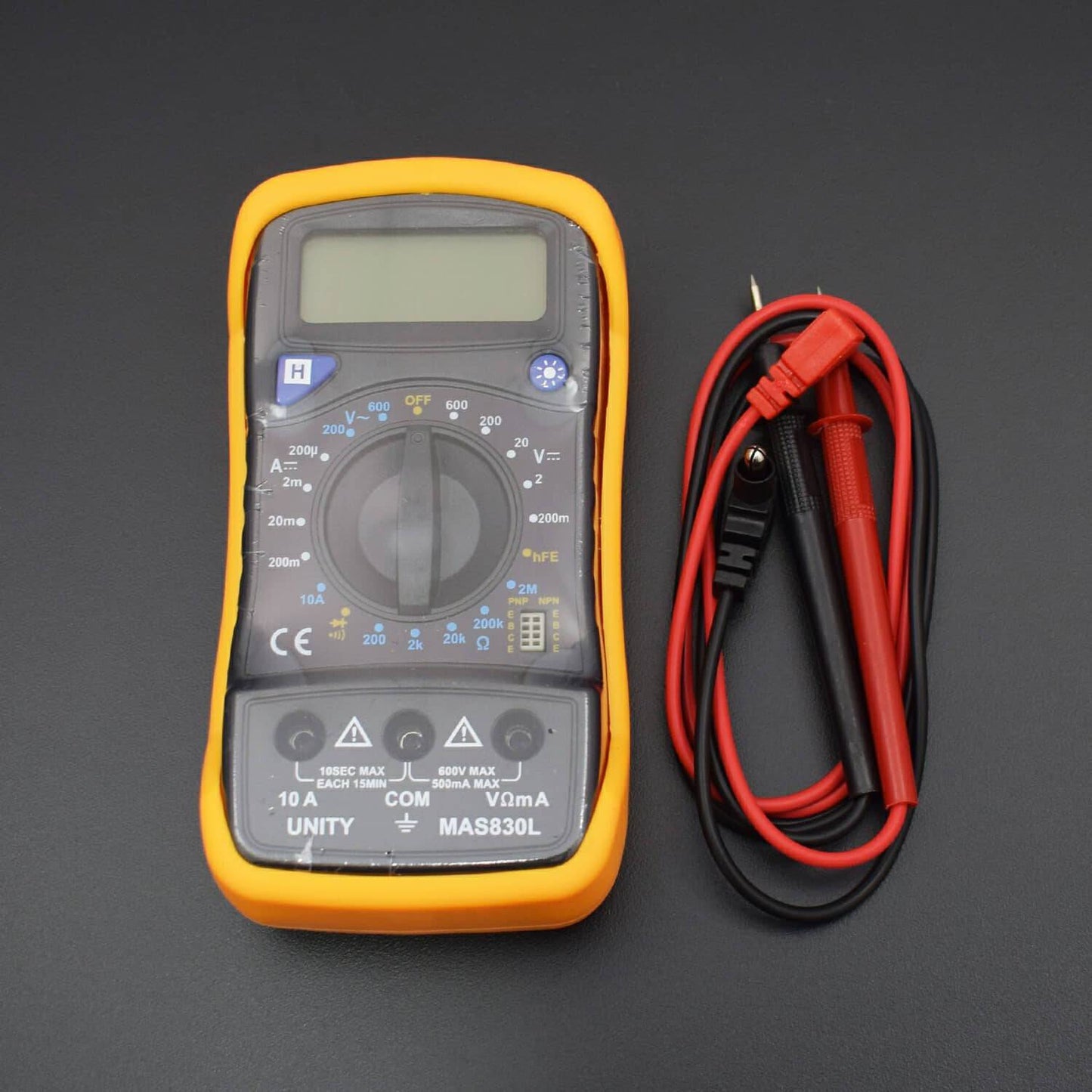

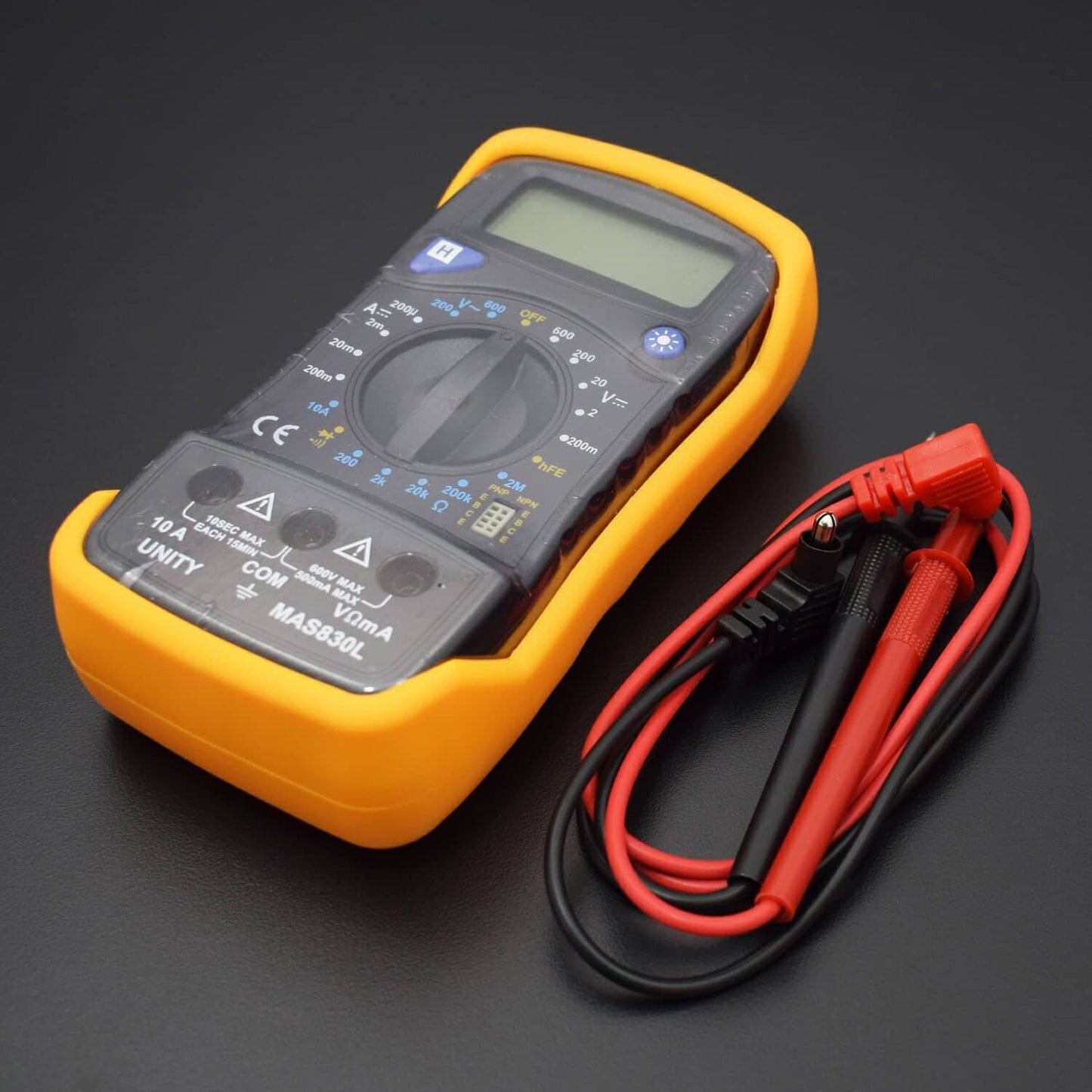

The meter is handheld digital multimeter for measuring DC and AC voltage, DC current, resistance, diode and transistor with battery operated.
SPECIFICATION
- To begin, make sure no current is running through the circuit or component you want to test. Switch it off, unplug it from the wall, and remove any batteries.
- Plug the black probe into the COM port on your multimeter.
- Plug the red probe into the VΩmA port.
- Switch on your multimeter, and set the dial to continuity mode (indicated by an icon that looks like a sound wave or wifi).
- To complete your continuity test, place one probe at each end of the circuit or component you want to test.
PRECAUTIONS
- Always make sure the Test Probes are fitted in the correct sockets. (Specially while measuring AC Voltage)
- Please choose the correct measuring option BEFORE you connect the probe. (As a thumb rule always choose the greater value and decrease if required)
- While measuring Current, make sure to put the Red Probe in 10A socket and the measuring connection should be in Series
- While measuring all other parameters other than Current (Ampere ) , the measuring connection should be in Parallel If by mistake a wrong connection or option is selected and the measurement is initiated, the instrument will Blink / Beep . REMOVE the connections IMMEDIATELY to restrict the damage to minimum.
