Make a Water Level Indicator using Leds - KT961

Make a Water Level Indicator using Leds - KT961

KT961

998 in stock

Rs. 399.00
Rs. 399.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

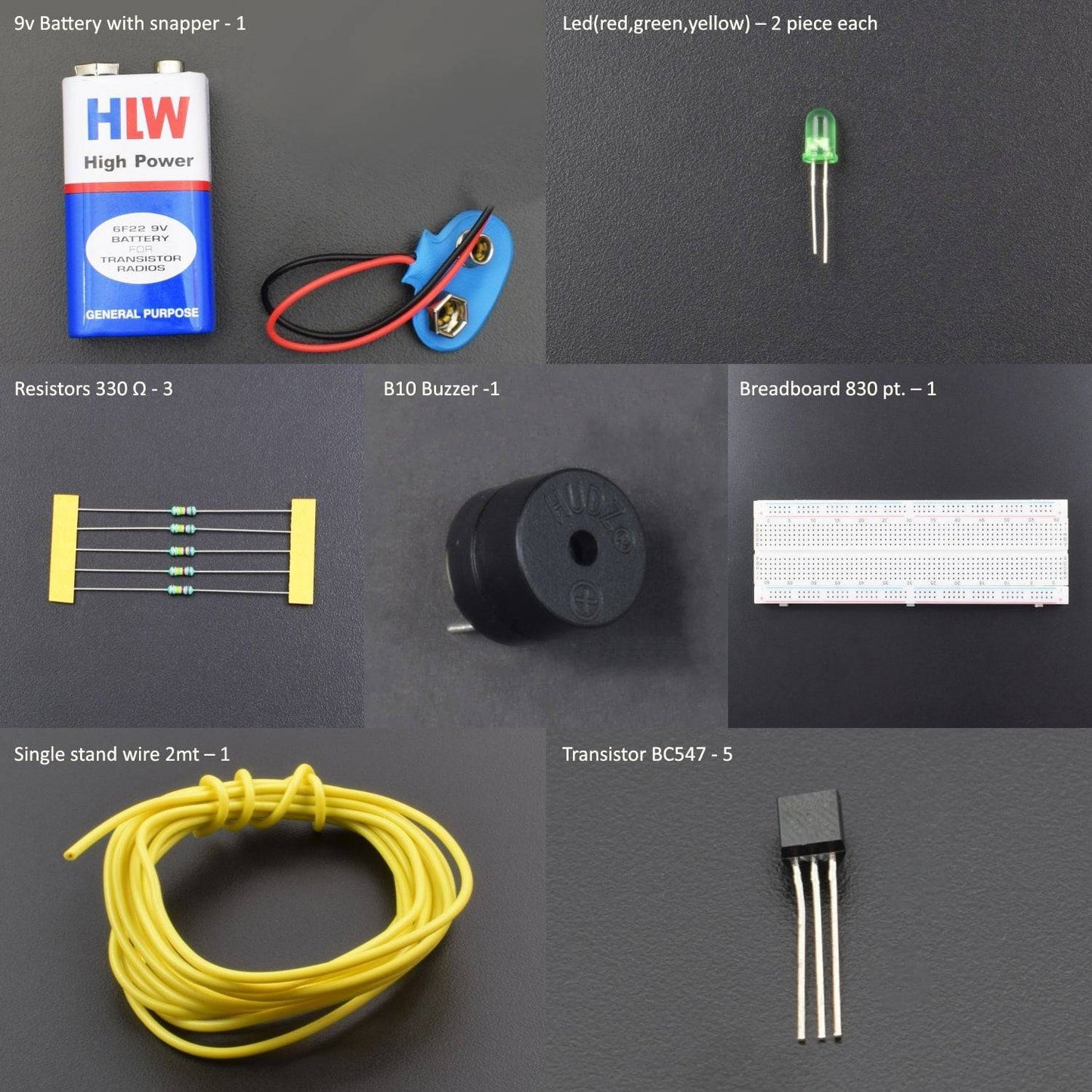

KIT INCLUDES:


HARDWARE REQUIRED

SPECIFICATIONS

Power supply – 9V( from the 9v battery)

PIN DESCRIPTION

Led

BC547 TRANSISTOR

CIRCUIT DESCRIPTION

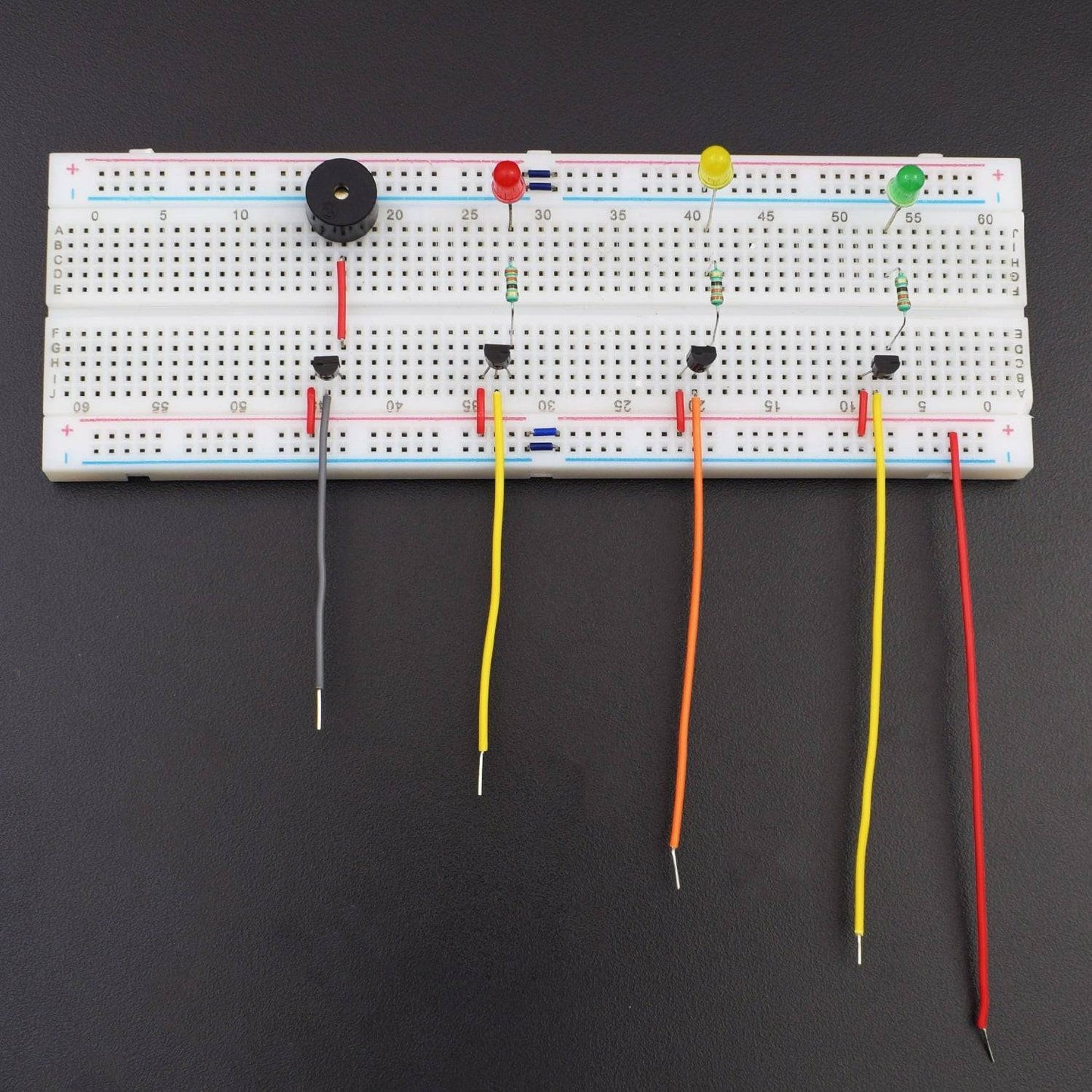

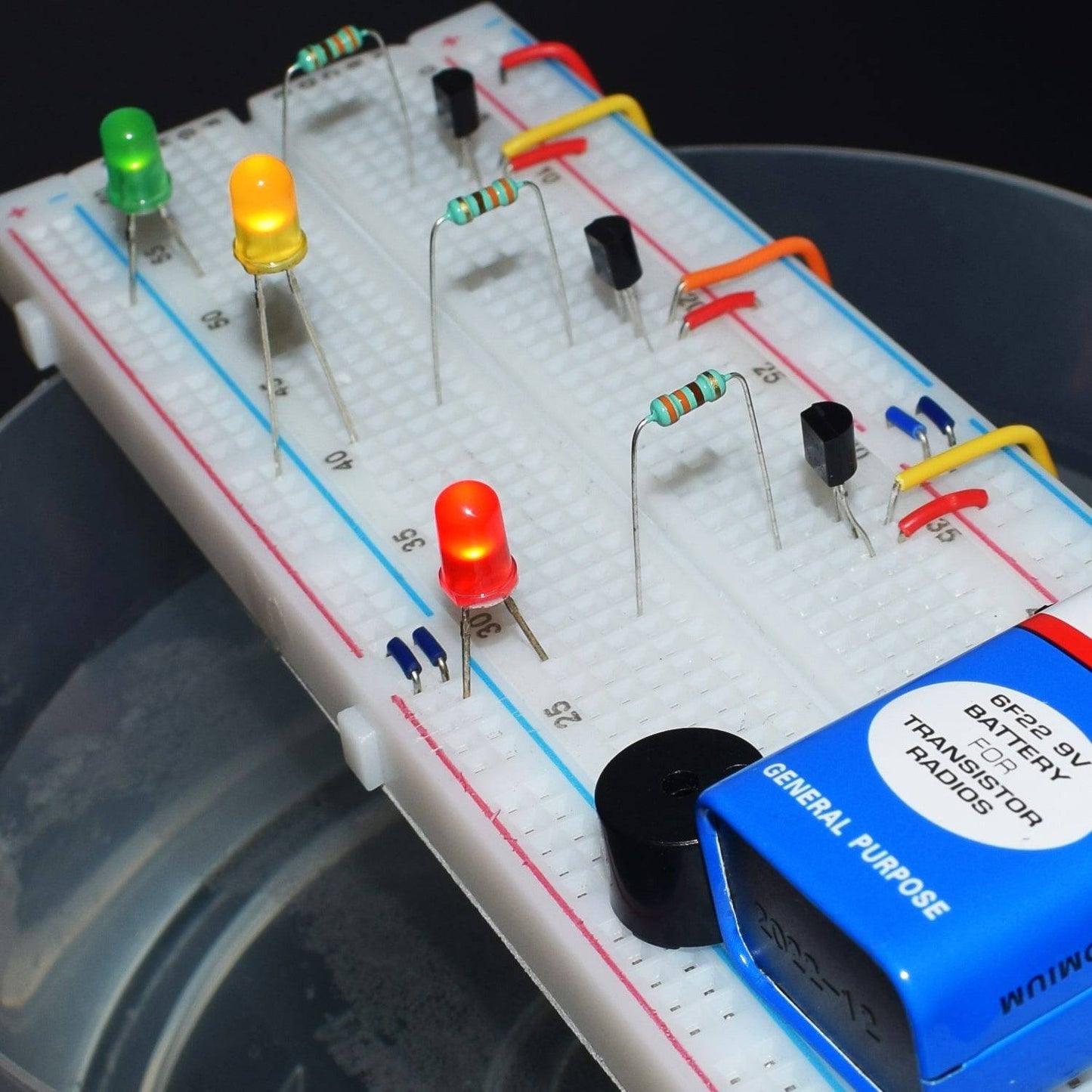

Connect the Components according to the given diagram above.

  • Connect the Components according to the given diagram above.
  • First TRANSISTOR BC547 collector connect with 330-ohm resistor to positive rail on the breadboard
  • Emitter connects to the positive terminal of led and negative terminal of led connects to the negative rail on breadboard
  • Base wire connects to the water tank

First, connect all the wire and components then connect the battery. Must use plastic glass for this project.

  • Second TRANSISTOR BC547 collector connect with 330-ohm resistor to positive rail on breadboard
  • Emitter connects to positive terminal of led and negative terminal of led connects to the negative rail on breadboard
  • Base wire connects to the water tank
  • Third TRANSISTOR BC547 collector connect with 330 ohm resistor to positive rail on breadboard
  • Emitter connects to positive terminal of led and negative terminal of led connects to the negative rail on breadboard
  • Base wire connects to the water tank
  • Positive wire from the positive rail on the breadboard connects with the water level.
  • Attach the buzzer on the breadboard.
  • Connect the positive terminal of the buzzer to the collector pin of the fourth transistor and the negative terminal of the buzzer to the GND rail of the breadboard.
  • Connect the emitter pin of forth Transistor to the positive rail on the breadboard.

  • Then connect the battery.

WORKING

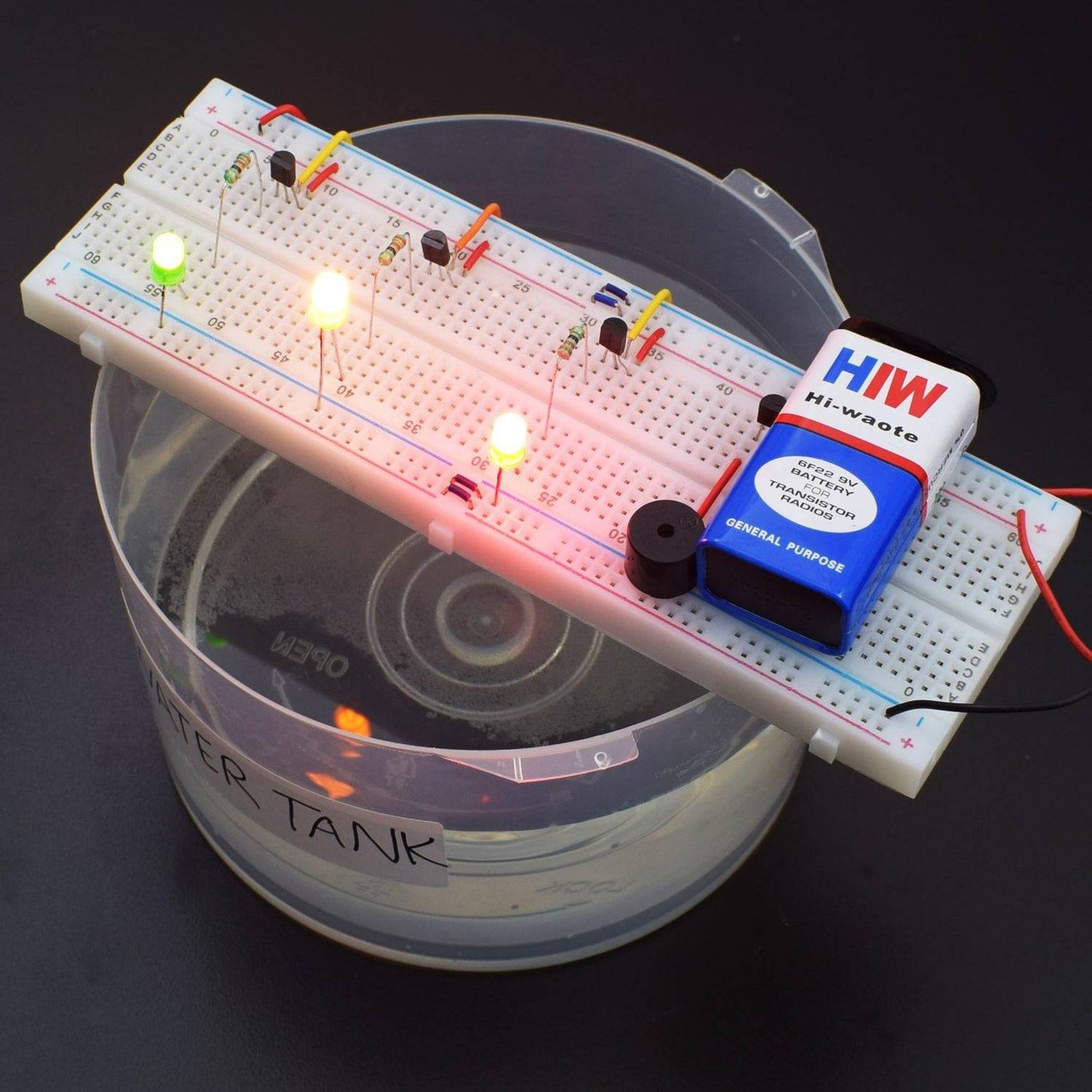

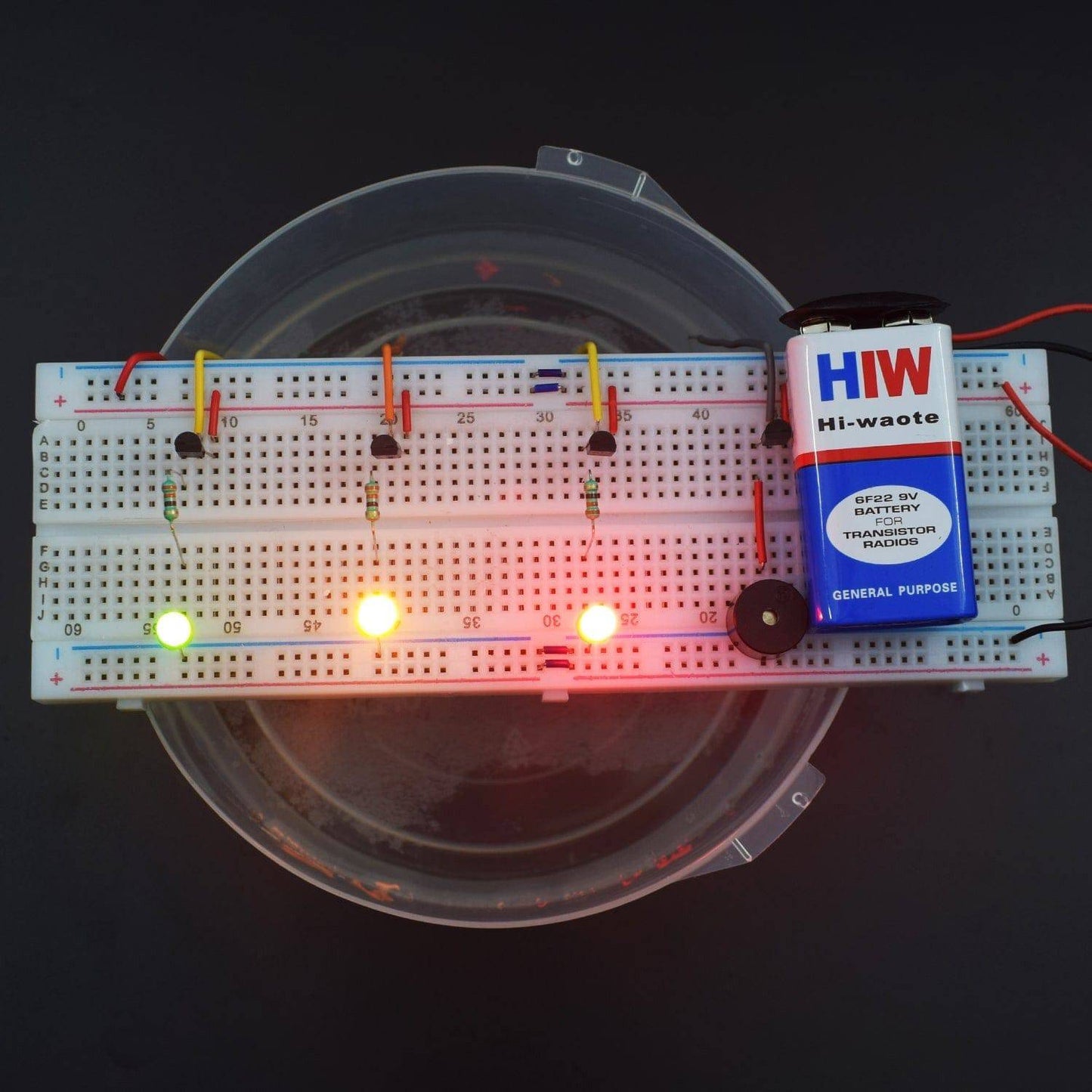

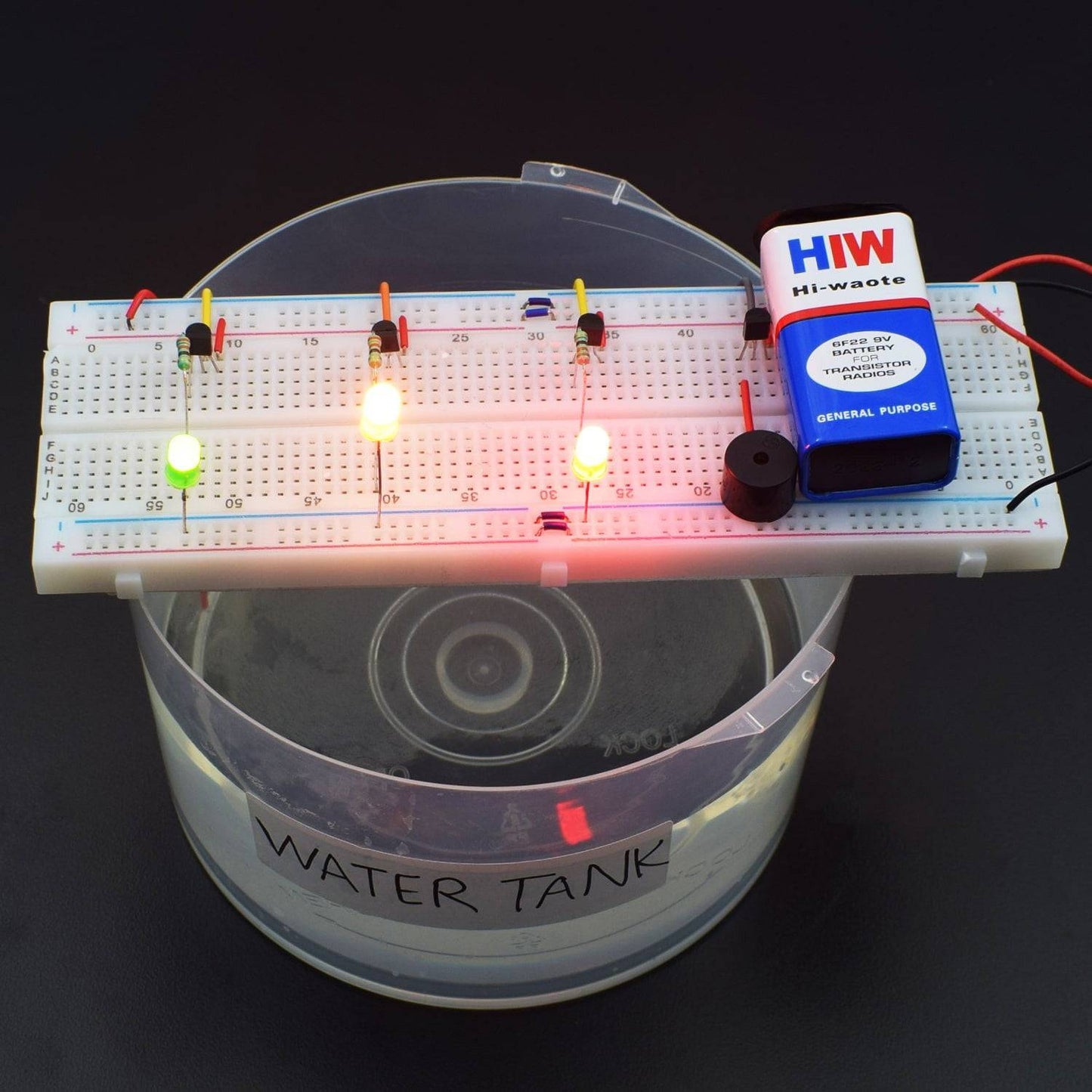

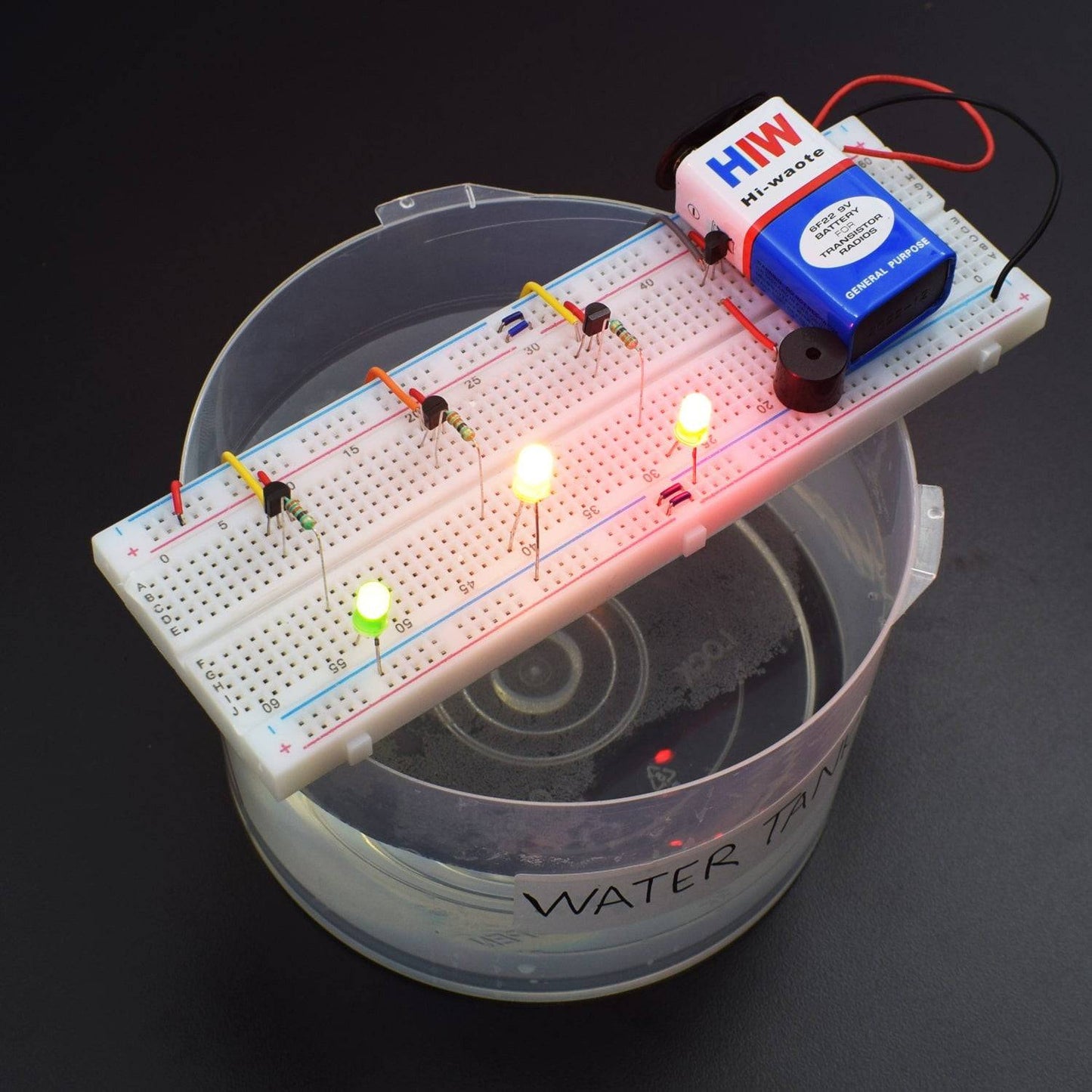

When the water level reaches to point A circuit with green led & Transistor Q1 gets completed and green led glows.

Similarly when water level reaches to point B , Circuit with yellow led and transistor Q2 gets completed and yellow led glows.

Same goes with point C and finally when tank gets full at point D circuit with buzzer gets completed and buzzer starts beeping.
