Make a IR control robot car using 7*4 wheel and L293De motor driver interfacing with Arduino uno - KT785

Make a IR control robot car using 7*4 wheel and L293De motor driver interfacing with Arduino uno - KT785

SKU:KT785

999 in stock

Regular price Rs. 1,600.00
Regular price Sale price Rs. 1,600.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

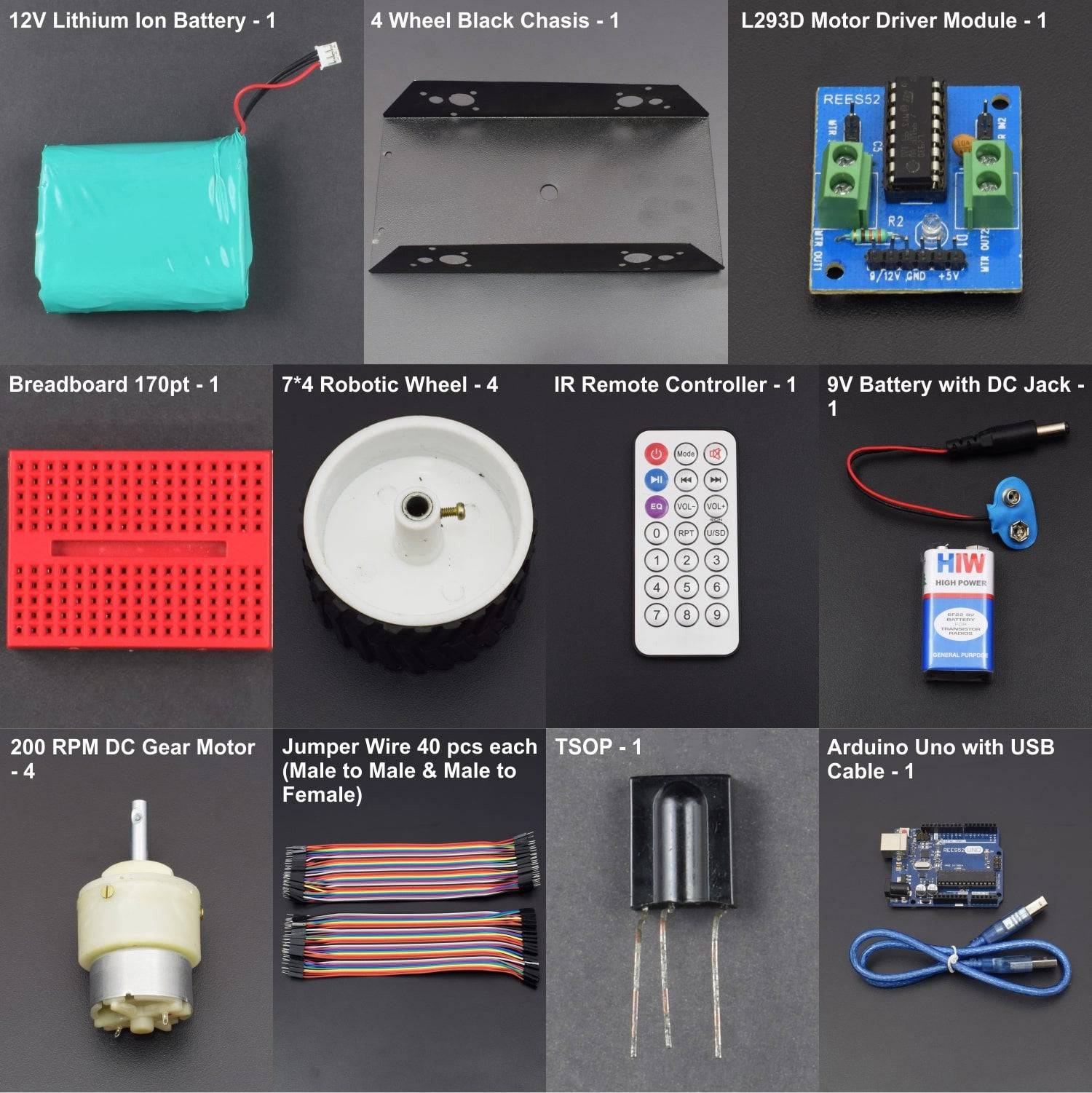

KIT INCLUDES:


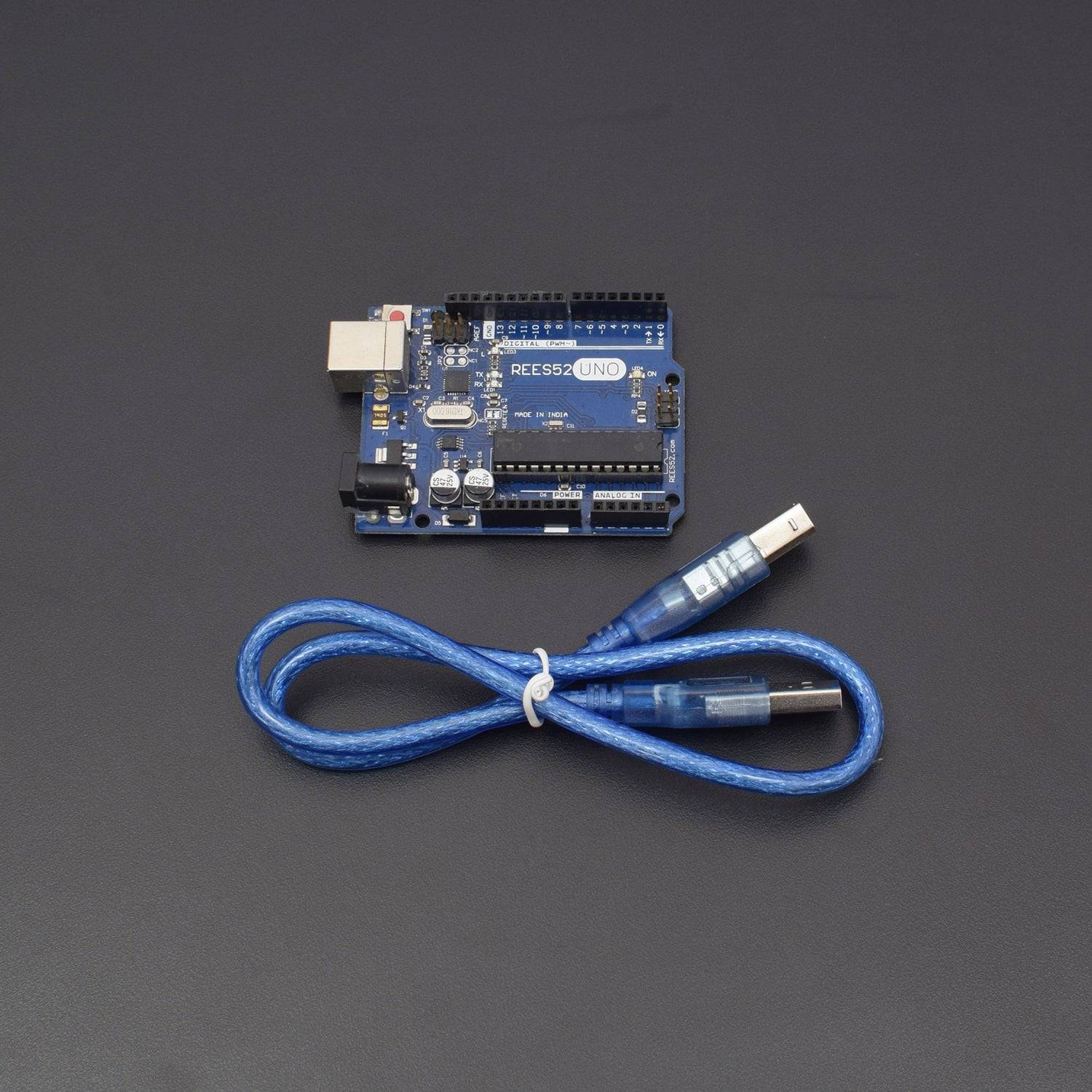

HARDWARE REQUIRED

SOFTWARE REQUIRED

Arduino IDE 1.8.5 (programmable platform for Arduino)

Click To Download :https://www.arduino.cc/en/Main/Software

CIRCUIT CONNECTION

  • Fix the wheels to the chassis.
  • Attach the 2 motors to the back wheels and use dummies for the front.
  • Make holes on the chassis and fix Arduino using screws.
  • Fix the breadboard by using the double sided tape provided on it.
  • Mount the L293D on the breadboard with the notch facing front.

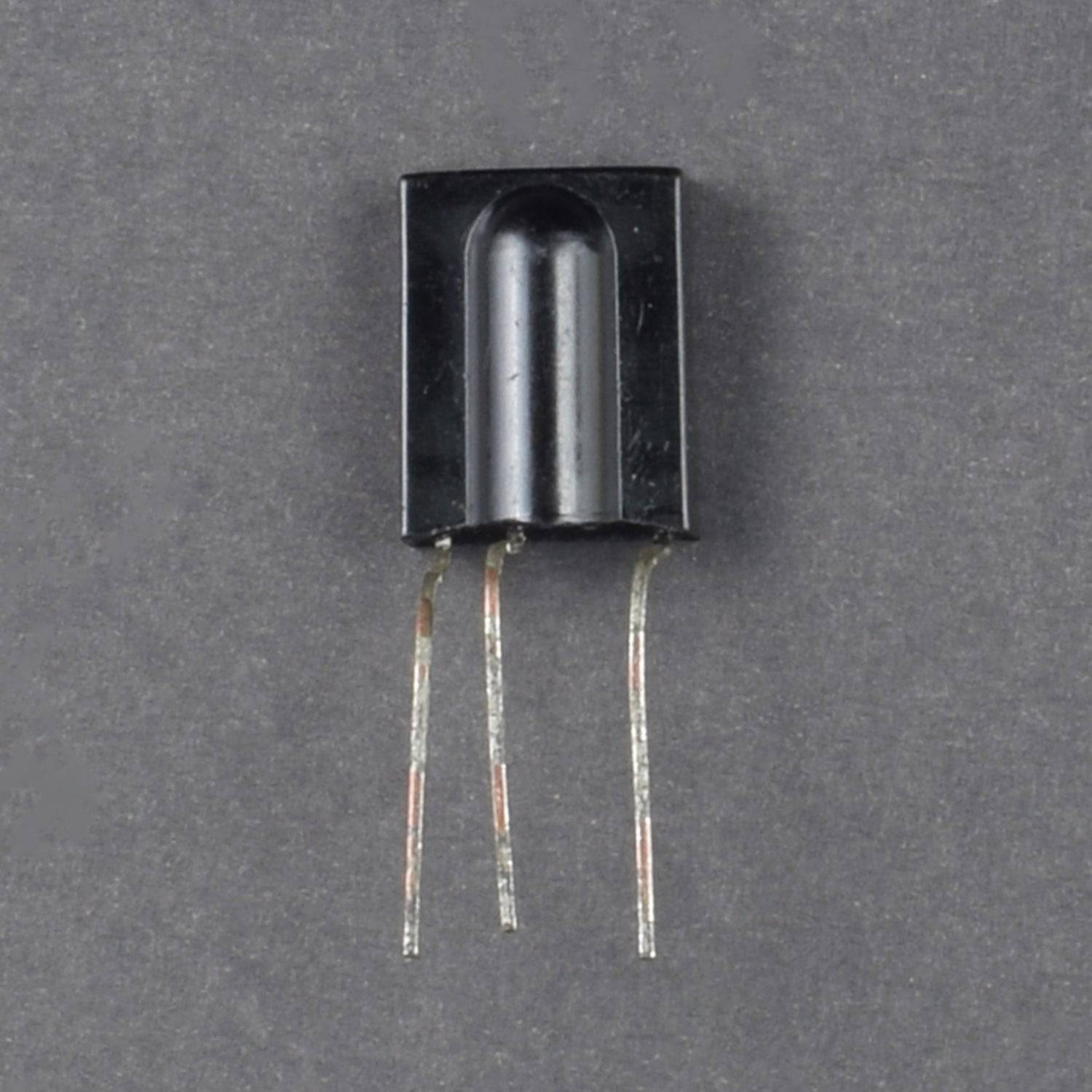

IR Receiver Connections

Facing the notch on the receiver, the connections from left to right are

left pin-ground.

middle pin-5V.

right pin-digital pin 6 on Arduino.

Saving the IR Library

Go to the following link-

https://drive.google.com/open?id=0B621iZr0p0N_WUVmbW5kRFIxaVU

Save the files within a folder named IR remote and save the folder in the libraries directory of your Arduino IDE i.e. arduino-1.0.6>libraries folder as IR remote.

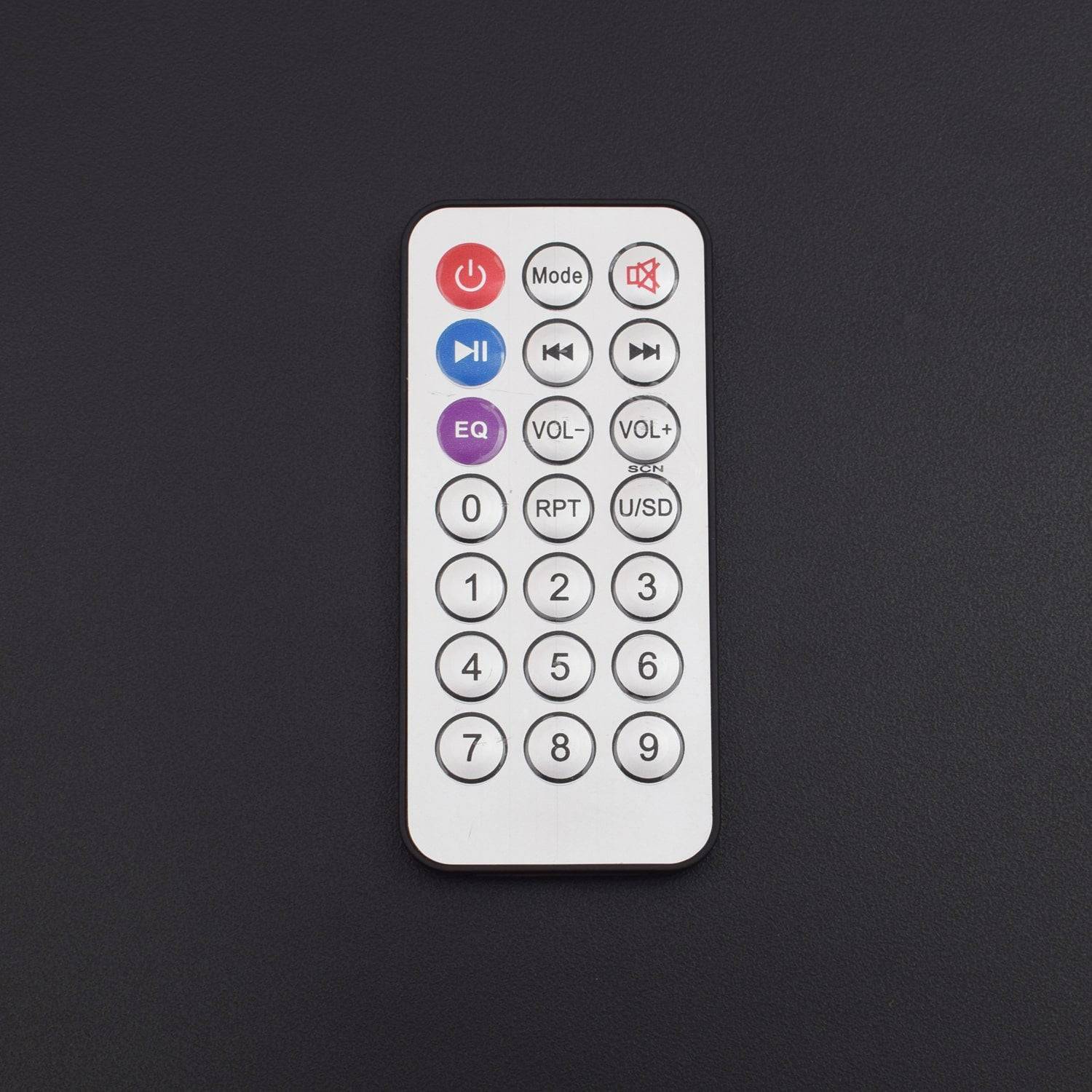

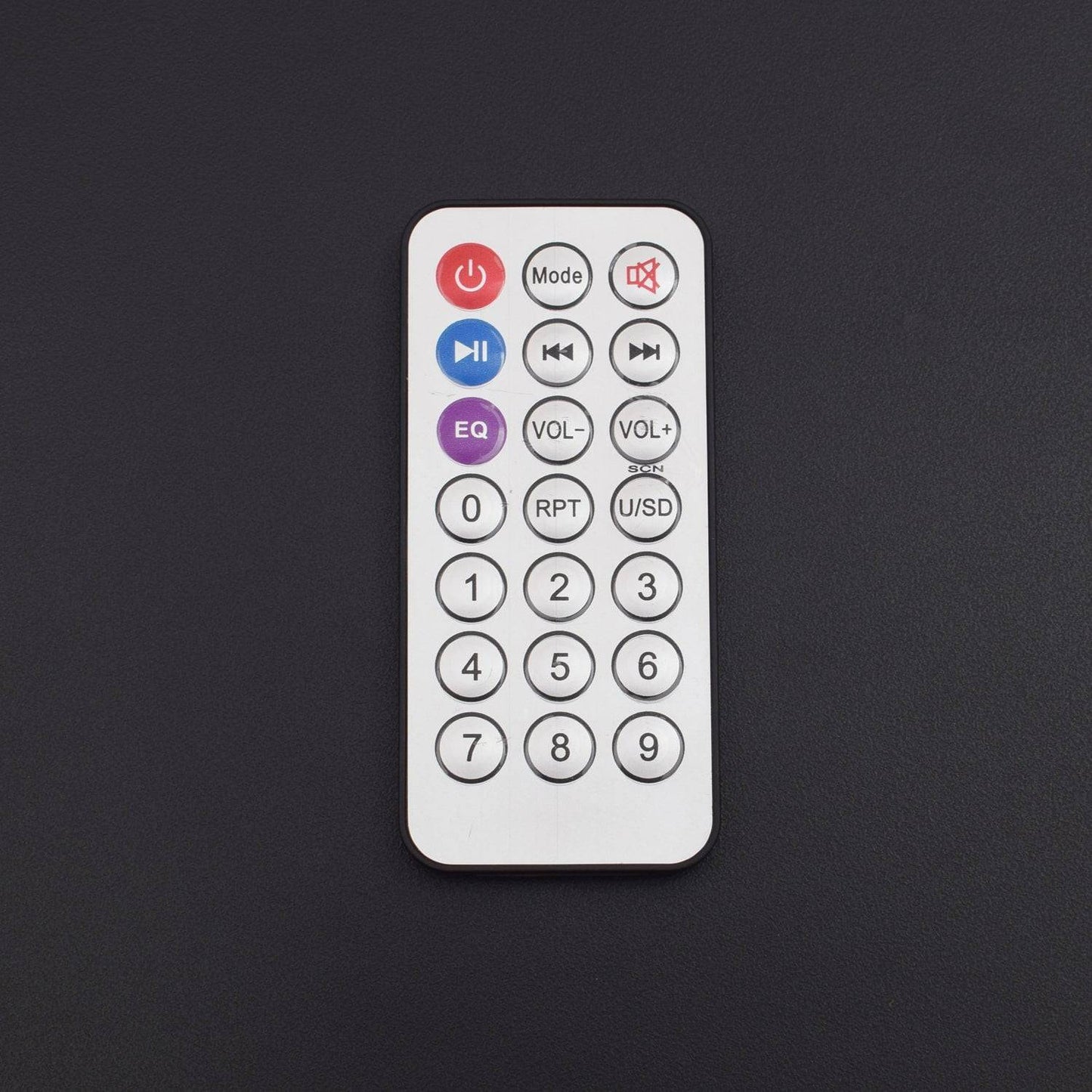

Finding Hexadecimal Values of Remote Keys

1. Upload the code in remote.ino into the Arduino

2. Open the serial monitor.

3. Press different remote keys and obtain their hexadecimal values.(Note that the values will not be obtained with 0x which represents hexadecimal also some values are obtained in middle like FFFFFFFF, ignore them).

Here I have obtained the values of the front, back,left,right and middle keys which are

front= 0x80BF53AC

back= 0x80BF4BB4

left= 0x80BF9966

right= 0x80BF837C

middle= 0x80BF738C

These values of these buttons are mapped to move front,move back,move left,move right and brake respectively.

  • Take 5V and ground from Arduino and connect them to the 2 bottom rails of breadboard, thus giving a 5V and ground line.
  • Pins 1,9,16 from L293D to 5V.
  • Pins 4,5,12,13 from L293D to ground.
  • Left motor to pins 3,6 on L293D.
  • Right motor to pins 11,14 on L293D.
  • Pins 2,7(for left motor)from L293D to pins 9,8 on Arduino.
  • Pins 10,15(for right motor)from L293D to 10,11 pins on Arduino.
  • Refer to schematics for more details.
  • Note that in the schematic yellow wires represent left motor and orange wires right motor.

Interfacing Motors with L293D

After making the connections, upload the code in motor_test.ino into the Arduino.

Note that for left motor to rotate, lm,lmr should be opposite i.e HIGH and LOW or vice versa. .

Similarly for right motor to rotate, rm,rmr should be opposite i.e HIGH and LOW or vice versa.

Determine the logic levels of lm,lmr,rm,rmr for both the wheels to go forward by trial and error.

For me it was LOW,HIGH,HIGH,LOW.

Thus the inputs required to go forward are LOW,HIGH,HIGH,LOW.

Inputs required to go backward are HIGH,LOW,LOW,HIGH.

Inputs required to go right are LOW,HIGH,HIGH,HIGH(i.e. only left motor should rotate).

Inputs required to go left are HIGH,HIGH,HIGH,LOW(i.e. only right motor should rotate).

Note that values of lm,lmr,rm,rmr obtained may be different from above.

Integrating Everything

Now integrate everything i.e. both the ir receiver part and L293D part.

The schematic given above is just a combination of schematics of IR receiver and L293D.

Basically you can first make the IR connections, find hexadecimal value and without disturbing the IR connections, make the L293D connections and interface the motors with Arduino.

Step 9: Power Supply

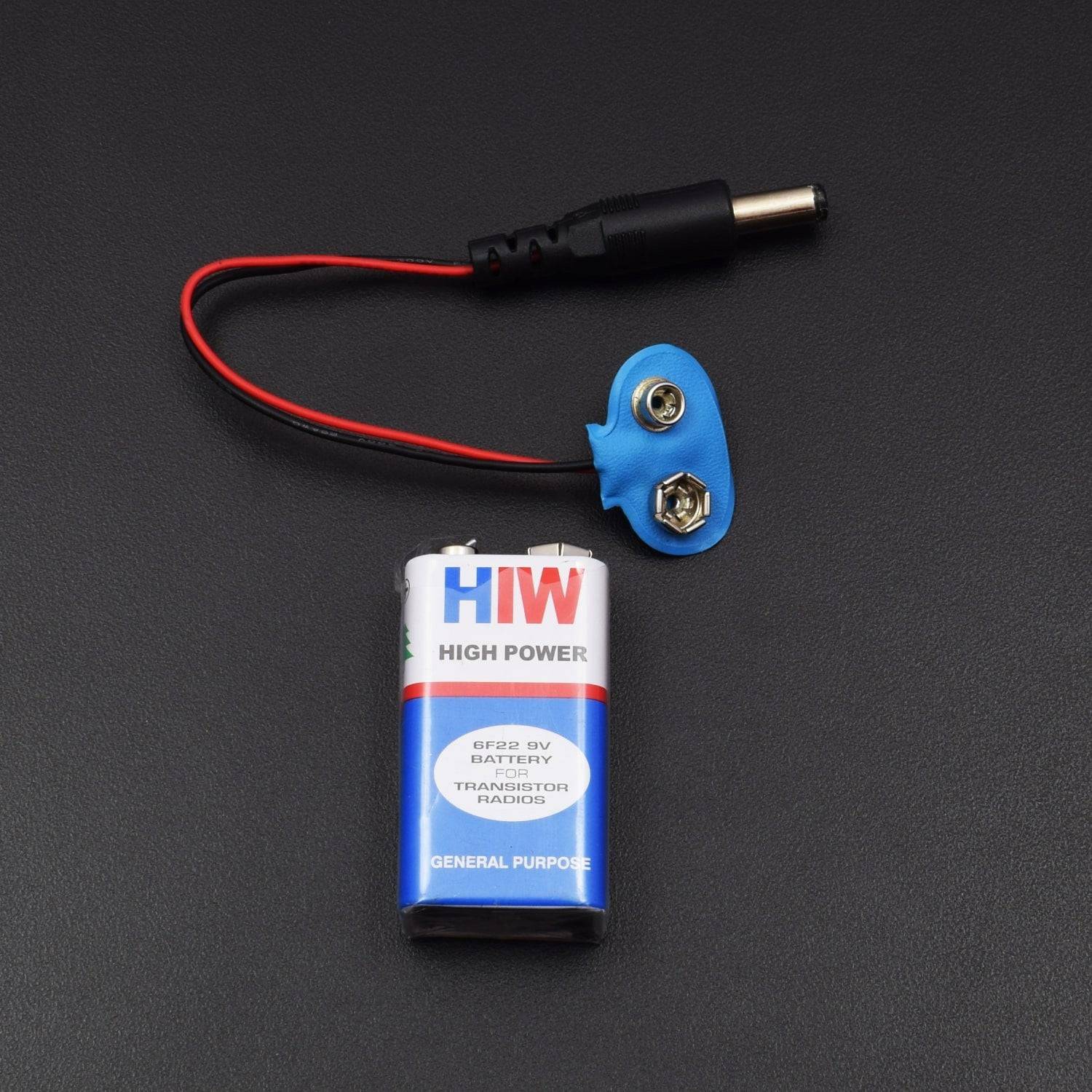

9V powering the Arduino with positive of battery given to vin pin of Arduino and negative given to the second ground pin of Arduino

9V for Vss supply(pin 8) of l293d which is used for driving the motors(max value that can be given is 36V)

Step 10: Final Program

Upload the code given in rc_car.ino into the Arduino (provided both IR and L293D connections have been made).

The code just like the previous schematic is just an integration of remote and motor test codes i.e. the Arduino first now checks the remote key which you have pressed by obtaining its hexadecimal value ,checks what function has been mapped to that value and performs the required function through L293D

Check if the bot moves as required or not.

Go to this repository to download the code and schematics. Click on the "Clone or Download" button (green in color on the right side) and select "Download ZIP" to download the zip file. Now extract the contents on your computer to get the code and schematics (in the schematics folder).

Important instructions regarding the ir remote control robot

During motor connections you may quiet watch the connections of motors and check the proper direction of the motors in which the motor rotate so it is easy to rotate your robot.

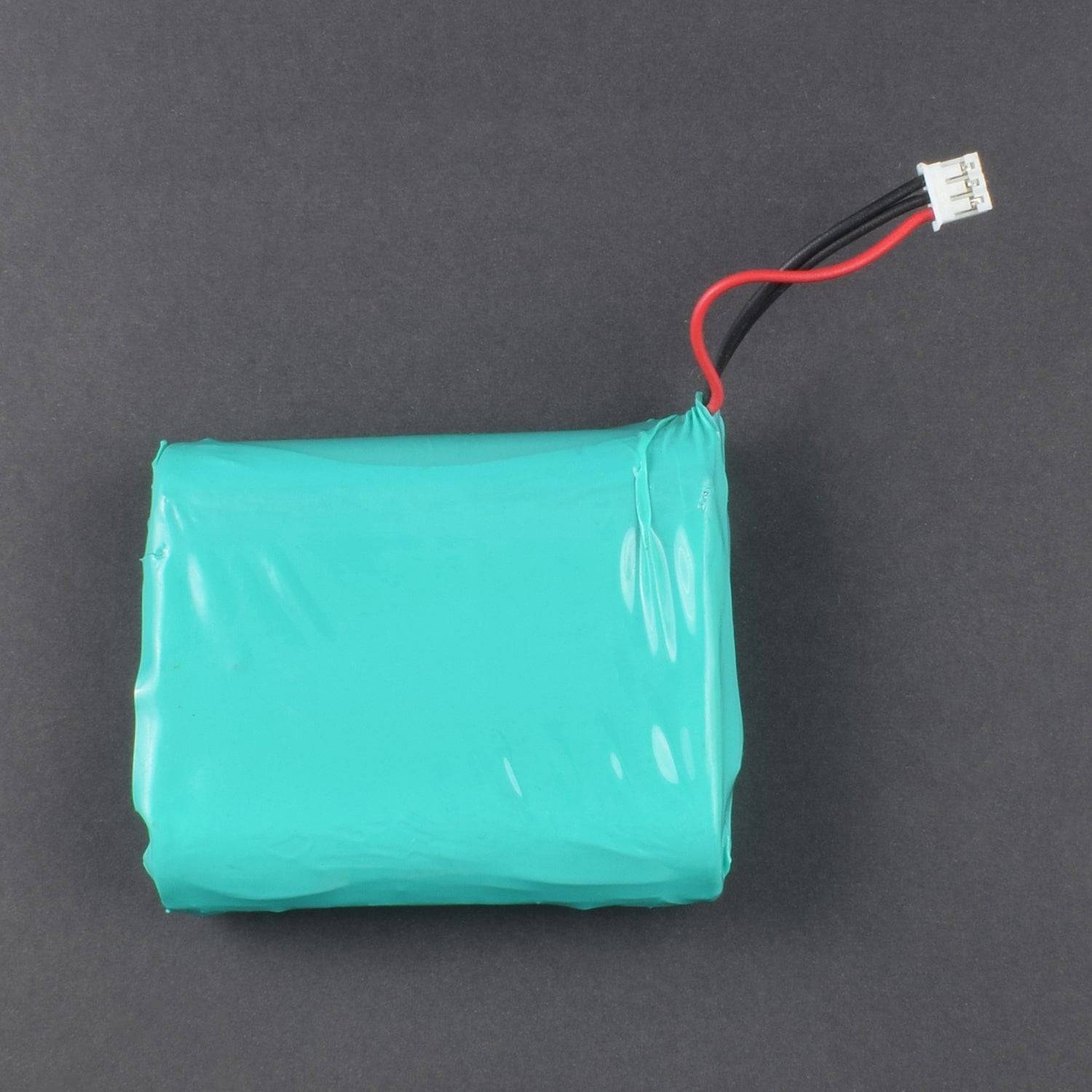

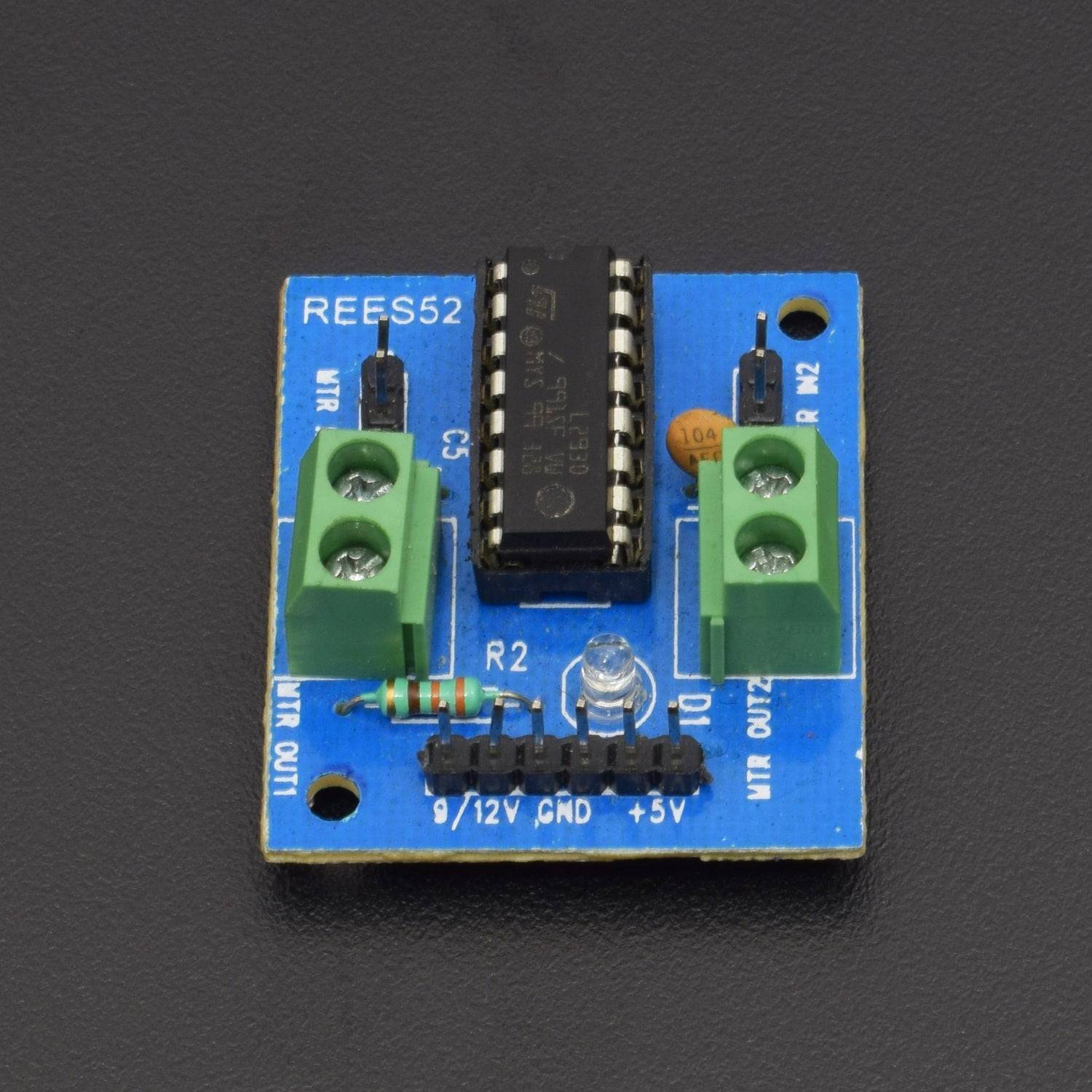

You may also use the l293d motor driver module it is easy to use and connections and use two batteries 1 12v for motors and 9v for arduino uno.

And you will easily access the robot and you may also change some codes of motors that in which direction you may connect you will see and change the changes in codes.

CODE

https://docs.google.com/document/d/e/2PACX1vThTFmdLrLsouwnwe0qzx1sBHIvhoUhOevhYDfjp24mVH46Rk5vCVeqKCIMmn7NAzElTiWj5swK998v/pub



WORKING

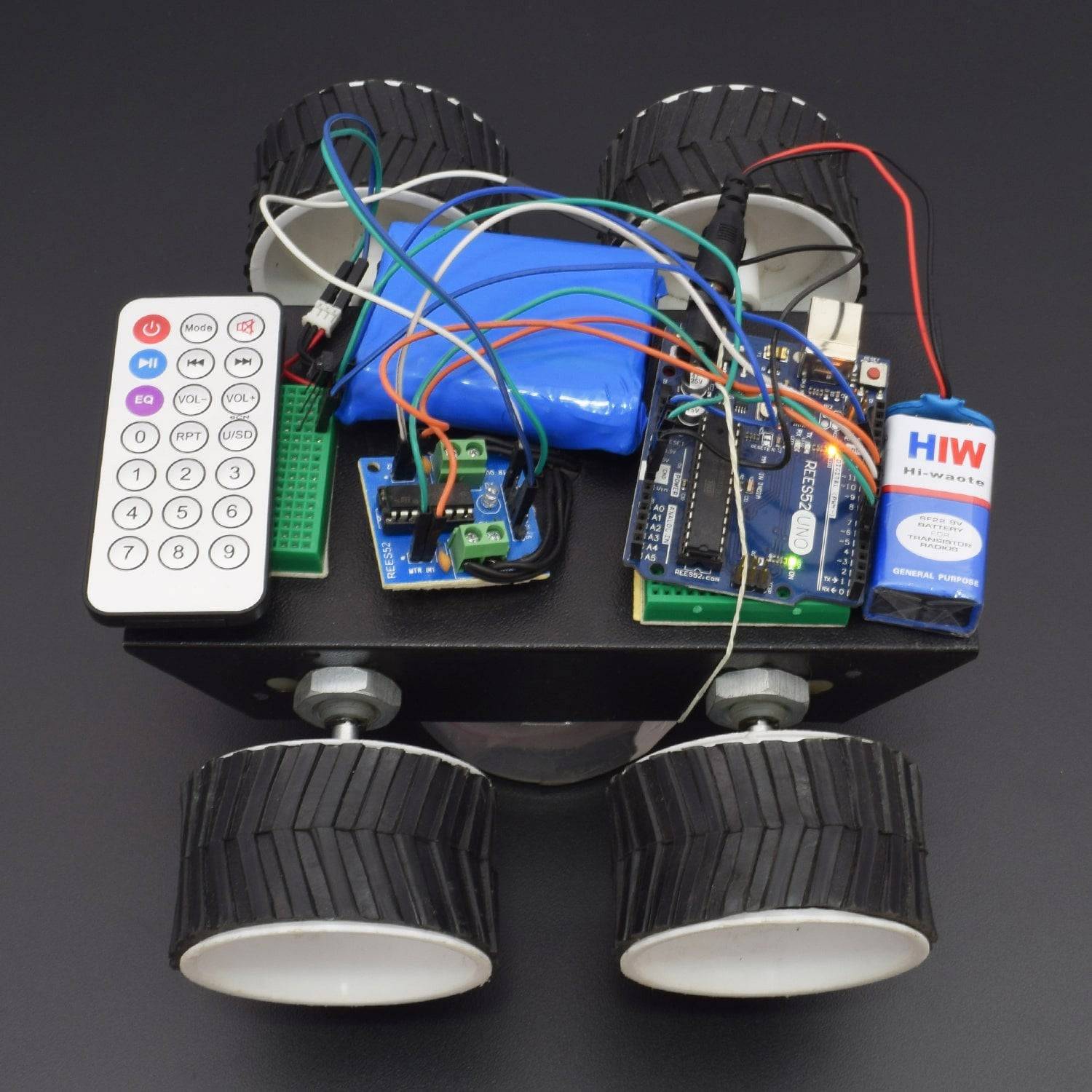

This is an interactive project in which we are making an IR control Robot using IR remote interfacing with Arduino uno.

This remote controlled car can be moved around using practically any kind of remote such as TV, AC etc.

It makes use of the fact that the remote emits IR (infrared).
