Make A Home Automation System Using TTP223B Touch Sensor and Single Channel 5v Relay Module Interfacing with Arduino Uno - KT906
Make A Home Automation System Using TTP223B Touch Sensor and Single Channel 5v Relay Module Interfacing with Arduino Uno - KT906
SKU:KT906
1000 in stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
The REES52 Promise
The REES52 Promise
We want you to build, not worry. Here is exactly what happens if something goes wrong with your order.
Dead on arrival or defective? We replace it.
If your item is dead on arrival or has a manufacturing defect, tell us within 7 days of delivery. Email support@rees52.com with your order number and a short video or a couple of photos showing the problem. Our team will get back to you within 24 hours and arrange a free pickup from your doorstep - you never pay return shipping for a defective item. Once we verify the issue, your replacement ships out right away. If the item is out of stock, you get a full refund instead.
Refunds, with real timelines.
- Approved refunds go back to your original payment method within 6-7 working days.
- Missing item in your package? Tell us within 7 days with photos of what arrived and the parcel label. Once confirmed, the refund for the missing item reaches you in 2-3 working days - or we ship the missing piece free, your choice.
- Every refund comes with a reference number by email or WhatsApp, so you can track it with your bank instead of chasing us.
Wrong item or not as described?
Email us your order number and a photo of what you received. We arrange the return pickup, and ship the correct item as soon as the return is on its way. Prefer your money back instead? That is fine too - full refund, same 6-7 working day timeline.
About lead times on some products.
A few items on rees52.com are sourced from our overseas partner warehouses and are not sitting on our shelf. Those products show a lead time of about 20-25 working days on the product page, before you pay. If you order one, we keep you posted as it moves. Changed your mind while waiting? You can cancel any time before dispatch and get a full refund within 6-7 working days. No cancellation fee, no questions.
Talk to a human.
Email support@rees52.com or call/WhatsApp +91 95995 94520, Monday to Saturday, 10:30 AM to 7:00 PM. Real people, order number in hand, actual answers.

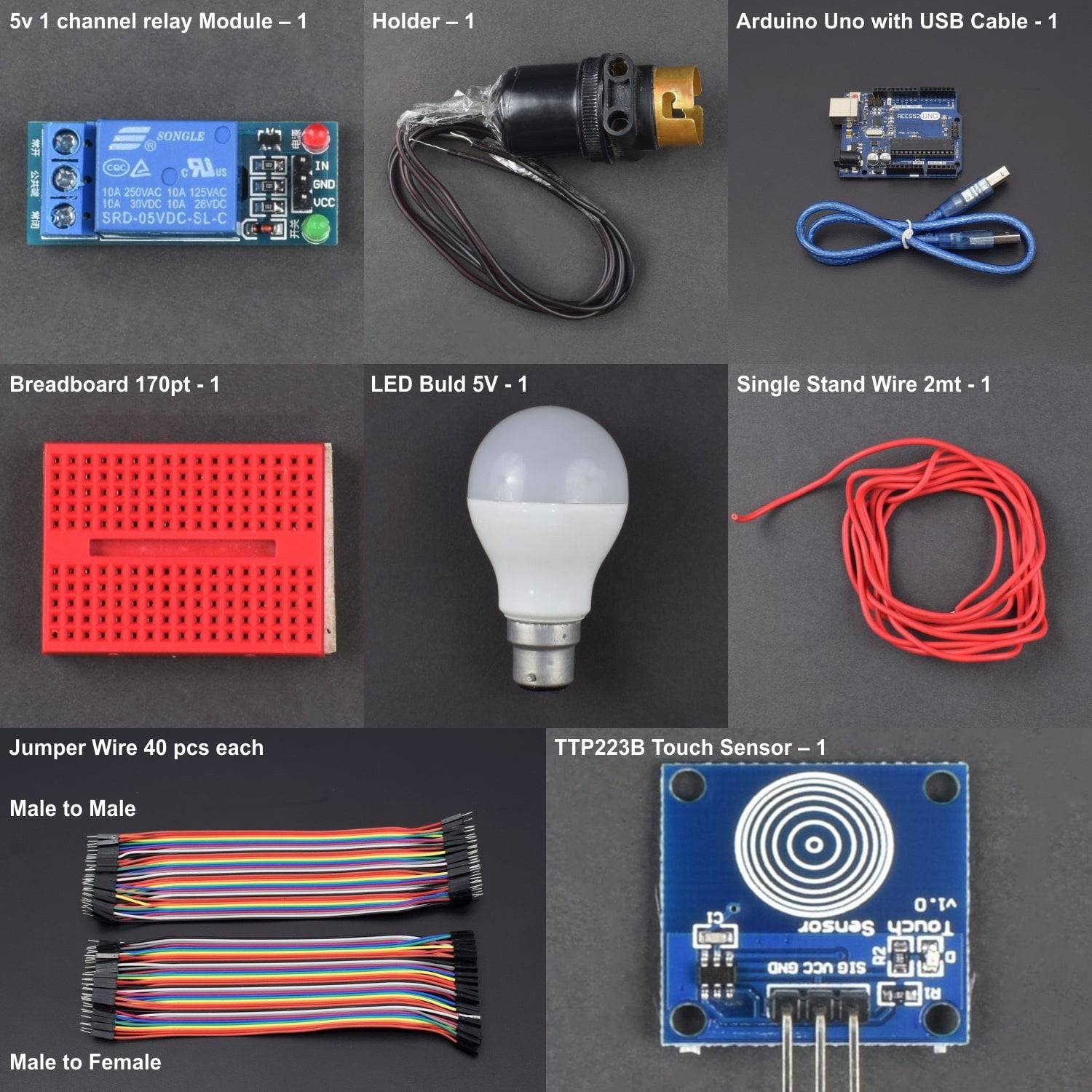

KIT INCLUDES:
- Arduino Uno with USB Cable – 1
- Jumper wires Male to male - 40 piece
- Jumper wires male to female - 40 piece
- TTP223B Touch Sensor – 1
- 5v 1 channel relay Module – 1

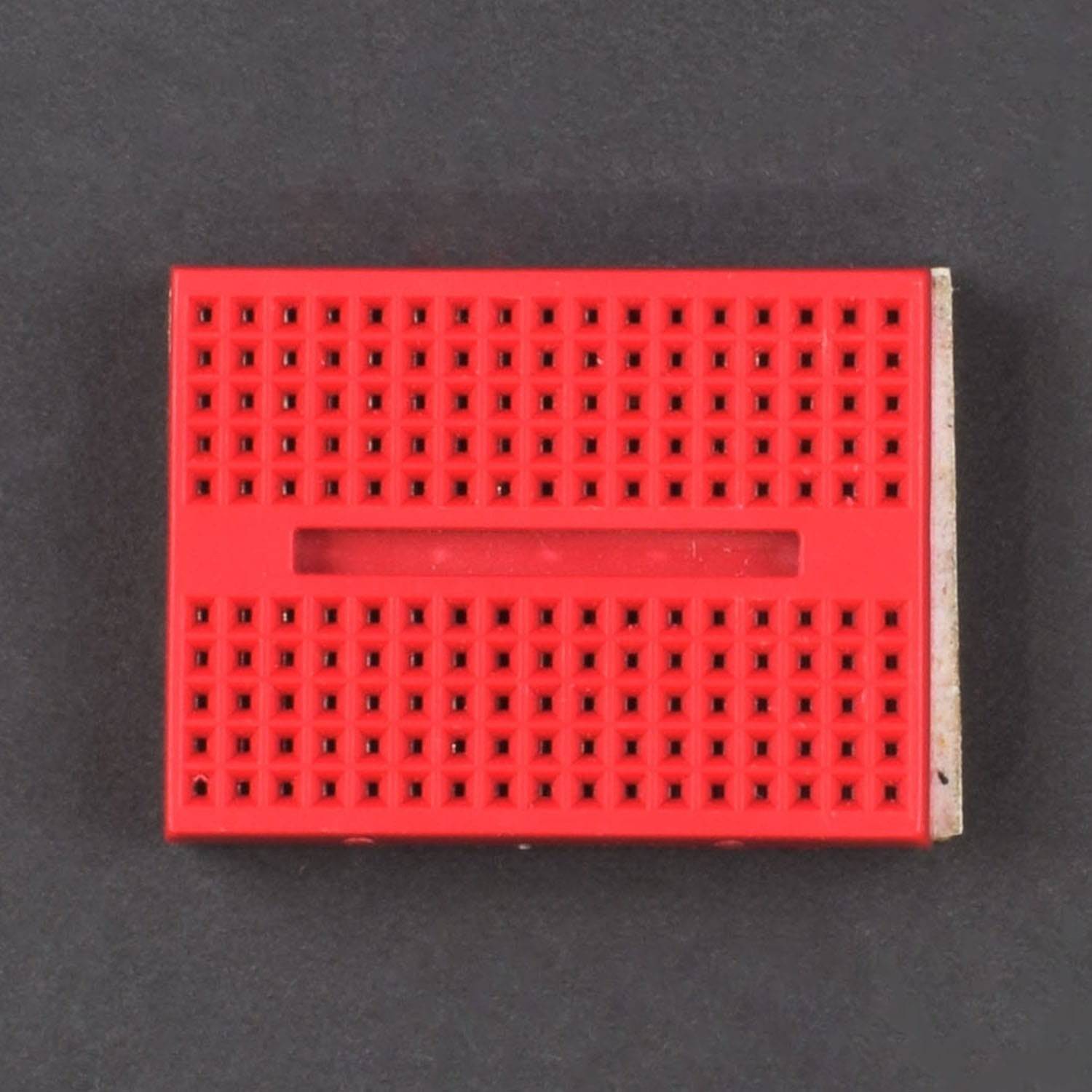

- Breadboard – 1

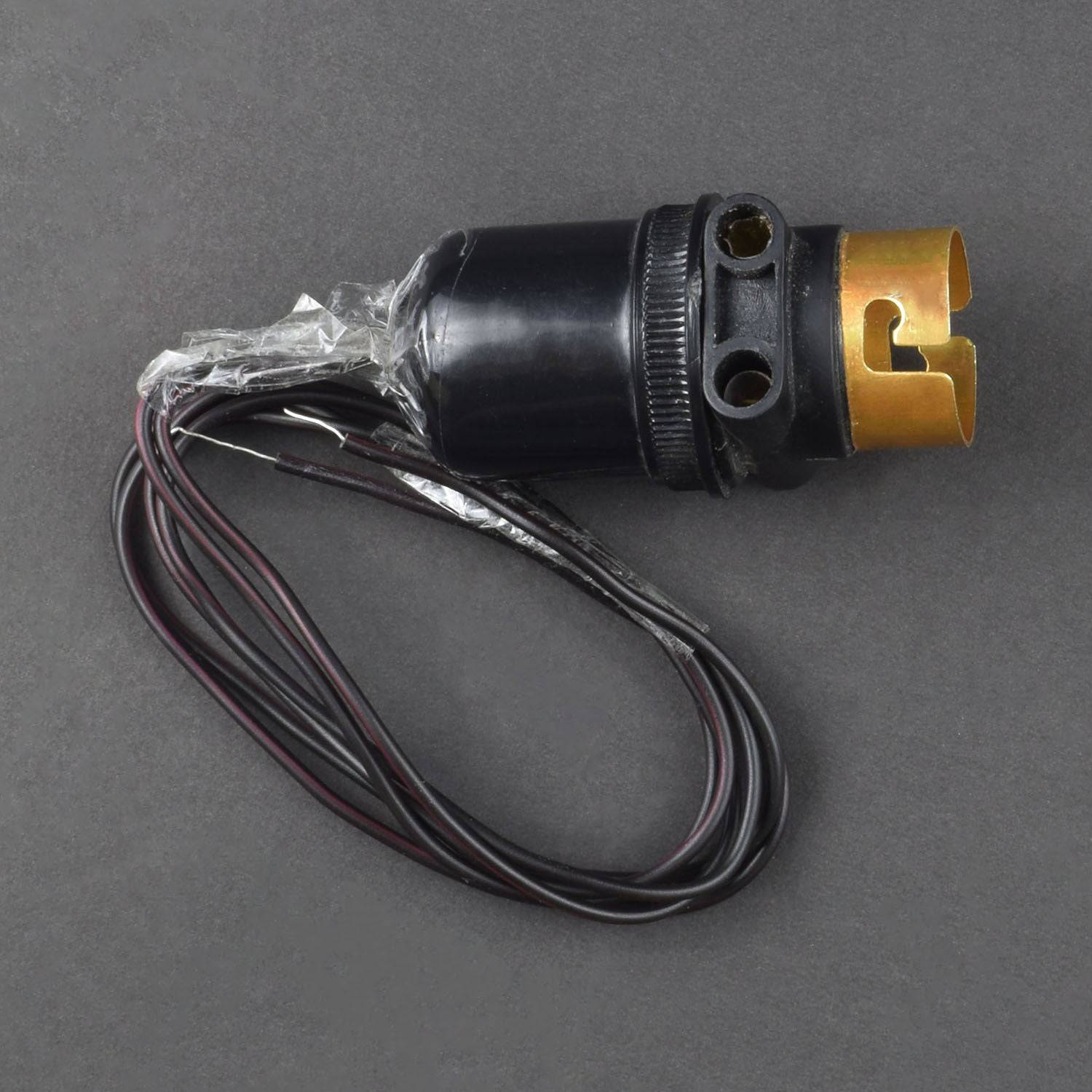

- Holder – 1 (not included in kit)

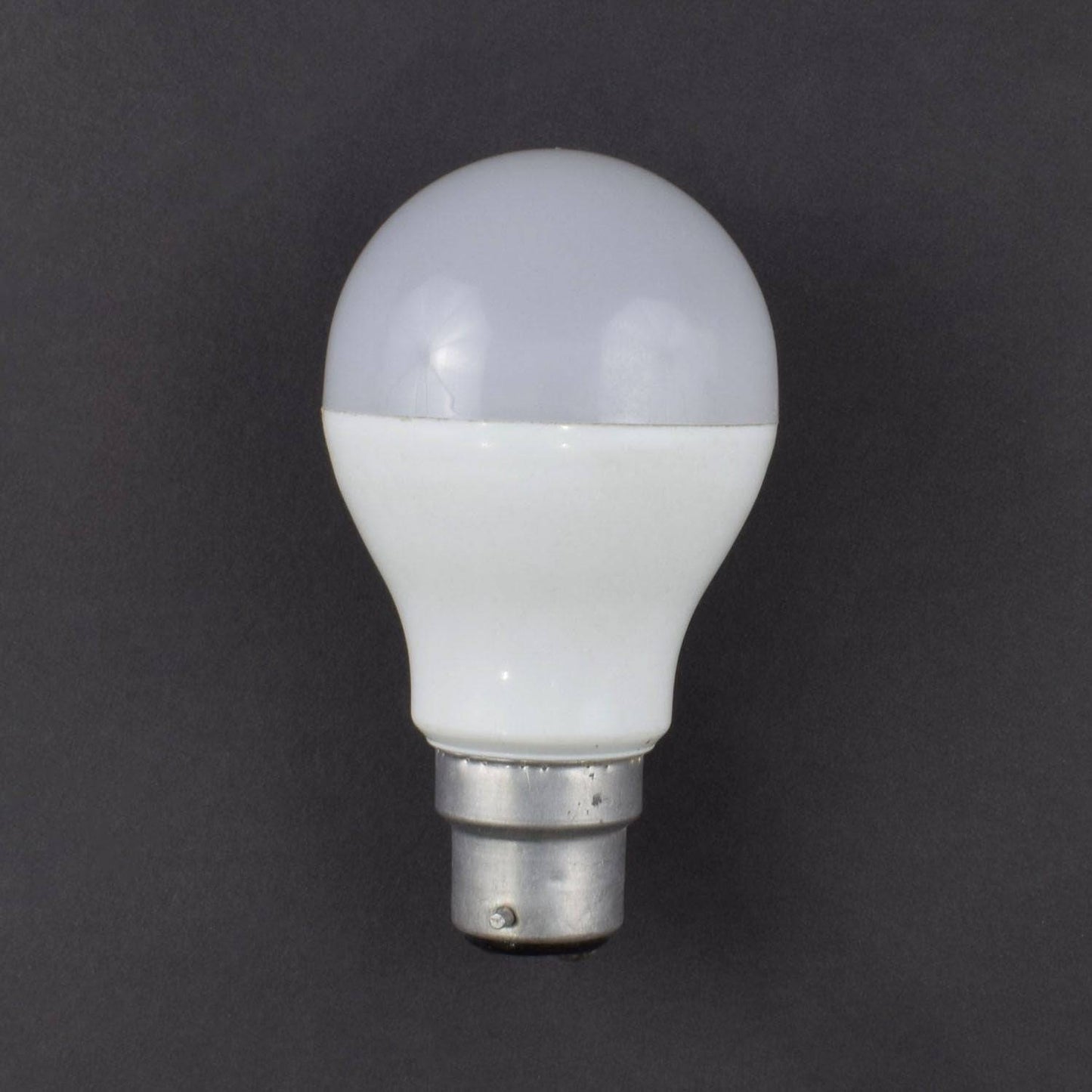

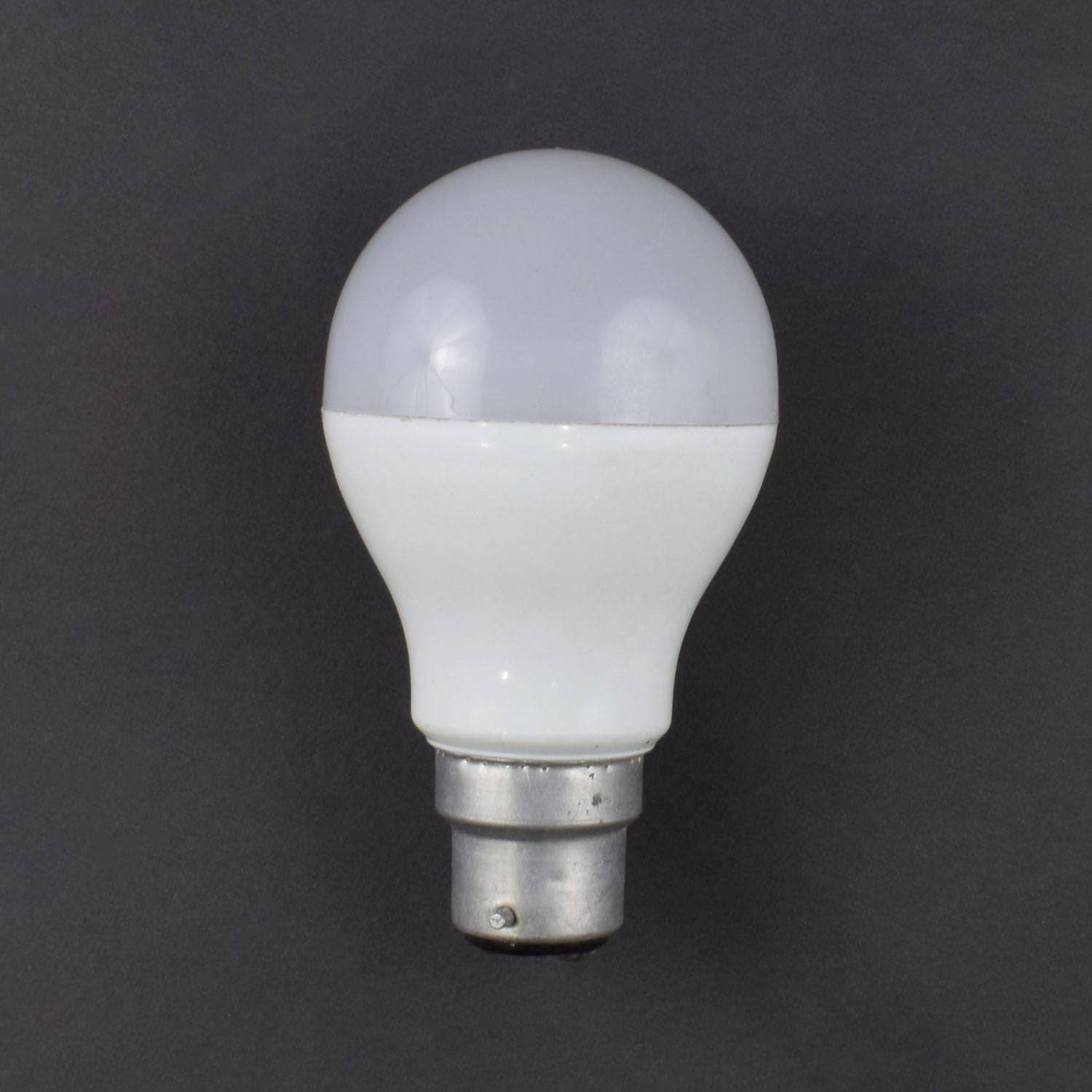

- Led Bulb 5v – 1(not included in kit)
- single stand wire 2mt - 1
HARDWARE REQUIRED
- Arduino Uno with USB Cable – 1
- Jumper wires Male to male - 40 piece
- Jumper wires male to female - 40 piece
- TTP223B Touch Sensor – 1
- 5v 1 channel relay Module – 1
- Breadboard – 1
- Holder – 1 (not included in kit)
- Led Bulb 5v – 1(not included in kit)
- single stand wire 2mt - 1
SOFTWARE REQUIERD
Arduino IDE 1.8.5 (programmable platform for Arduino)
Click To Download :https://www.arduino.cc/en/Main/Software
SPECIFICATIONS

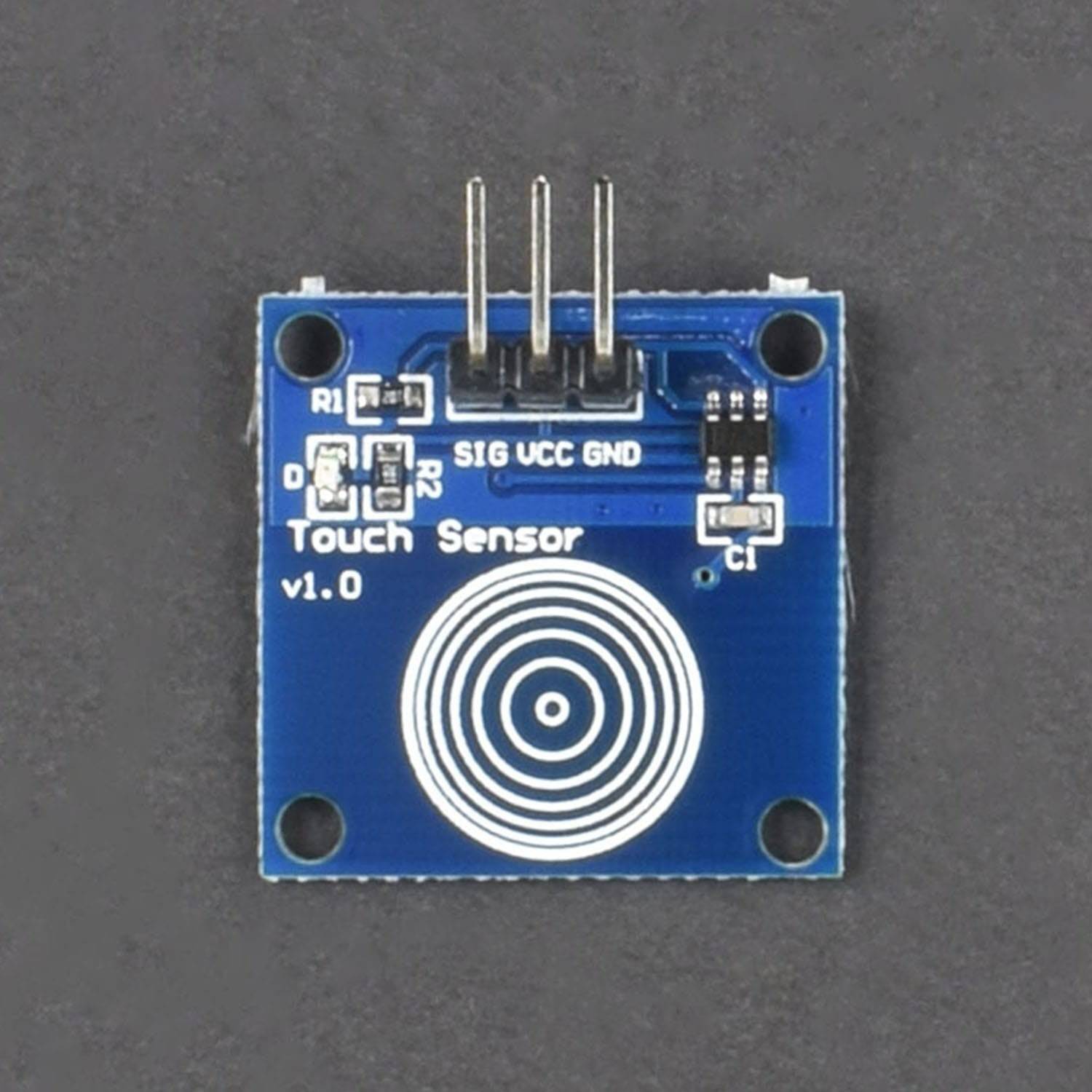

TTP223B CAPACITIVE TOUCH SENSOR
The TTP223 is a touch pad detector IC which offers 1 touch key. The touching detection IC is designed for replacing traditional direct button key with diverse pad size. Low power consumption and wide operating voltage are the contact key features for DC or AC application.
- Operating voltage 2.0V~5.5V
- Operating current @VDD=3V, no load, SLRFTB=1, At low power mode typical 1.5uA, maximum 3.0uA and at fast mode typical 3.5uA, maximum 7.0uA
- Operating current @VDD=3V, no load, SLRFTB=0, At low power mode typical 2.0uA, maximum 4.0uA and at fast mode typical 6.5uA, maximum 13.0uA
- The response time max about 60mS at fast mode, 220mS at low power mode @VDD=3V
- Provides Fast mode and Low Power mode selection by pad option (LPMB pin)Operating Temperature:-20 ~ +70 ℃

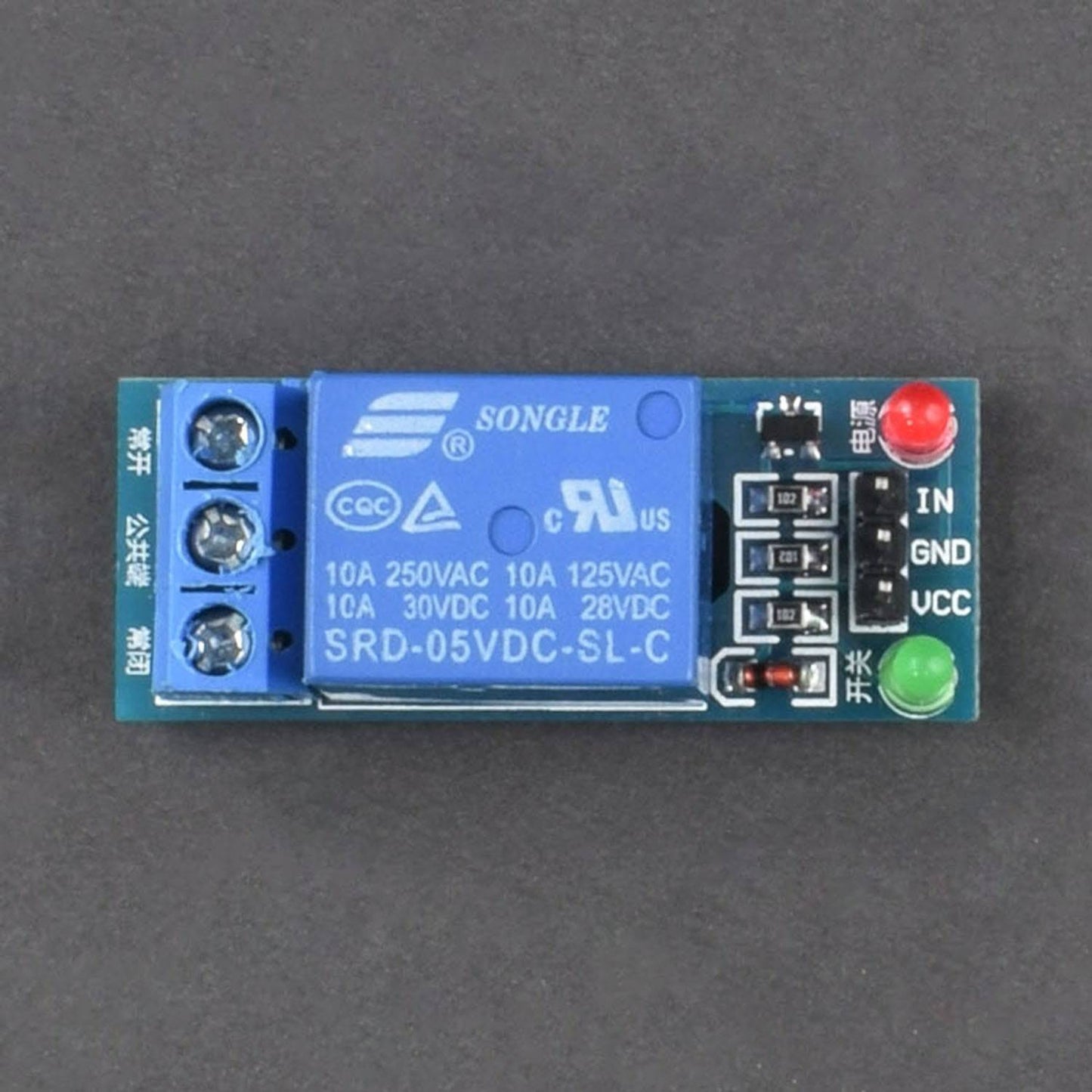

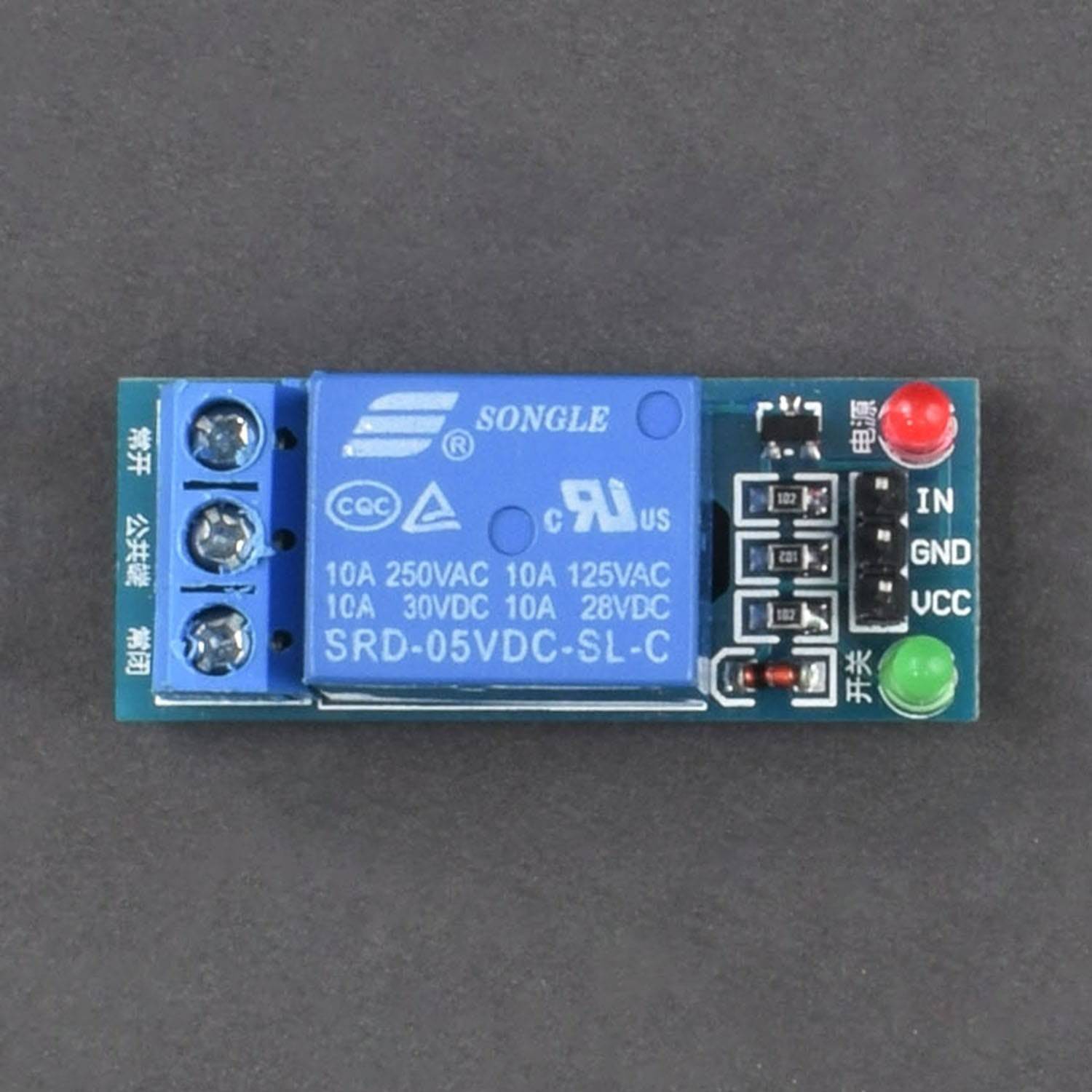

5V 1 CHANNEL RELAY MODULE
The module is uses SRD relay module to control high-voltage electrical devices. (maximum 250V).It can be used in interactive projects and can also be used to control the lighting, electrical and other equipment can be controlled directly by a wide range of microcontrollers and can be controlled through the digital IO port, such as solenoid valves, lamps, motors and other high current or high voltage devices.
- Number of I/O Channels: 1
- Type: Digital
- Switching capacity available by 10A in spite of small size design for high-density P.C. board mounting technique.
- Control signal: TTL level
- Max. Allowable Voltage: 250VAC/110VDC
- Max. Allowable Power Force: From C(800VAC/240W), From A(1200VA/300W)
- UL, CUL,TUV recognized.
- Indication LED for Relay's Status
SPECIFICATIONS
TTP223B CAPACITIVE TOUCH SENSOR

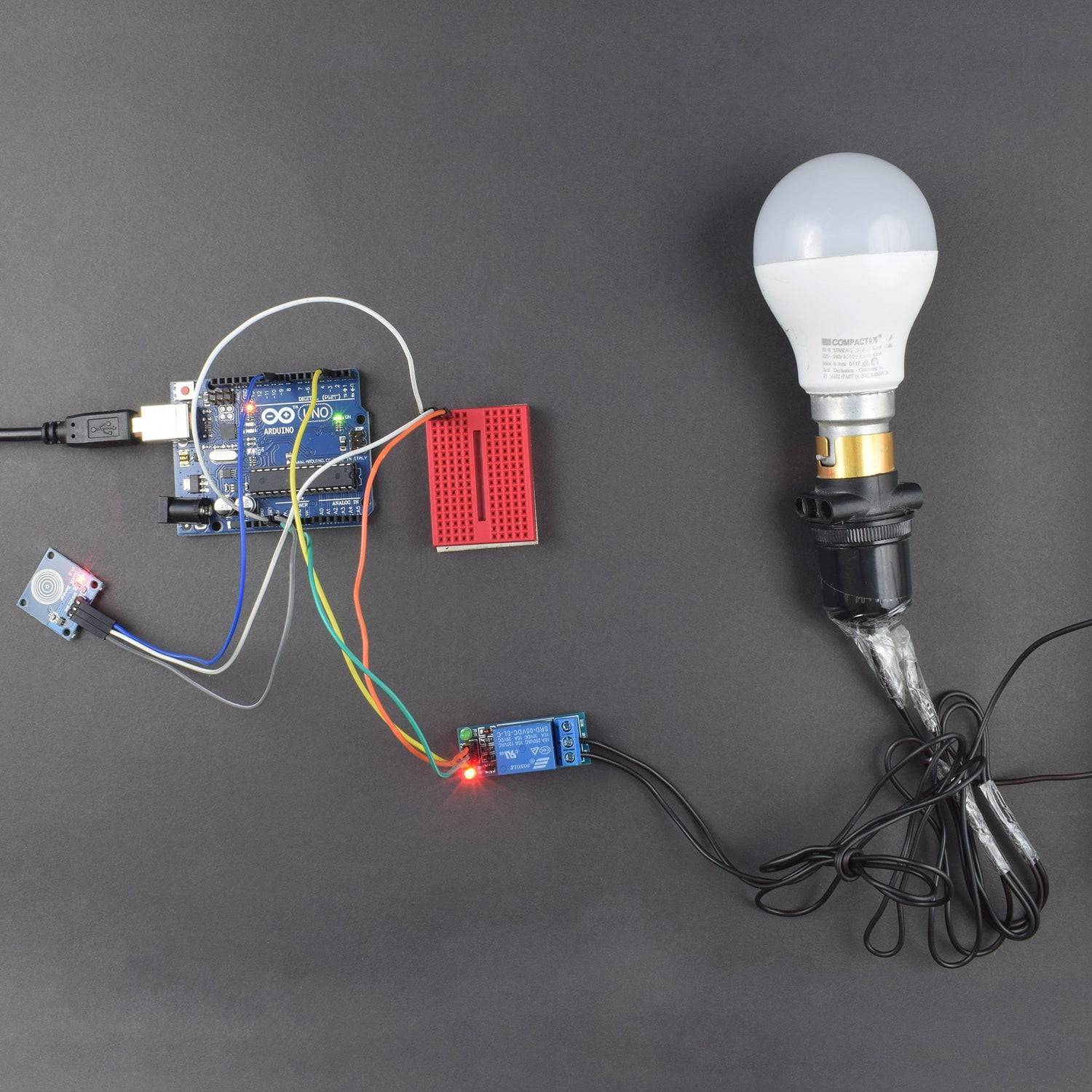

CIRCUIT DESCRIPTION
- SIG Pin of TTP223B connects to Arduino’s Digital Pin no. 9
- VCC Pin of TTP223B connects to Arduino’s 5v pin
- GND Pin of TTP223B connects to Arduino’s GND pin
- 5v relay module’s pin S to Arduino’s Digital Pin 2
- VCC Pin of 5v Relay Module connects to Arduino’s 5v pin
- GND Pin of 5v Relay Module connects to Arduino’s GND pin
CODE

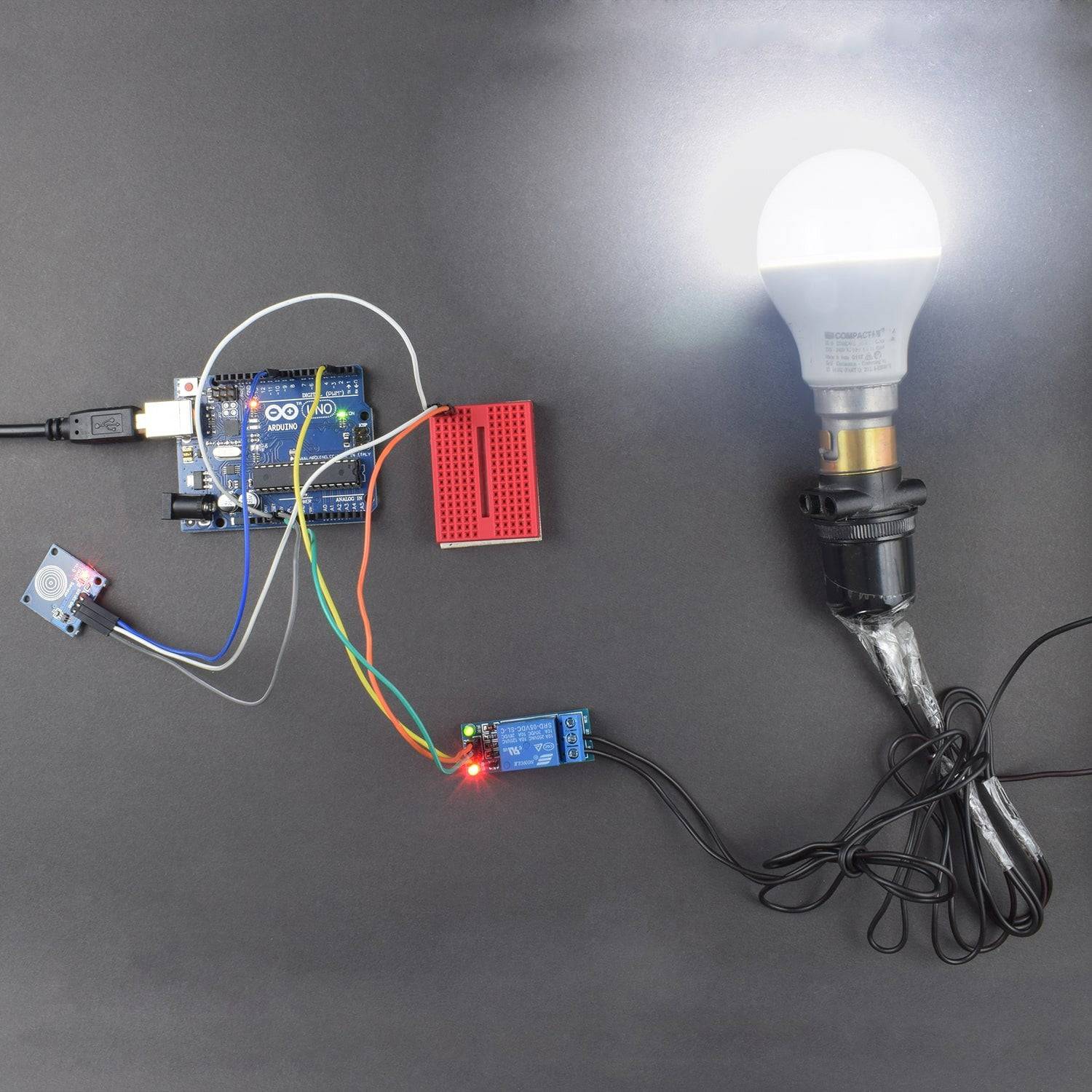

WORKING
Touch the TTP223B WITH finger then Relay Module’s Green Light Will Turn On and Bulb too.
Then touch the sensor and Bulb will turn off.
