Descriptions:
This electromechanical marvel operates on a fundamental principle: when exposed to an external magnetic field, two internal ferrous pins are magnetically attracted, causing the switch to close.Conversely, the removal of the magnetic field allows the pins to separate, effectively opening the switch.This non-contact switching mechanism eliminates the need for physical contact, ensuring exceptional durability and longevity.
It operates flawlessly within a temperature range of -50°C to +140°C, demonstrating unwavering reliability in even the most extreme environments. With a current carrying capacity of up to 1.2A, this versatile component can seamlessly integrate into a variety of electronic systems.
Specifications :
- Model Type: Reed Switch
- Max. Contact Rating: 10W Max. Switching Current: 0.55 A
- Max. Operate time: 0.45 ms
- Mech. Electrical Lifecycle: ≈ 100,000
- Insulation Resistance (MOhm): 100
- Operating Temperature (°C): -50 to 140
- Contact Resistance: 20mΩ
Features:
- Ideal for space-constrained applications.
- Easy to integrate into various designs.
- Designed for extended service life with minimal degradation over time.
Package Included:

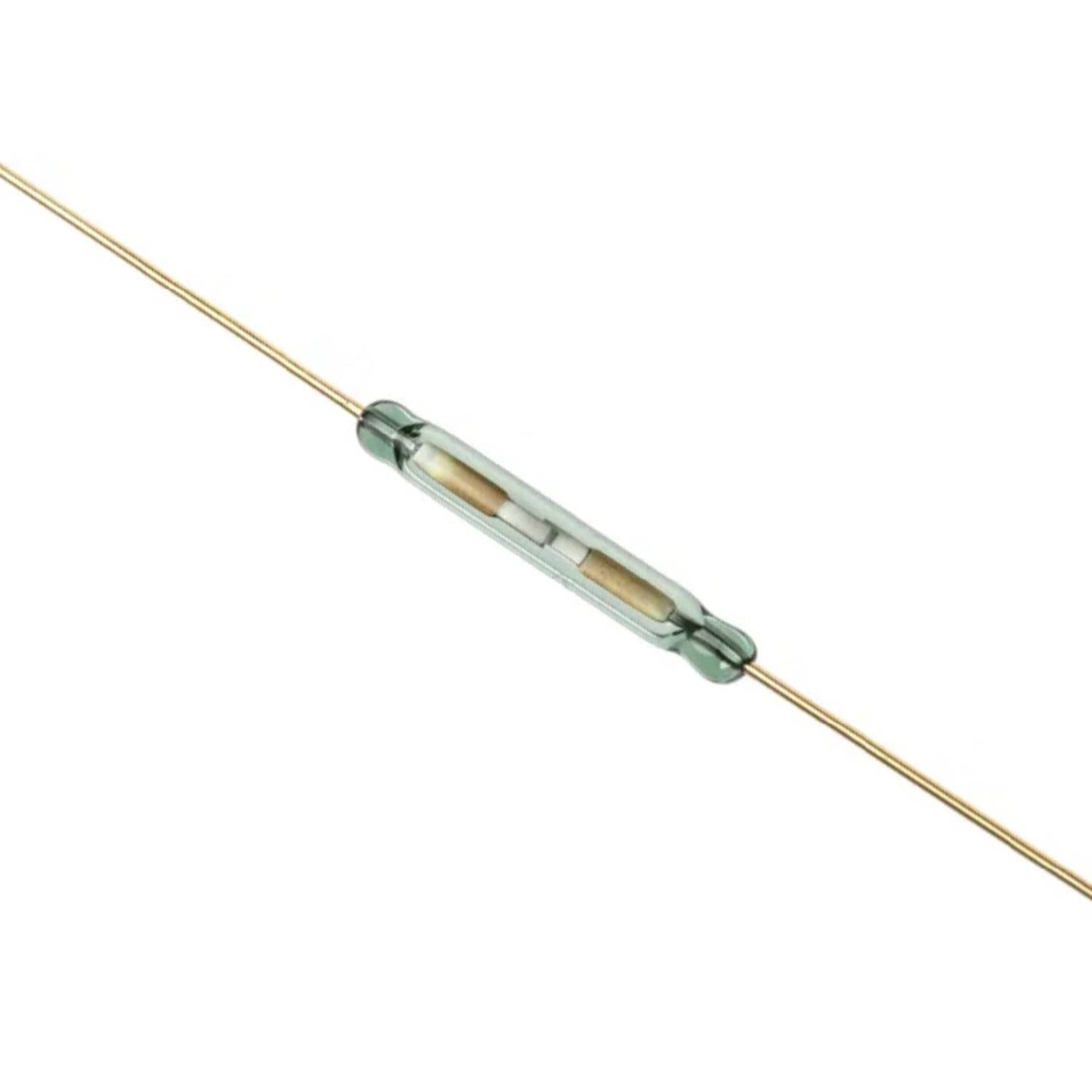

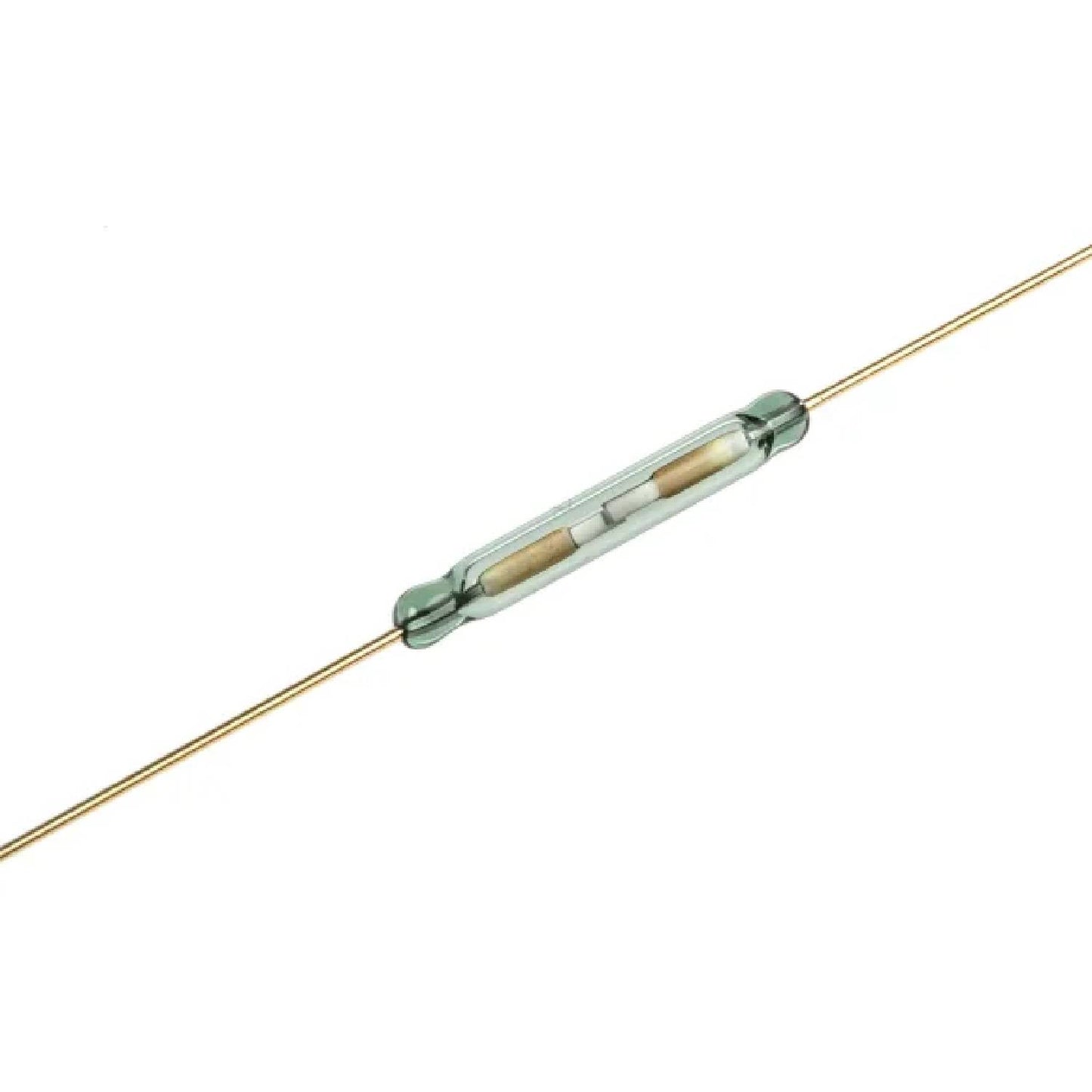

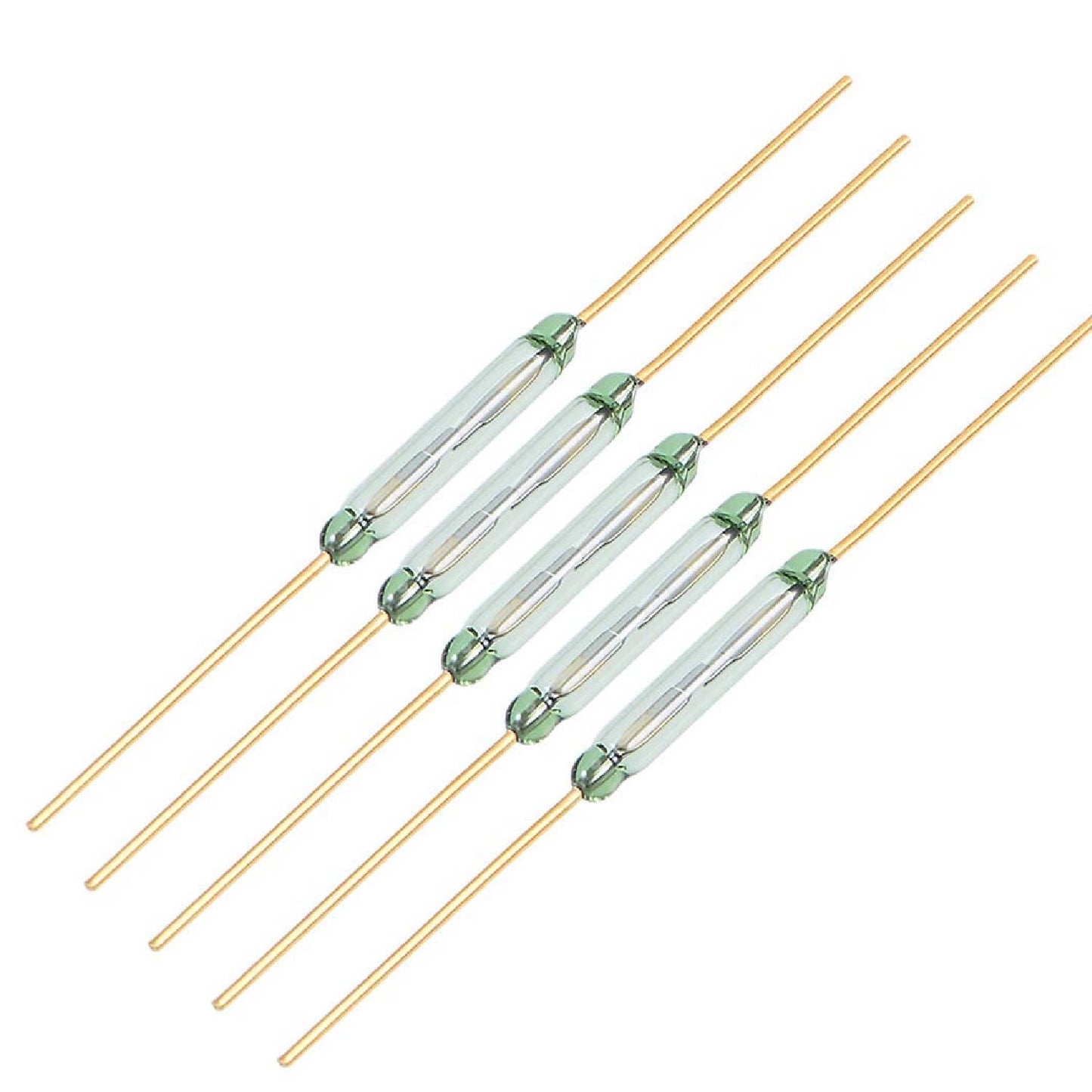

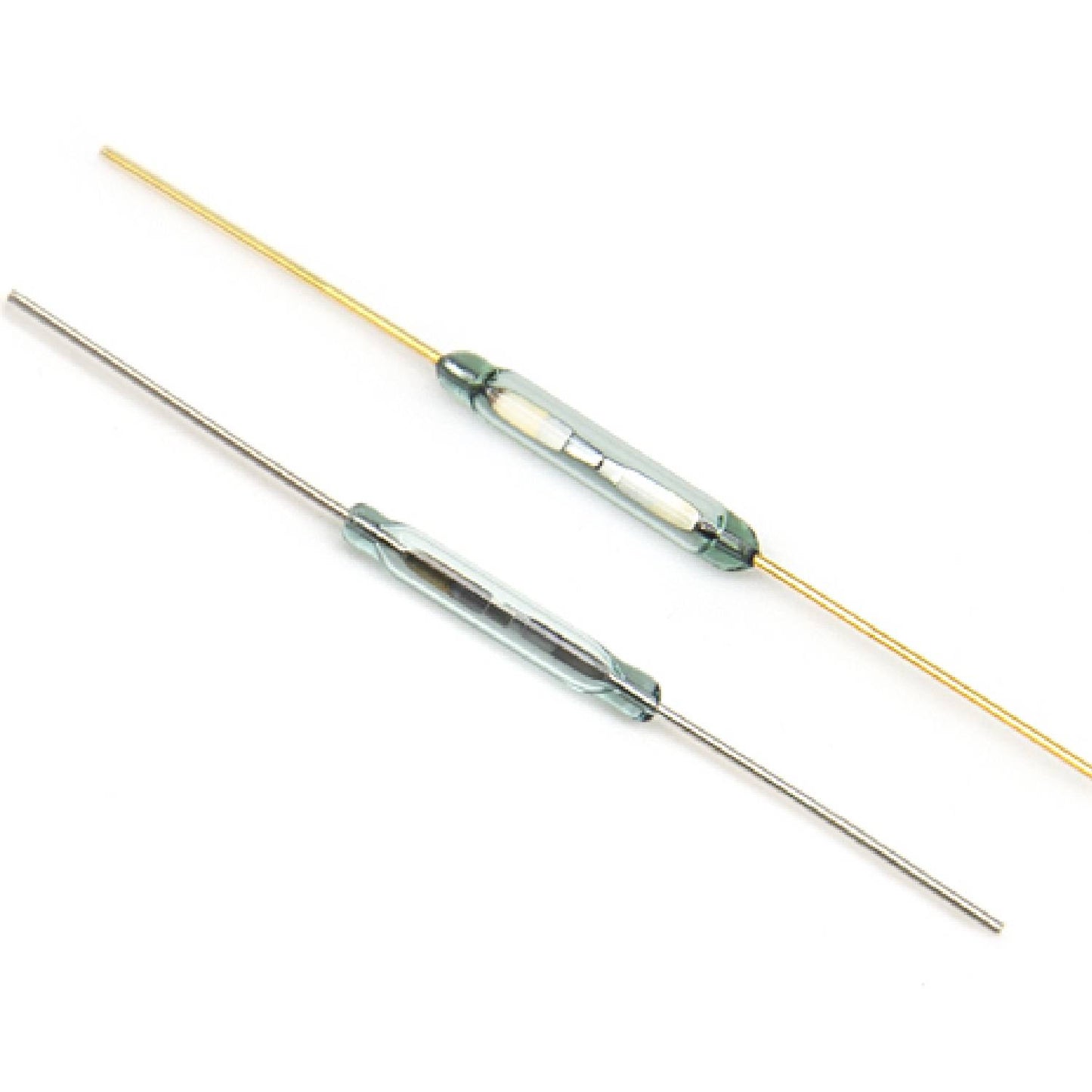

1 x Reed Switch Magnetic Reed Switch
