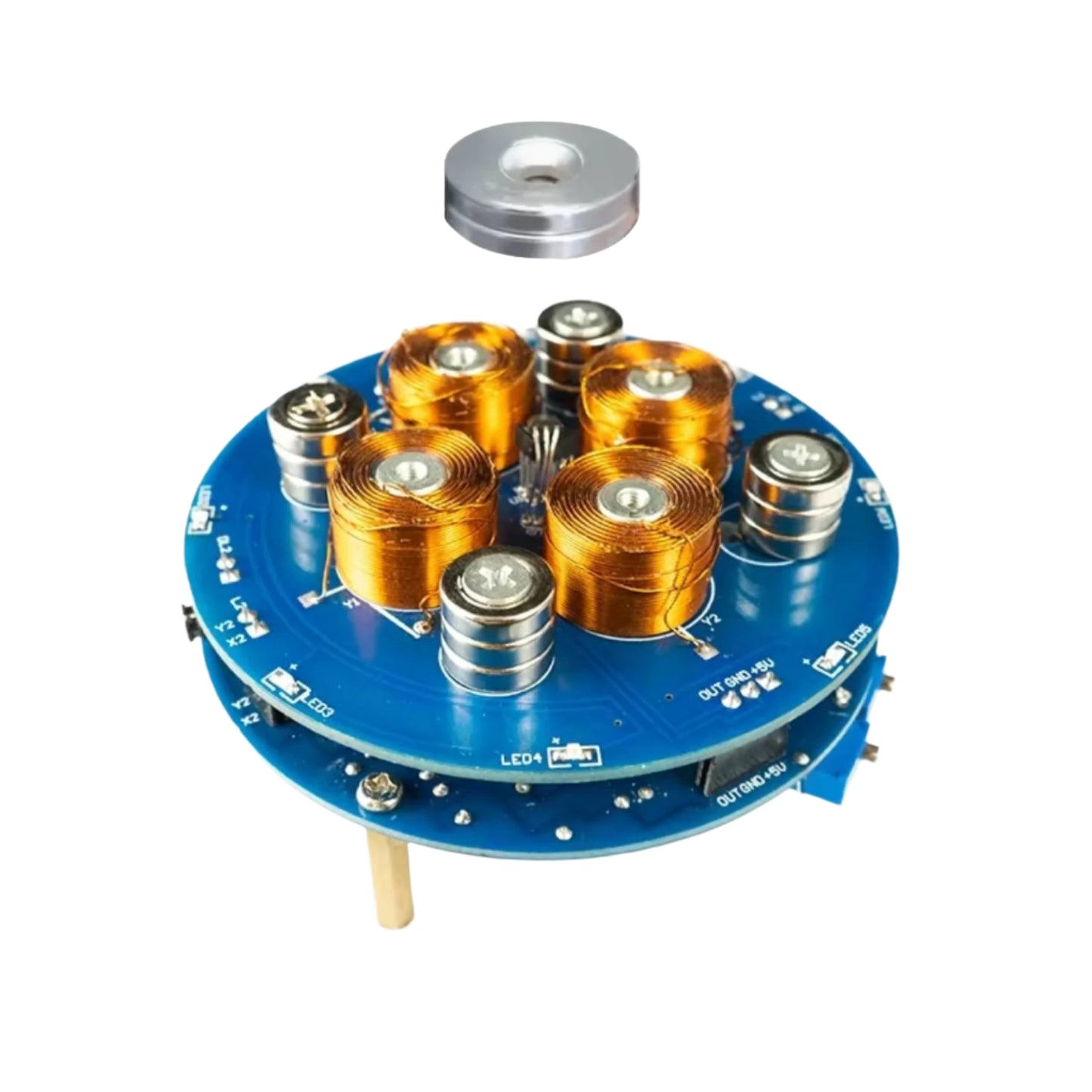

Magnetic Levitation DIY Kit 50gm Magnetic Suspension DIY Module Kit Magnetic Levitation Kit With 50gm Floating Capacity Build Your Own Magnetically Levitating Toy - RS7234

Description:

DIY Magnetic Levitation Kit Magnetic levitation is mainly composed of coil, magnet, Hall sensor, and drive circuit. When the magnet is close to the Hall sensor under the coil, the Hall sensor will output an analog quantity by detecting the change of magnetic field to the amplification circuit for amplification, and then conduct pulse width modulation through this value.

When the magnet and the suspended object fall from the sensor due to gravity, the output value of the sensor will increase the voltage duty ratio in the coil and the magnetic force of the coil, thus the magnet and the suspended object are pulled. On the contrary, when the distance from the sensor is too close, the output value of the sensor reduces the voltage duty ratio of the coil, and the magnetic force of the coil is weak.

Specifications:

• Material: Electronic Components + Magnet
• Maximum Bearing Weight: About 50 Gm

Features:

• The circuit is simple, reliable, and practical.

• The product adopts an analog circuit design and low power consumption.
• This DIY kit is designed for scientific research and experiments and is not applicable for other purposes!

• Suitable for students to learn the principle of welding circuit diagram

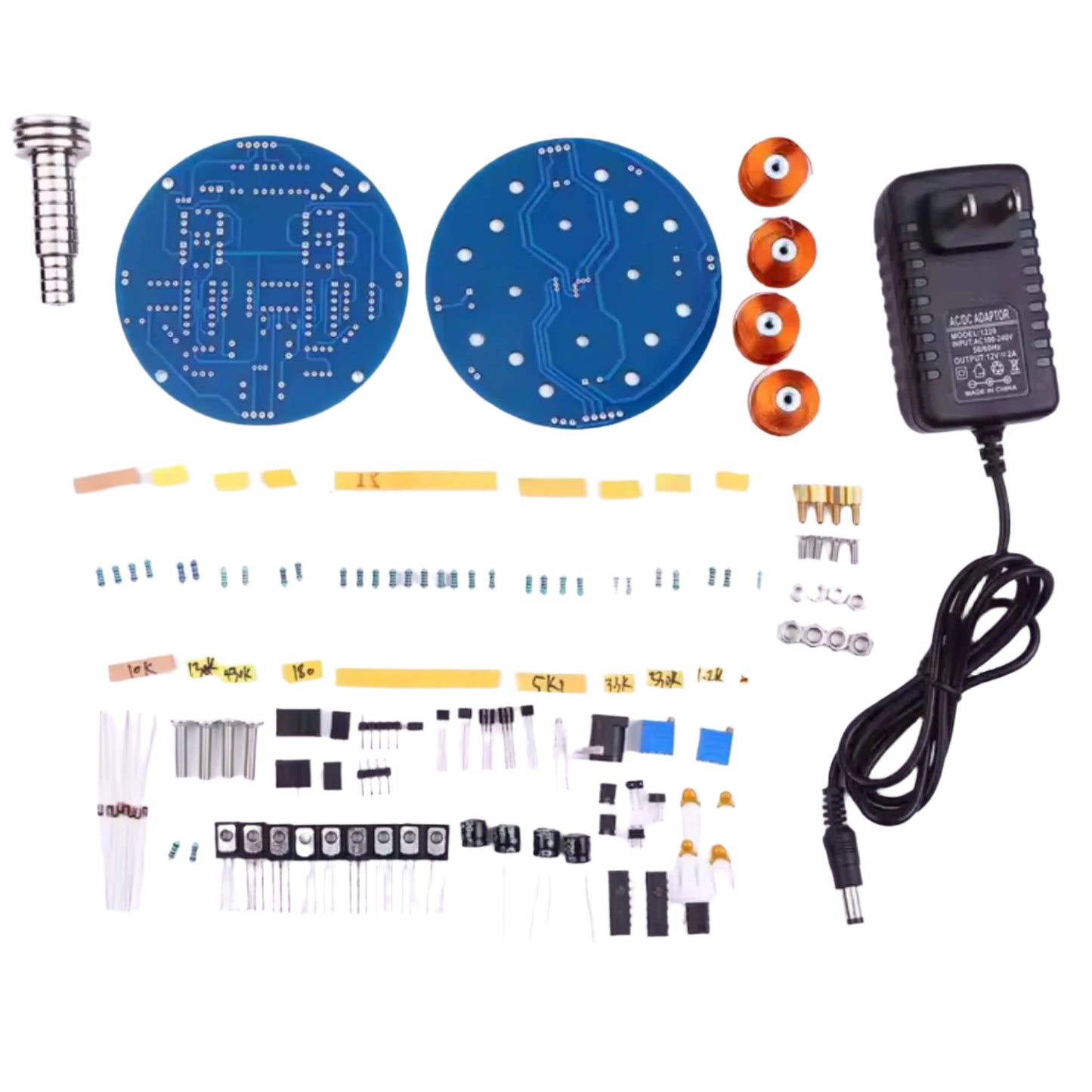

Package Included:
