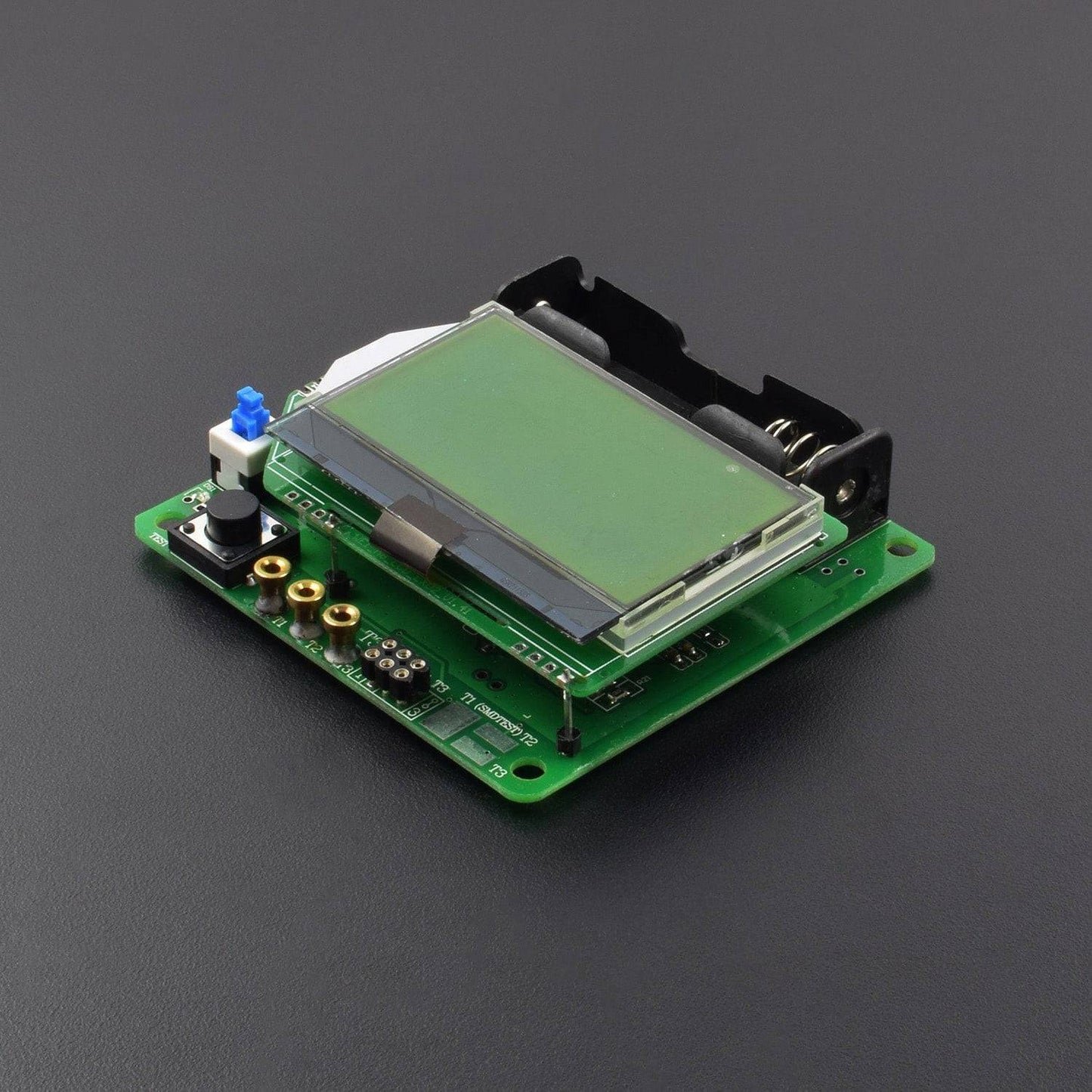

M8 MG328 Graphics Transistor Tester Multi-function Inductor Capacitor ESR Meter - RK069
M8 MG328 Graphics Transistor Tester Multi-function Inductor Capacitor ESR Meter - RK069
SKU:RK069
Low stock: 4 left
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
The REES52 Promise
The REES52 Promise
We want you to build, not worry. Here is exactly what happens if something goes wrong with your order.
Dead on arrival or defective? We replace it.
If your item is dead on arrival or has a manufacturing defect, tell us within 7 days of delivery. Email support@rees52.com with your order number and a short video or a couple of photos showing the problem. Our team will get back to you within 24 hours and arrange a free pickup from your doorstep - you never pay return shipping for a defective item. Once we verify the issue, your replacement ships out right away. If the item is out of stock, you get a full refund instead.
Refunds, with real timelines.
- Approved refunds go back to your original payment method within 6-7 working days.
- Missing item in your package? Tell us within 7 days with photos of what arrived and the parcel label. Once confirmed, the refund for the missing item reaches you in 2-3 working days - or we ship the missing piece free, your choice.
- Every refund comes with a reference number by email or WhatsApp, so you can track it with your bank instead of chasing us.
Wrong item or not as described?
Email us your order number and a photo of what you received. We arrange the return pickup, and ship the correct item as soon as the return is on its way. Prefer your money back instead? That is fine too - full refund, same 6-7 working day timeline.
About lead times on some products.
A few items on rees52.com are sourced from our overseas partner warehouses and are not sitting on our shelf. Those products show a lead time of about 20-25 working days on the product page, before you pay. If you order one, we keep you posted as it moves. Changed your mind while waiting? You can cancel any time before dispatch and get a full refund within 6-7 working days. No cancellation fee, no questions.
Talk to a human.
Email support@rees52.com or call/WhatsApp +91 95995 94520, Monday to Saturday, 10:30 AM to 7:00 PM. Real people, order number in hand, actual answers.
- Operating System: ATmega328 microcontroller
- Display: LCD with back light, 2×16 characters
- Power Supply: 3.7V rechargeable lithium battery (battery model: 14500) or 5V USB port power supply

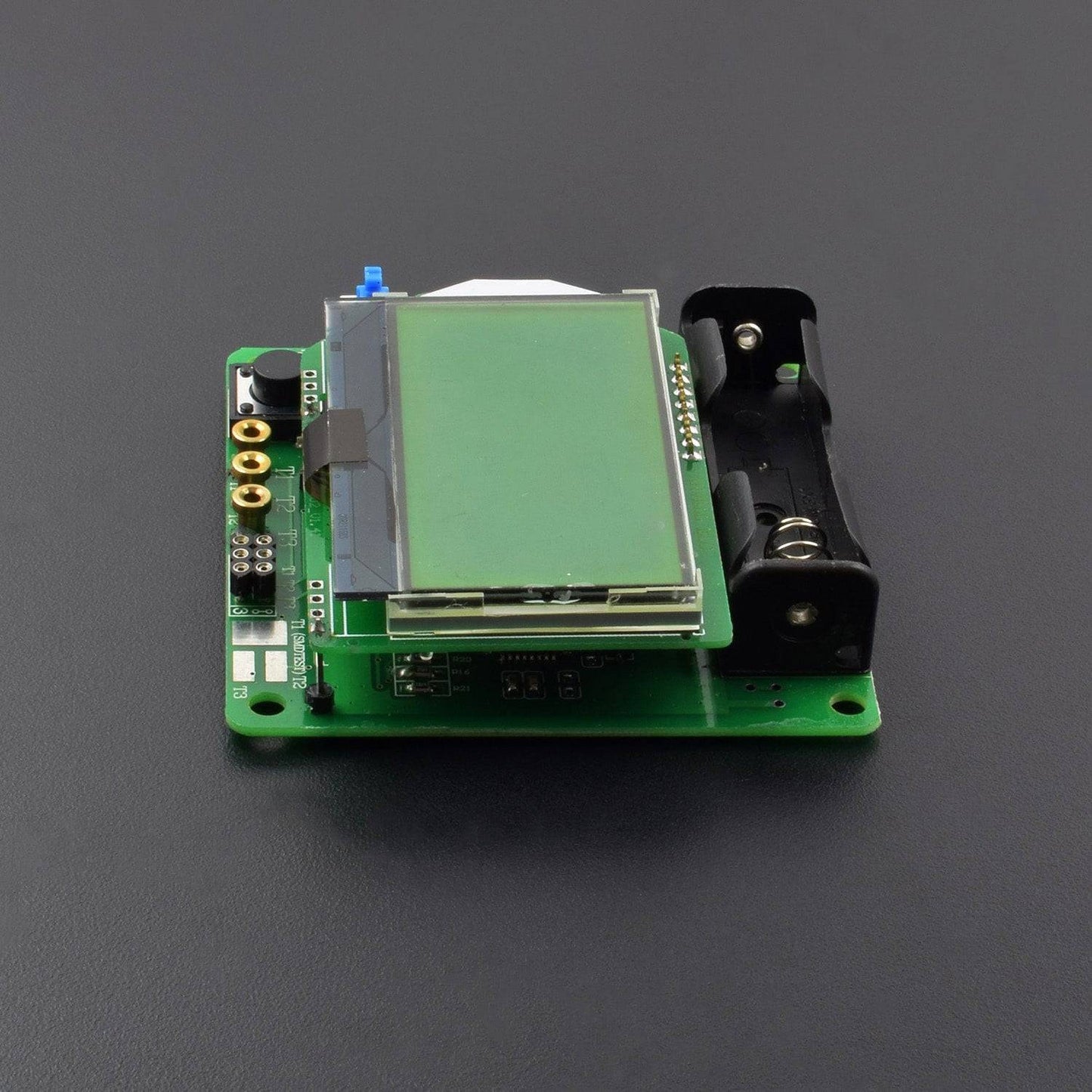

Description:
The tester uses 3.7V rechargeable lithium battery (battery model: 14500), but you can use the T-MINI USB socket to charge the battery and power the system, is more economical and convenient for a long time in the indoor use.
Specification:
| Operating System | ATmega328 microcontroller |
| Display | LCD with back light, 2×16 characters |
| Power Supply | 3.7V rechargeable lithium battery (battery model: 14500) or 5V USB port power supply. |
| Shutdown Current | 20nA |
| Resistance Measurement | 0-50MΩ, accuracy is 0.1Ω |
| ESR Measurement | 2UF or higher value capacitor, accuracy is 0.01Ω and a two-digit numeric display |
| Capacitance Measurement | Max. four numbers and units display, measuring range 25pf to 100mF, Resolution up to 1 pF (@ 8MHz clock). * discharge it before testing. |
| Inductance Measurement | (Resistor value lower than 2100Ω) Range from 0: 01mH than 20H, but the accuracy is not good. Measurement results show only a single connection element. |
| Automatic Detection | PNP and NPN bipolar transistor, N, P-channel MOSFET, JFET, diodes, dual diode, thyristor SCR, pin layout, etc |
| Other Measurements | Threshold voltage of emitter junction and current amplification factor of the bipolar transistor. |
| Other Functions | Find out all the full-bridge connection by measuring it only once |
| Testing Time | about 2 seconds, only the capacitance and inductance measurements require longer time. |
Correction:
Short connect three test terminal, enter the test, the screen prompts correction step. When prompted to disconnect nipple, disconnect the three test, calibration will continue, when prompted connect 100nF capacitor above in the 1-3 foot, program will automatically enter the next step. Until the end of the correction to restart, can complete the correction.
Features:
- One key measure operation, automatically shut off the power when delay. Support for battery operation.
- Automatic detection PNP and NPN bipolar transistor, N, P-channel MOSFET, JFET FET, diodes, two diodes, thyristors, resistors, capacitors, inductors. Automatic detection pin definitions.
- Measurement of the bipolar transistor current amplification coefficient (B) and emission of conduction voltage (Uf). Darlington transistor can be identified by the amplification factor of the high threshold voltage and high current.
- Can detect bipolar transistors and MOSFET's internal protection diodes and displayed on the screen.
- Measuring the threshold voltage and the gate capacitance of the MOSFET.
- Support two resistance measurements, the potential can be measured. If the potentiometer is adjusted to its end, the tester can not distinguish between the middle and the ends of the pin.
- Resistance measurement resolution is 0.1 ohms, the maximum value is 50M ohms measurements.
- Capacitance measurement range from 25pf to 100mF (10 UF). Resolution up to 1 pF, inductance measurement range is 0.01MH-20H, otherwise it will appear as a resistor, if inductor DC resistance is higher than 2100Ω will also be displayed as a resistor.
- Can detect 2UF above capacitor equivalent series resistance (ESR), the resolution is 0.01 ohms. This feature is very important for the detection of the capacitor performance.
- Can display symbols of the two diodes in the right direction, also shows the positive voltage drop.
- For evaluation of a LED diode, positive voltage drop higher than normal. Double light emitting diode detection for the double diode. Simultaneous detection of the light-emitting diode will flashes.
- Each test time is about two seconds, only large capacitance and inductance measurement will need a long time.

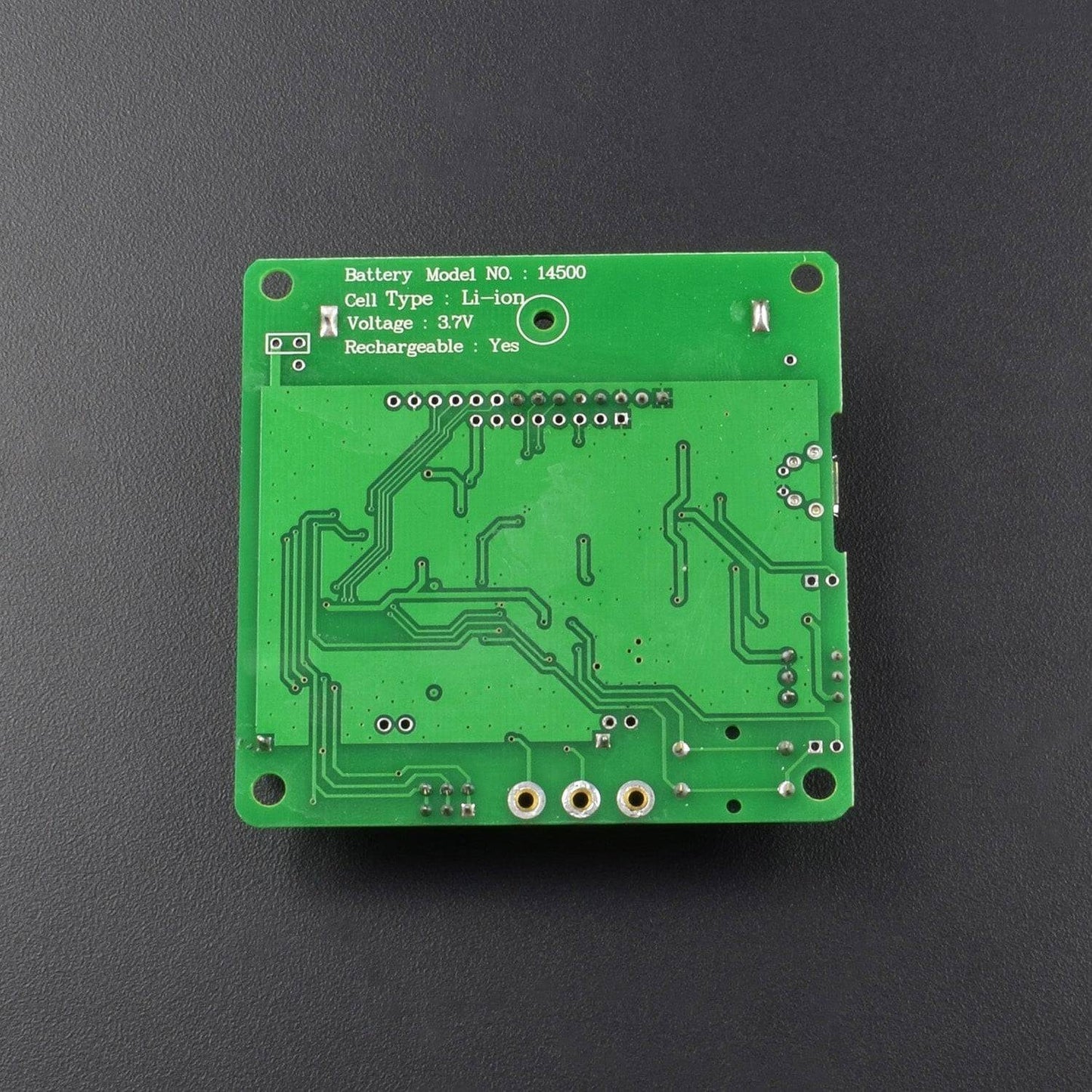

Note: When installing the battery for the first time, you need to activate the battery.
Method 1: After installing the battery, use tweezers or shorting line shorted connect the following two holes.
Method 2: After installing the battery, plug the charger can also complete activating.
Transistor (NPN transistor) test:
Capacitor (1000uF) test: (please discharge before test)
Resistor (100 ohms) test:
Undetected or damaged components:
Package Included:

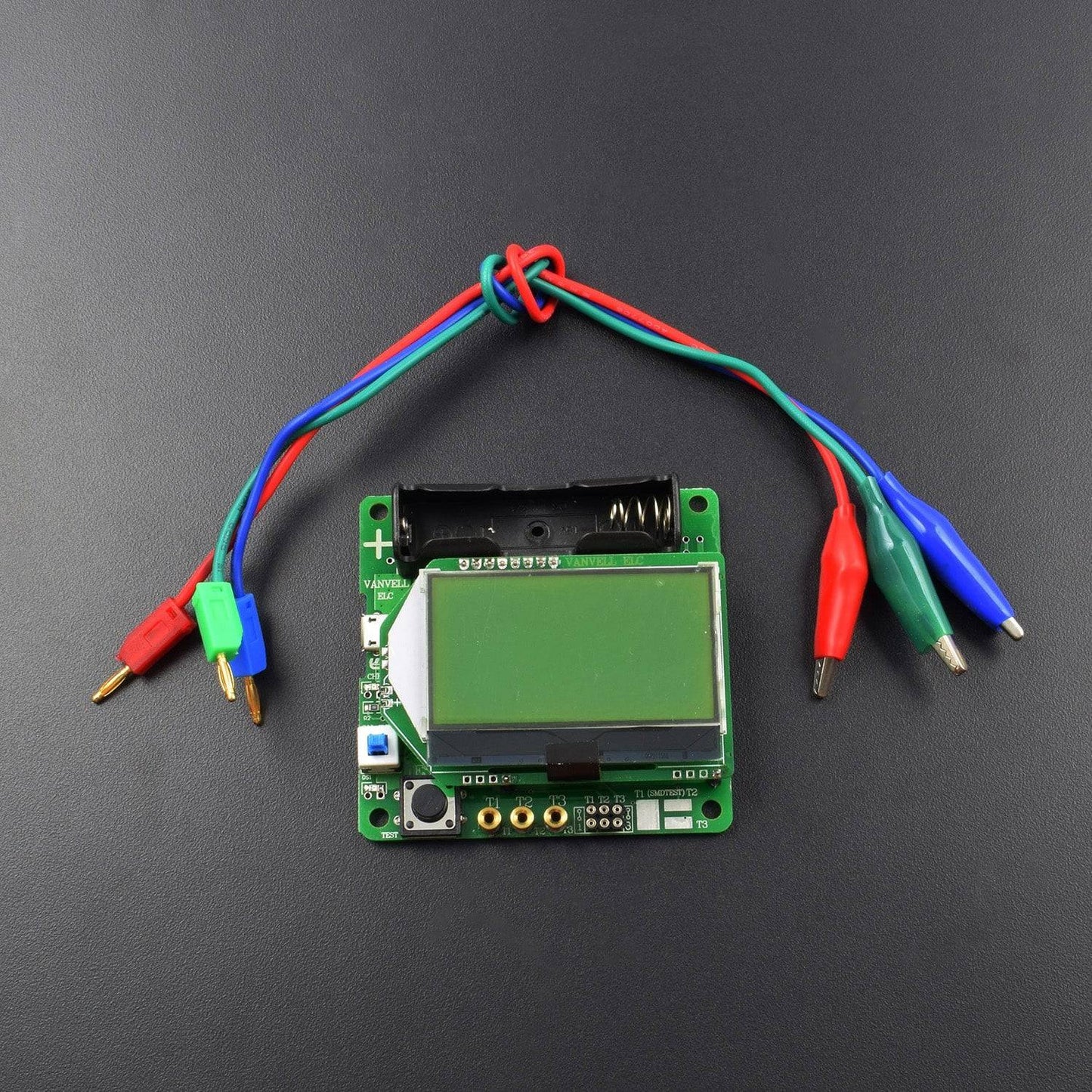

- 1 x ESR meter (battery is not included)
- 3 x High-quality test line (Color will be shipped randomly)
