Description:

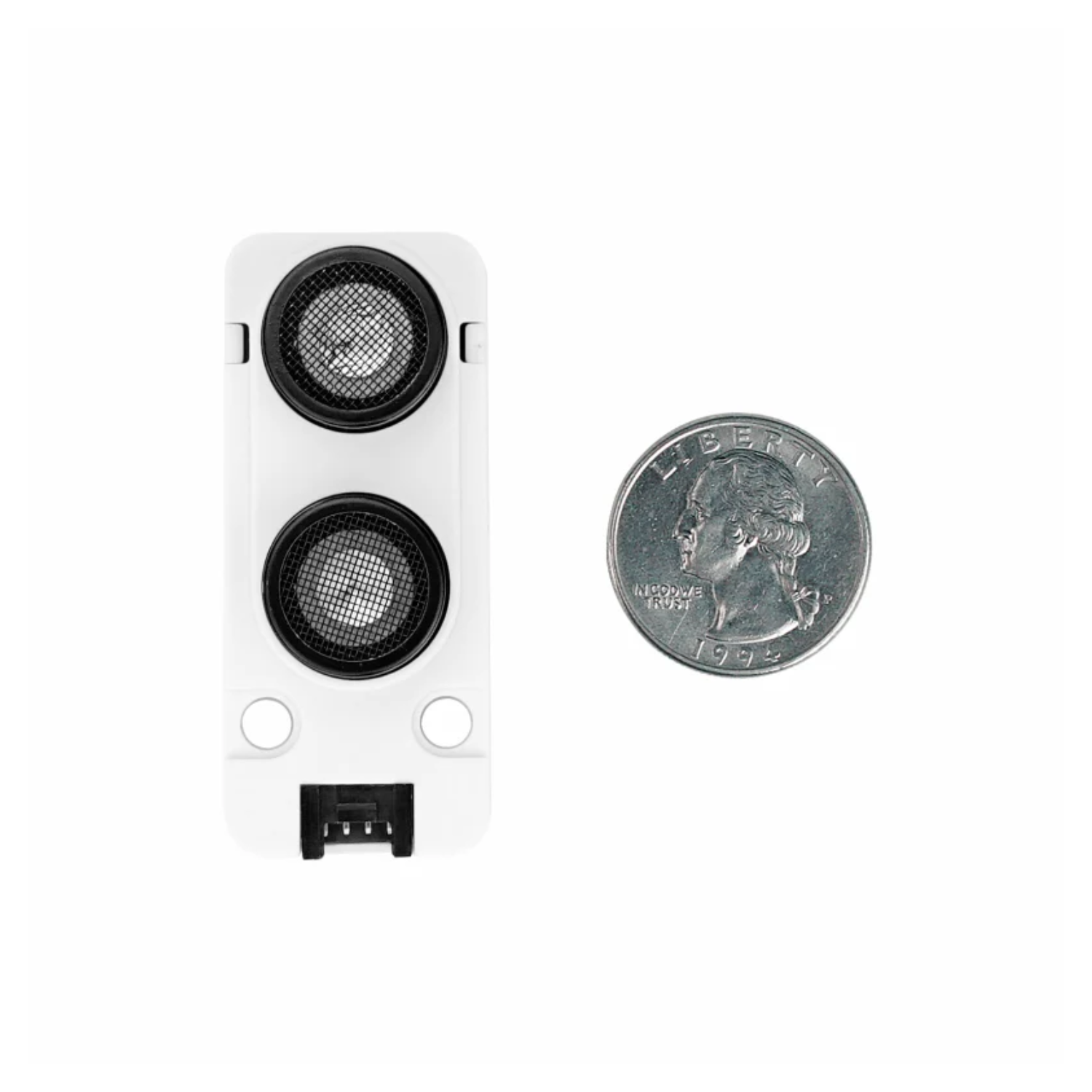

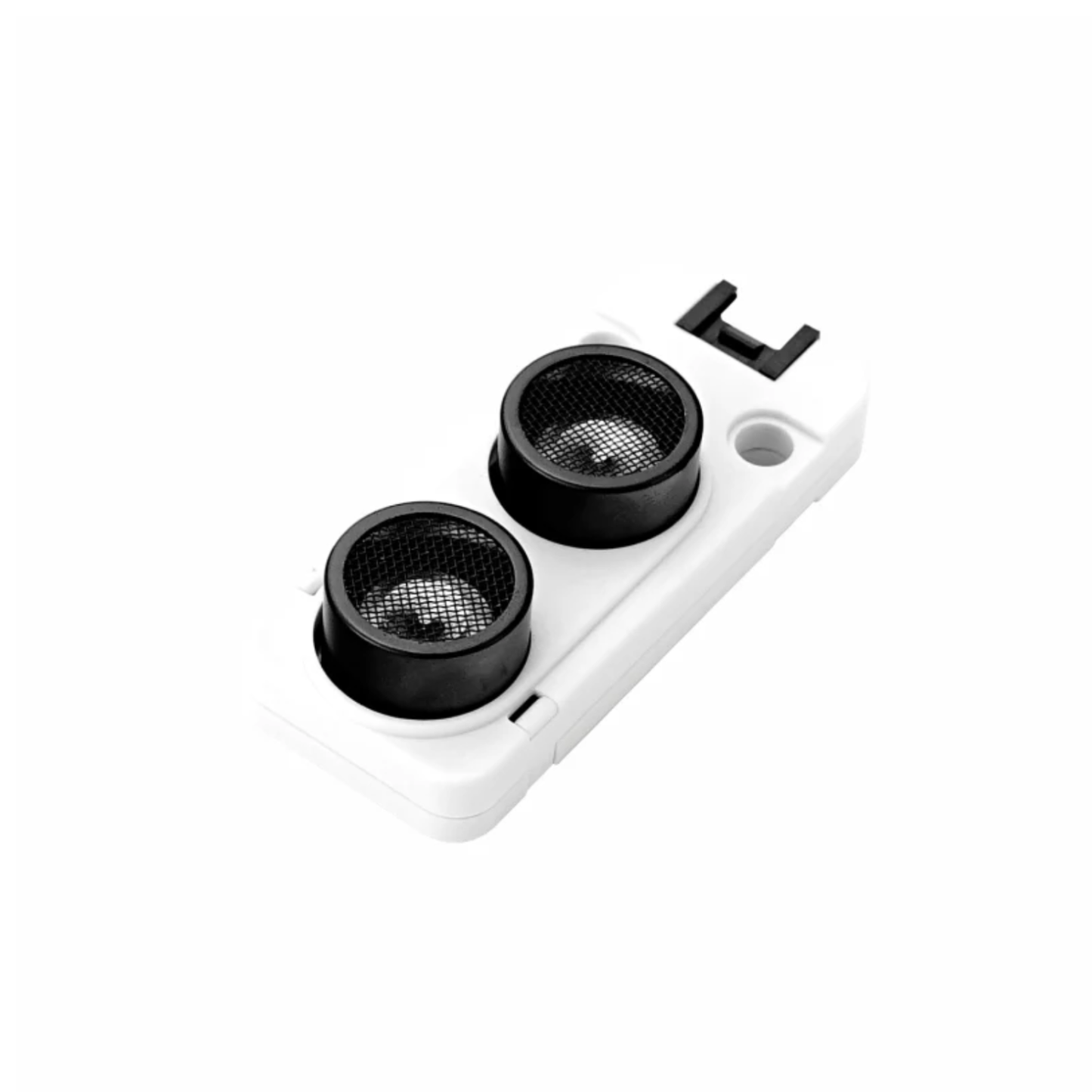

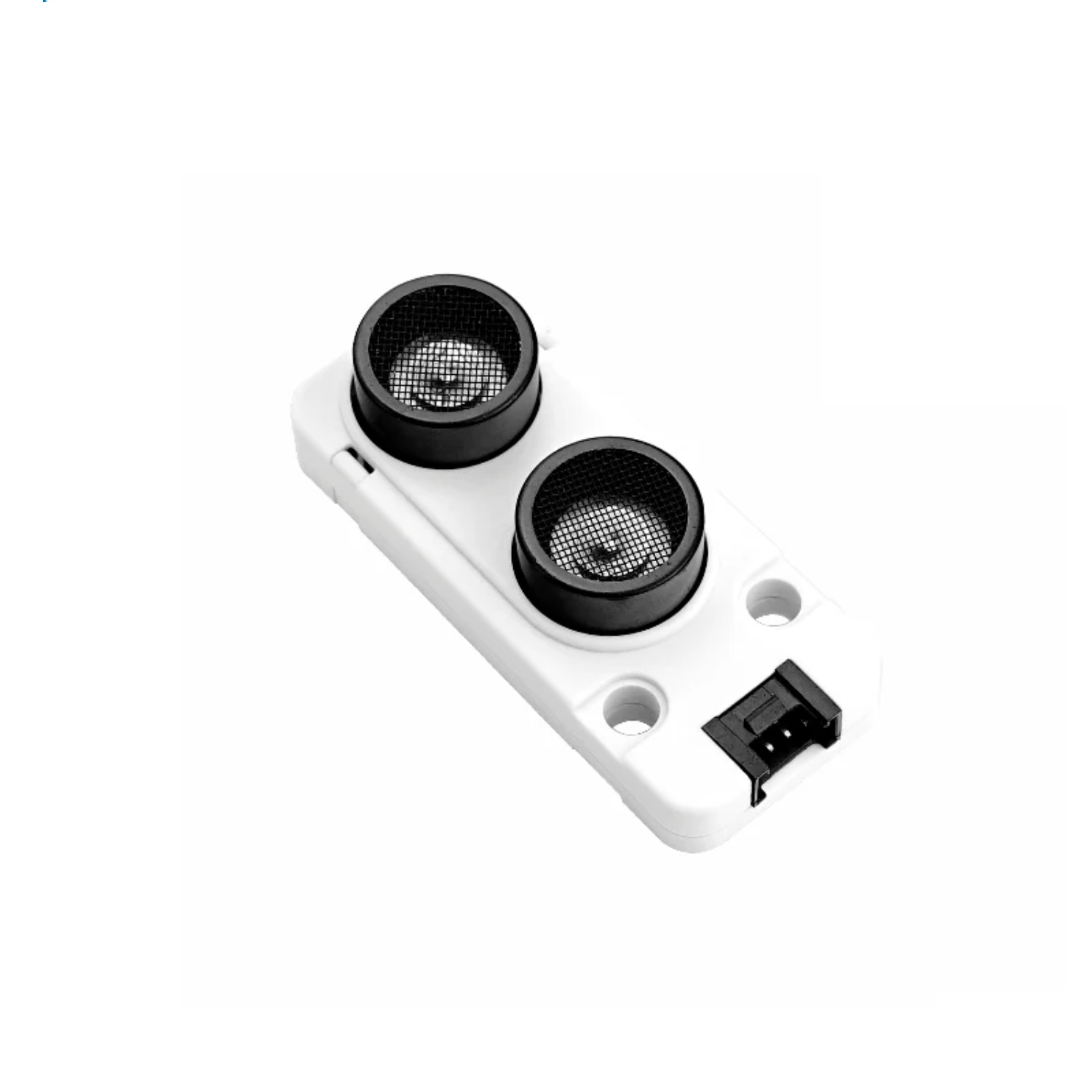

The M5STACK Ultrasonic Distance Unit I/O (RCWL-9620). This user-friendly UNIT SONIC IO integrates seamlessly with your projects via a simple GPIO interface. Equipped with an RCWL-9620 chip and a compact 16mm probe, it delivers accurate measurements ranging from a close 2cm to a far 450cm, boasting an impressive accuracy of ±2%. By cleverly timing the echoes of ultrasonic pulses, this sensor provides direct distance readings through straightforward IO control. Imagine the possibilities for intelligent robot navigation, precise fluid level monitoring, and countless other applications demanding reliable spatial awareness.
Specifications:
- Measurement Range: 2 to 450cm
- Model No.: RCWL 9620
- Chip: Ultrasonic Ranging Single Chip: RCWL-9620
- Size of probe: 16mm
- Frequency: 40 KHz (Receiving/Transmitting)
- Sensitivity: -65dB
- Working Current: 3mA
Features:
- GPIO communication interface
- Protective housing
- Built-in temperature compensation reduces the temperature drift
- Support the UIFlow platform

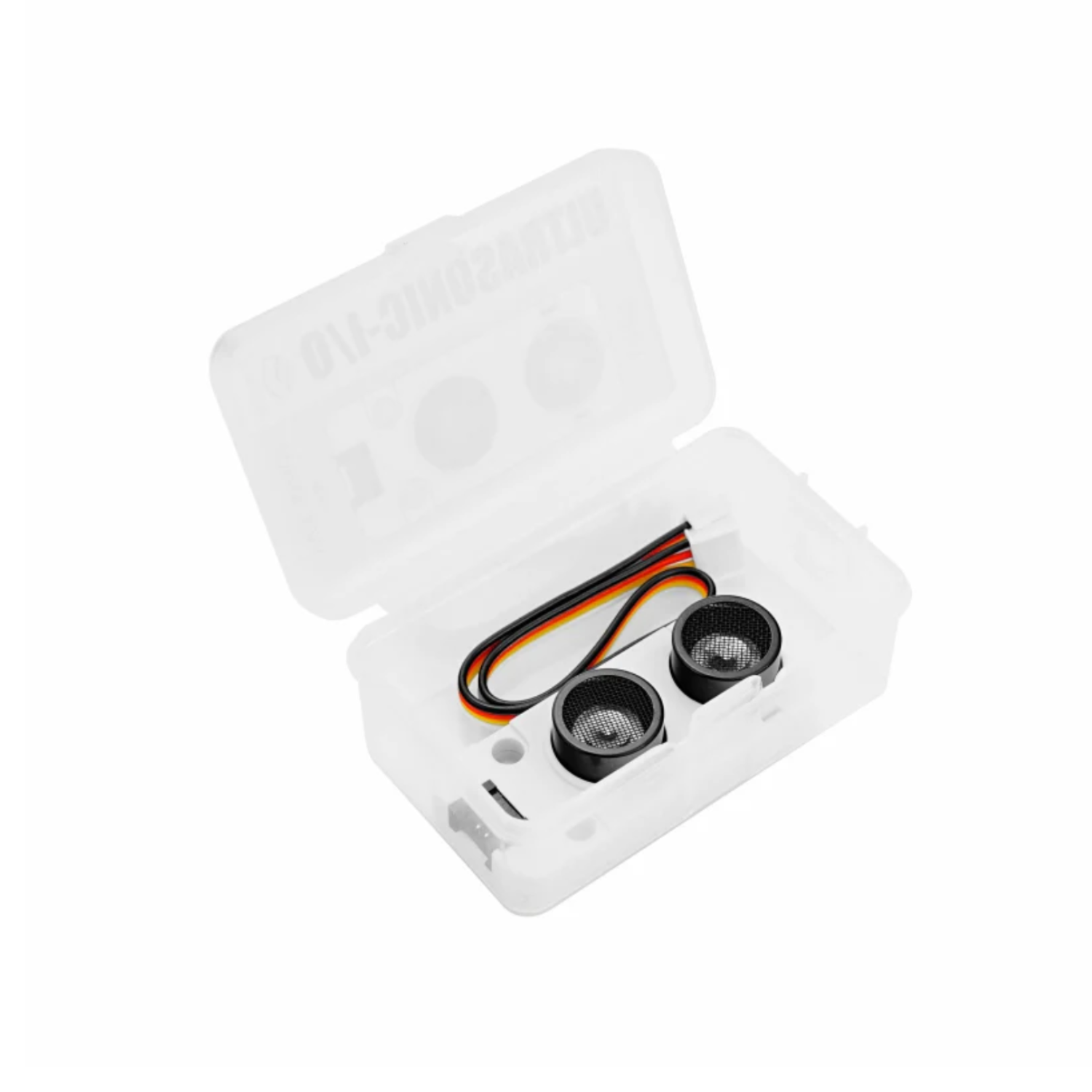

Package Included:
1 x M5STACK RCWL 9620 Ultrasonic Sensor
