• M5STACK Camera
  • ESP32 Camera
  • Fisheye Camera
1 4

M5 STACK

M5STACK ESP32 Fisheye Camera OV2640 PSRAM Smart Home Camera - RS6809

M5STACK ESP32 Fisheye Camera OV2640 PSRAM Smart Home Camera - RS6809

RS6809

Low stock: 4 left

Rs. 1,364.00
Rs. 1,364.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

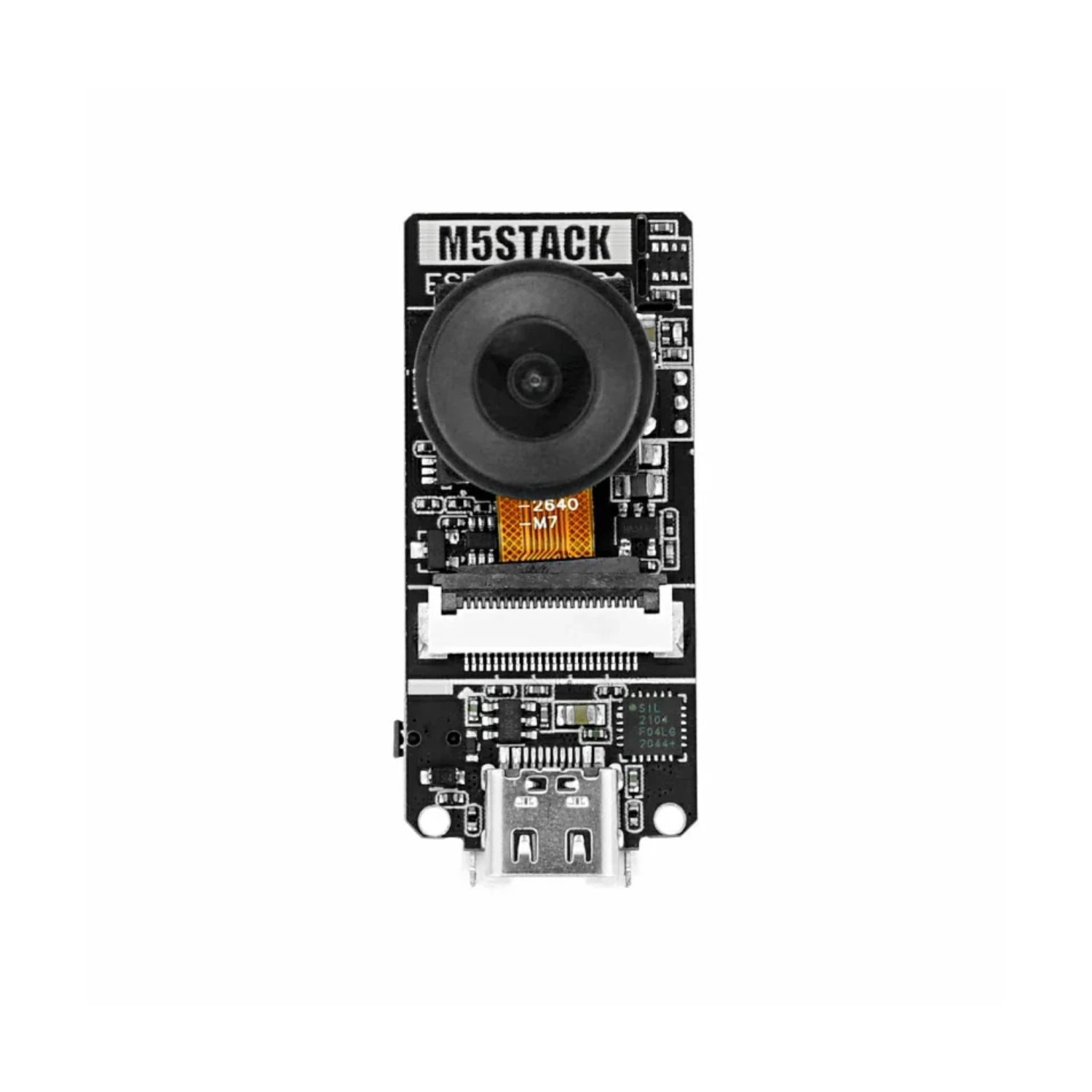

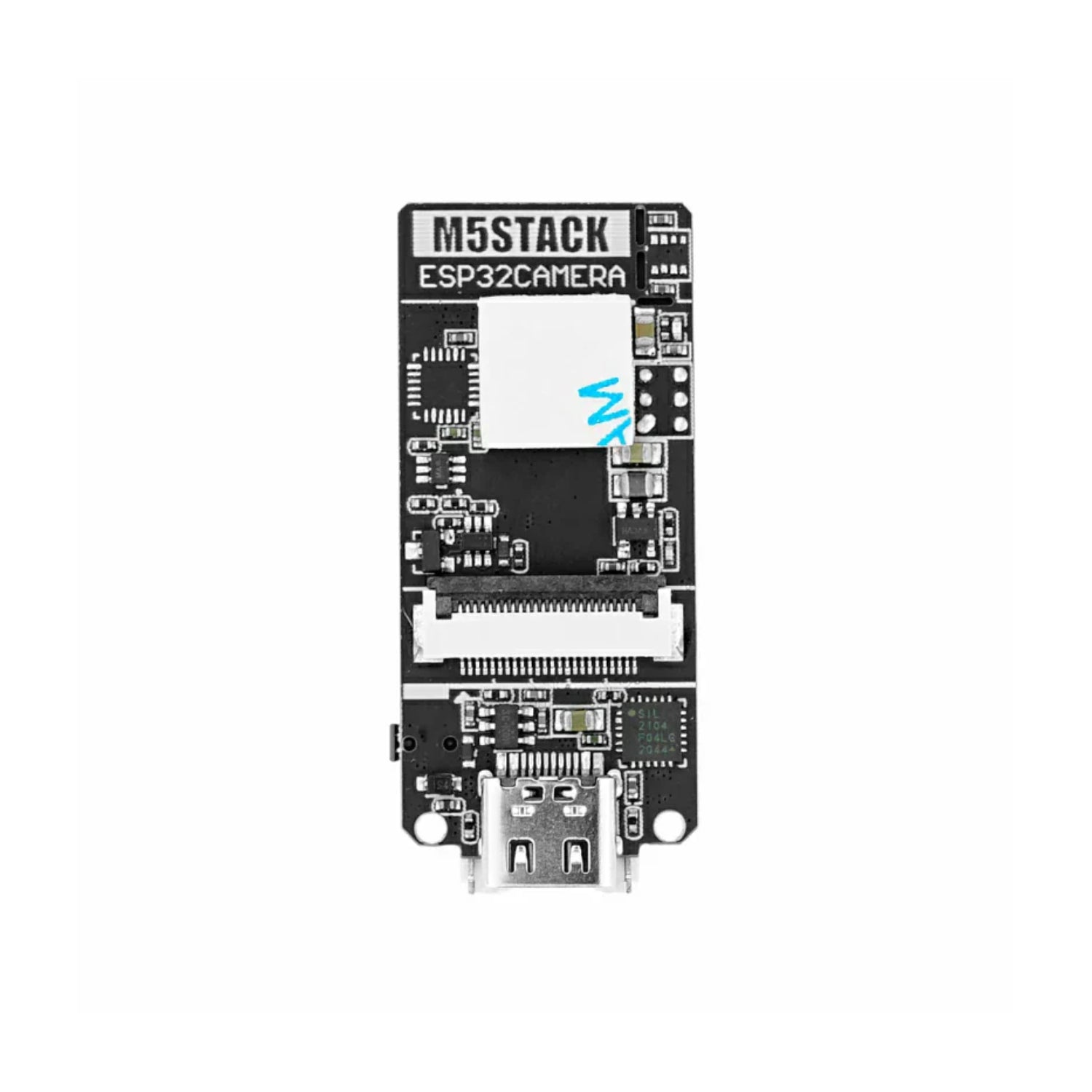

Description:

Unleash your image recognition projects with the ESP32CAM-PSRAM development board. This powerful module integrates a high-performance ESP32 chip (boasting 4MB Flash, 520KB RAM, and an expansive 4MB PSRAM) with a versatile 2-Megapixel OV2640 camera. Beyond its core functionalities, the ESP32CAM-PSRAM provides ample storage for demanding applications thanks to its extra 4 Mbyte PSRAM.

Seamless image transmission over Wi-Fi and convenient debugging via a USB Type-C port streamline your development workflow. Ready to go right out of the box, the preloaded ESP-IDF-based software enables you to run a fully functional Wi-Fi camera. While the initial output resolution is set at 600x800, the 2-Megapixel sensor offers significant potential for software optimization to achieve higher resolution imagery.

Specifications:

  • Item Type: Camera Module
  • Resolution: 2MP (1600 x 1200)
  • Operating Voltage: 3.3V
  • Camera Type: Fisheye Lens
  • Flash Memory: 4MB/500K
  • PSRAM: 4M PSRAM
  • Image Sensor: OV2640
  • Output Format: YUV(422/420)/YCbCr422,RGB565/555,8-bit compressed data,8-/10-bit Raw RGB data
  • Depth Field of View: 150°Deg.
  • CCD Size: 1/4 inch

Features:

  • Camera Field of View: 150 degrees
  • WIFI image transmission
  • CP2104 USB-to-TTL converter

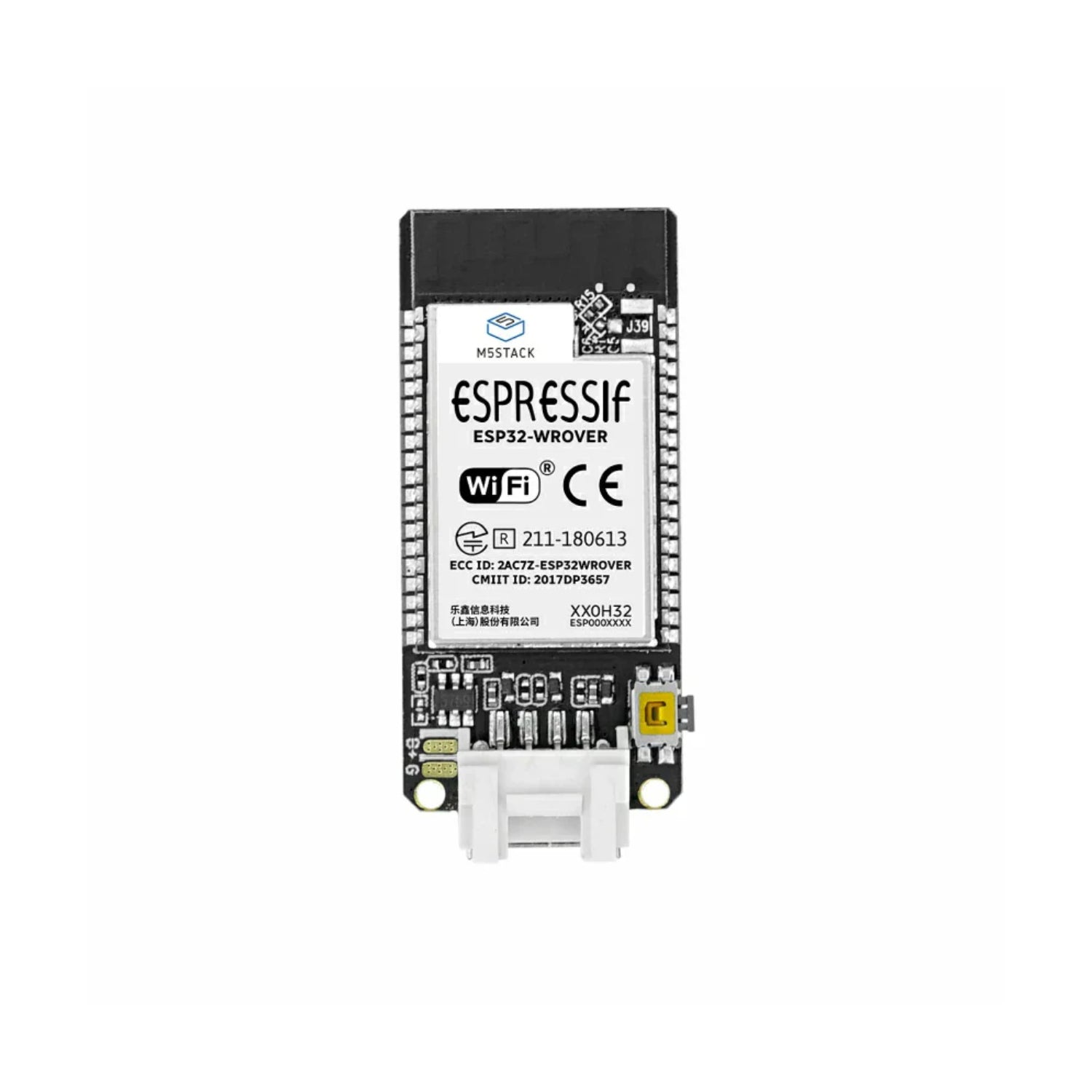

  • ESP32-WROVER-PCB Antenna

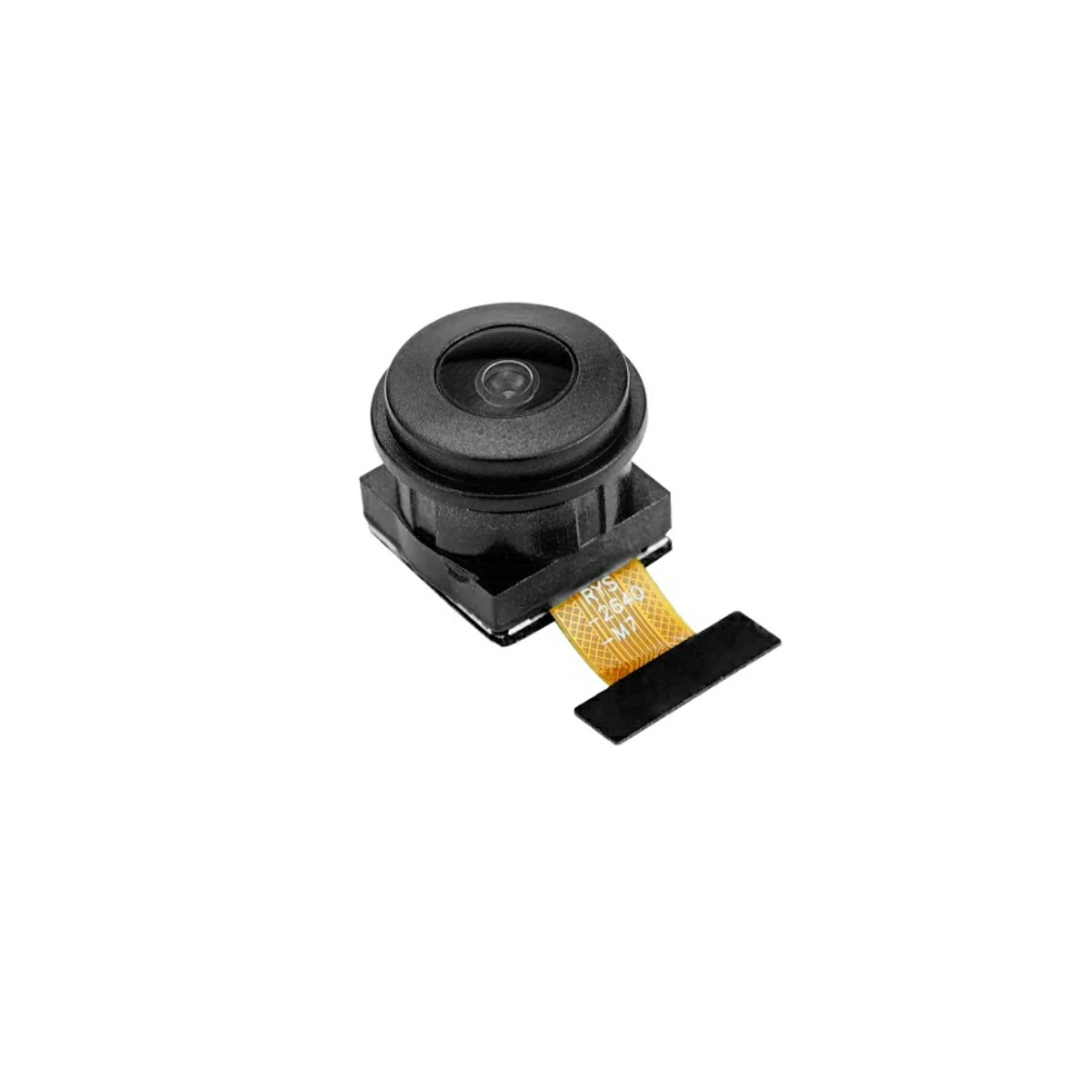

  • OV2640 Camera

Package Included:

1 x M5 STACK ESP32 with PSRAM OV2640 Fisheye Camera Module
