Description:

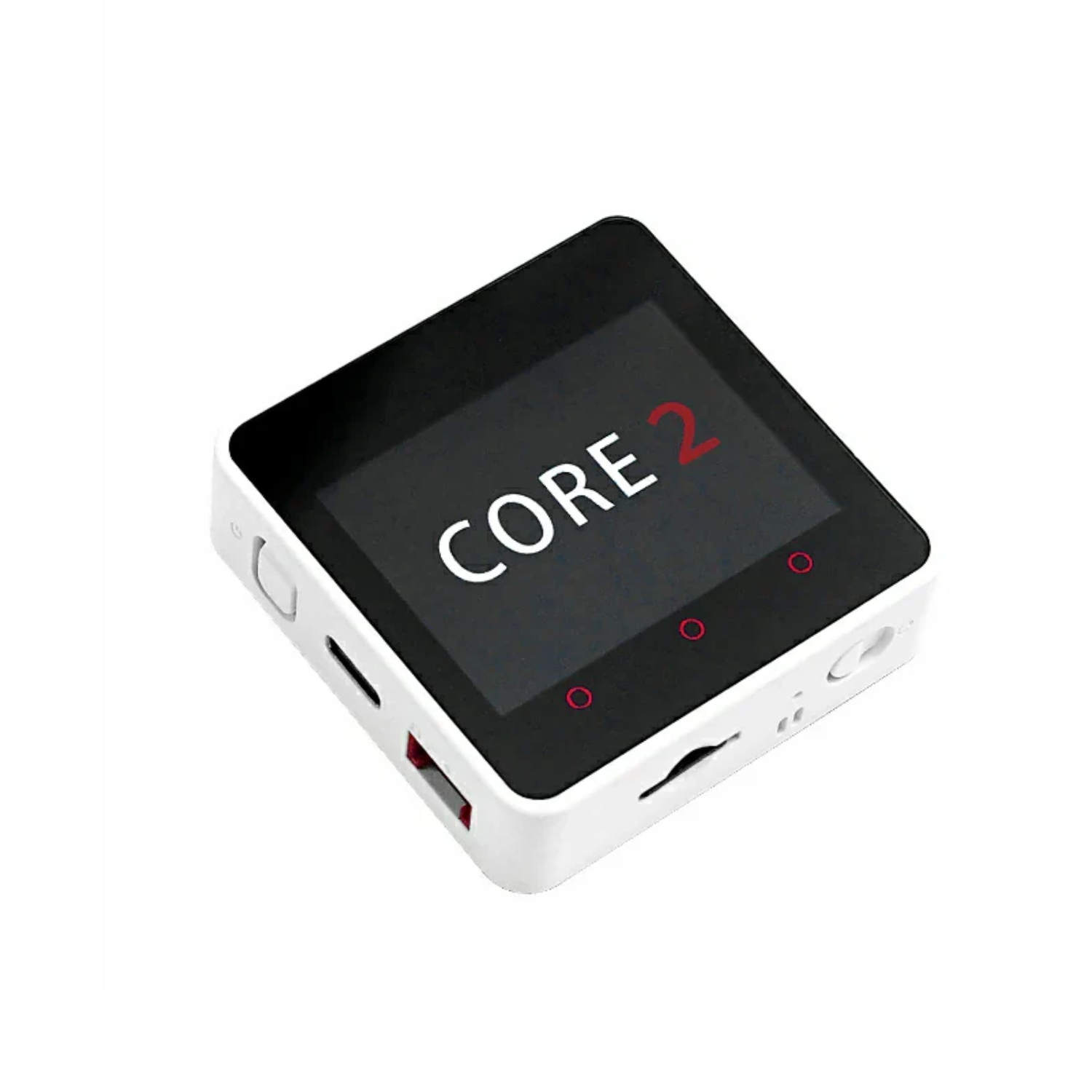

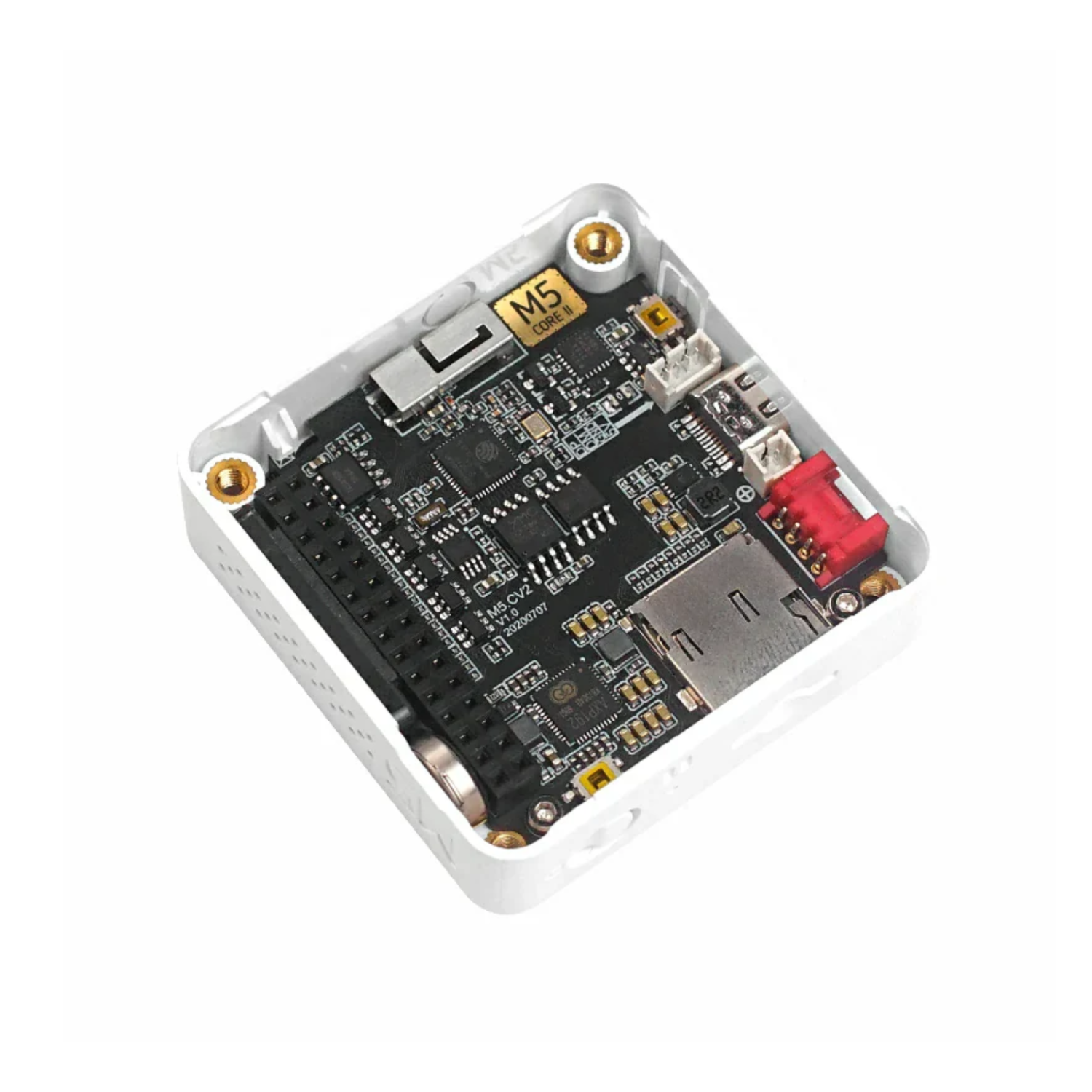

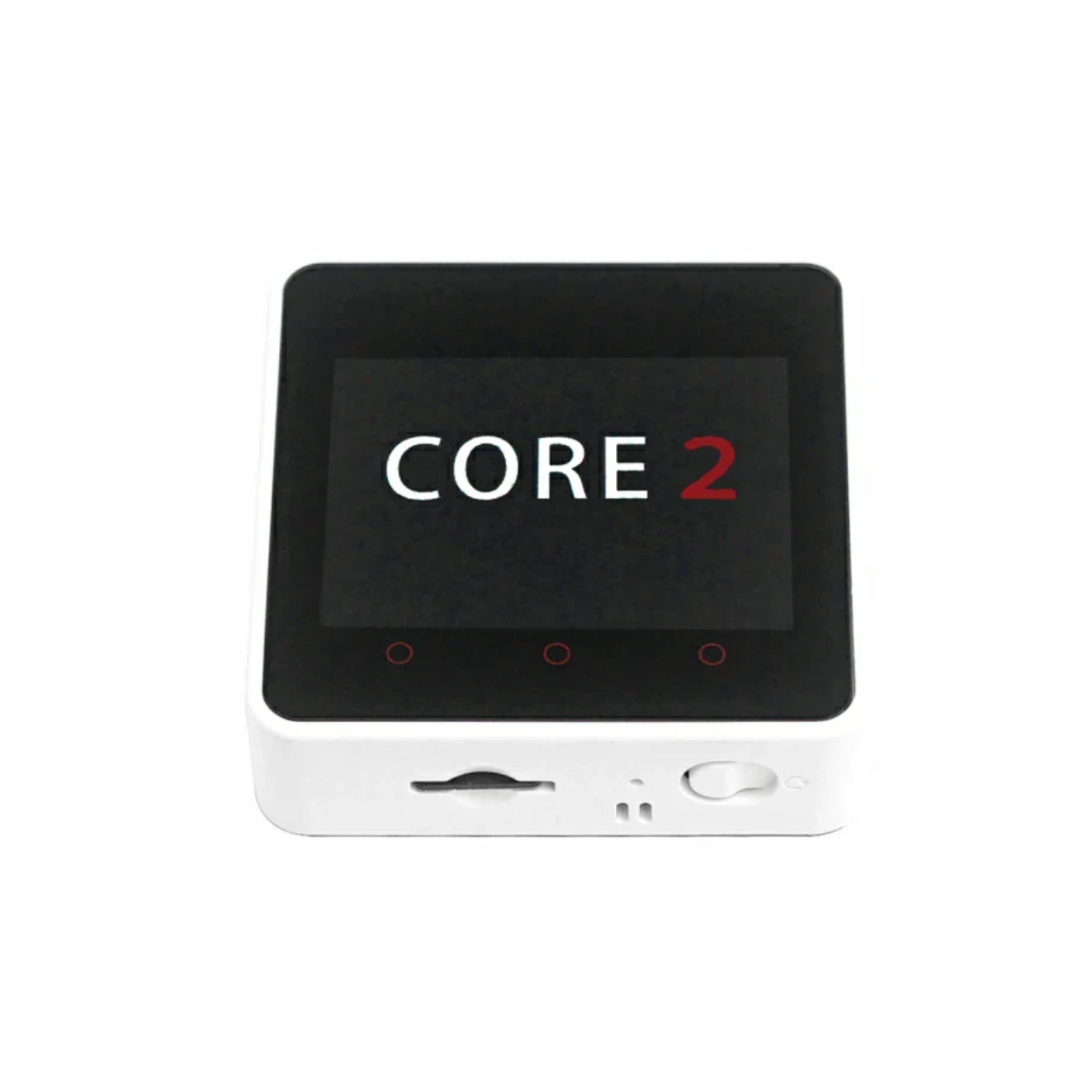

Core2 is the second generation main unit in the M5Stack development kit series, further enhancing the functionality of the original first-generation main unit with more comprehensive hardware features. The core controller Core2 is equipped with ESP32-D0WDQ6-V3, featuring two independently controllable Xtensa® 32-bit LX6 processors with a main frequency of up to 240 MHz, supporting Wi-Fi functionality. It has onboard 16MB Flash and 8MB PSRAM, and programs can be downloaded via the USB Type-C interface. Its powerful configuration meets the resource demands of complex applications. The front is equipped with a 2.0-inch integrated capacitive touch screen, providing users with a smoother human-computer interaction experience.

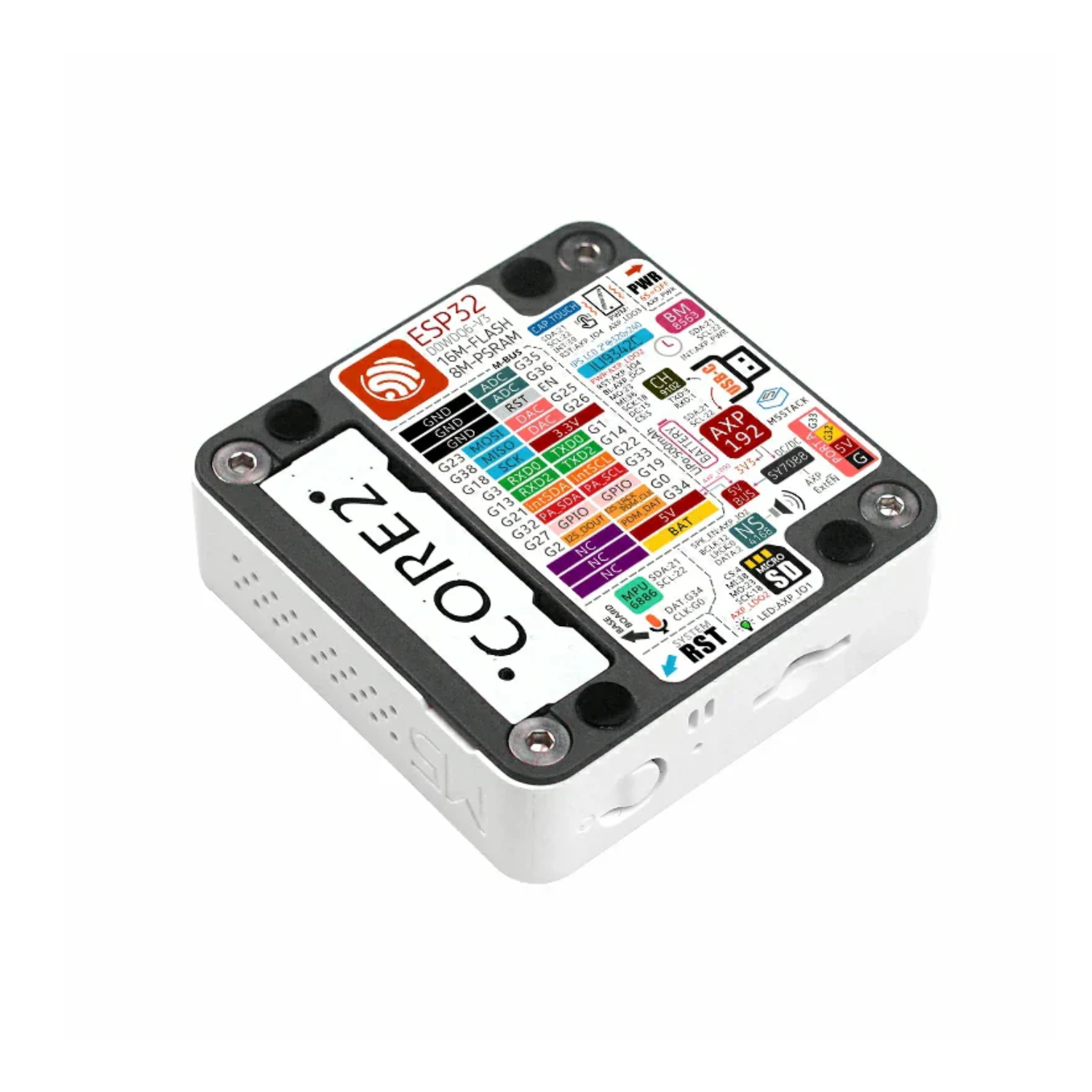

The body has a built-in vibration motor, providing haptic feedback and vibration alert functions. The built-in RTC module provides precise timing functionality. The power section is equipped with an AXP192 power management chip that effectively controls the power consumption of the body, with a built-in green power indicator light. The body also includes a microSD slot and a speaker. To ensure higher-quality sound effects, it uses a power amplifier chip with an I2S digital audio interface, effectively preventing signal distortion. The left side and bottom of the body have independent power and reset (RST) buttons, and the three dots on the front of the screen are part of the touch screen, which can be programmed to map hot zones as three virtual buttons. The back of the body integrates a small expansion board with a 6-axis IMU sensor and a microphone.

Specifications:

  • SoC: ESP32-D0WDQ6-V3 @ Dual-core processor, 240MHz main frequency
  • DMIPS: 600
  • SRAM: 520KB
  • PSRAM: 8MB
  • Flash: 16MB
  • Wi-Fi: 2.4 GHz Wi-Fi
  • Input Voltage: 5V@500mA
  • Host Interface: USB Type-C x 1, GROVE (I2C+I/O+UART) x 1
  • LED: Green power indicator LED
  • Button: Power button, RST button, screen virtual buttons x 3
  • Vibration Alert: Vibration motor
  • IPS LCD Screen: 2.0"@320 x 240 ILI9342C
  • Capacitive Touch IC: FT6336U
  • Speaker Amplifier: NS4168
  • Microphone: SPM1423
  • I2S Amplifier: NS4168
  • IMU: MPU6886
  • RTC: BM8563
  • PMU: AXP192
  • USB Chip: CP2104/CH9102F (two chip versions, no functional or usage differences)
  • DC-DC Boost: SY7088
  • Lithium Battery: 500mAh@3.7V
  • Charging Parameters: Charging current: 0.219A
    Fully charged current (powered off): 0.055A
    Fully charged current (powered on): 0.147A
  • Antenna: 2.4G 3D antenna
  • Operating Temperature: 0 ~ 60°C
  • Base Screw Spec: Hex socket countersunk head M3
  • Reserved Internal PCB Ports: Battery port (Spec: 1.25mm-2P) USB cable port (Spec: 1.25mm-4P)

Features:

  • Developed based on ESP32, supports WiFi
  • 16MB Flash, 8MB PSRAM
  • Built-in speaker, power indicator light, vibration motor, RTC, I2S amplifier, capacitive touch screen, power button, reset button
  • TF card slot (supports up to 16GB)
  • Built-in lithium battery with power management chip
  • Independent small board with built-in 6-axis IMU, PDM microphone
  • M5-Bus socket
  • Development Platform
    • UiFlow1
    • UiFlow2
    • Arduino IDE
    • ESP-IDF
    • PlatformIO

Applications

  • Internet of Things terminal controller
  • Stem education product
  • DIY creation
  • Smart home equipment

Package Included:

  • 1 x M5Stack Core2
  • 1 x Type-C USB
