M5Stack ATOM Matrix ESP32 Dev Kit With RGB LED Matrix, WiFi & Bluetooth IoT Board

M5Stack ATOM Matrix ESP32 Dev Kit With RGB LED Matrix, WiFi & Bluetooth IoT Board

In stock

Rs. 1,209.00
Rs. 1,209.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

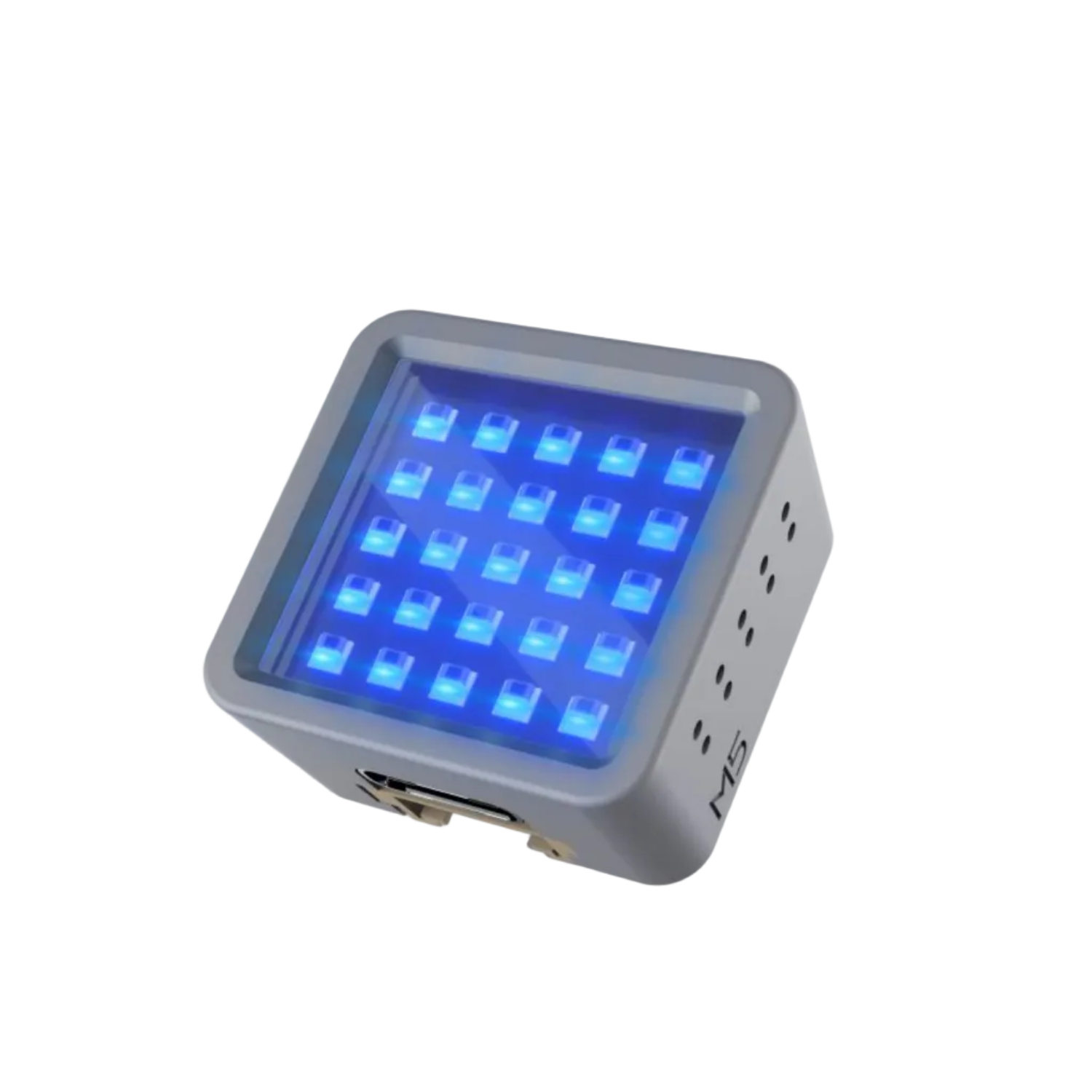

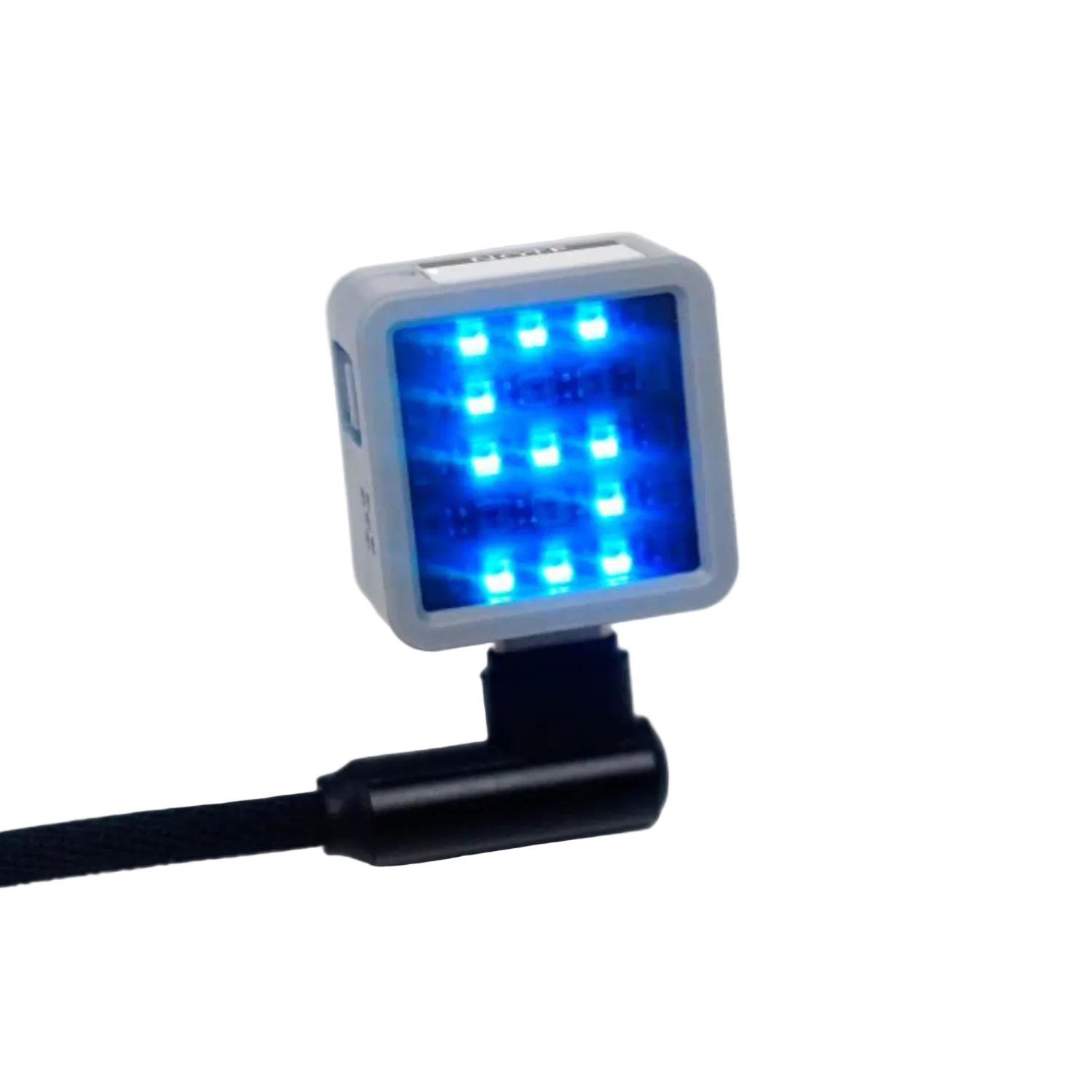

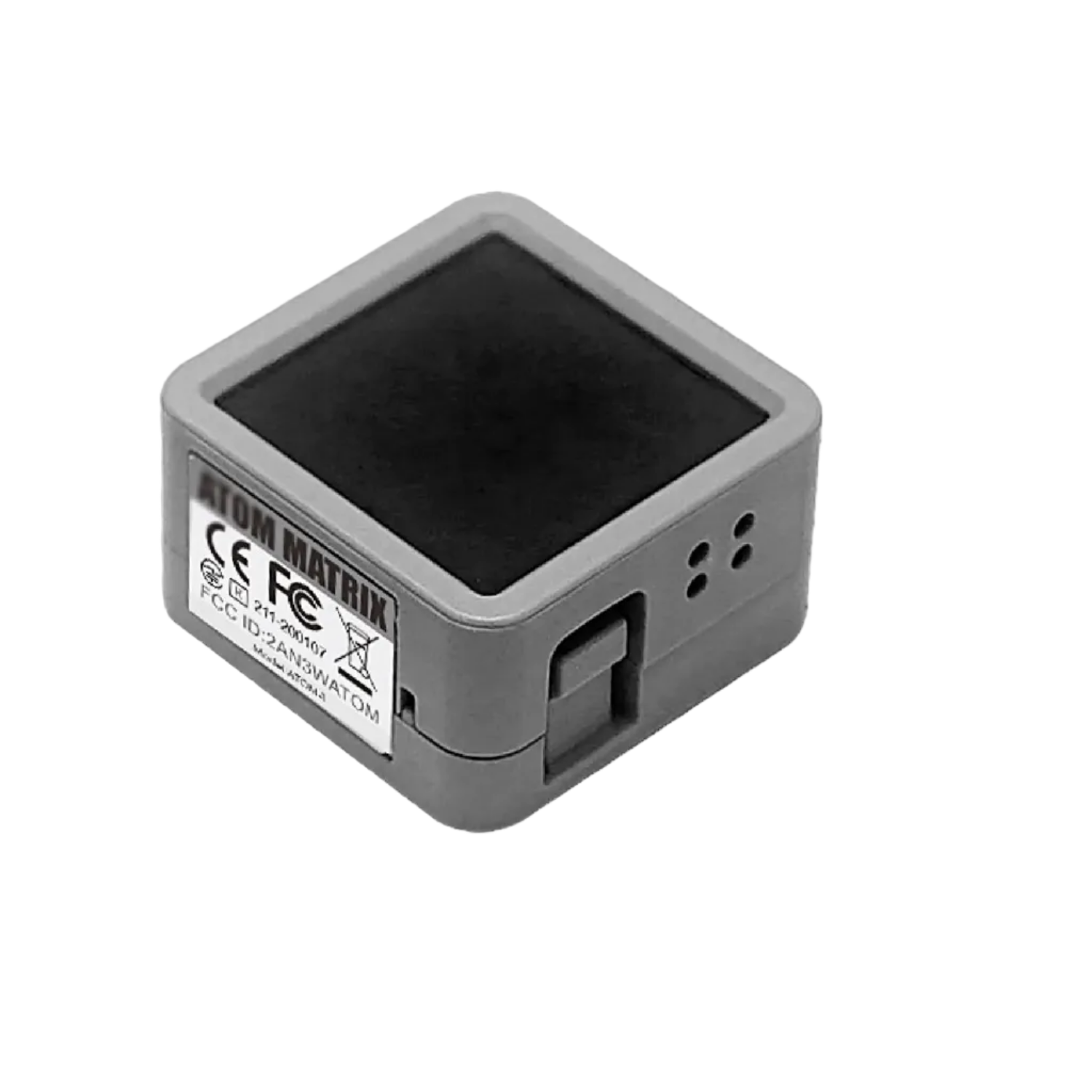

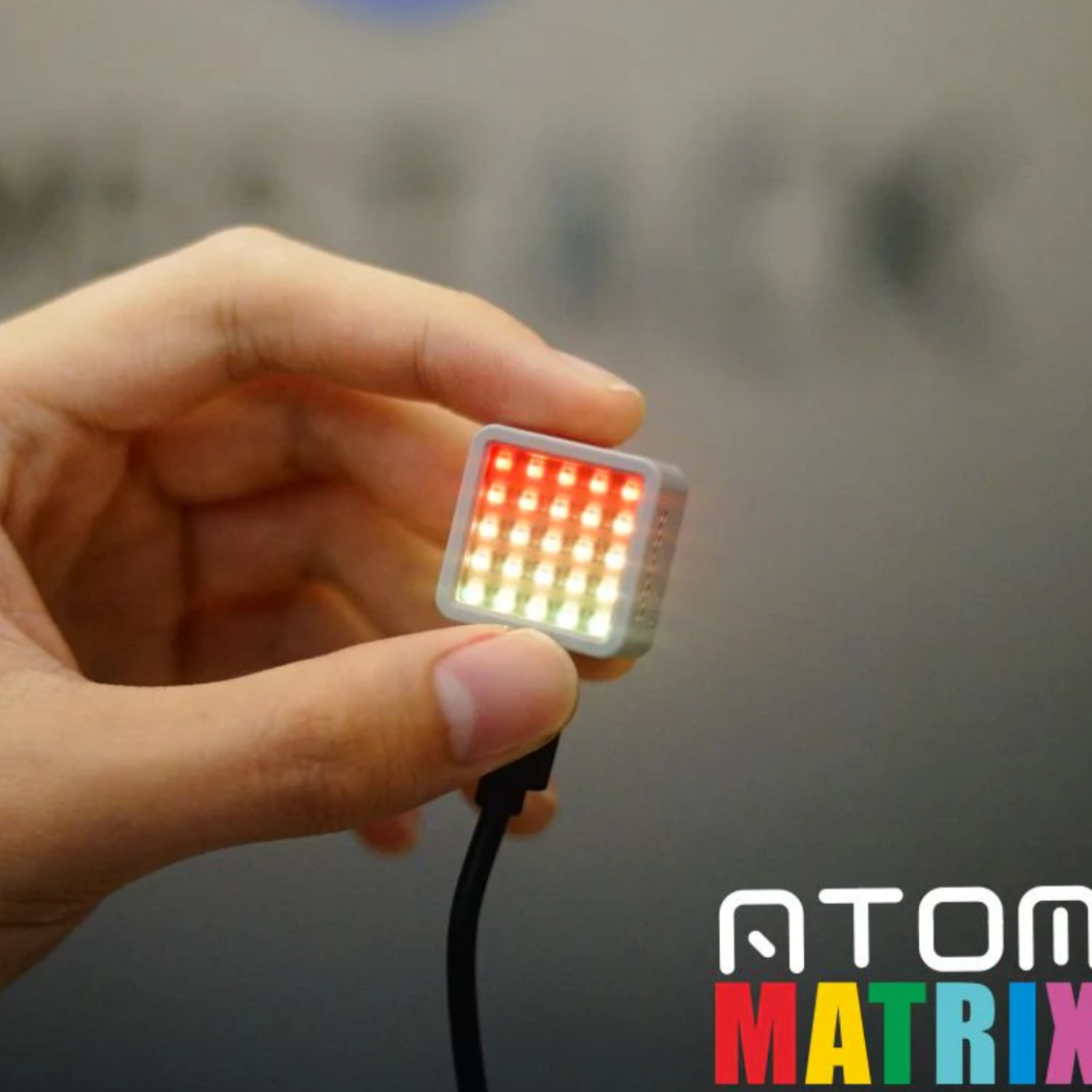

Atom-Matrix is an ultra-compact development board in the M5Stack series, measuring only 24.0 x 24.0 mm. It offers additional GPIOs for user customization and is ideal for embedded smart-hardware projects. Powered by the ESP32-PICO-D4 with an integrated Wi-Fi module and 4 MB SPI flash, the board carries an IR transmitter, a 5 × 5 RGB LED matrix, a built-in IMU (MPU6886), and a programmable button hidden beneath the Neo-LED matrix. A USB Type-C port enables quick program upload/download, and a HY2.0-4P connector is provided for peripheral expansion. An M2 mounting hole on the back allows secure installation.

Specifications:

  • SOC: ESP32-PICO-D4@Dual-core processor, 240MHz
  • DMIPS: 600
  • SRAM: 520KB
  • Flash: 4MB
  • Wi-Fi: 2.4 GHz Wi-Fi
  • Input Voltage: 5 V @ 500 mA

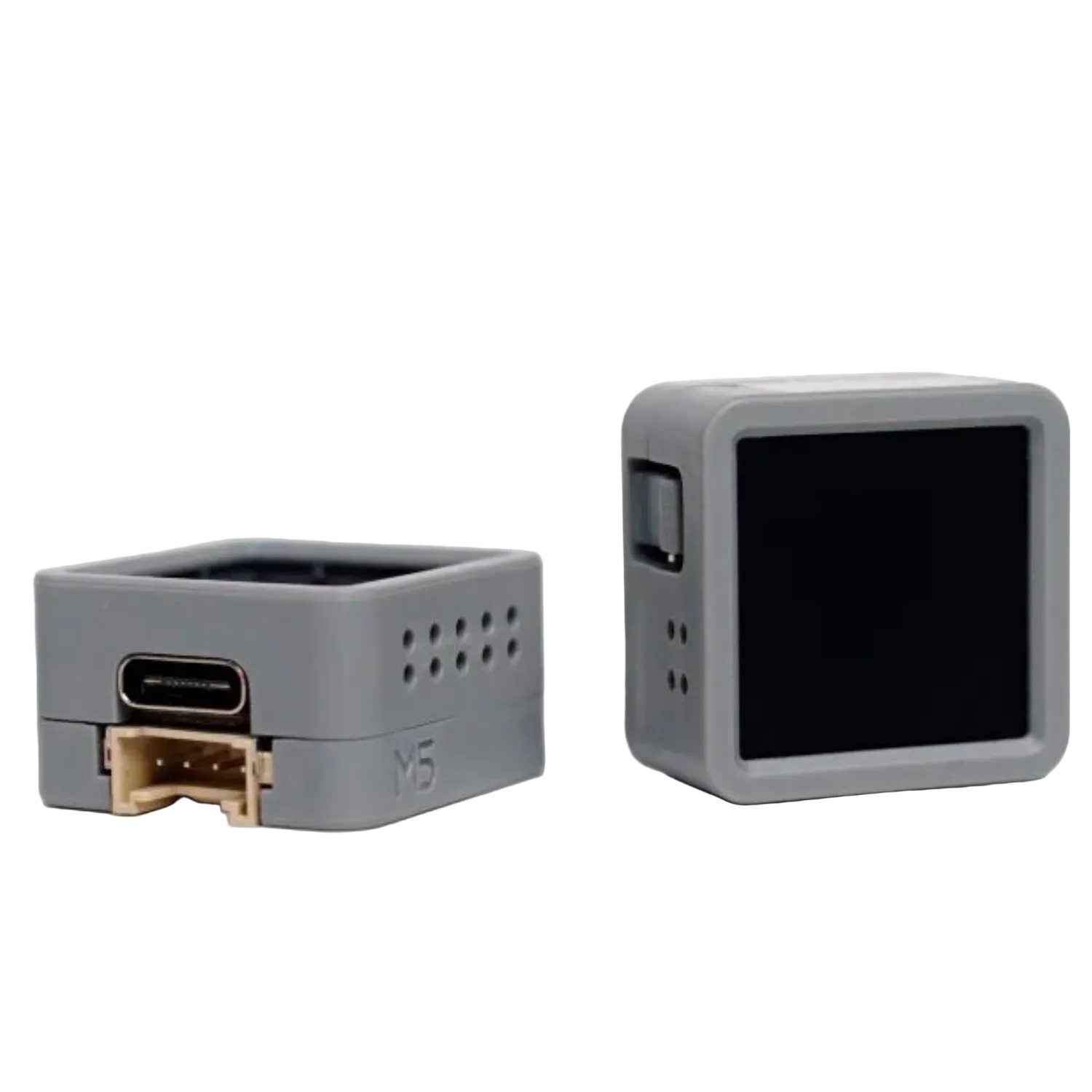

  • Host Interface: USB Type-C × 1, GROVE (I2C + I/O + UART) × 1

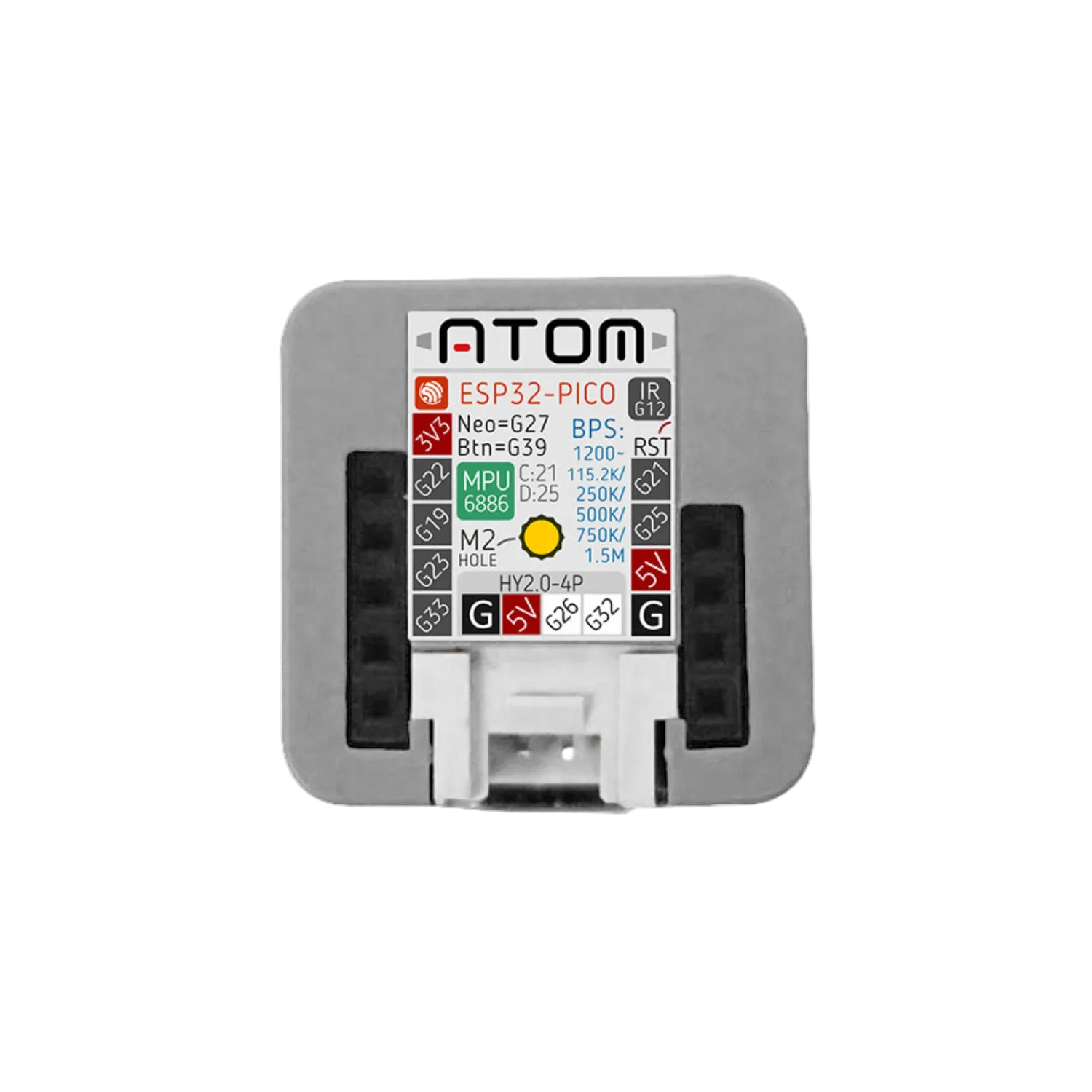

  • PINs: G19, G21, G22, G23, G25, G33
  • RGB LED: WS2812C 2020 × 25
  • MEMS: MPU6886 (I2C Address: 0x68)
  • IR: Infrared transmission
  • Button: Programmable button × 1
  • Antenna: 2.4 G 3D antenna
  • Working Temp.: 0 ~ 60 °C
  • Enclosure: Plastic (PC)

Features:

  • ESP32-based development
  • Ultra-compact body
  • Built-in 3-axis gyroscope and 3-axis accelerometer (I2C Address: 0x68)
  • Programmable button
  • RGB LED matrix display
  • Infrared transmission
  • Expandable pins and interfaces
  • Development Platform
    • UiFlow1
    • UiFlow2
    • Arduino IDE
    • ESP-IDF
    • PlatformIO

Package Included:

1 x M5Stack ATOM Matrix ESP32 Dev Kit
