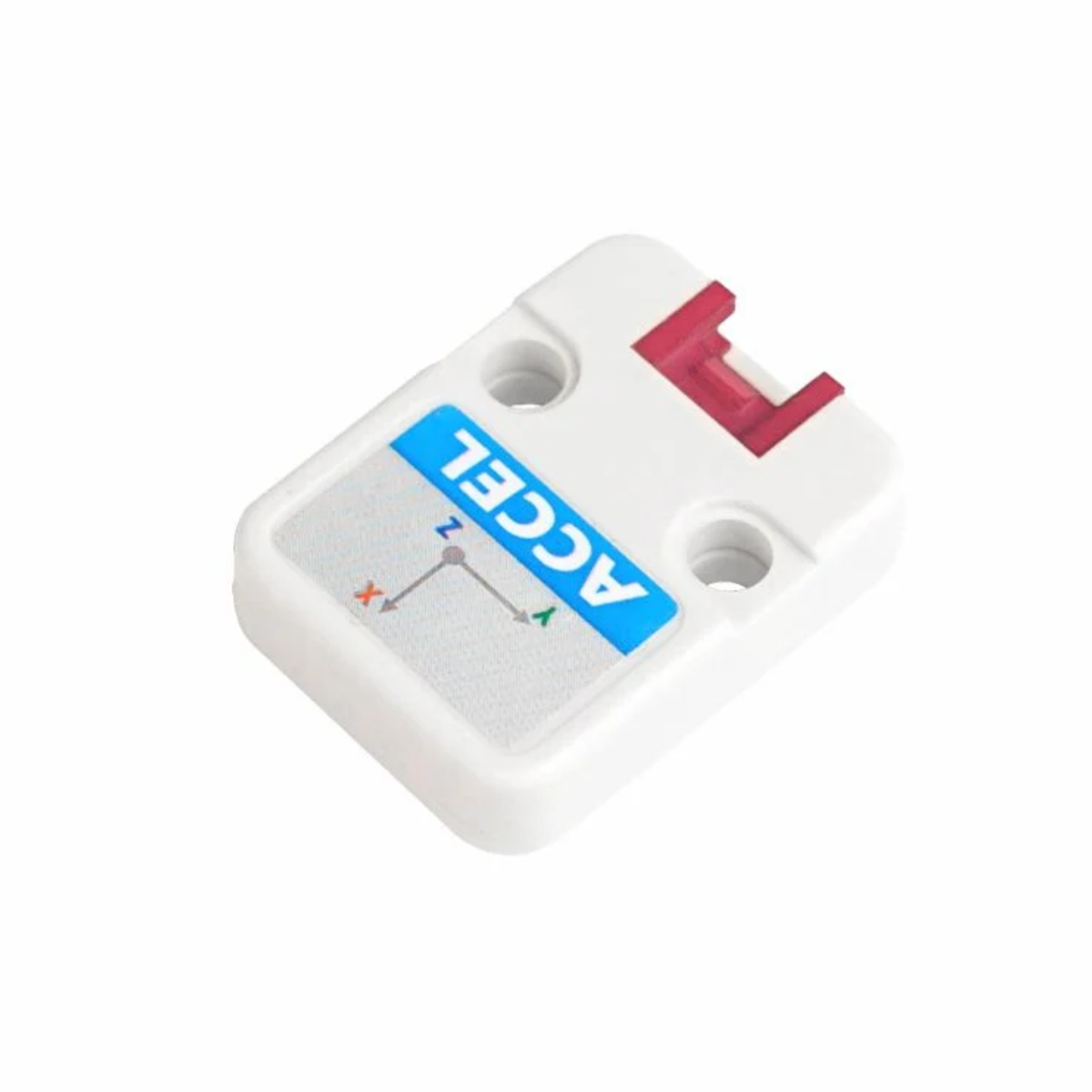

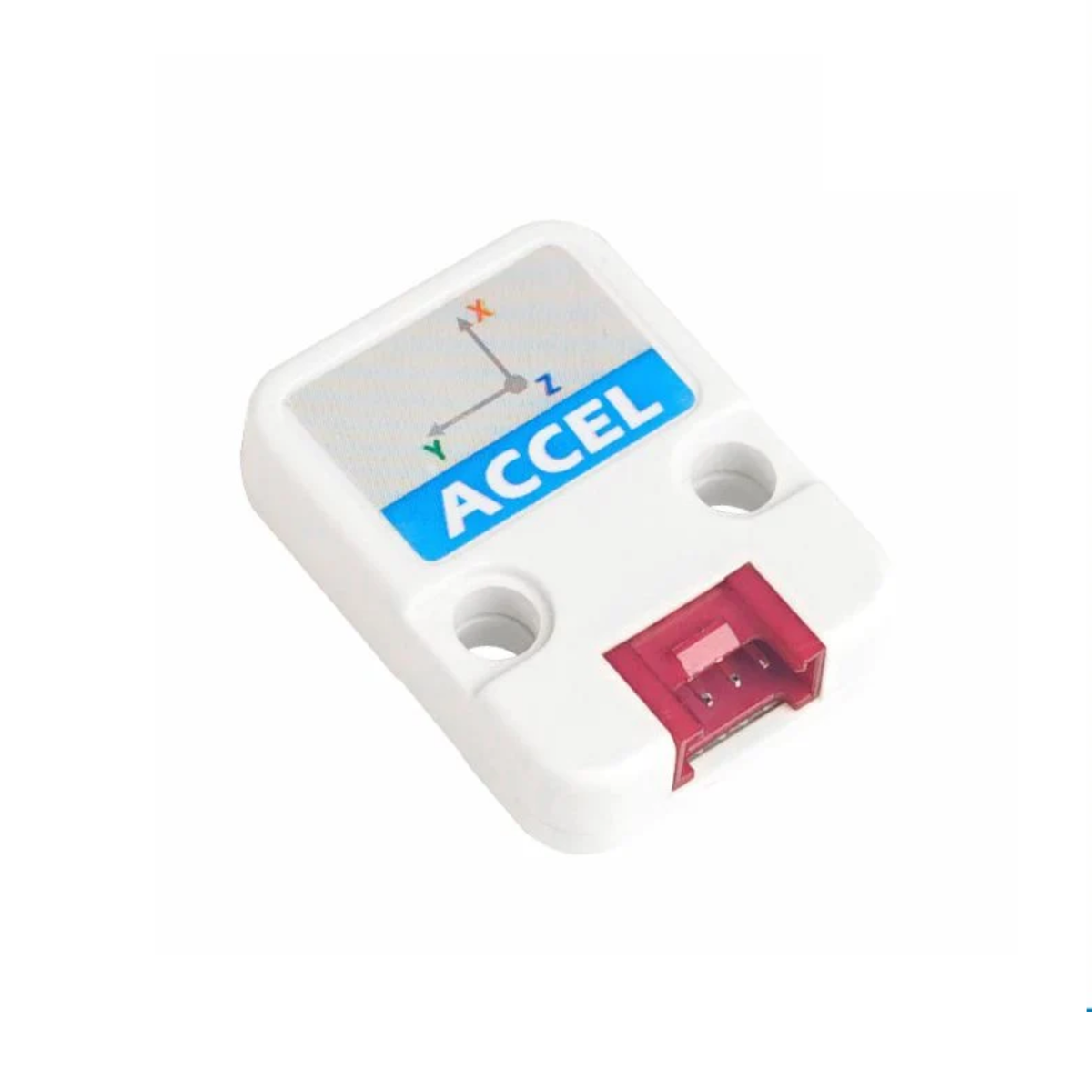

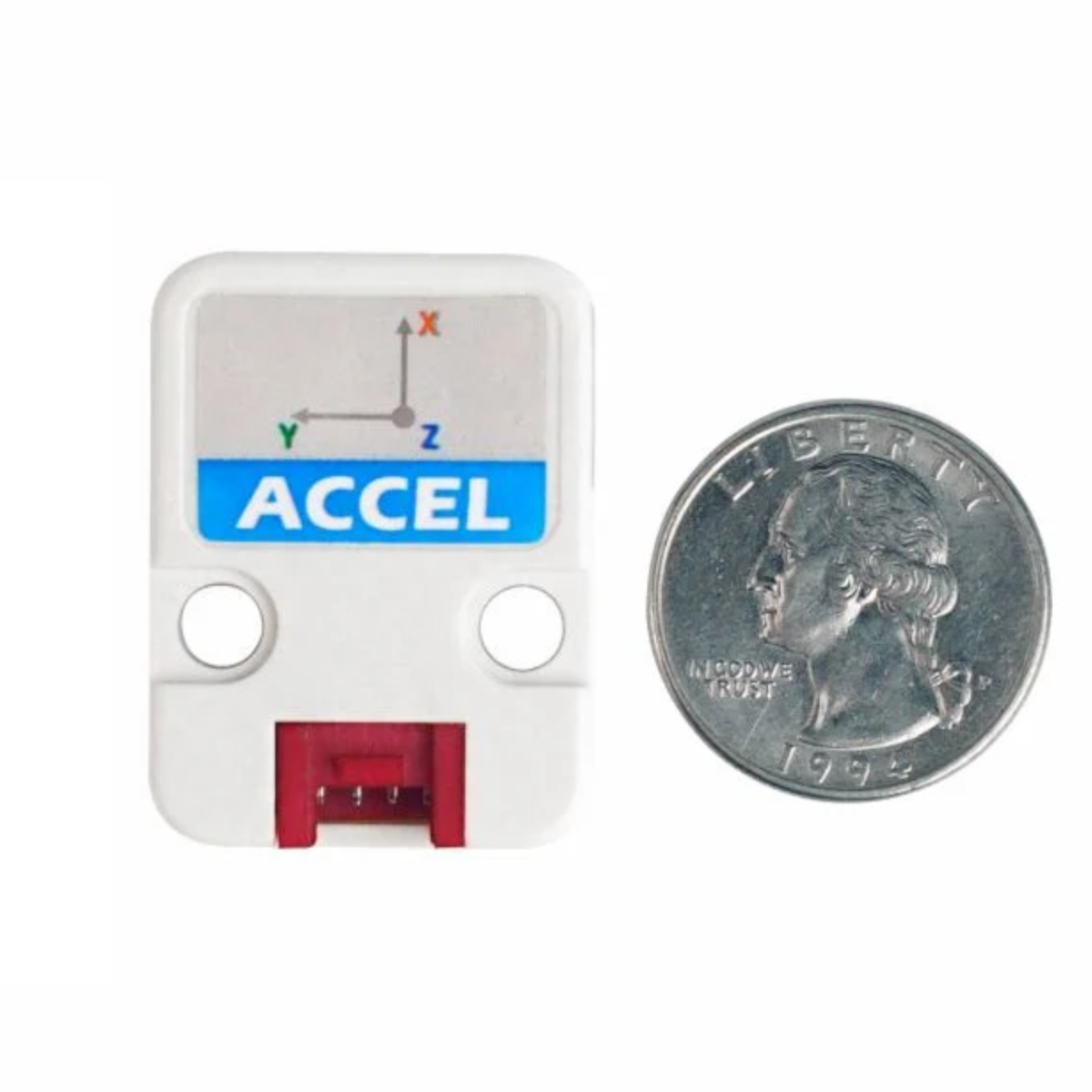

M5Stack 3-Axis Digital Accelerometer Unit For Motion Sensing - RS3595

M5Stack 3-Axis Digital Accelerometer Unit For Motion Sensing - RS3595

RS3595

In stock

Rs. 499.00
Rs. 499.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The M5Stack 3-Axis Digital Accelerometer Unit is equipped with the ADXL345 sensor to measure acceleration along the X, Y, and Z axes. It supports a measurement range of up to ±16 g with 13-bit resolution and provides 16-bit two’s complement digital output through an I2C interface with a default address of 0x53. The sensor detects static acceleration, such as gravity, and dynamic acceleration caused by movement or vibration, making it useful for tilt detection and motion monitoring. Ideal for DIY electronics, embedded systems, and microcontroller-based projects, this accelerometer unit offers a practical solution for applications requiring three-axis acceleration measurement.

Specifications:

  • Item Type: Accelerometer
  • Operating Voltage: 5VDC
  • Interface: I2C
  • Measurement Range: ±16 g
  • Resolution: 13-bit
  • Operating Current: 23 µA
  • Operating Temperature: -40°C to +85°C

Features:

  • Low power design
  • Single tap/double tap detection
  • Activity/inactivity monitoring
  • Free-fall detection
  • I2C digital interface

Package Included:

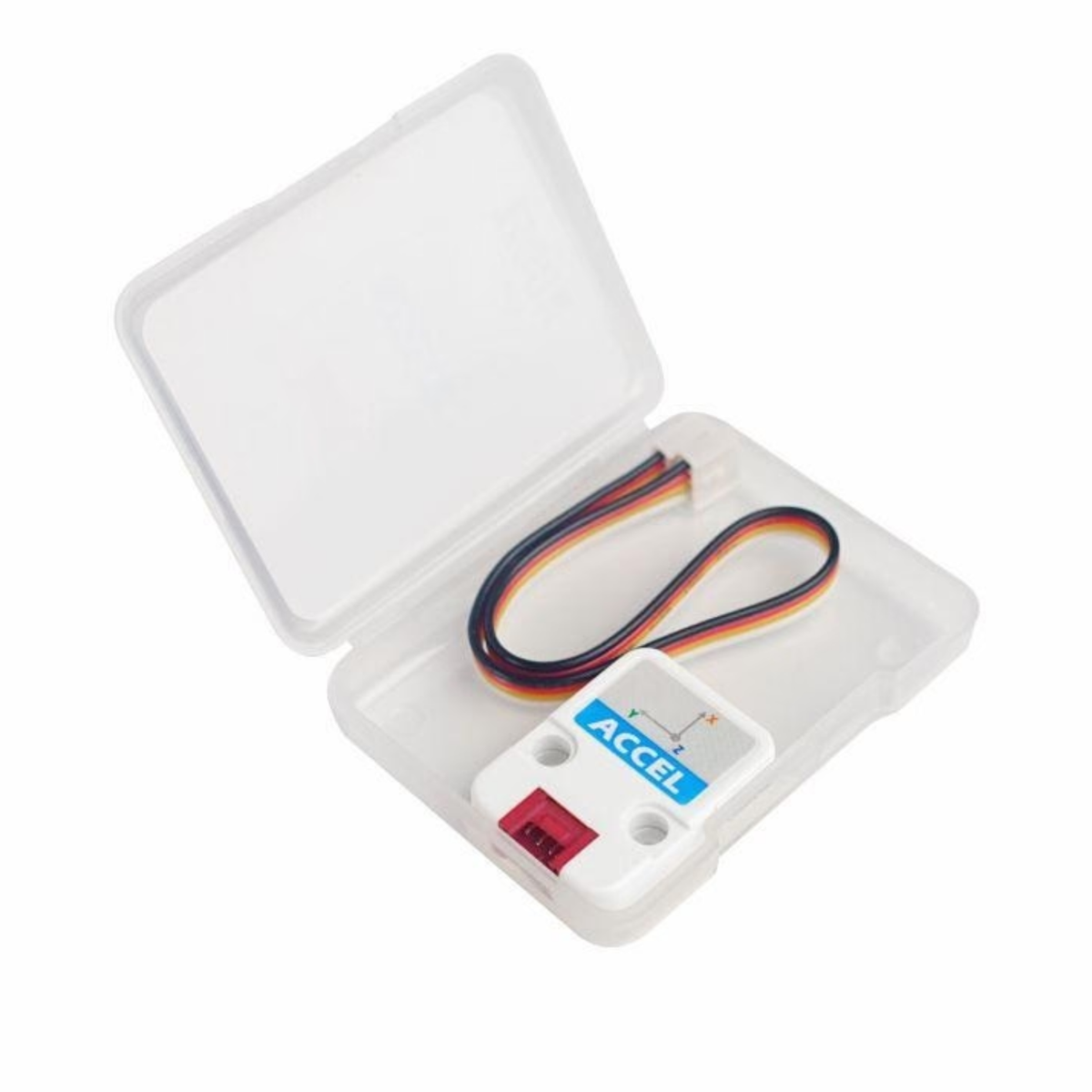

  • 1 x 3-Axis Digital Accelerometer Unit
  • 1 x Grove Cable
