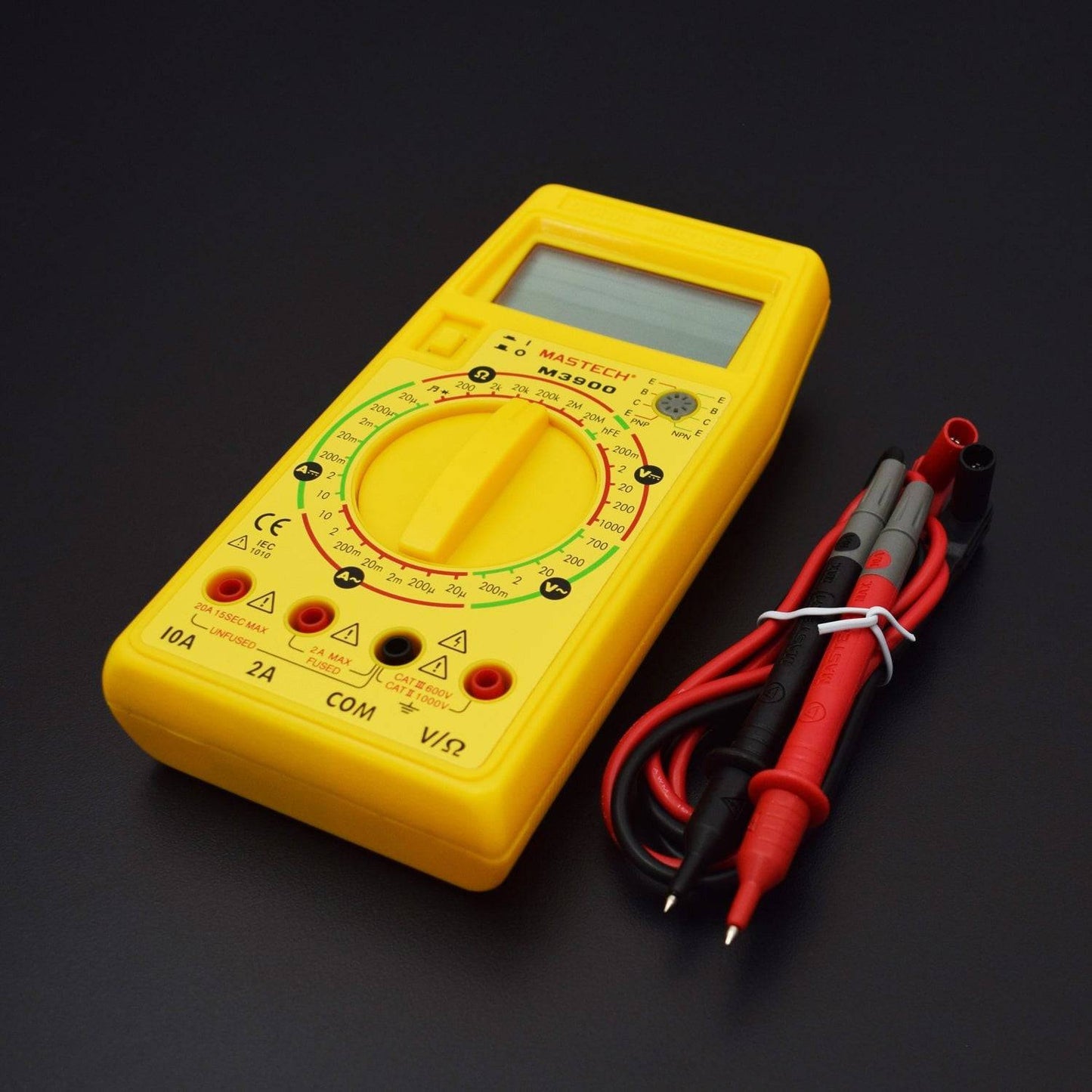

M3900 Digital Multimeter
This meter is
- compact
- rugged
- battery operated
- handheld 3 1/2 digit multi-meter
- DC voltage: 200mV/2/20/200/1000V0.5%
- AC voltage: 200mV1.2%, 2/20/200V/700V
- A portable, general purpose digital volt meter multimeter to test wires, batteries, cells, fuses and other electrical components
- A safe and accurate tool for troubleshooting problems in automotive and household settings
- Includes large, easy-to-read LCD screen and accurately measures resistance, current and voltage with maximum reading up to 1999
- Red and black leads to test electrical system components including diodes, transistors, wires, fuses
- Built-in overload protector keeps the meter from any possible damage
- Digital AC/DC millimeter with diode and transistor test function
- Checks continuity of wires, fuses and electrical system components
- Built-in overload protector keeps the meter from damage
- Automatic low battery indicator
- Maximum reading 1999
Description
- DC and AC voltage measurement
- DC and AC current measurement
- Resistance measurement
- Diode measurement
- Audible continuity test
- Transistor hFE measurement
|
Specification
|
Range |
Accuracy |
DC Voltage |
200mV/2V/20V/200V |
±0.5% |
AC Voltage |
200mV 2V/20V/200V 700V |
±1.2% ±0.8% ±1.2% |
AC Current |
2mA/20mA/200mA 10A |
±1.8% ±2.0% |
DC Current |
2mA/20mA/200mA 10A |
±1.8% ±2.0% |
|
Resistance
|
200?/2k?/20k?/200k?/2M? |
±0.5% |
20M? |
±1.0% |
|
hFE |
1 ~ 1000 |
|
General |
||
POWER SOURCE |
6F22 9V Battery |
|
DISPLAY |
26 x 60 mm LCD |
|
WEIGHT |
340g |
|
SIZE |
88 x 172 x 36mm |
|
