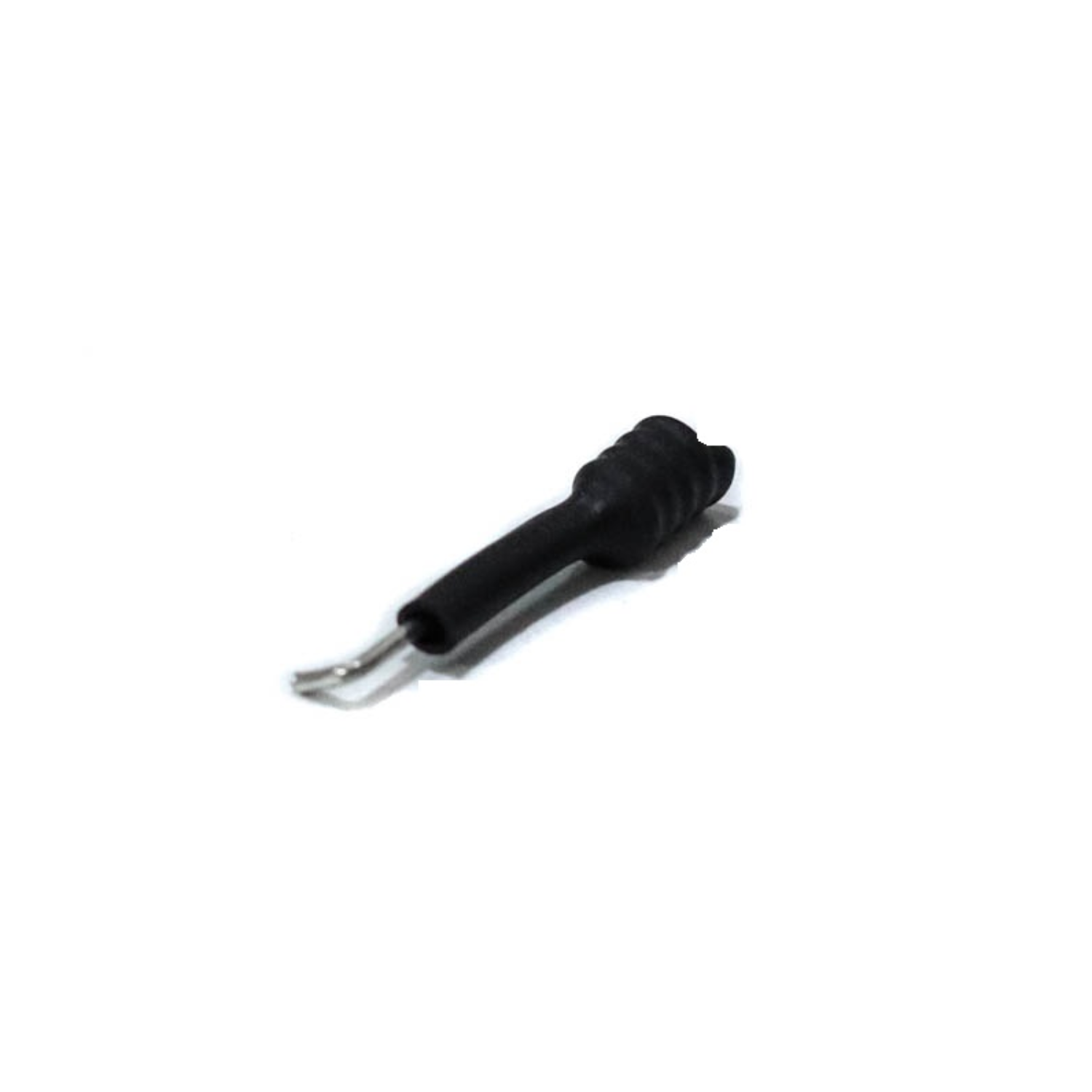

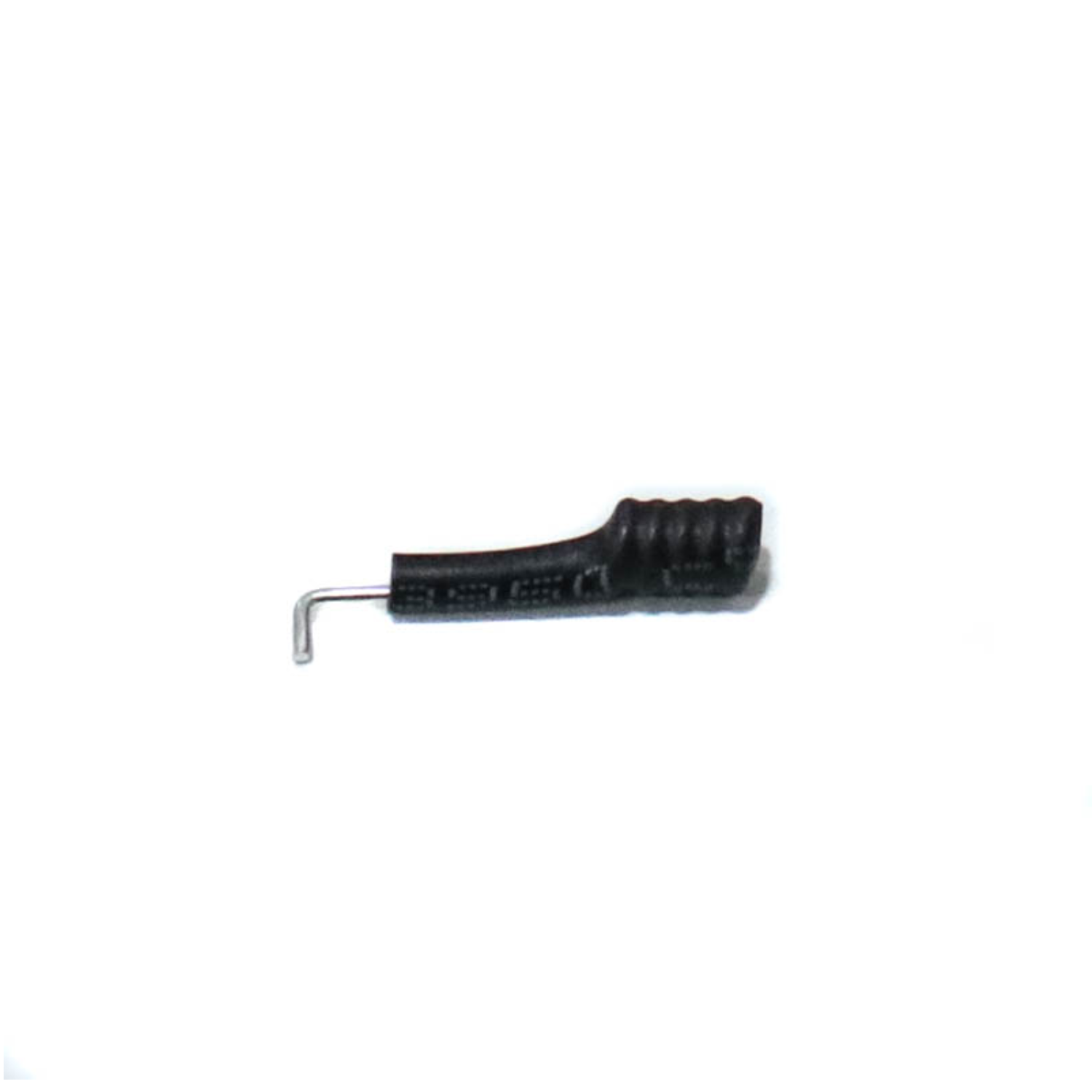

LWC-2400-HELIX-TIN-RA-HSS-045 2.4 GHz Helical Antenna 2400 MHz Helix Antenna For Right-Angle Connector - RS3674

Descriptions

The helical antenna, characterized by its distinctive structure of one or more conducting wires wound into a helix, serves as a fundamental element in telecommunications. This particular helical antenna, crafted from a single helical wire, has found widespread application in communication systems.

Operating within the frequency range of 2400 – 2483 MHz and offering a gain of 1.5dBi (performance dependent on the PCB ground plane), this antenna presents a compelling solution where low cost and a compact form factor are paramount. Its simplicity and efficient design make it an attractive choice for various wireless communication needs.

Specifications:

• Item Type: Helix Antenna
• Model Type: Helix Helical
• Frequency: 2400 to 2483MHz
• Gain: 1.8 dB
• VSWR: ≤1.5
• Polarization: Vertical
• Power Handling:10W
• HPBW: H: 3600; V: 300
• Operating Temperature: -10 to 40°C
• Opt. Relative Humidity: 5% ~ 85% RH
• Color: Black

Features:

• Right Angle version available on request
• Tin and Nickel plated for corrosion-free
• Antennas with a rubber sleeve to protect from sparks

Package Included:

1 x  LWC-2400-HELIX-TIN-RA-HSS-045 Antenna
