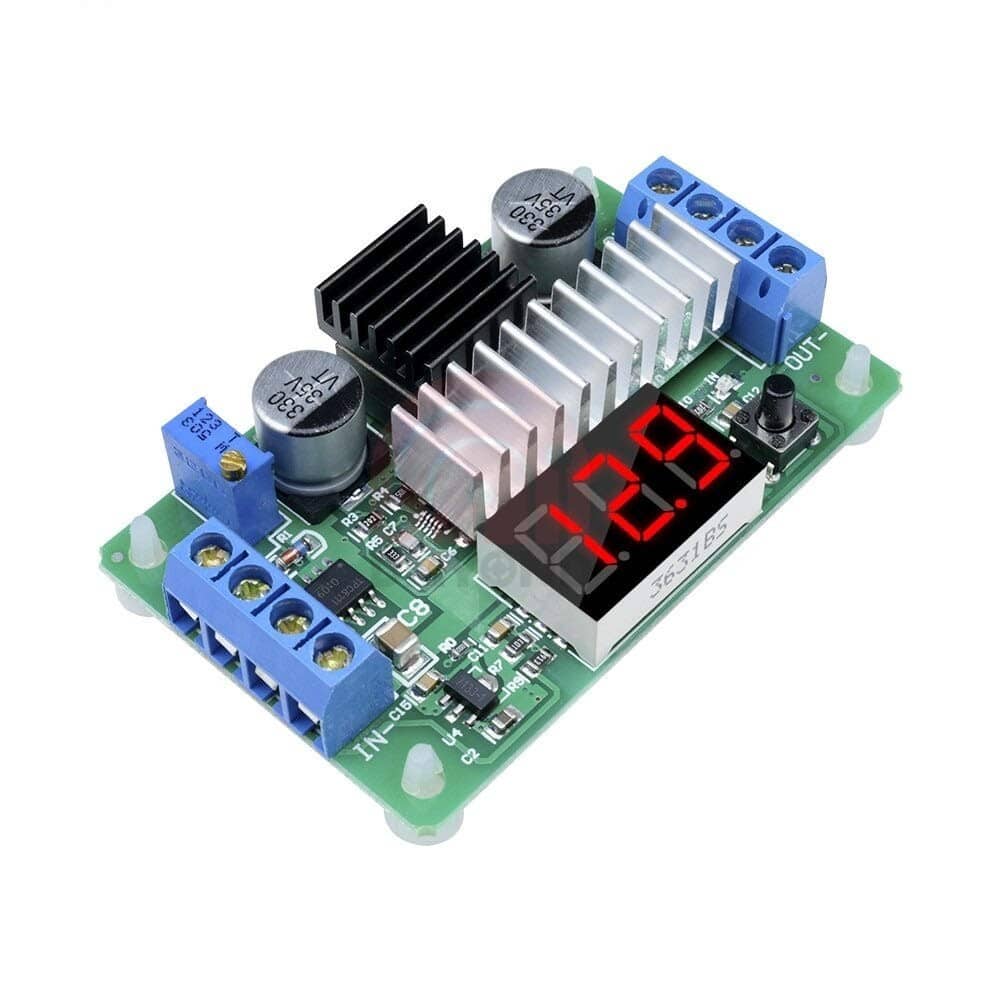

LTC1871 DC 3.5V-30V 100W Boost Converter Board Power Transformer Voltage Regulator 5V/12V Step Up Power Supply Module- RS2516

LTC1871 DC 3.5V-30V 100W Boost Converter Board Power Transformer Voltage Regulator 5V/12V Step Up Power Supply Module- RS2516

RS2516

Low stock: 2 left

Rs. 670.00
Rs. 670.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Input Voltage: 3.5-30V Note: The maximum voltage limit of 30V must be strong to avoid accidental damage
  • Output Voltage: 3.5-30V (boost mode, input must be less than or equal to output voltage)
  • Input Current: 6A 10A maximum output power: 100W
  • Static power consumption: 15ma normal

Description:

This is a LTC1871 DC 3.5V-30V 100W Boost Converter Board Power Transformer Voltage Regulator 5V/12V Step Up Power Supply Module. Input and output voltage can be alternately displayed. Switched on can be freely defined. With a button to turn off the digital control function, reduce power consumption.

Specification:

  • Input Voltage: 3.5-30V Note: The maximum voltage limit of 30V must be strong to avoid accidental damage
  • Output Voltage: 3.5-30V (boost mode, input must be less than or equal to output voltage)
  • Input Current: 6A 10A maximum output power: 100W
  • Static Power Consumption: 15ma normal

Features:

  • The input and output voltage can be displayed alternatively.
  • Ignition can be freely defined.
  • With a button to turn off the digital control function, reduce power consumption.

Working Mode:

  • Output Voltage Mode: The default home screen ** Output voltage mode. * LED indicator turns off
  • Input Voltage Mode: Press the switch once to switch to input voltage mode **. * LED indicator lights
  • Toggle Pattern: Press the input / output voltage switch again toggling the display data 3S (Press again to return to the output voltage display mode)

Operation and Digital Display Description:

  • [0] represents the default the boot display output voltage
  • [1] represents the default boot display input voltage
  • [2] represents the default open to input and output voltage are displayed alternately

Long press the button more than 2S digital tube display more information (in this case the key is released),the module automatically remembers the current state of the default power-on state.

The Digital Tube Close Operation:

Long press button 4s until the digital tube display the contents of the LED is lit, the display section has been closed. Press the button again to restore the display.

Package Included:

1 x LTC1871 DC 3.5V-30V 100W Boost Converter Board Power Transformer Voltage Regulator 5V/12V Step Up Power Supply Module
